    Mark-10 Attachments

    Mark-10 attachments are the grips, hooks, fixtures and adapters designed for Mark-10 force gauges and test stands, covering tension, compression, peel and friction testing across a wide range of sample types. Matching the attachment to the sample is essential for slip-free, on-axis loading.

    Product: AC1004 Product: AC1004

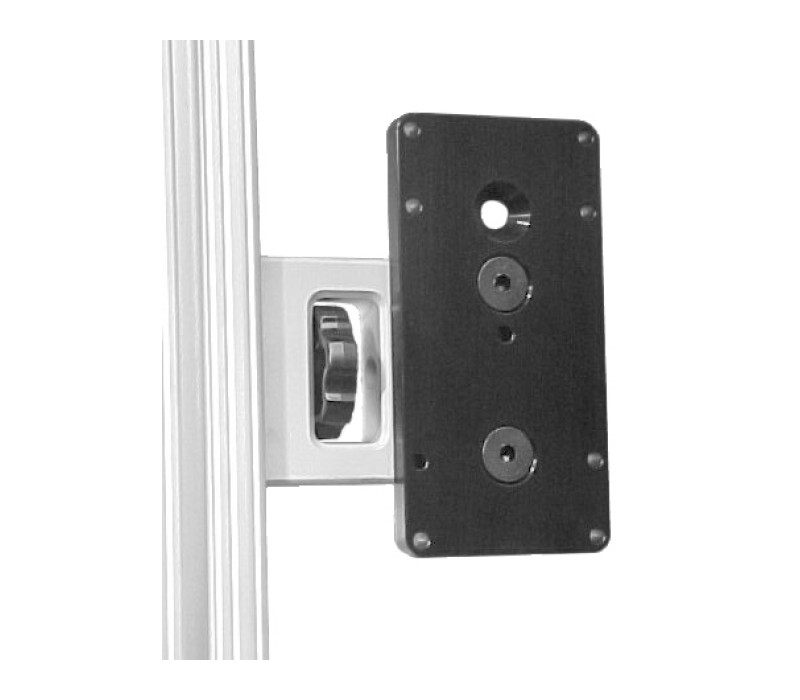

    AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands

    • For mounting a 5i, 3i, or TT03 to any TS-series test stand

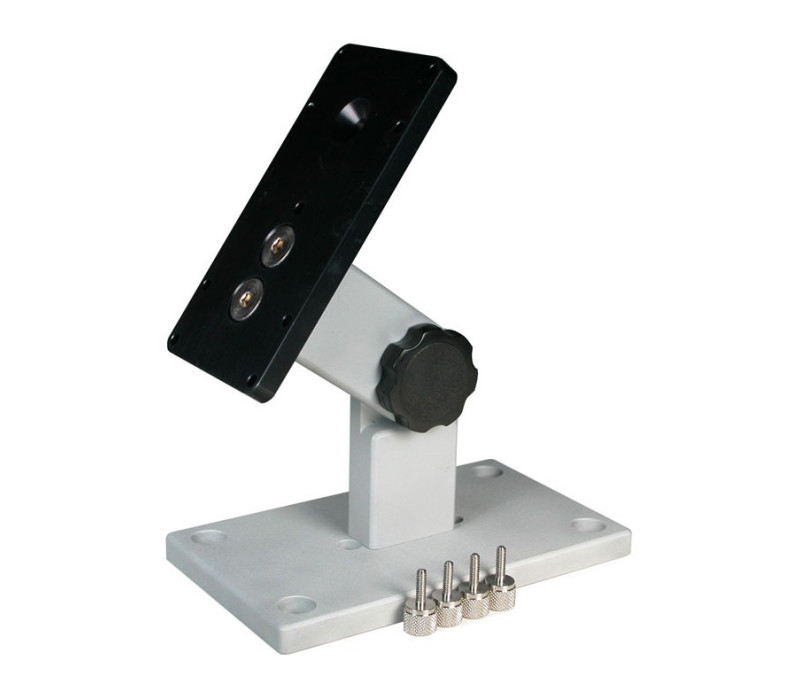

    Product: AC1008 Product: AC1008

    AC1008 Table Top Stand for 5I, 3I or TT03

    • Table Top Stand
    • Suitable for models 3i, 5i and TT03

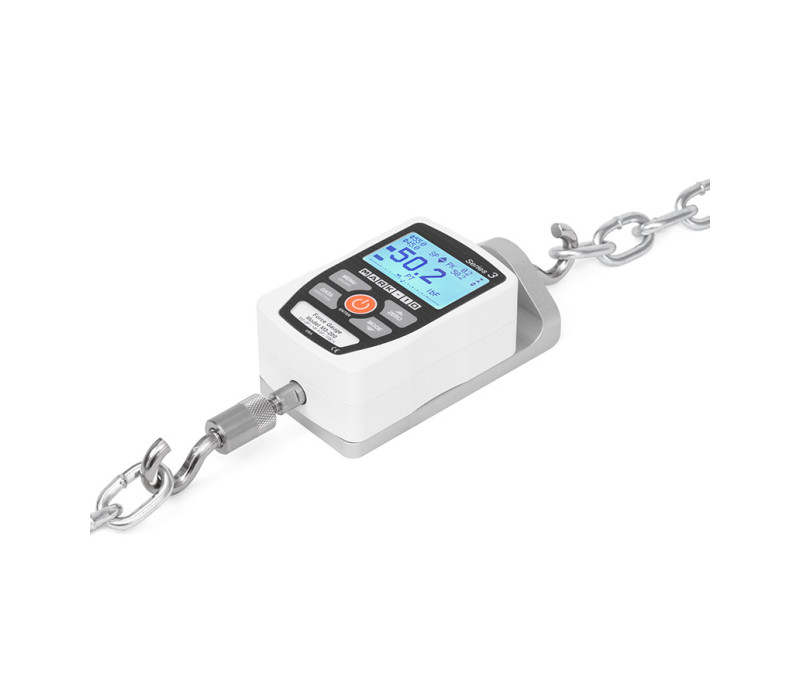

    Product: AC1073 Product: AC1073

    AC1073 Inline Adapters for Force Gauges

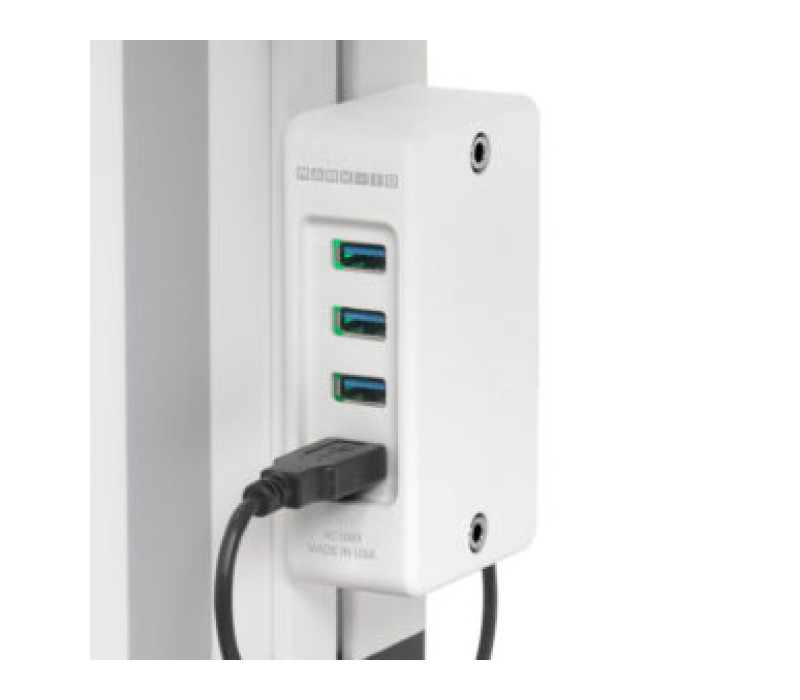

    Product: AC1093 Series-F USB hub Product: AC1093 Series-F USB hub

    AC1093 Series-F USB hub AC1093 USB Hub for Series-F test frames

    • 4 USB-A ports and 1 USB-B port
    • Connects to all Series-F test stands

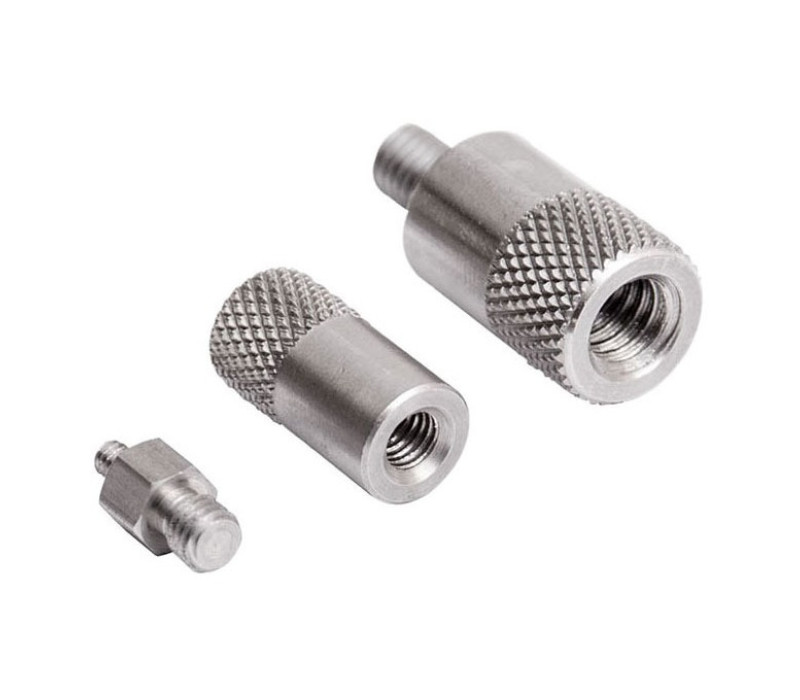

    Product: G Series Product: G Series

    G Series Thread Adapters & Couplings

    • Thread Adapters & Couplings
    • Adapters, Male - Female, Male - Male, different threads available
    • Capacity: 500 N / 1000 N / 2500 N / 5000 N
    Product: G1001 Product: G1001

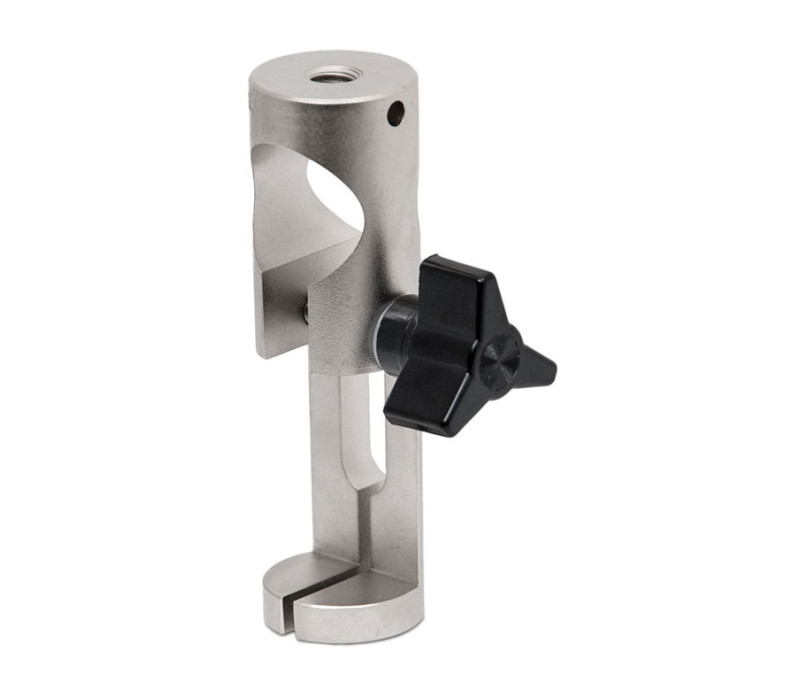

    G1001 Wire Terminal Grips

    • Wire Terminal Grip
    • Pull testing of wire and tube terminals/crimps
    • Capacity: 1000 N (200 lb)

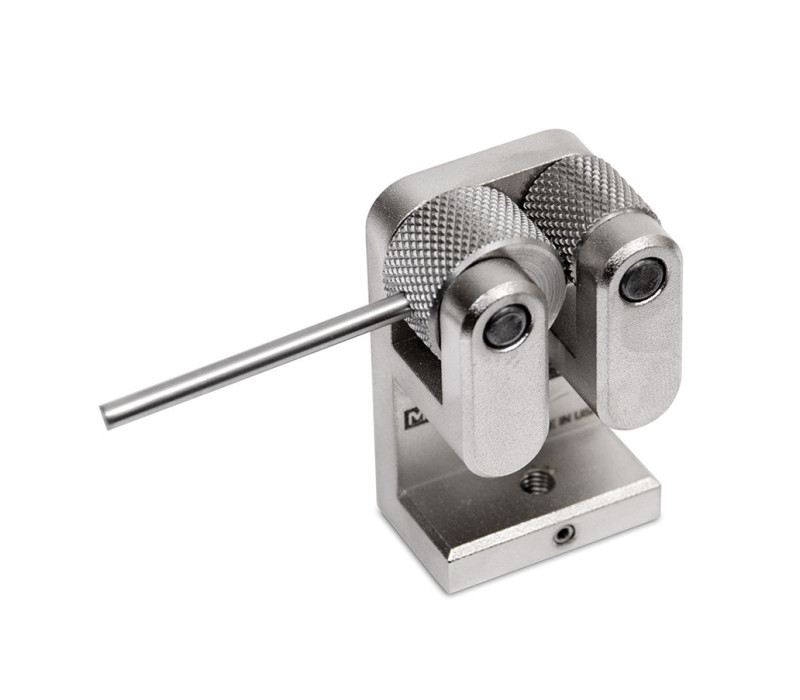

    Product: G1002 Product: G1002

    G1002 Dual Roller Cam Grip

    • Dual Roller Cam Grips
    • Capacity: 1000 N (200 lb)
    • Pull testing of wires, tubes, and other slender samples

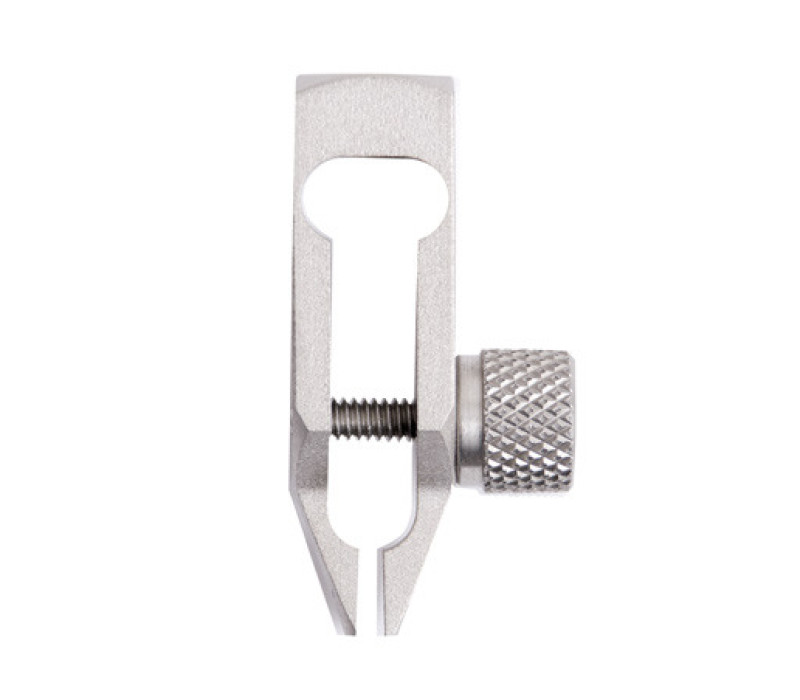

    Product: G1003 Product: G1003

    G1003 Miniature Component Grip

    • Mininature Component Grip
    • Ideal for testing a variety of pull-off tests on small and hard-to-reach parts
    • Capacity: 150 N (30 lb)

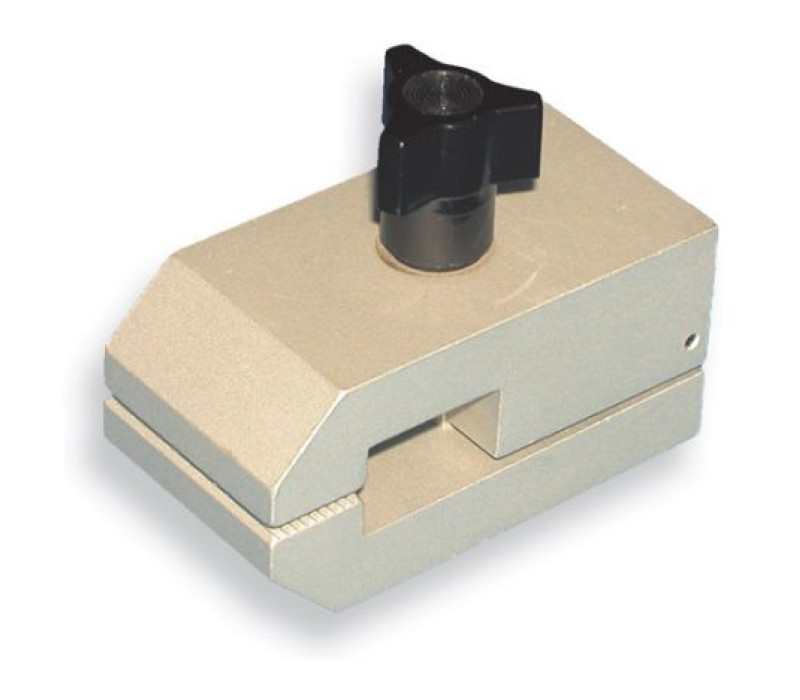

    Product: G1008 Product: G1008

    G1008 and G1015 Paper & Film Grips

    • Film & Paper Grips
    • Tensile testing of film, paper, and other thin materials (1 inch wide)
    • Capacity: 500 N (100 lb)
    Product: G1009 Product: G1009

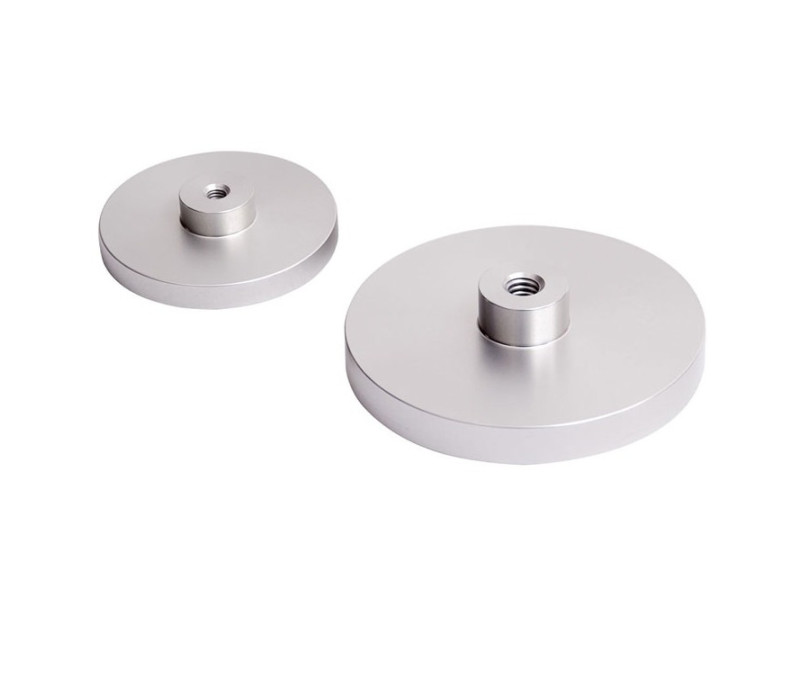

    G1009 Compression Plates

    • Compression Plates
    • Compresses samples during testing
    • Capacity: 1000 N (200 lb) / 2500 N (500 lb)

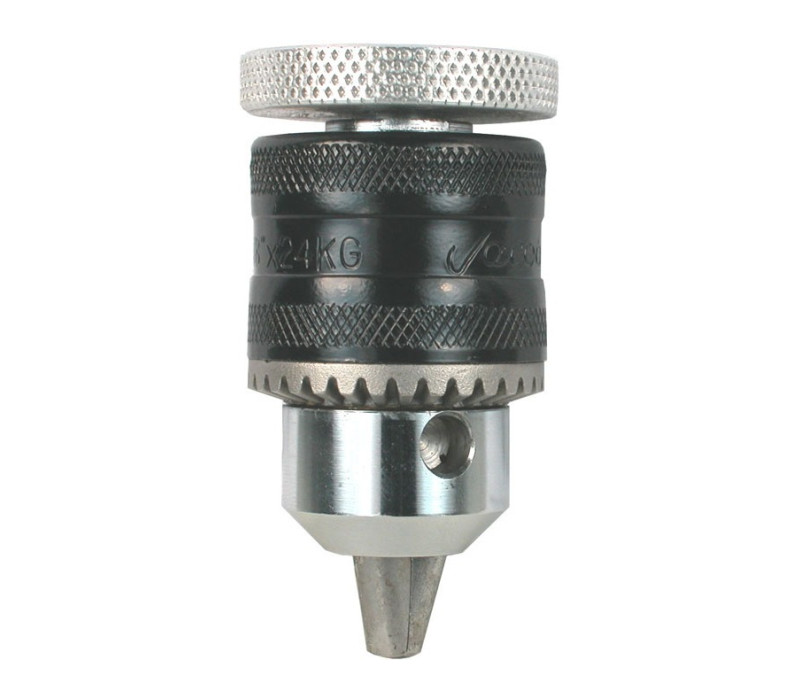

    Product: G1010 Product: G1010

    G1010 Jacobs Chuck Pin Vise

    • Jacobs Chuck Grip (Force)
    • Capacity: 150 N (30 lb)
    • Compatible with Checkline force gauges, load cells, and test stands
    Product: G1011 Product: G1011

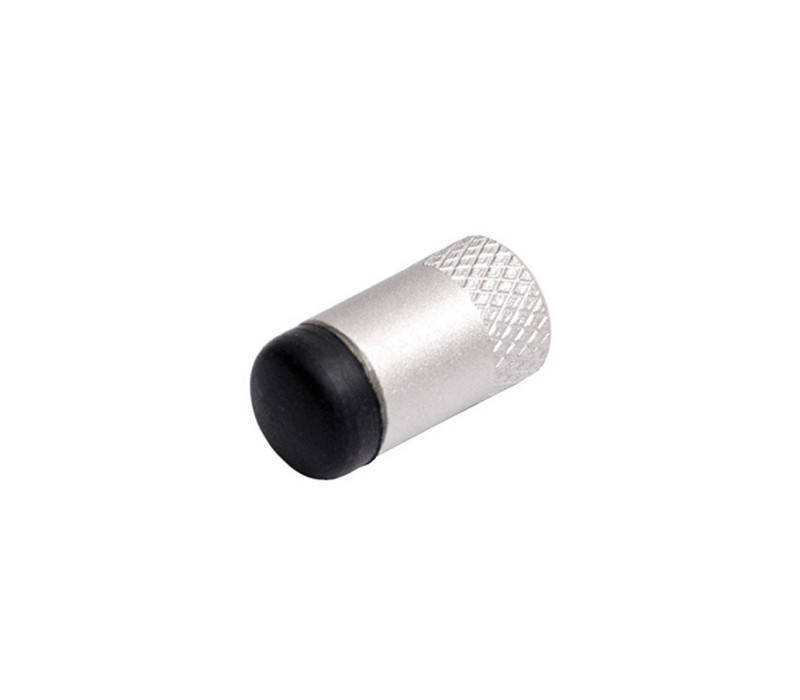

    G1011 Rubber Tip

    • Rubber Tip
    • Capacity: 250 N (50 lb)
    • Simulates a human finger in compression testing

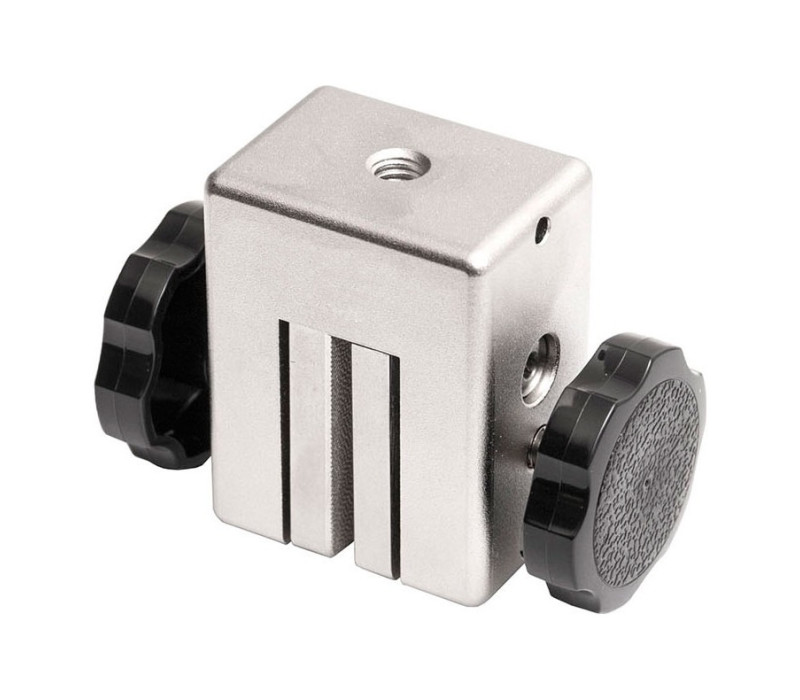

    Product: G1013 Product: G1013

    G1013 Parallel Jaw Grip

    • Parallel Jaw Grips
    • Capacity: 1000 N (200 lb)
    • Individually adjustable, serrated jaws, rugged and compact

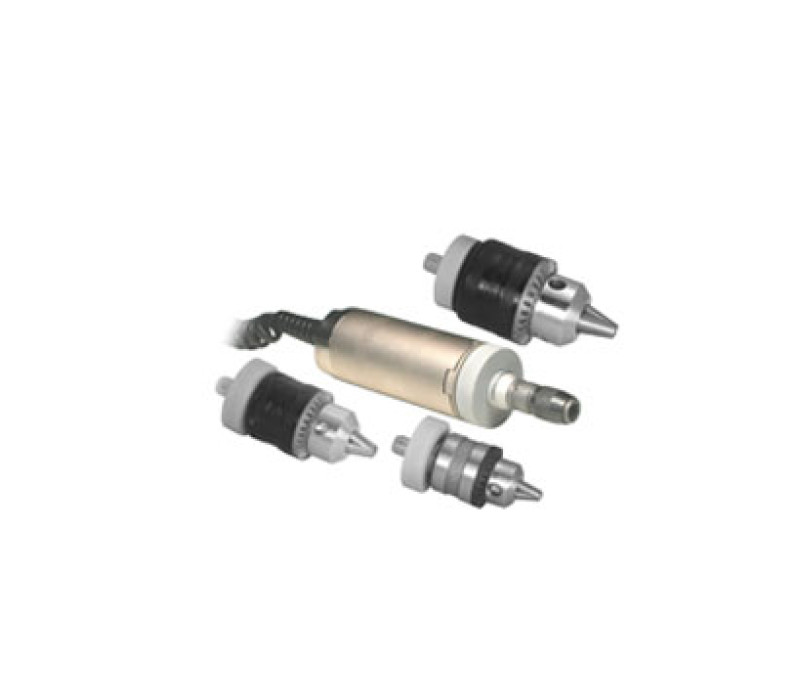

    Product: G1016-G1017 Product: G1016-G1017

    G1016-G1017 G1016 - G1017 Attachments for R51 Torque Sensor

    • Toque sensors Attachments
    • 11,5 Nm capacity
    • Secures fixtures, bits, or samples during torque testing

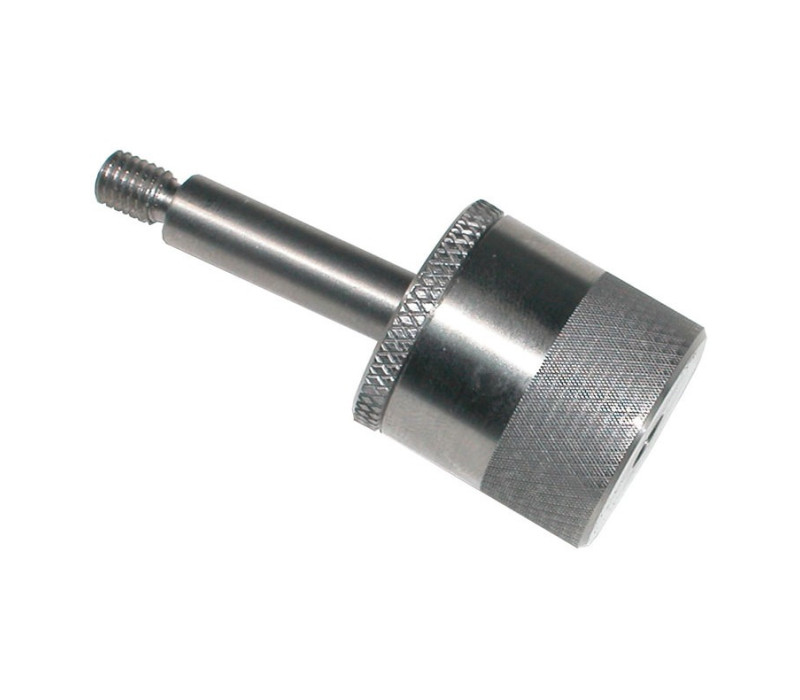

    Product: G1018 Product: G1018

    G1018 Swivel Adapters

    • Swivel Adapters for tensile testing
    • Capacity: 1000 N (200 lb) / 2500 N (500 lb)
    • Swiveling adapter, for use between gripping fixtures
    Product: G1019-G1020-G1021 Product: G1019-G1020-G1021

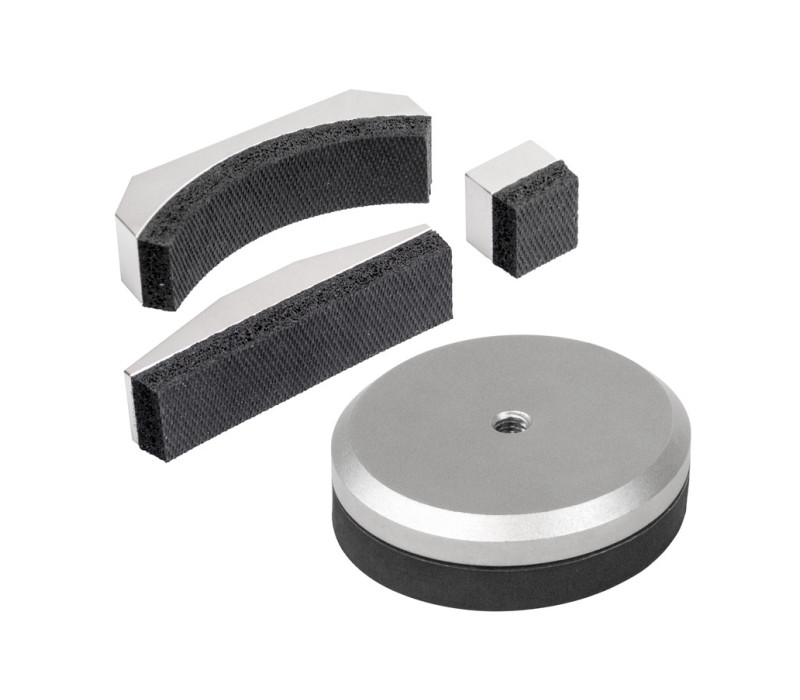

    G1019-G1020-G1021-G1112 Ergonomic Padded Attachments

    • Padded Attachments
    • Capacity: 2500 N (500 lbF)
    • Padded attachments for ergonomics analysis and job task analysis

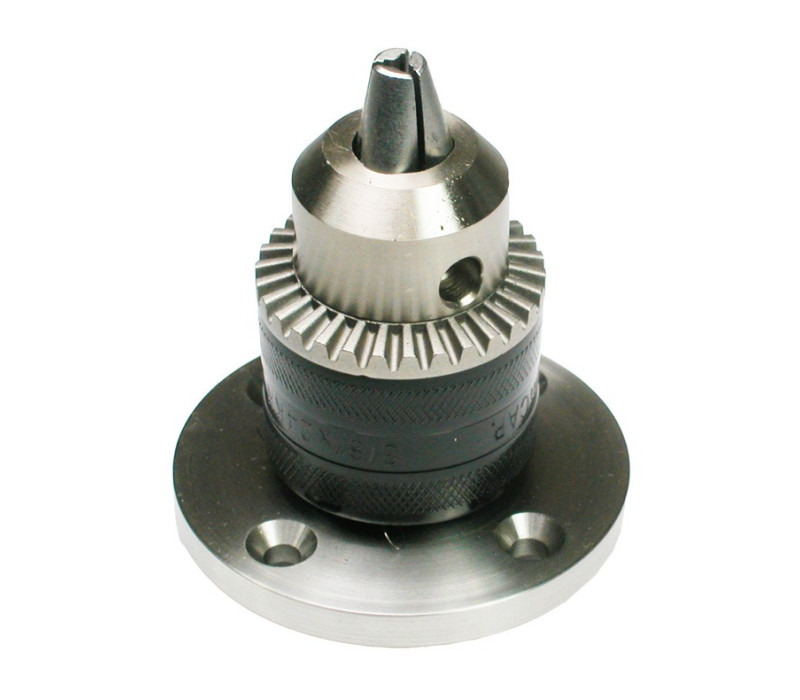

    Product: G1022 Product: G1022

    G1022 Jacobs Chuck Grips For TSTM

    • Jacobs Chuck Grips
    • 11,3 Nm [100 lbFin] capacity
    • Secures a fixture or sample during torque testing
    Product: G1024-G1031 Product: G1024-G1031

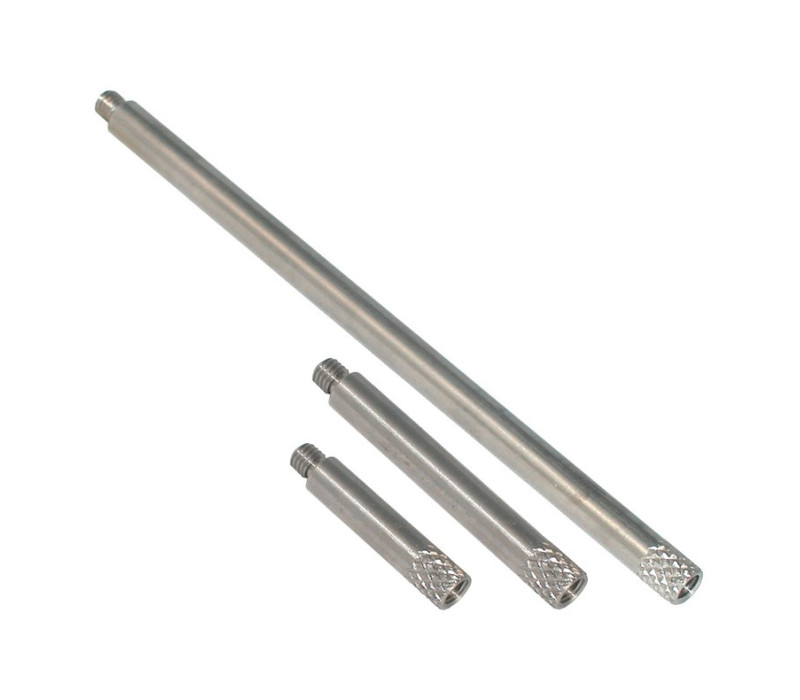

    G1024-G1031 Extension Rods

    • Extension Rods
    • Capacity: 1000 N (200lb) / 2500 N (500lb)
    • Extension Rods, different threads and lengths available
    Product: G1025-G1032 Product: G1025-G1032

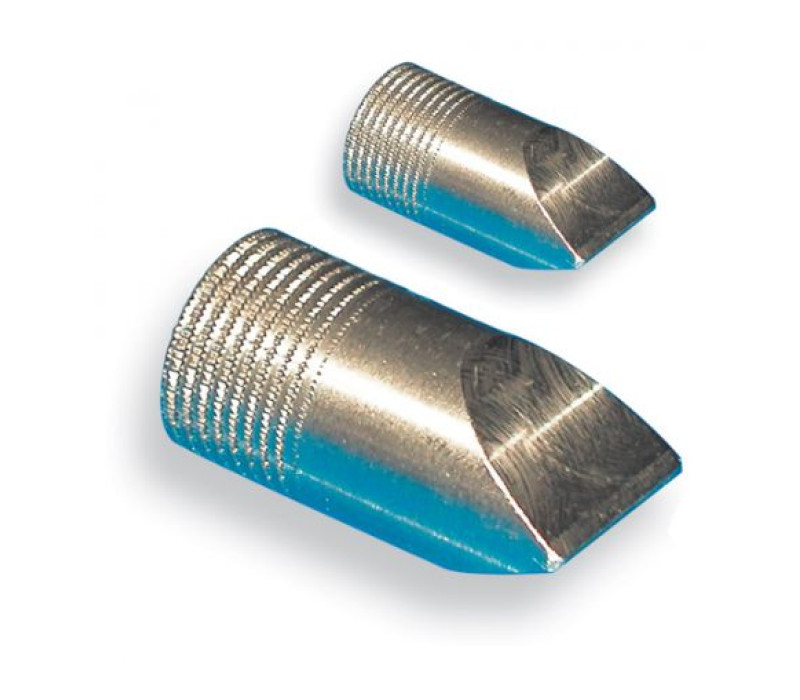

    G1025-G1032 Chisels

    • Chisels for compression testing
    • Chisels, available in 2 different sizes
    • Capacity: 1000 N (200lb) / 2500 N (500lb)

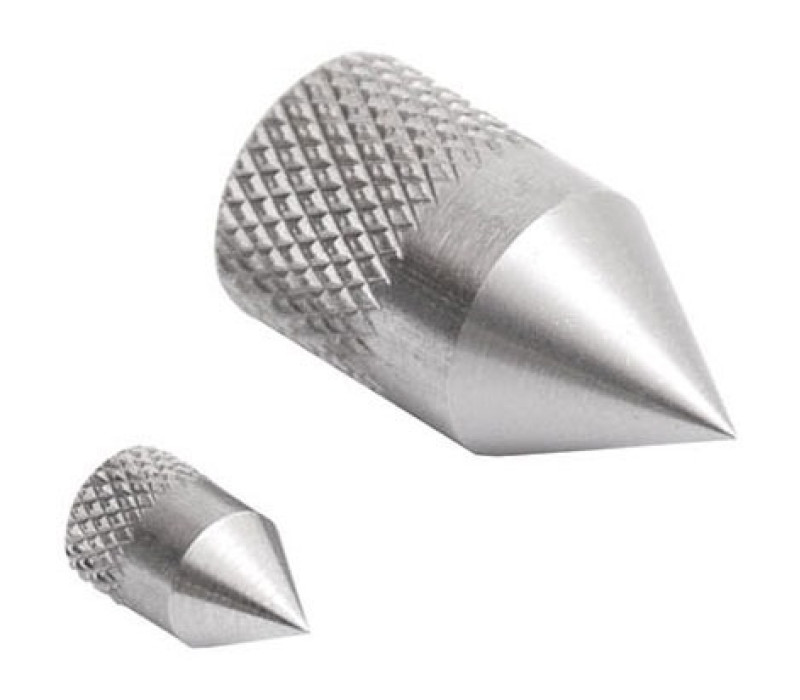

    Product: G1026-G1033 Product: G1026-G1033

    G1026-G1033 Cones

    • Cones for compression testing
    • Cones, available in 2 different sizes
    • Capacity: 1000 N (200 lb) / 2500 N (500 lb)
    Product: G1027-G1034 Product: G1027-G1034

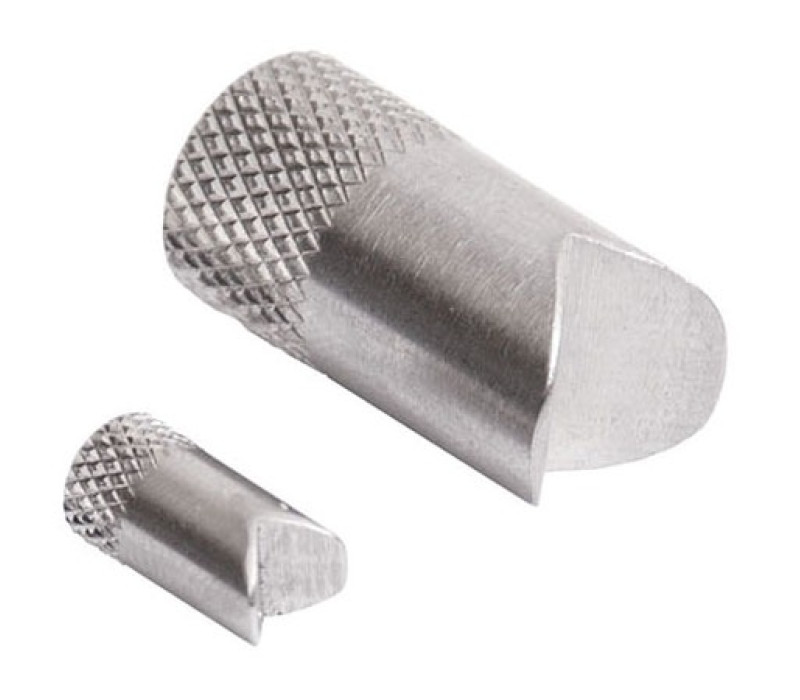

    G1027-G1034 G1027 - G1034 V-Groove Attachments

    • V-Grooves
    • Capacity: 1000 N (200 lb) / 2500 N (500 lb)
    • V-Grooves, available in 2 different sizes

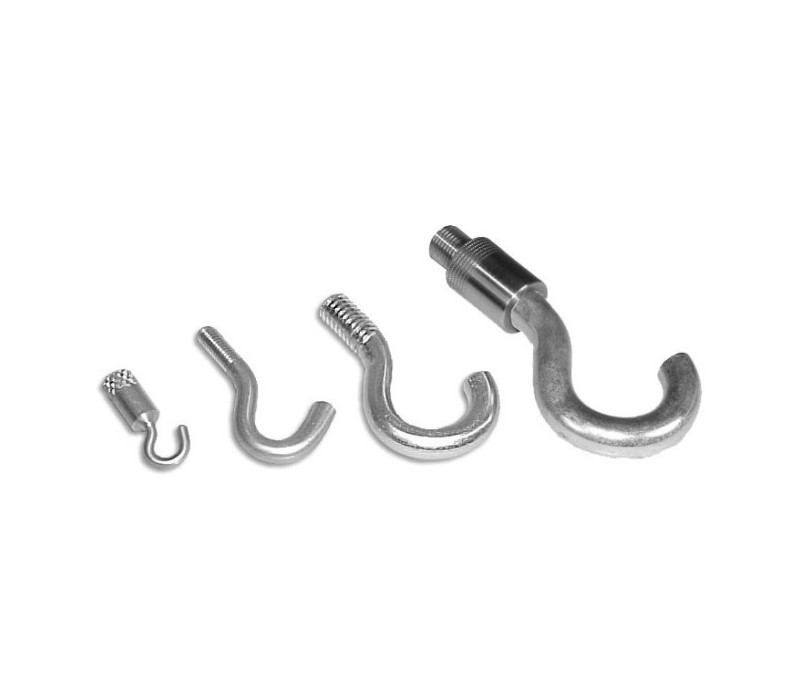

    Product: G1028-G1038-G1035-G1042 Product: G1028-G1038-G1035-G1042

    G1028-G1038-G1035-G1042 G1028, G1038, G1035 and G1042 Hooks

    • Hooks for pull test applications
    • Capacity: 100 N, 1000 N, 2500 N, 4500 N
    • Available in different sizes and threads

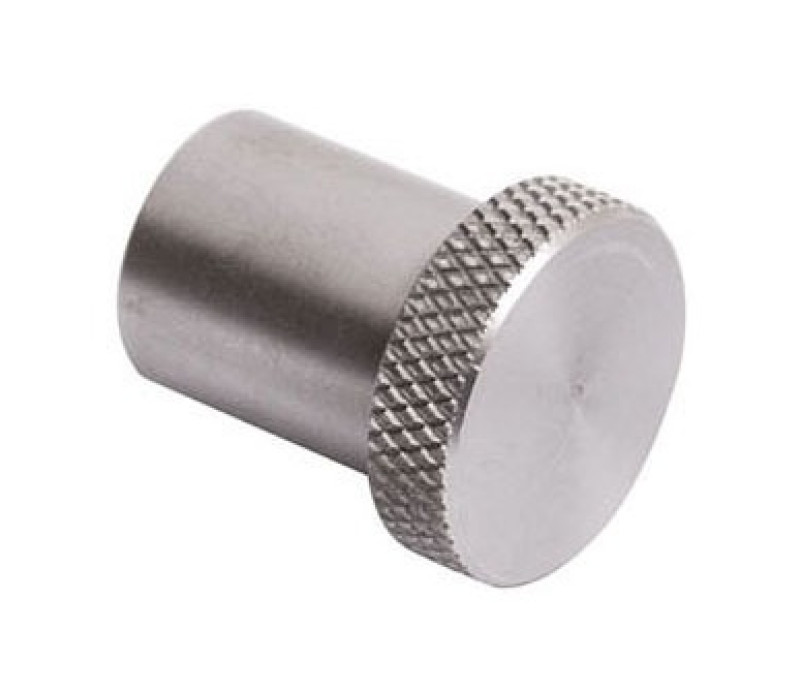

    Product: G1029-G1036 Product: G1029-G1036

    G1029-G1036 G1029 - G1036 Flat Heads

    • Flat Head
    • Flat Heads, available in 2 different threads
    • Capacity: 1000 N (200lb) / 2500 N (500lb)

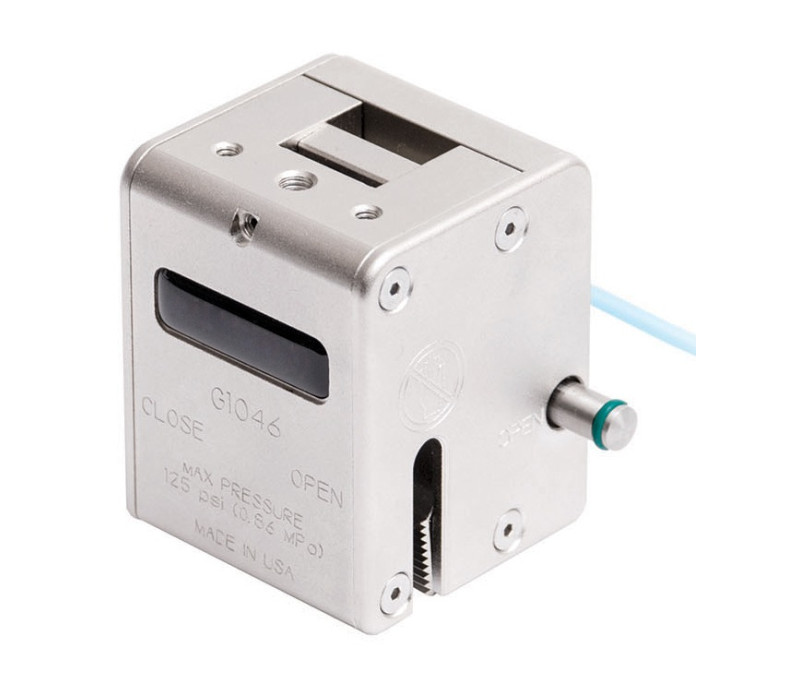

    Product: G1046 Product: G1046

    G1046 Pneumatic Film & Paper Grip

    • Pneumatic Film & Paper Grip
    • Capacity 500 N
    • Integrated open/close valve
    • Air operated interlocking jaws

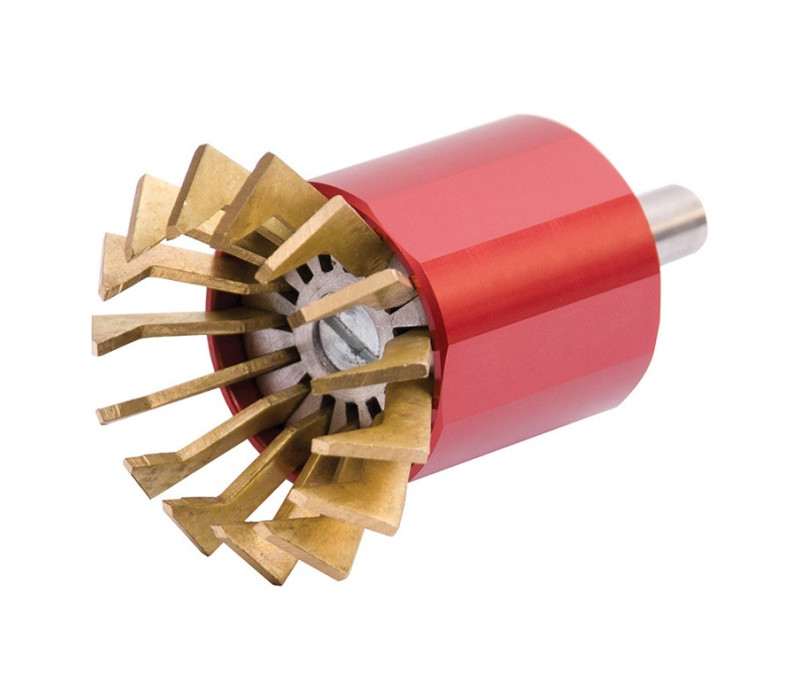

    Product: G1056 Product: G1056

    G1056 Multi-jaw Grip

    • Multi-jaw Grip for pull testing
    • Capacity 500 N
    • For gripping round and irregularly shaped items

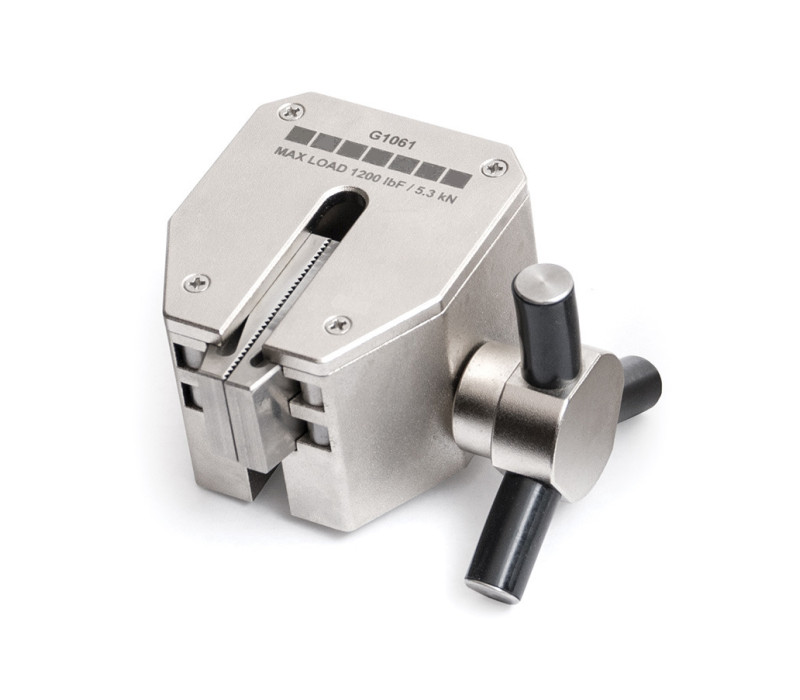

    Product: G1061 Product: G1061

    G1061 Series Wedge Grip

    • Heavy Duty Wedge Grip
    • Capacity 250 N up to 9 kN
    • General tensile testing
    • Available in 4 versions

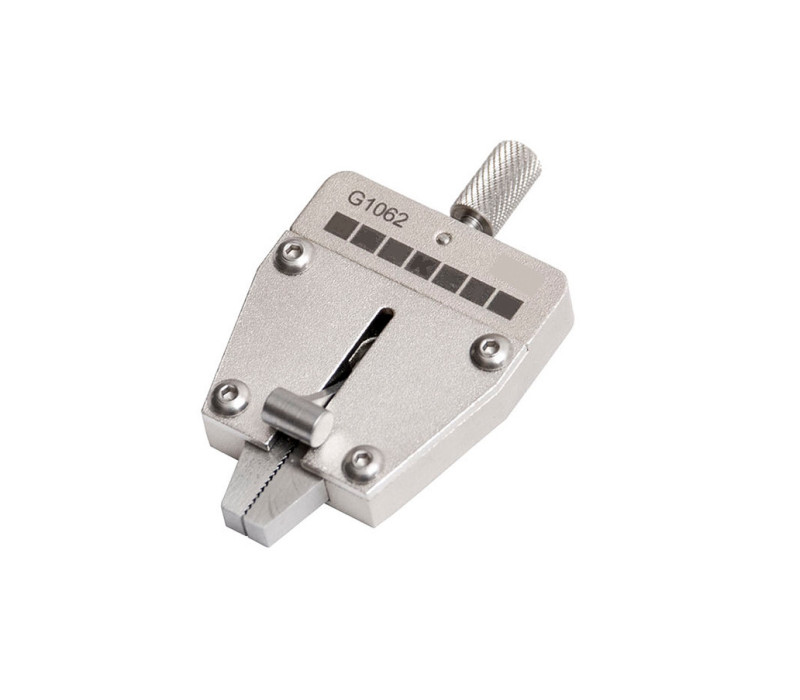

    Product: G1062 Product: G1062

    G1062 Miniature Wedge Grip

    • Miniature Wedge Grip
    • 500 N capacity
    • Low force self tightening grip

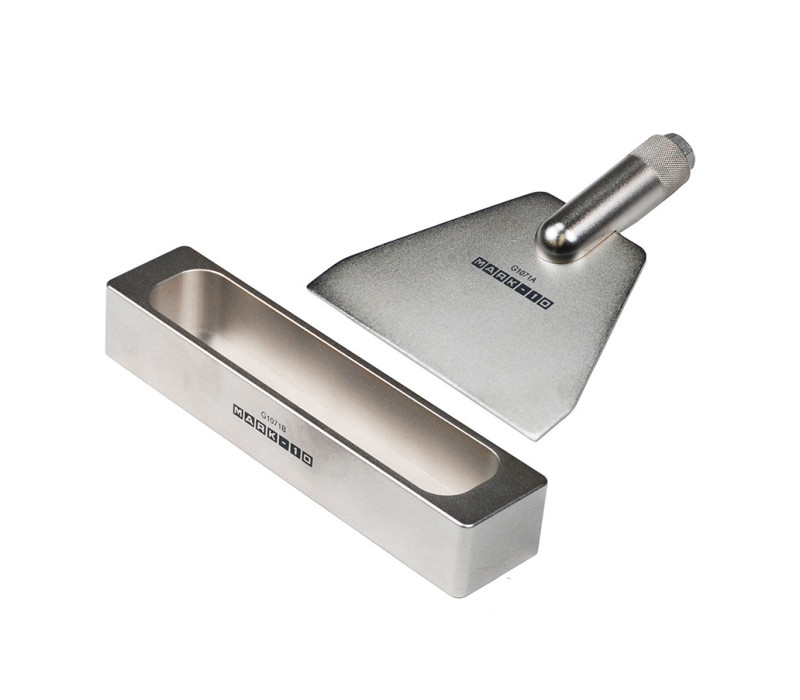

    Product: G1071 Product: G1071

    G1071 Score Bend Fixture

    • Set of upper and lower dies produce 90° bend in corrugated board and plastics
    • Meets the requirements of TAPPI T829
    • Mounts directly to F-Series test frames
    Product: G1072 Product: G1072

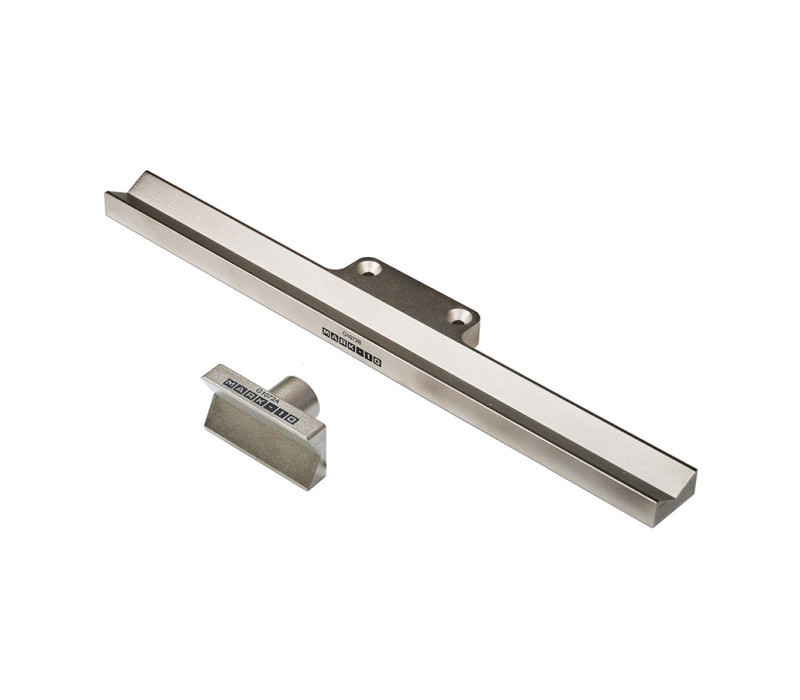

    G1072 Opening Force Fixture

    • Set of upper lower dies provided to accommodate various sized packaging materials
    • Fixtures are easily removable
    • Mounts directly to the following test frames (motorized test frames recommended): F105, F305, F505, F755, and F1505 test frames. ESM303, ESM750, ESM1500, ES30, TSC1000, and TSF test stands. Also compatible with models ES10/ES20 test stands when ordered with optional AC1060 mounting plate.

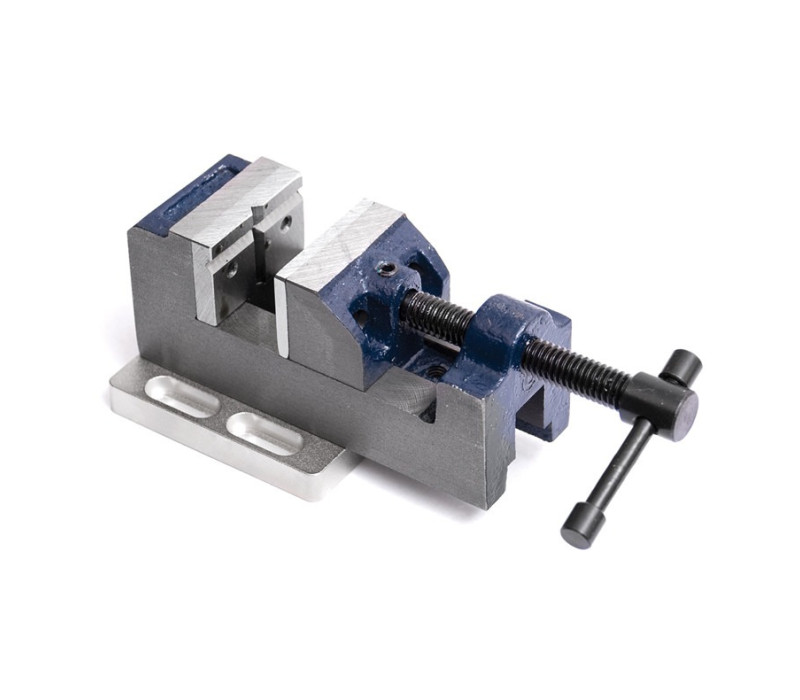

    Product: G1074 Product: G1074

    G1074 General Purpose Vise Grip

    • Vise Grip for general tension and compression testing
    • Capacity: 2500 N
    • Max. sample thickness: 38.1 mm

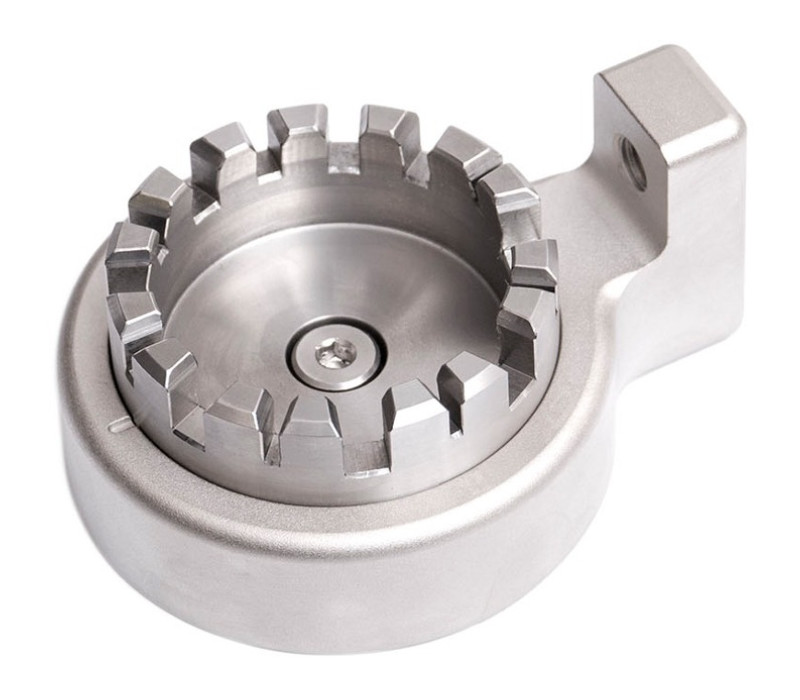

    Product: G1076 Product: G1076

    G1076 Wire Terminal Grip

    • Wire Terminal Grip
    • Capacity: 2,5 kN
    • Pull testing of crimped terminals
    • Multiple sample slot widths, up to 6.3 mm (0.25 in)

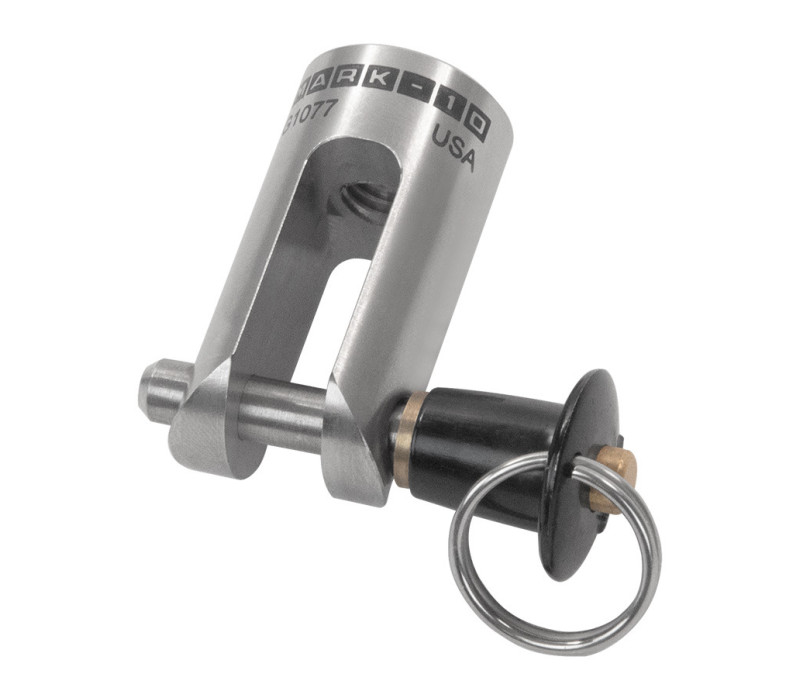

    Product: G1077 Product: G1077

    G1077 Clevis Grip

    • Secures a spring, chain, or other sample during tensile testing
    • Capacity 2,2 kN
    • A spring-loaded pin with ball plunger provides added safety
    Product: G1078 Product: G1078

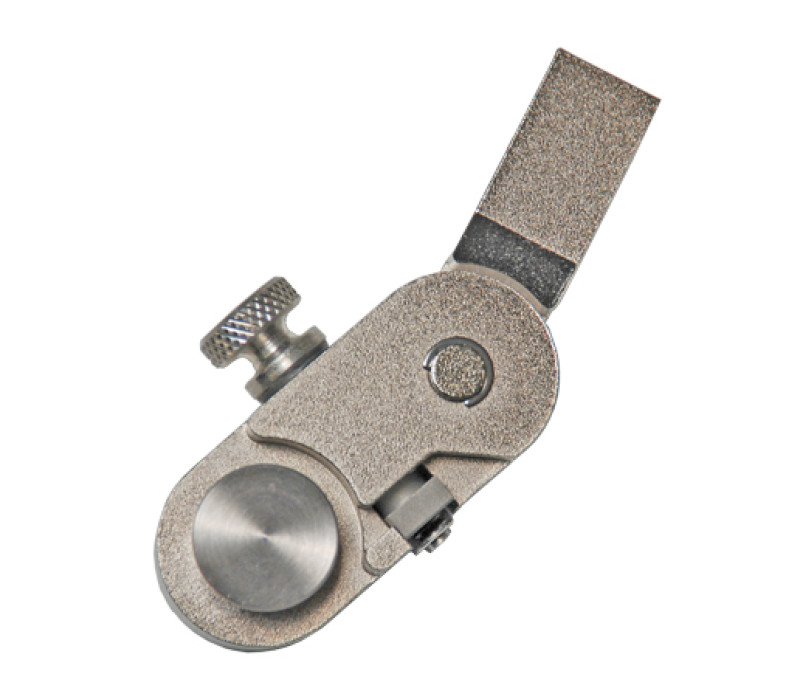

    G1078 Miniature Filament Grip

    • Miniature Filament Grip
    • Maximum capacity 250 N
    • Optimizes sample support by anchoring it just below the clamp on a bollard
    • Securely handles wires ranging from 0 to 2.5 mm

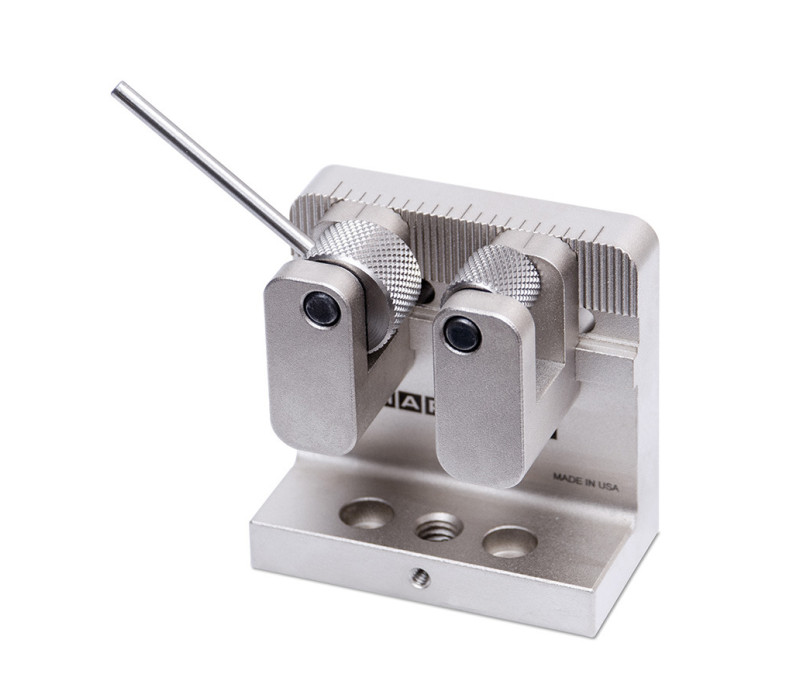

    Product: G1085 Product: G1085

    G1085 Adjustable Dual Roller Grip

    • Pull testing of tubes, cables, and odd sample shapes
    • Maximum capacity 2,5 kN
    • Adjustable cam spacing

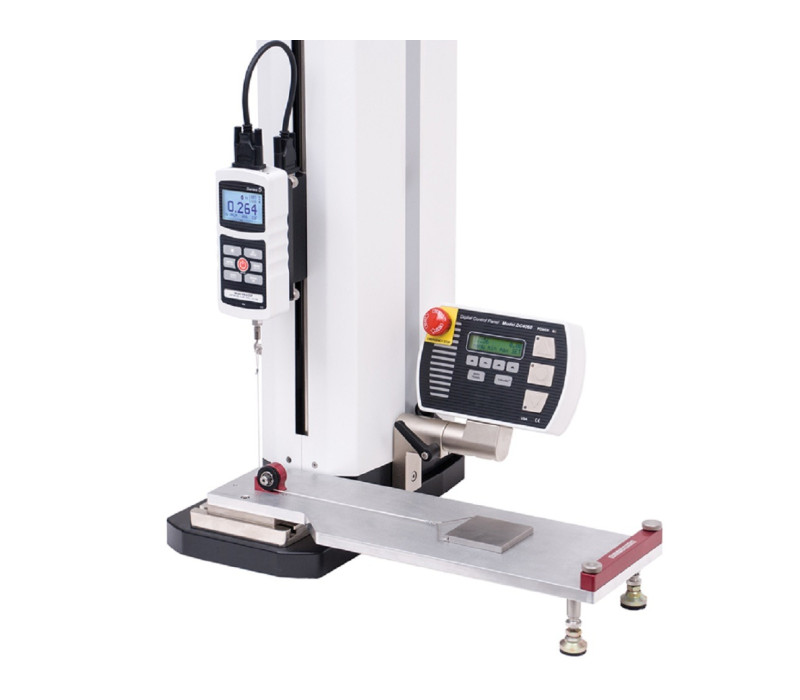

    Product: G1086 Product: G1086

    G1086 Coefficient of Friction Fixture

    • Coefficient Of Friction Fixture
    • In conformance to ASTM D1894
    • Static and kinetic coefficients can be measured using the M5-2-COF gauge
    • The sled weight can be configured from 100 to 1000 g

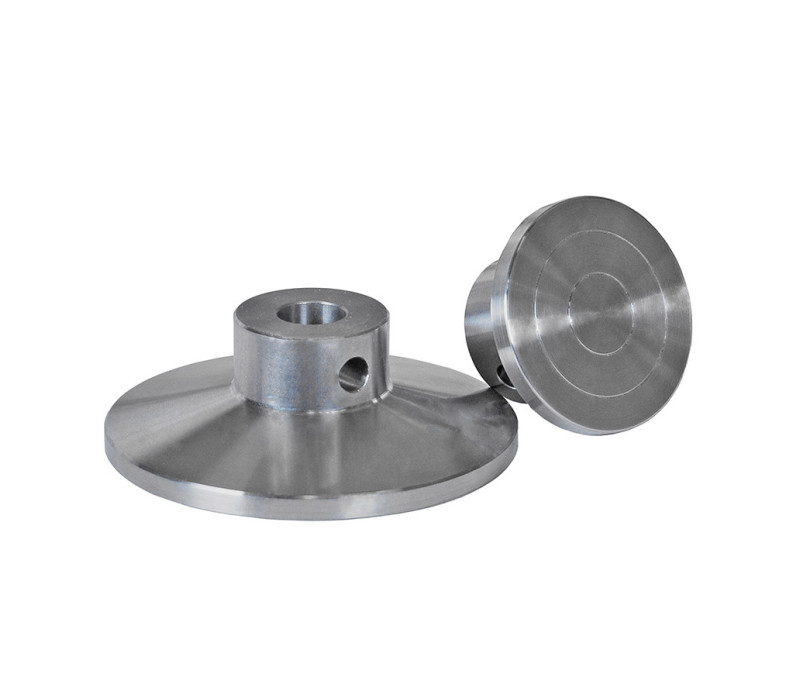

    Product: G1087 Product: G1087

    G1087 Compression Plates, High Capacity

    • Compression Plates
    • for testing springs, foams, and other materials
    • High Capacity 2,000lbF [9kN]

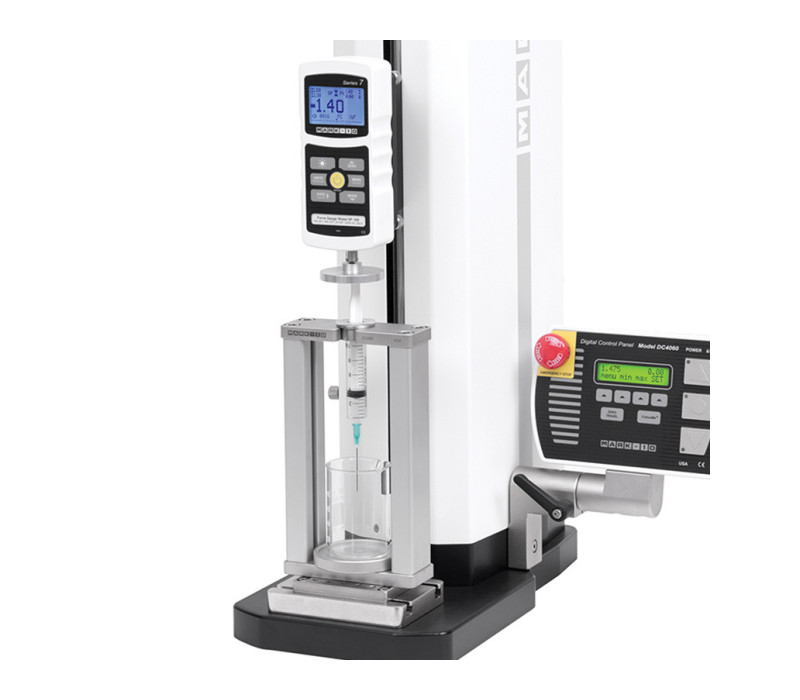

    Product: G1089 Product: G1089

    G1089 Syringe Compression Fixture

    • Plunger compression force testing
    • Conforms to ISO 7886-1
    • Maximum capacity 500 N

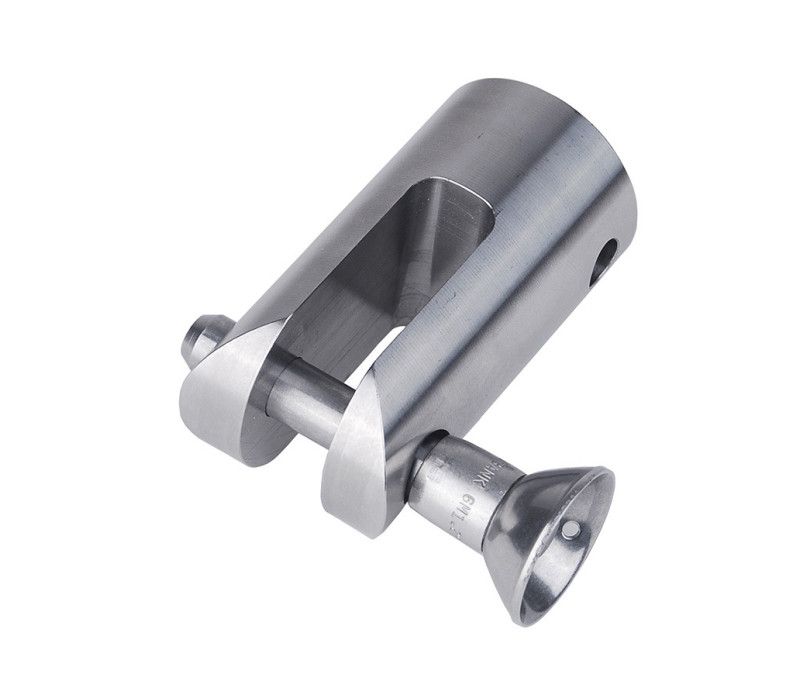

    Product: G1090 Product: G1090

    G1090 High Capacity Clevis Grip

    • Secures a spring, chain, or other sample during tensile testing
    • Capacity 9 kN
    • Eye-End-Mounting

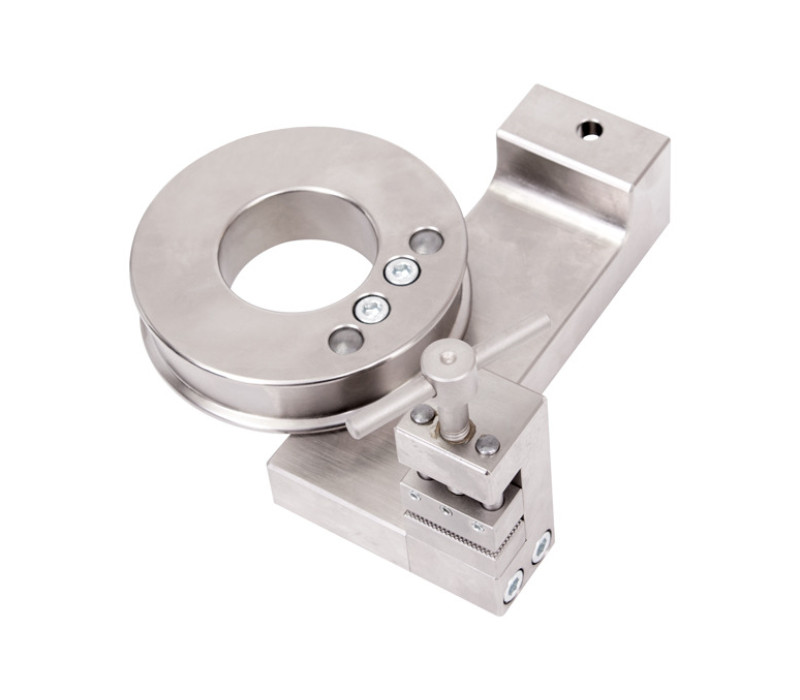

    Product: G1092 Product: G1092

    G1092 High Capacity Wire/Rope Grip

    • Pull testing of wire, rope, and yarn
    • Maximum capacity 9 kN
    • Max sample size: Ø 10 mm
    • Eye end mounting

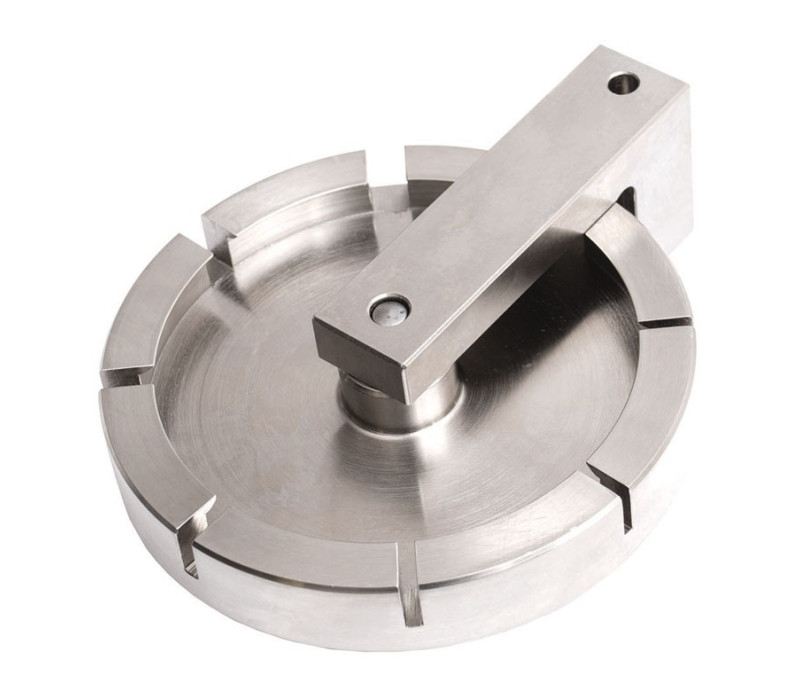

    Product: G1093 Product: G1093

    G1093 High Capacity Wire Terminal Grip

    • High Capacity Wire Terminal Grip
    • Maximum Capacity 9 kN
    • Pull testing of crimped terminations
    • For wire diameters up to 11.8 mm (0.46")
    • Machineable for larger samples if required

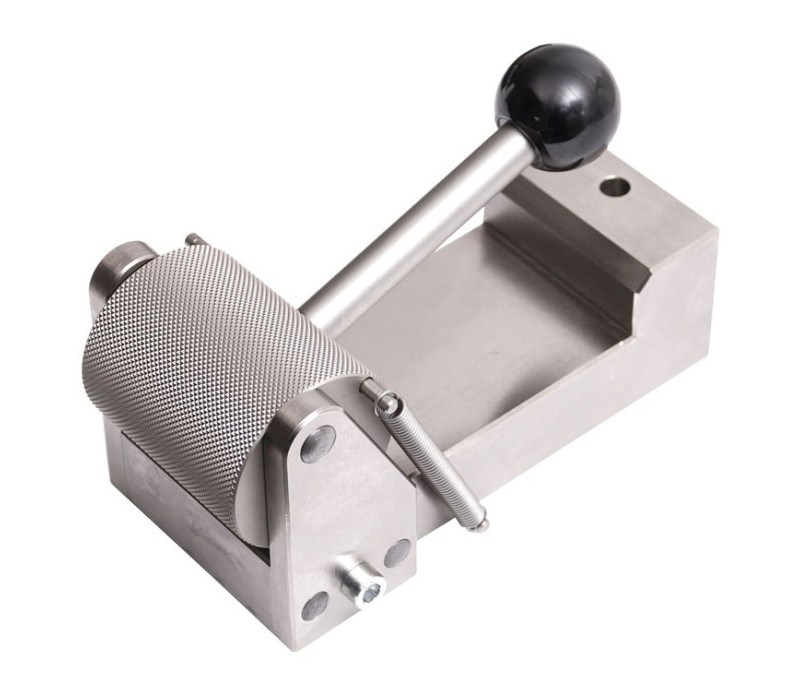

    Product: G1094 Product: G1094

    G1094 High Capacity Eccentric Roller Grip

    • High Capacity Eccentric Roller Grip
    • Capacity up to 9 kN
    • Pull testing of wire and other materials
    • Max. sample size: 32 mm thick x 60 mm wide
    • Eye end mounting
    Product: G1095-G1096-G1097 Product: G1095-G1096-G1097

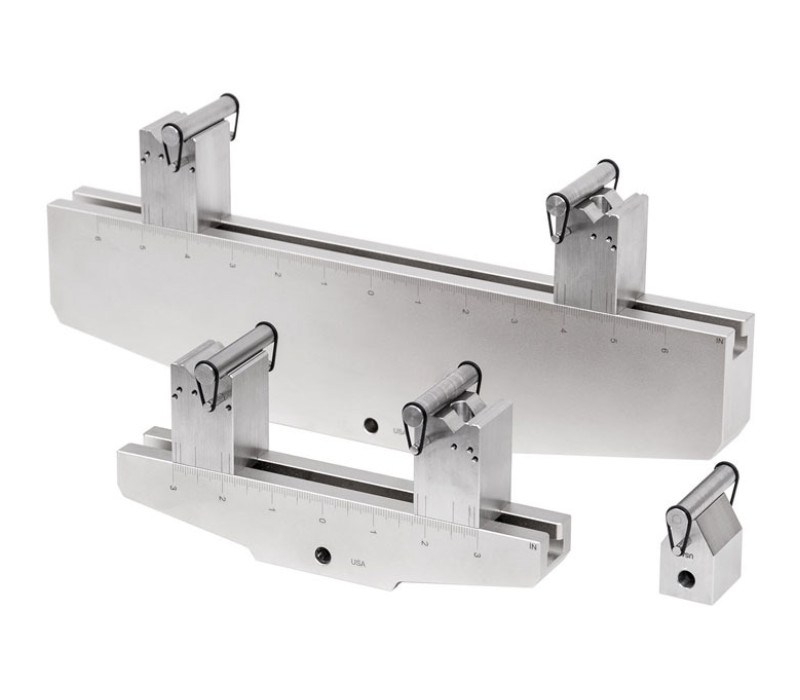

    G1095-G1096-G1097 The G1095-G1096-G1097 3-point / 4-point Bend Fixtures

    • 3-point / 4-point Bend Fixtures
    • Capacity: 2,5 to 10 kN
    • Accommodate a wide range of materials
    • 3-point and 4-point bend testing – mix and match upper and lower fixtures
    • Conform to ASTM C393, C1161, D790

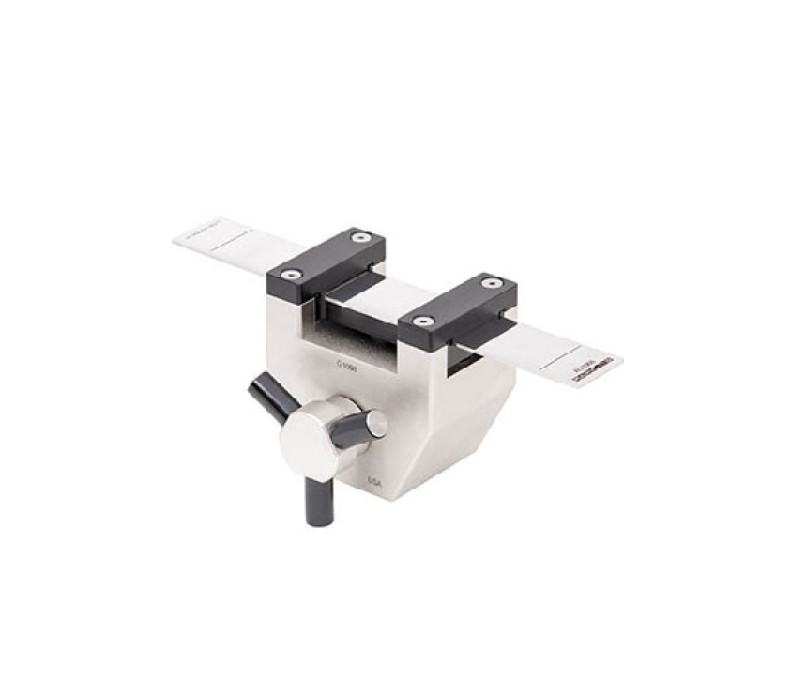

    Product: G1098 Product: G1098

    G1098 Loop Tack Fixture

    • ASTM D6195 Loop Tack Fixture
    • Capacity: 500 N
    • Adhesive tack testing
    • Each Test strip supports three 25 mm2 test areas
    • Conforms to ASTM D6195
    Product: G1099 Product: G1099

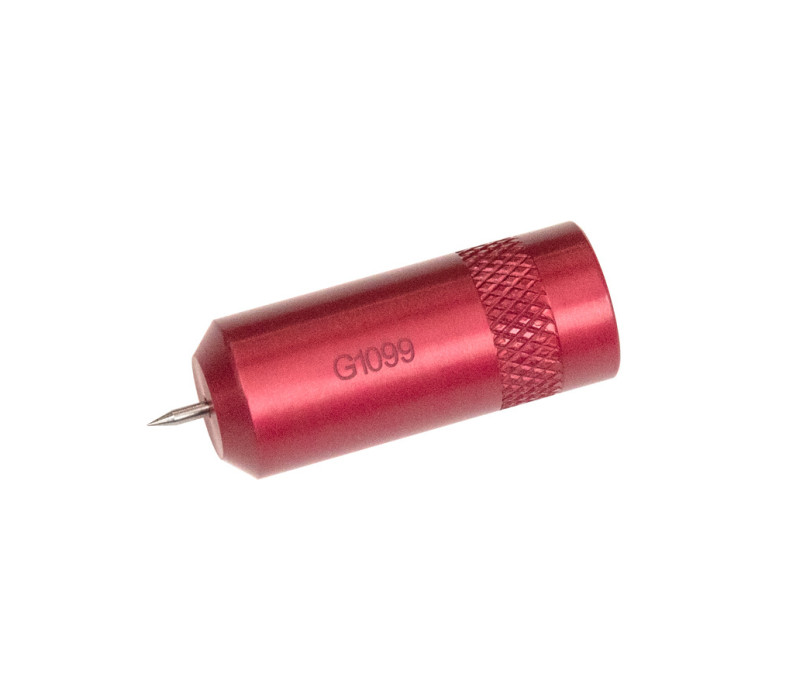

    G1099 Puncture Fixture

    • Test the puncture force of gypsum board and other surfaces.
    • Maximum capacity 100 N
    • Spring-loaded aluminum housing ensures safe usage.

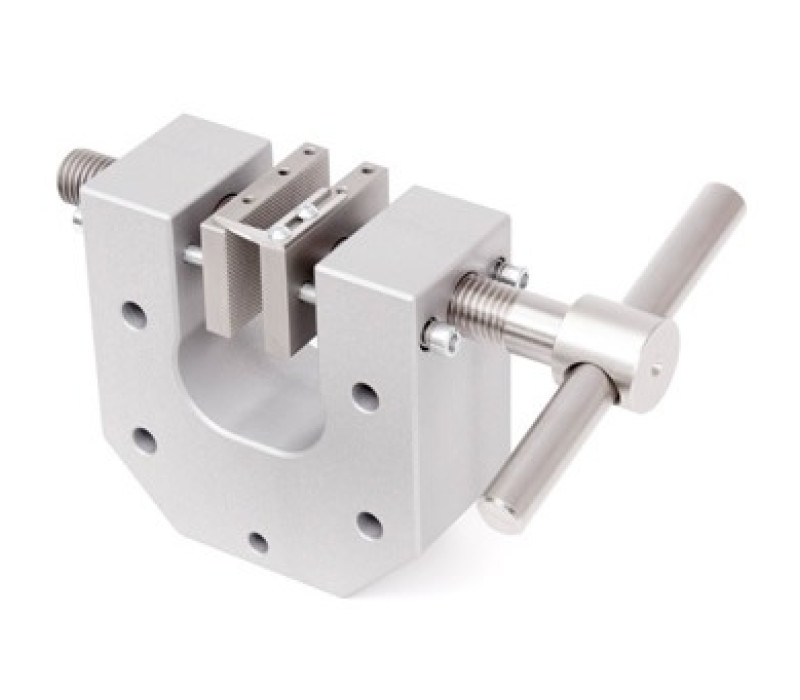

    Product: G1100 Product: G1100

    G1100 Large Parallel Jaw Grip

    • General tensile testing
    • Capacity: 9 kN
    • Max. sample thickness: 34.0 mm
    • Eye end mounting
    • Optional extended jaws available for large objects

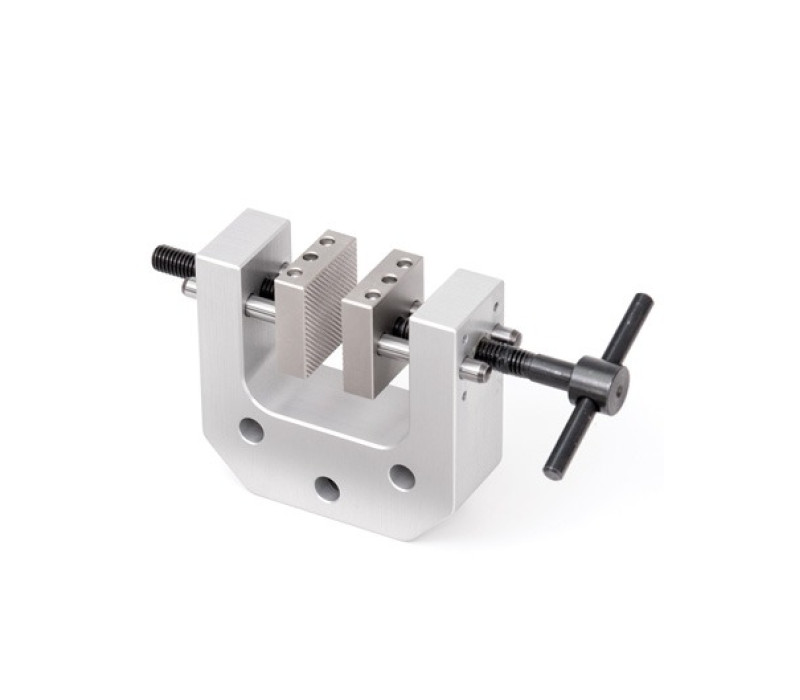

    Product: G1101 Product: G1101

    G1101 Medium Parallel Jaw Grip

    • General tensile testing
    • Capacity: 1 kN
    • Eye end mounting
    • Optional extended jaws available for large objects
    • Max. sample thickness: 32.3 mm
    Product: G1102 Product: G1102

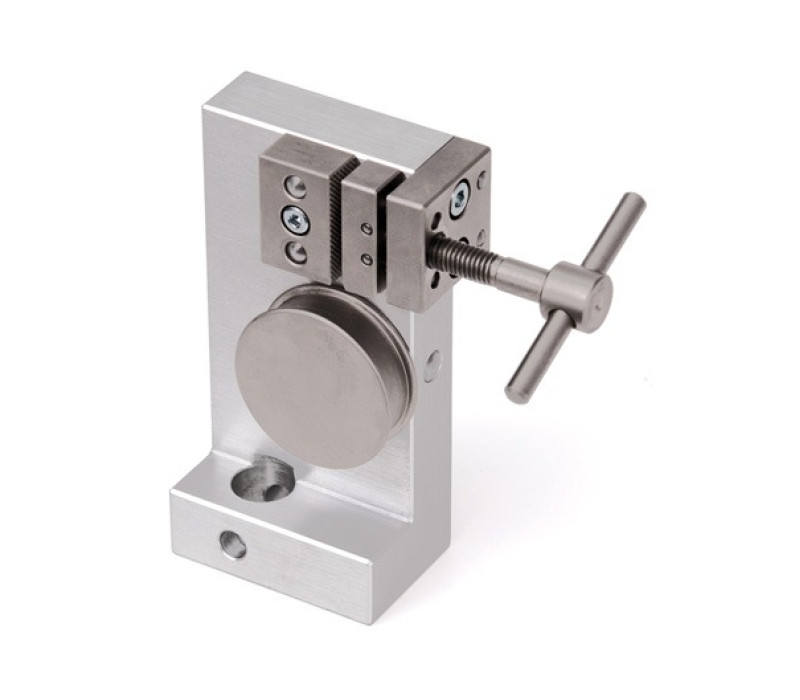

    G1102 Large Wire / Rope Grip

    • Pull testing of wire, rope, and yarn
    • Capacity: 5 kN
    • Maximum sample diameter: 5,3 mm
    • Integrated eye end mounting

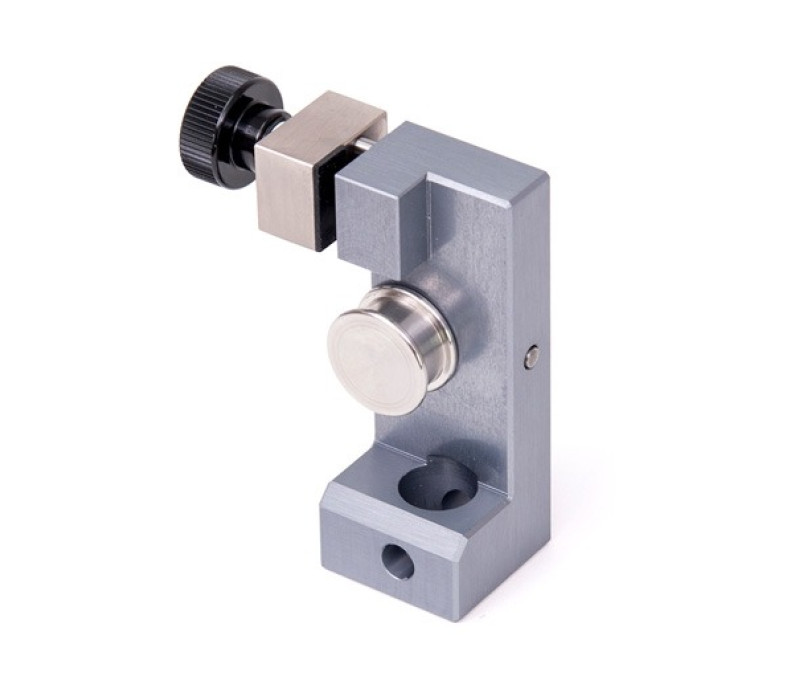

    Product: G1103 Product: G1103

    G1103 Medium Wire / Rope Grip

    • Pull testing of wire, rope, and yarn
    • Capacity: 1 kN
    • Maximum Sample Diameter: 6.6 mm
    • Integrated eye end mounting

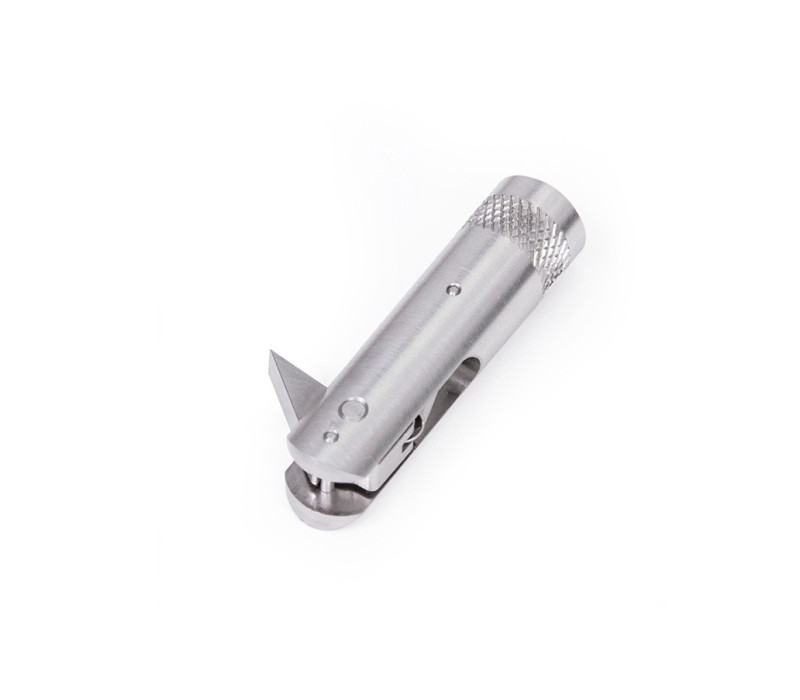

    Product: G1104 Product: G1104

    G1104 Flip Cap Pull Grip

    • Flip cap pull testing
    • Capacity 100 N
    • Spring loaded hook engages the cap’s tab

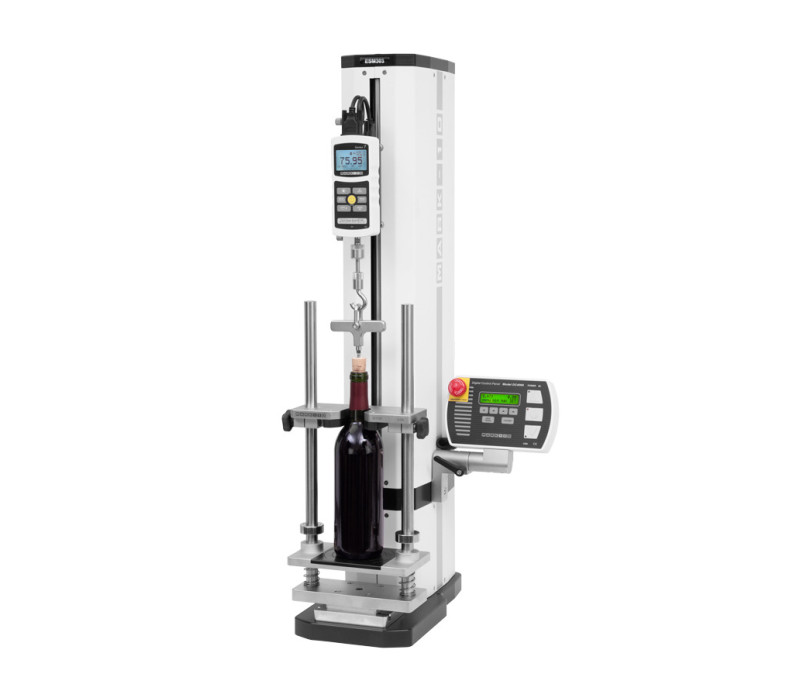

    Product: G1105 Product: G1105

    G1105 Cork Pull Fixture

    • Extraction / pull force testing of cork stoppers
    • Capacity 1 kN
    • Conforms to ISO 9727
    • Accommodates up to 1.5 L bottles
    Product: G1106 Product: G1106

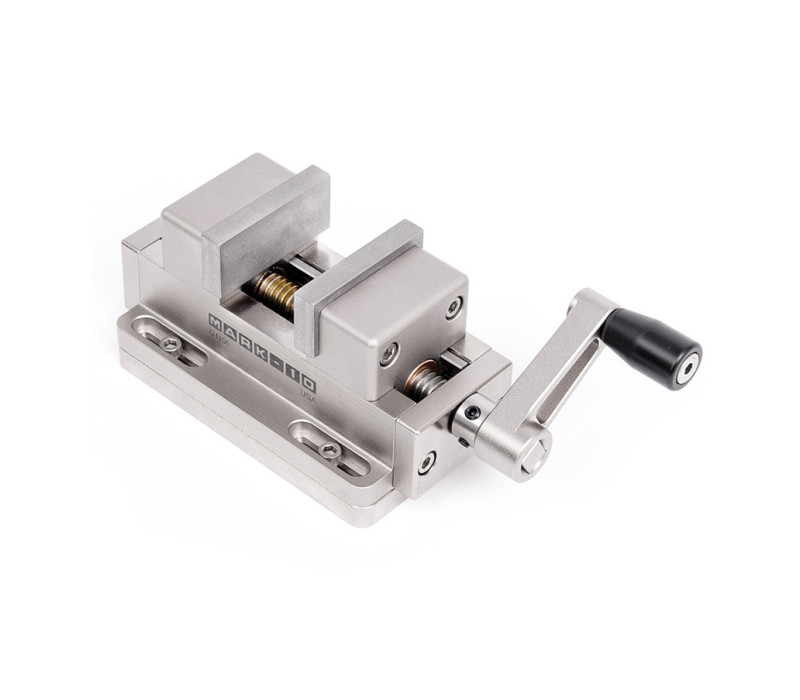

    G1106 Self Centering Vice Grip

    • Self-centering vise grip with removable jaws
    • Capacity: 2500 N
    • General tension / compression testing
    • Maximum sample thickness 50,8 mm

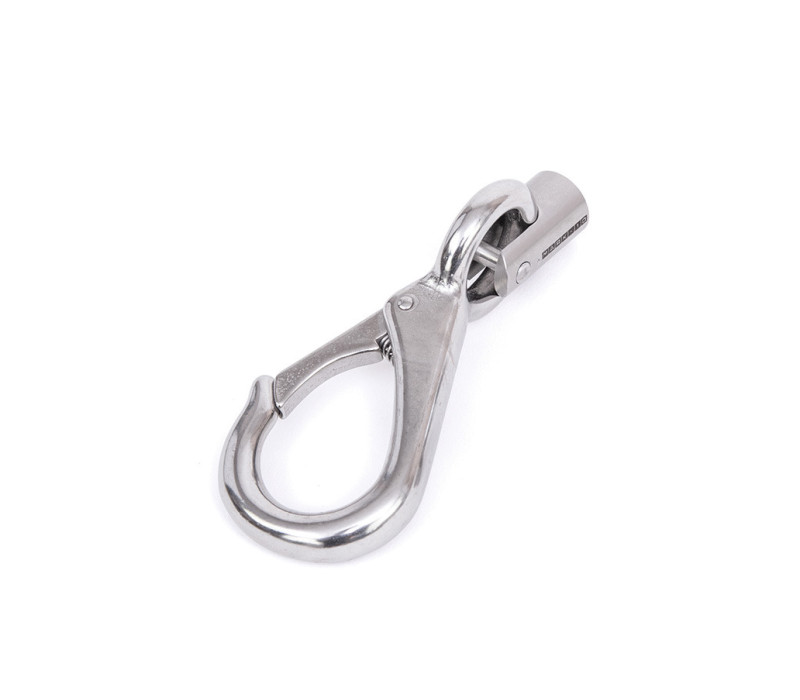

    Product: G1107 Product: G1107

    G1107 Snap Hook

    • Pull testing general
    • Capacity 2,5 kN
    • Snap clasp provides added safety
    • Swiveling action ensures alignment

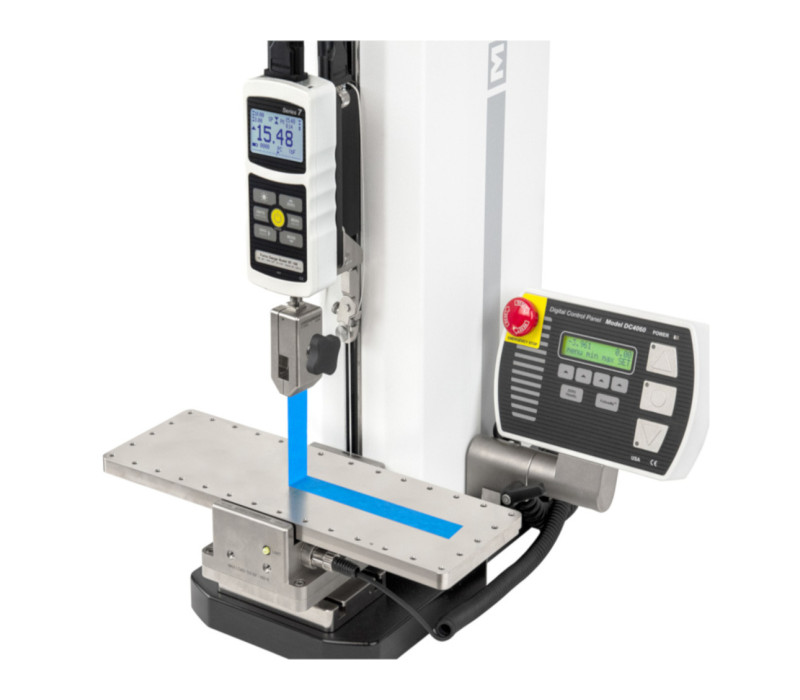

    Product: G1109 Product: G1109

    G1109 90° Peel Test Fixture

    • Typical applications peel testing of tapes, films, foil seals, and other materials.< /b>
    • Capacity 500 N
    • Maintains 90° angle between the table and the direction of pull
    • Maximum table travel: 210 mm
    • Optional adjustable angle mounts, for 30°, 45°, and other angles
    • Conforms to: ASTM D6862, D3330, D903
    Product: G1110 Product: G1110

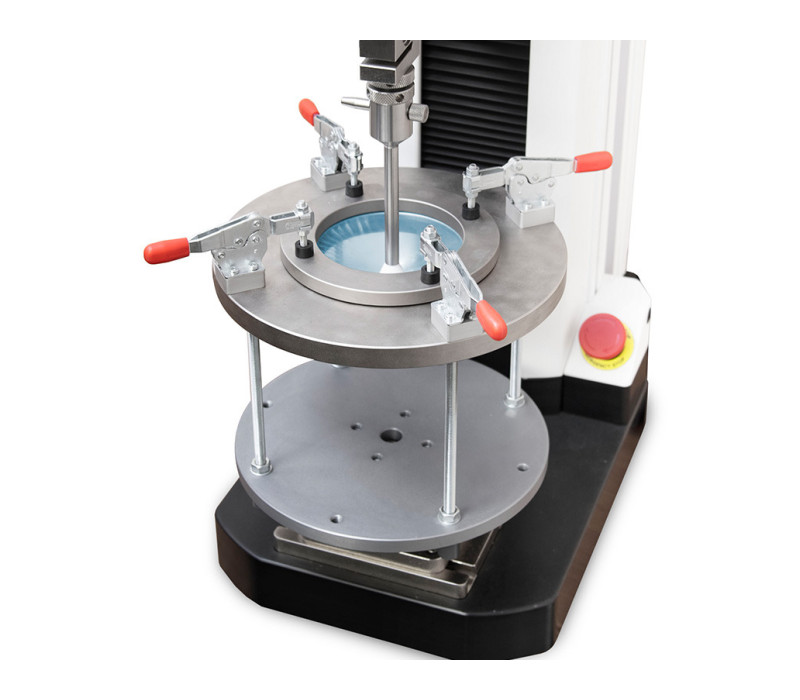

    G1110 Puncture Fixture

    • Puncture resistance of plastic films and other thin materials
    • Capacity 5 kN
    • Conforms to ASTM D5748
    • Integrated eye-end mounting for fixture and probe
    Product: G1111 Product: G1111

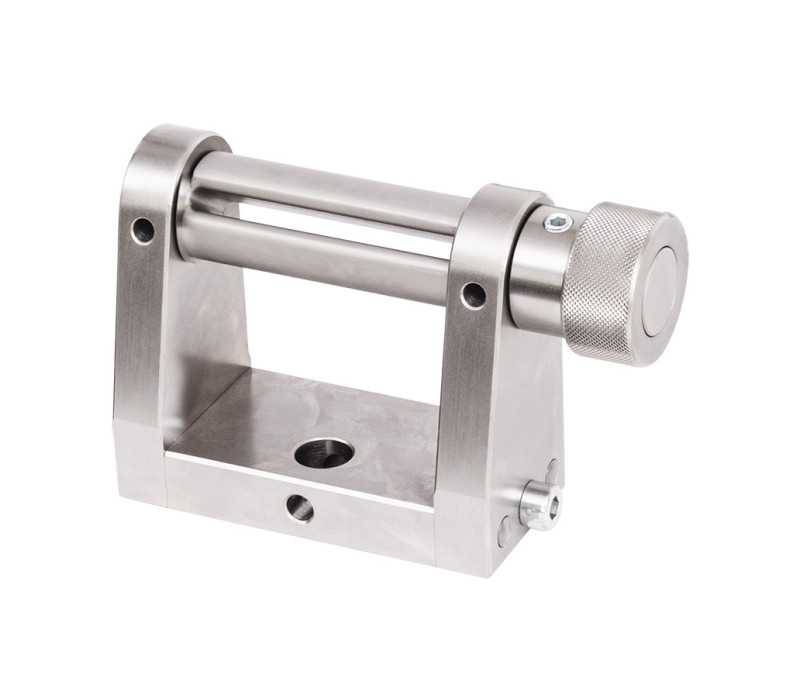

    G1111 Ribbon Wrap Grip

    • Secures textile webbing, tape, and braided materials during tensile testing
    • Capacity 10 kN
    • Conforms to ASTM D6775

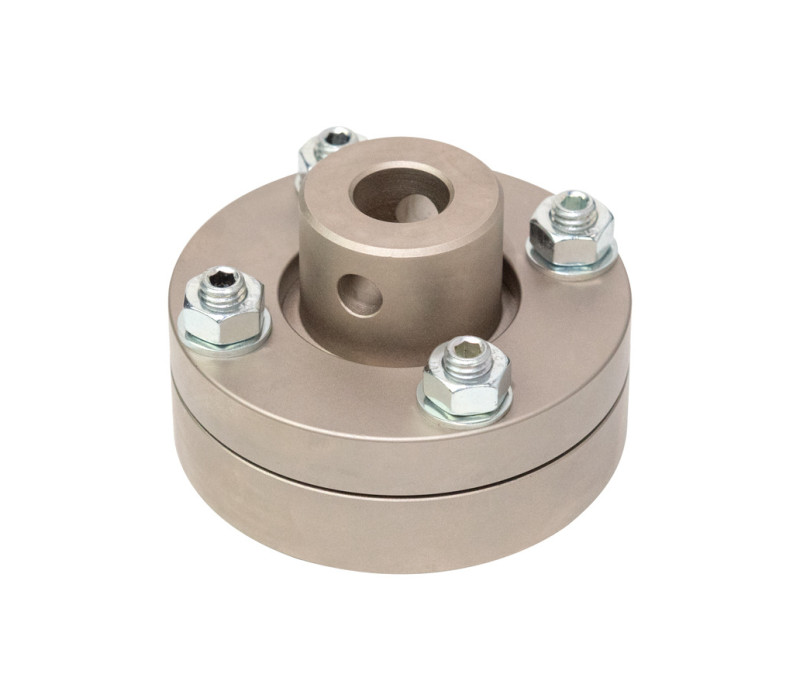

    Product: G1123 Product: G1123

    G1123 Self-Aligning Compression Plate

    • Self-leveling compression for ensuring parallelism and complete sample engagement
    • Integrated eye end mounting
    • Capacity: 9 kN / 900 Kgf

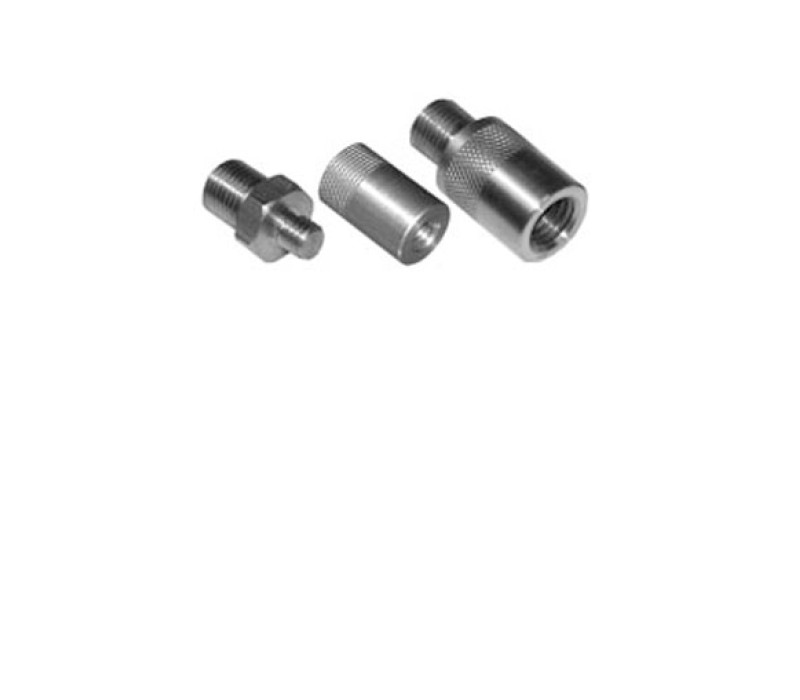

    Product: Thread Adapters Product: Thread Adapters

    Thread Adapters & Couplings

    • Connect force gauges and attachments with different thread sizes.
    • Suitable for tension and compression forces.

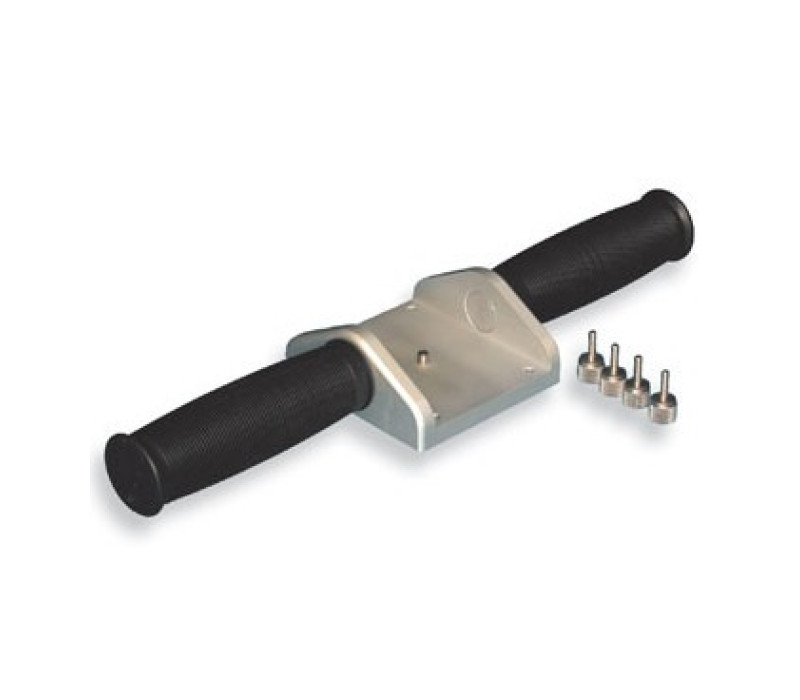

    Product: Double Handle Grip Product: Double Handle Grip

    Double Handle Grips for Force Gauges

    • Double handle grip for force and torque gauges

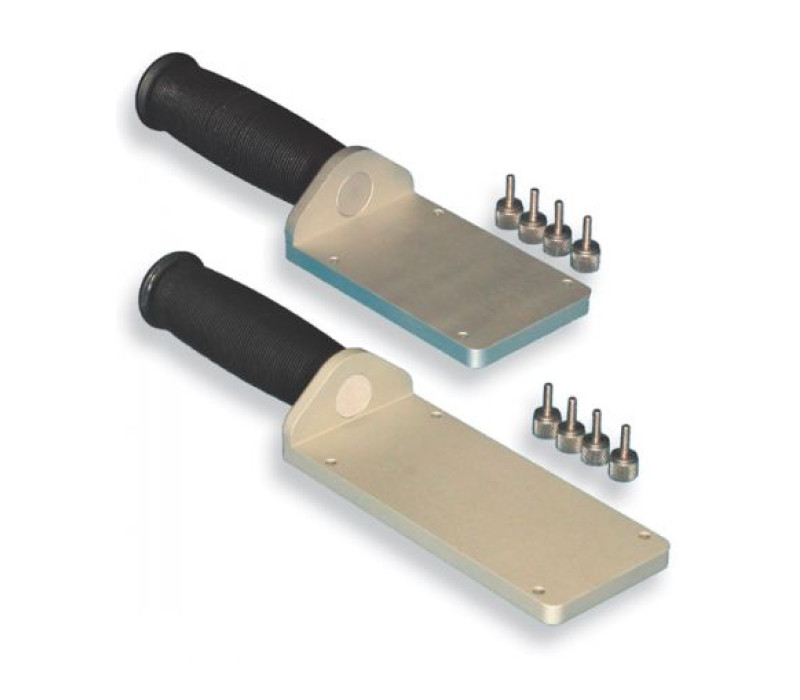

    Product: Single Handle Grip Product: Single Handle Grip

    Single Handle Grips For Force Gauges

    • Single handle grip for force and torque gauges

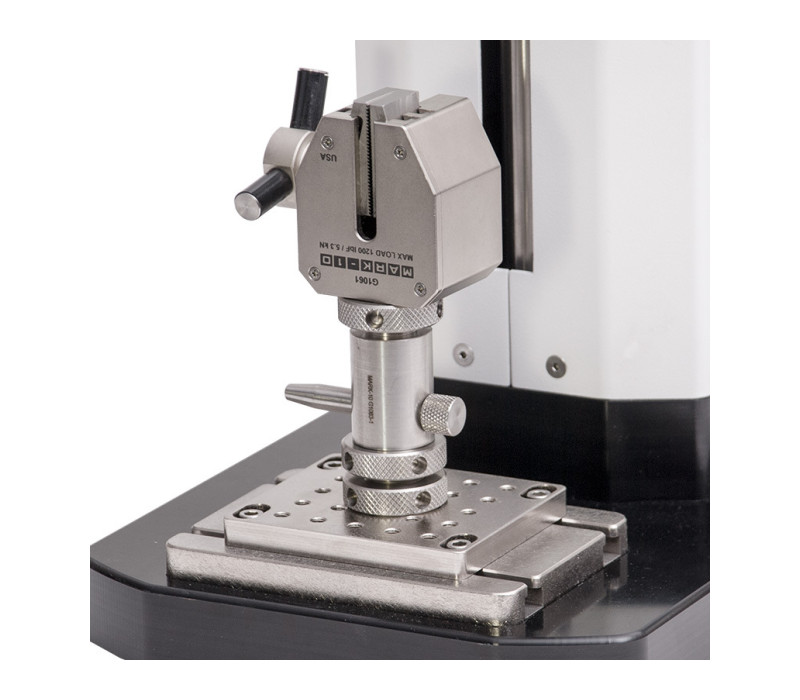

    Product: Eye End Adapter Product: Eye End Adapter

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

    • Method of attaching fixtures to load cells and test frames
    • Available as kits or individual components

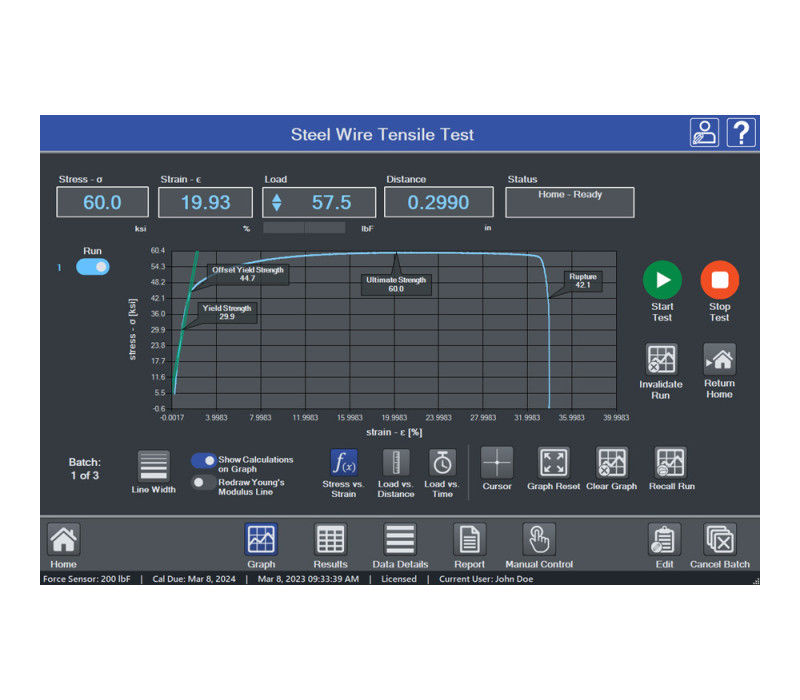

    Product: IMF002 Product: IMF002

    IMF002 Materials Testing Calculations Module for IntelliMESUR®

    • Automates advanced stress, strain, and strength calculations.
    • Generates comparative curves and statistical results.
    • Compatible with IntelliMESUR® testing systems.
    Showing 63 item(s)
      We Checkline Europe B.V. would like to use cookies and similar technologies in order to optimize your shopping experience and this requires your consent. By clicking on the "Accept cookies" button you agree to our use of cookies and similar technologies. If you do not agree, you can refuse the use or customize settings for the respective cookies by clicking on the button "Cookie Settings".You also have the possibility to specify that only certain cookies, which we use on our website, should be activated. This banner will be displayed until you have selected your cookie preferences. If you decide against the use of cookies, we will not use cookies nor similar technologies, except those that are essential for the proper functioning of the website. Click here for our privacy policy
      Accept Cookies

      Cookie Settings
