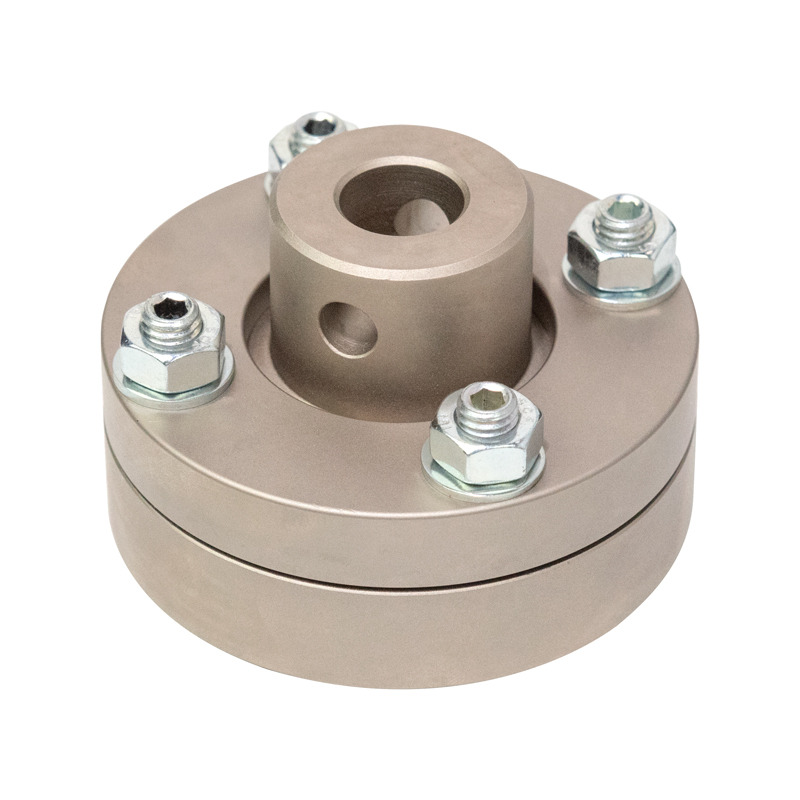

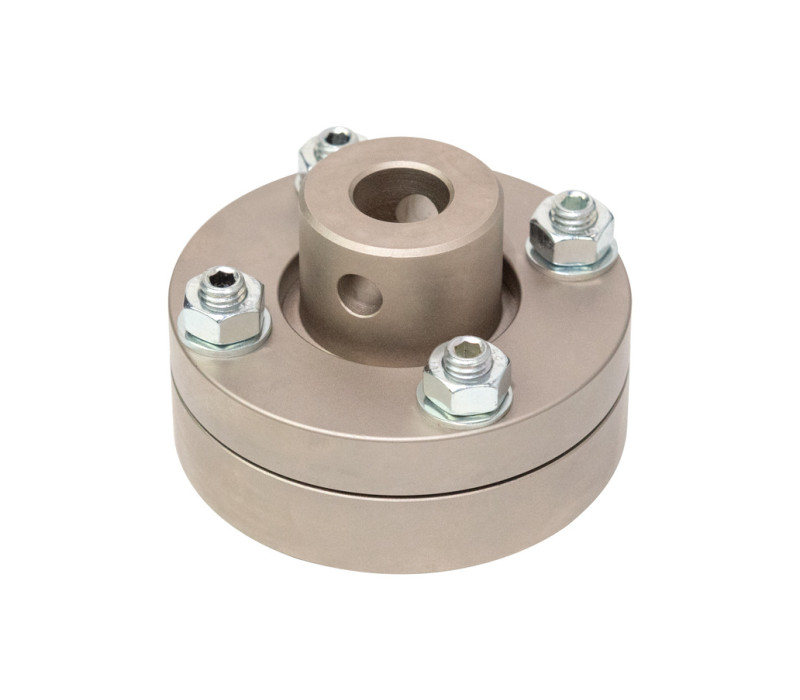

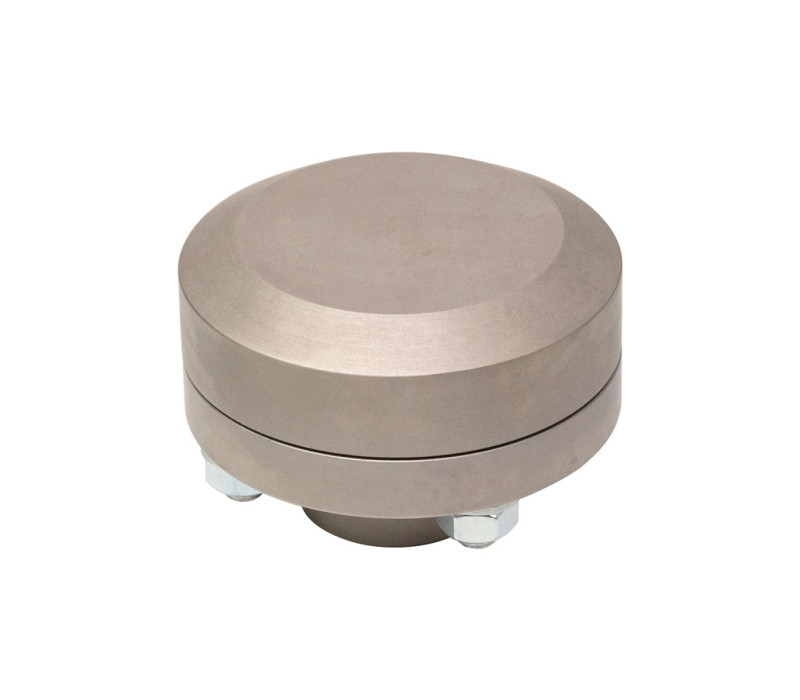

    G1123 Self-Aligning Compression Plate

    This G1123 self-leveling compression plate adjusts to the angle of the sample with 4 screws and nuts, ensures parallelism and complete sample engagement.

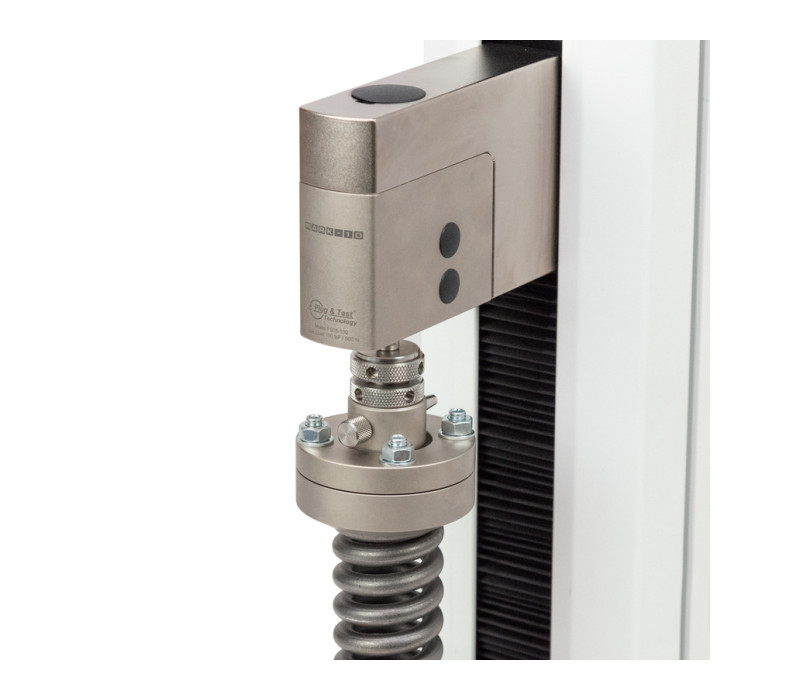

    It Can be used for materials with high spring rates and especially good for low-deflection springs.

    It has a integrated eye end mount,  an Eye End Adapter is required to adapt to our load cells, force gauges, and test stands.

    See also our Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands.



    Attention: This fixture requires an Eye-End-Adapter to be attached to a test stand
    € 926,00
    Shop now
    • Self-leveling compression for ensuring parallelism and complete sample engagement.
    • Especially for low-deflection springs and materials with high spring rates.
    • Adjustable Angle of ±1.5°: Loosen the nuts, position the plate to deired angle and tighten.
    • Integrated eye end mounting.
    IN [MM]
    Dimensions-IN [MM]
    G1123 Solid Models
    Data sheet for all Grips
    Capacity:9 kN / 900 Kgf
    Weight:1,27 kg
    Material:Steel 58 HRC, nickel - plated
