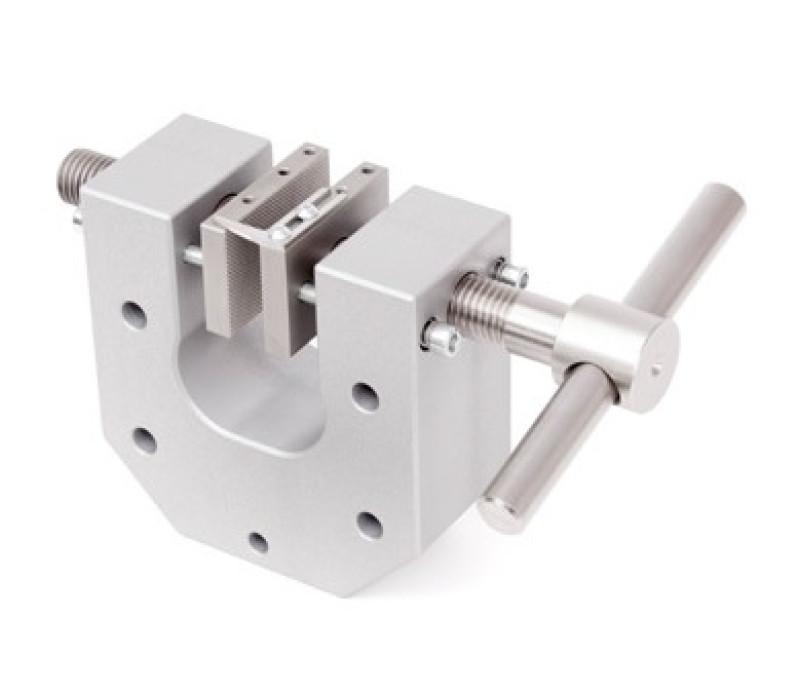

    G1100 Large Parallel Jaw Grip

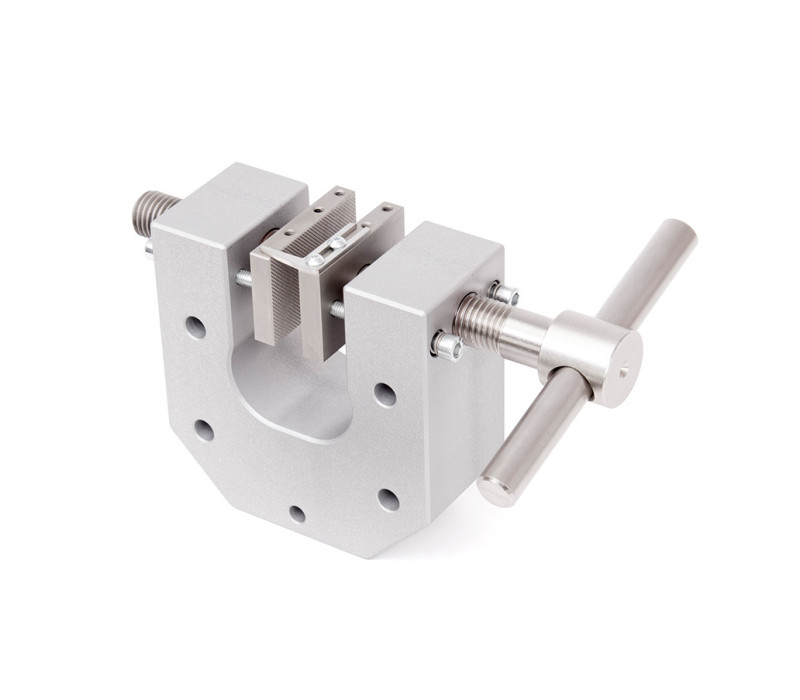

    The G1100 Parallel Jaw Grip is the larger of the three parallel jaw grips designed for general tensile and pull testing applications.
    It has a maximum capacity of 9 kN and a jaw opening of up to 34 mm.

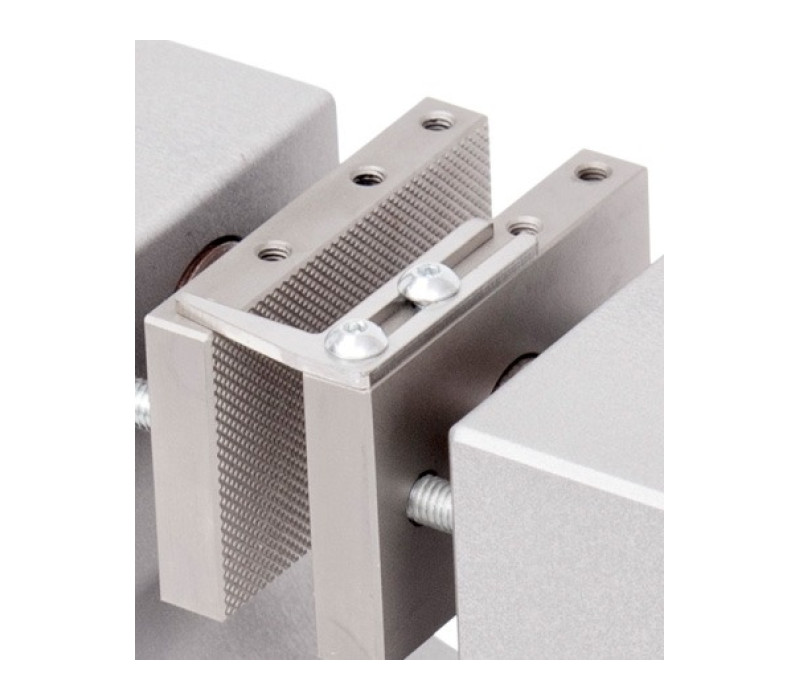

    The jaws are equipped with pyramidal jaw faces and an adjustable stop for consistent sample placement between the jaws.
    Additional there are extended 100 mm jaws available to accommodate larger samples.

    The G1100 parallel Grip uses an integrated eye-end mounting, therefore an eye-end-adapter is required to mount this vice to a force gauge, force sensor or test stand.
    € 689,00
    Order now
    • Individually adjustable, serrated jaws.
    • Available extended length jaws.
    • Eye end mounting
    • Max. sample thickness: 34.0 mm
    • Adjustable stop for consistent sample placement between the jaws.
    G1100 Large Parallel Jaw Grip
    Dimensions-G1100 Large Parallel Jaw Grip

    All sizes are noted in inch with metric sizes in [mm] behind.

    Solid Models G1100
    Data Sheet for All Grips
    Capacity:9 kN
    Housing material :Aluminum
    Material clamp jaws:Hardened steel, 58 RC
    Weight:2,7 kg
    Shipping weight3,2 kg

    Related Products

    Browse Related Products

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

    G Series Thread Adapters & Couplings

    G Series Thread Adapters & Couplings

    G1018 Swivel Adapters

    G1018 Swivel Adapters

    G1101 Medium Parallel Jaw Grip

    G1101 Medium Parallel Jaw Grip

    G1013 Parallel Jaw Grip

    G1013 Parallel Jaw Grip

    Order Now

    Products
    Item Product Price  Quantity Action
    136907G1100 Parallel jaw grip, large, eye end € 689,00
    Accessories
    Item Product Price  Quantity Action
    136847AC1070-1 Jaws for G1100, 2.36” length, set of 2 (included with G1100) € 308,00

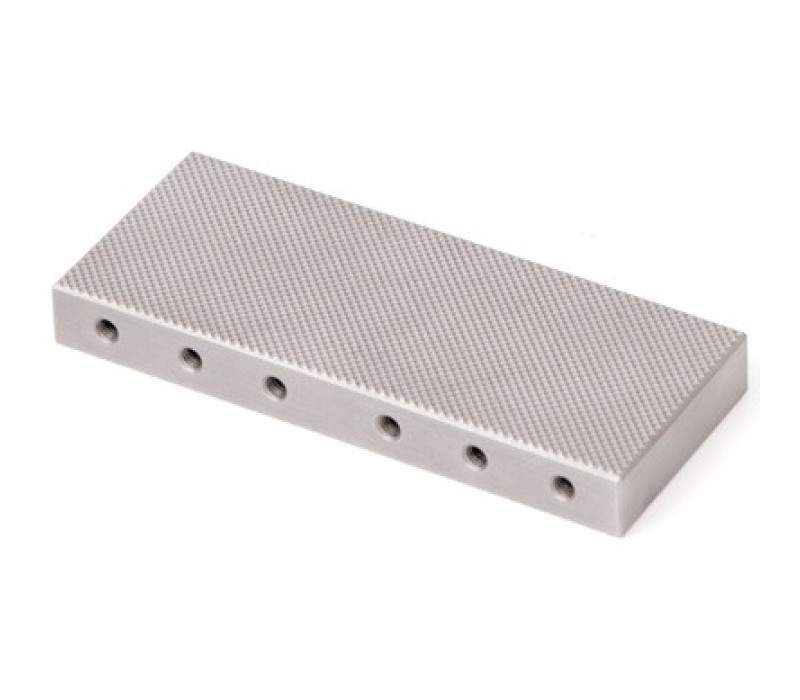

    136848AC1070-2 Jaws for G1100, 3.94” length, set of 2 € 349,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
