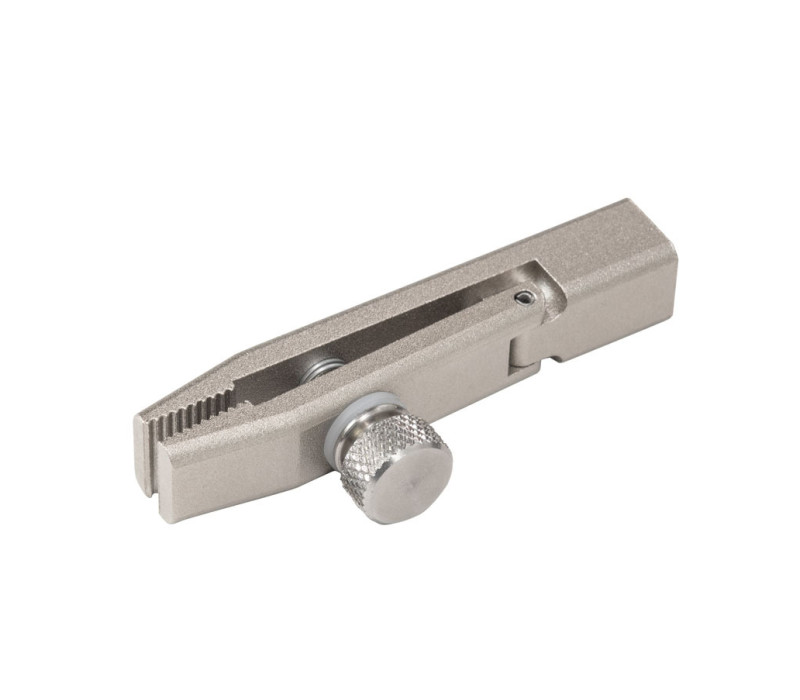

G1124

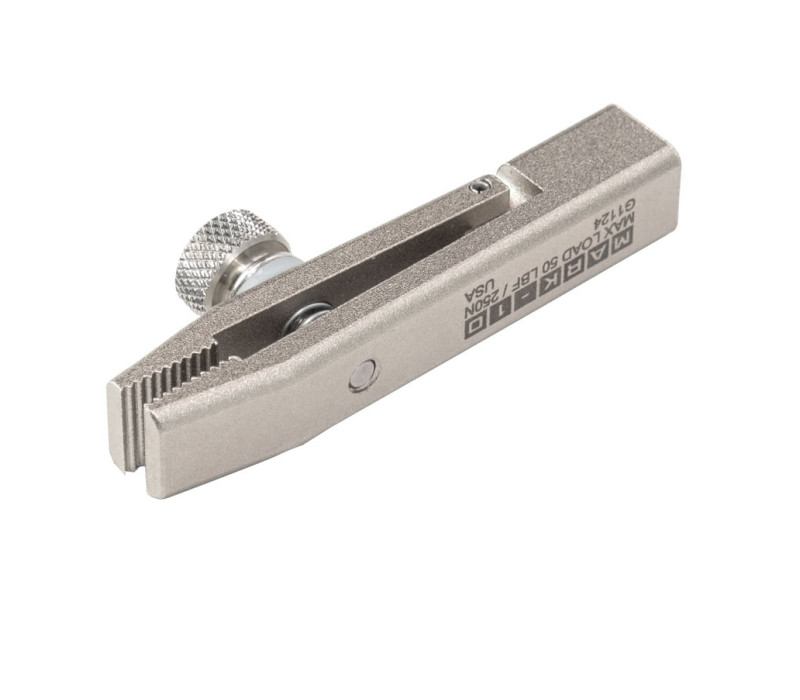

G1124 Side Bottom View

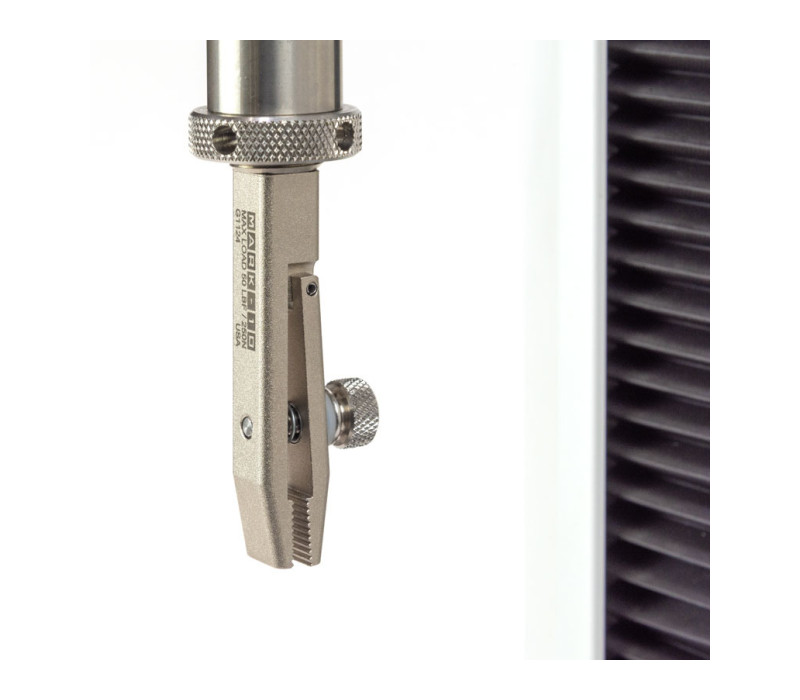

G1124 Mounted on a quick-change holder

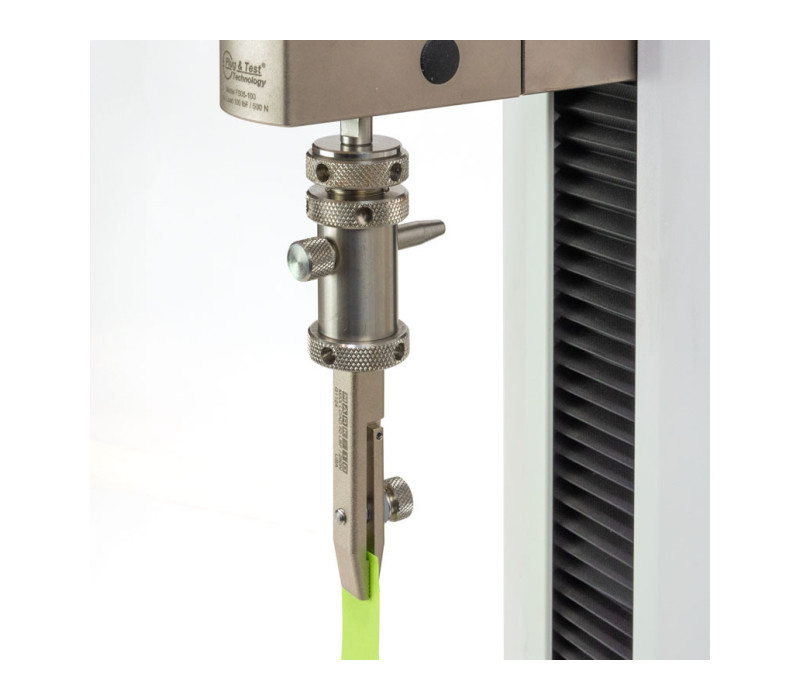

When mounted on a quick-release adapter, the G1123 handle can be easily removed and installed, and twisting is prevented

G1124 Miniature film & paper peel grip

The G1124 is developed to Achieve Precise Tensile & Peel Testing on smaller samples. When testing the strength and integrity of thin materials, sample slippage and damage can compromise your results. The G1124 grip is designed to eliminate these challenges, providing a secure and reliable hold for repeatable accurate tensile and peel testing.

Engineered for quality control labs and R&D departments, this grip is the ideal solution for testing a wide range of delicate materials.

Key Features & Benefits

Secure Interlocking Jaws: The unique adjustable, serrated interlocking jaw design firmly clamps samples without tearing or causing stress concentrations, ensuring the material itself is what's being tested.
Versatile Sample Capacity: Easily accommodates thin materials up to 0.5 in (12.7 mm) wide, making it perfect for standard film, paper, and foil specimens.
Reliable Force Capacity: With a robust design, the G1124 can handle testing forces up to 50 lbF (250 N), suitable for characterizing the tensile strength and peel adhesion of lightweight materials.
Modular System Component: This grip is designed to seamlessly integrate with any Mark-10 force gauge and test frame, allowing you to build a complete, customized testing system that grows with your needs.

Ideal for Testing:

Plastic Film & Sheeting
Paper & Cardstock
Adhesive Tapes & Labels
Foils & Laminates
Thin Textiles & Non-wovens
Build Your Complete Testing System

The G1124 grip is a useful component in a comprehensive testing setup. In combination with a Mark-10 force gauge for precise force measurement and/or a test frame for consistent and stable movement to create a system tailored to your exact application.

Ready to enhance your material testing capabilities? Contact our experts today to configure the perfect system for your requirements.

€ 316,00

Shop now

Includes a #10-32 M/M stud with jam nuts
Designed for tensile and peel testing of thin materials
Adjustable serrated interlocking jaws

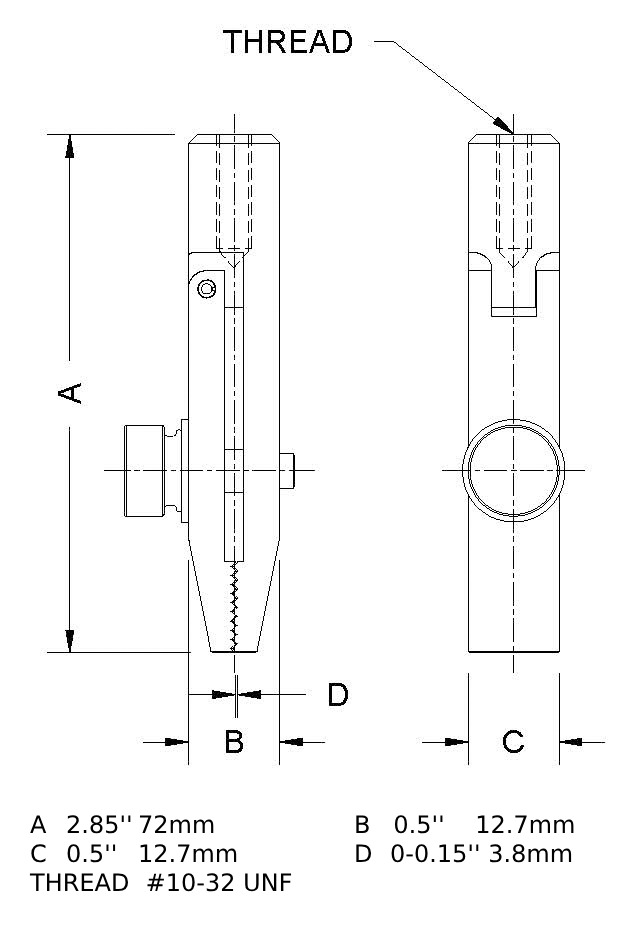

Dimensions

A – Overall Length:
2.85 in [72 mm]
B – Tip Width:
0.50 in [12.7 mm]
C – Body Width (Main Diameter):
0.50 in [12.7 mm]
D – Adjustable Opening Range:
0.00 – 0.15 in [0.0 – 3.8 mm]
Thread Specification:
#10-32 UNF Internal Thread (Unified Fine, 32 TPI)

Capacity	250 N (50 lbF)
Weight	40g (0.08 lb)
Shipping weight	500 g approx (1 lb)
HS code	9024800000
ECCN	EAR99
Country of Origin	United States

Data Sheet Grips

Products

Item	Product	Price	Quantity	Action
140031	G1124 Miniature Film & Paper Peel Grip, #10-32F	€ 316,00

Accessories

Item	Product	Price	Quantity	Action
130807	G1018-1 Swivel adapter, #10-32M to #10-32F	€ 129,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

G1124 Miniature film & paper peel grip

Features

Dimensions

Specifications

G1008 and G1015 Paper & Film Grips

G1062 Miniature Wedge Grip

Test stand with IntelliMESUR® F105 / F305 / F505 / F505H

Test Stand with EasyMESUR® F105 / F305 / F505 / F505H

Buy Now

G1124 Miniature film & paper peel grip

Features

Dimensions

Specifications

Related Products

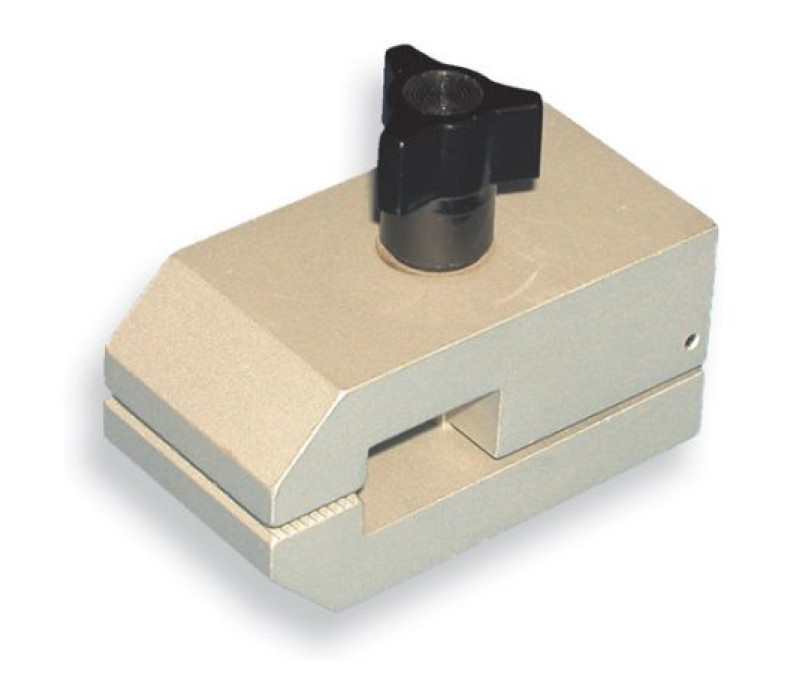

G1008 and G1015 Paper & Film Grips

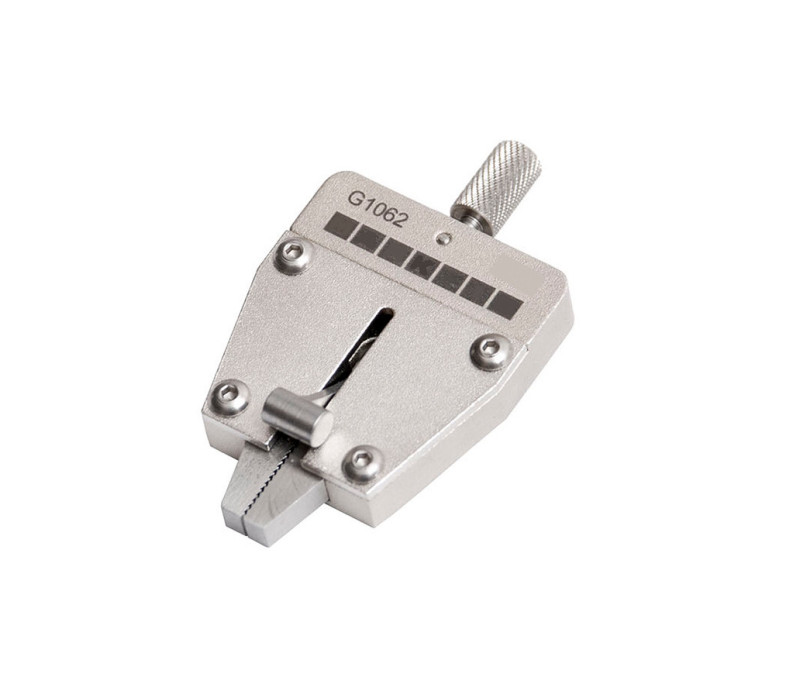

G1062 Miniature Wedge Grip
