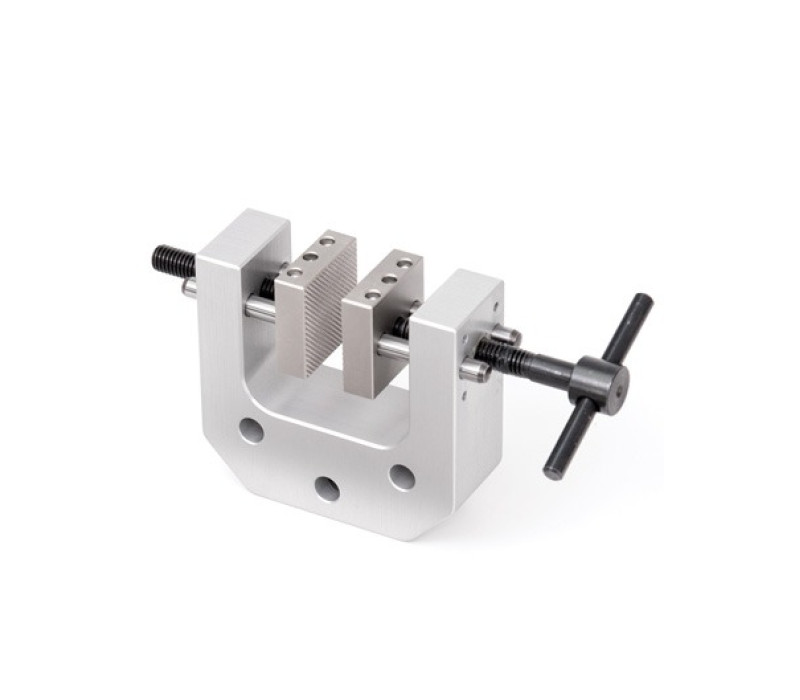

    G1101 Medium Parallel Jaw Grip

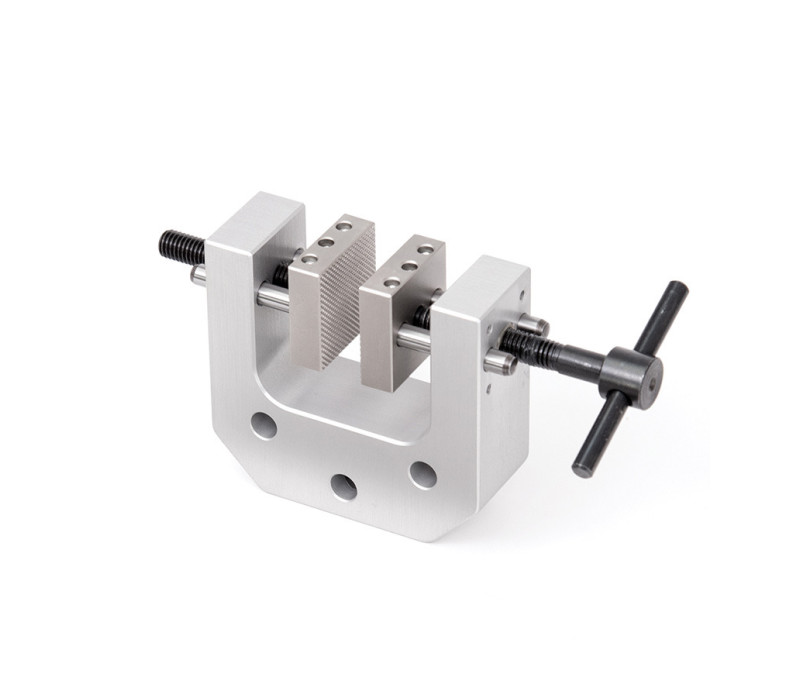

    The Versatile G1101 Parallel Jaw Grip is the lighter version of the G1100 parallel grip.
    It has a maximum capacity of 1000 N and a maximum jaw opening of 32.3 mm.

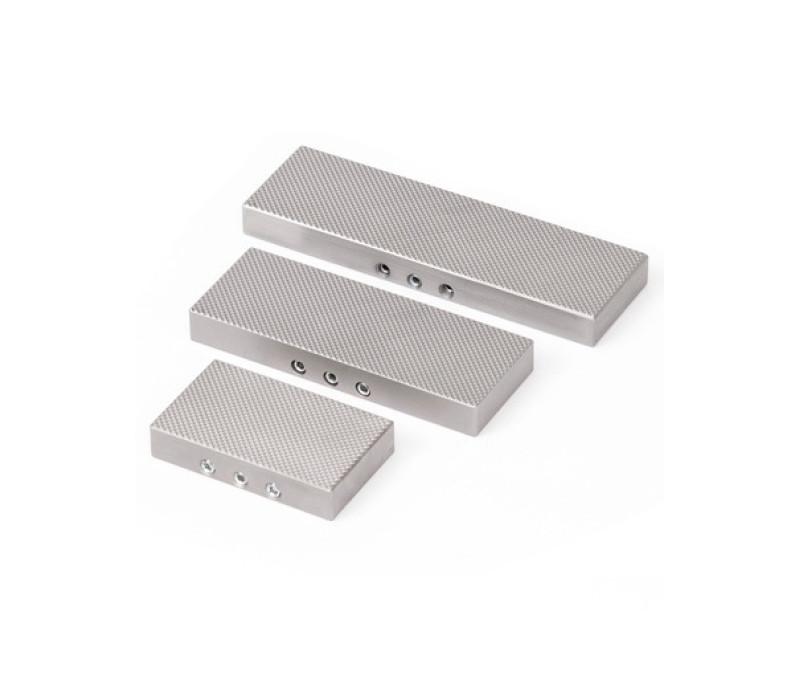

    The G1101 grip has a standard set of jaws that are 30 mm wide, there are extended jaws available in 50, 80 and 100 mm
    All jaws feature pyramidal jaw faces for a strong grip on a variety of test samples.

    These grips are equipped with integrated eye end mounting, This makes it easy to connect to force gauges, force sensors, and test stands.

    Attention: This fixture requires an Eye-End-Adapter to be attached to a test stand
    € 376,00
    Order now
    • Individually adjustable, serrated jaws.
    • Available extended length jaws.
    • Eye end mounting
    • Max. sample thickness: 32.3 mm
    G1101 Medium Parallel Jaw Grip
    Dimensions-G1101 Medium Parallel Jaw Grip

    All sizes are noted in inch with metric sizes in [mm] behind.

    G1101 Solid Models
    Datasheet for All Grips
    Capacity:1 kN
    Max. sample thickness: 32.3 mm
    Housing material:Aluminum
    Material clamping jaws:Hardened steel, 58 RC
    Weight:0.5 kg
    Verzend gewicht0,9 kg

    Related Products

    Browse Related Products

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

    G Series Thread Adapters & Couplings

    G Series Thread Adapters & Couplings

    G1018 Swivel Adapters

    G1018 Swivel Adapters

    G1100 Large Parallel Jaw Grip

    G1100 Large Parallel Jaw Grip

    G1013 Parallel Jaw Grip

    G1013 Parallel Jaw Grip

    Order Now

    Products
    Item Product Price  Quantity Action
    136908G1101 Parallel jaw grip, medium, eye end € 376,00
    Accessories
    Item Product Price  Quantity Action
    136849AC1071-1 Jaws for G1101, 1.18” length, set of 2 (included with G1101) € 129,00
    136850AC1071-2 Jaws for G1101, 1.97” length, set of 2 € 193,00
    136851AC1071-3 Jaws for G1101, 3.15” length, set of 2 € 262,00
    136852AC1071-4 Jaws for G1101, 3.94” length, set of 2 € 303,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
