Thread Adapters Thread Adapters & Couplings

Price starting from € 13,00
View all prices >>

THREAD ADAPTERS, G1051 - Adapter #4-40M to #10-32M

THREAD ADAPTERS, G1050 - Adapter #10-32F to #4-40M

THREAD ADAPTERS, G1039 - Coupler #10-32F to #10-32F

THREAD ADAPTERS, G1030 - Adapter #10-32F to 5/16-18M

THREAD ADAPTERS, G1067 - Adapter #10-32F to 1/2-20M

THREAD ADAPTERS, G1048 - Adapter #10-32F to M4M

THREAD ADAPTERS, G1057 - Adapter #10-32F to M6F

THREAD ADAPTERS, G1054 - Adapter #10-32F to M6M

THREAD ADAPTERS, G1060 - Coupler #10-32M to #10-32M

THREAD ADAPTERS, G1063 - Adapter #10-32M to 5/16-18F

THREAD ADAPTERS, G1047 - Adapter #10-32M to M4F

THREAD ADAPTERS, G1069 - Adapter 5/16-18F to 1/4-28M

THREAD ADAPTERS, G1037 - Coupler 5/16-18F to 5/16-18F

THREAD ADAPTERS, G1059 - Adapter 5/16-18F to 1/2-20F

THREAD ADAPTERS, G1066 - Adapter 5/16-18F to 1/2-20M

THREAD ADAPTERS, G1049 - Adapter 5/16-18F to M6M

THREAD ADAPTERS, G1040 - Coupler 5/16-18M to 5/16-18M

THREAD ADAPTERS, G1091 - Coupler 1/2-20F to 1/2-20F

THREAD ADAPTERS, G1041 - Adapter 1/2-20M to 5/16-18M

THREAD ADAPTERS, G1044 - Adapter plate, 1/2-20F

THREAD ADAPTERS, G1113 - Adapter, M3M to #4-40F

THREAD ADAPTERS, AC1082 - Coupler #10-32M TO #10-32M

THREAD ADAPTERS, AC1082-1 - Coupler 5/16-18M TO 5/16-18M

THREAD ADAPTERS, AC1082-2 - Coupler 1/2-20M TO 1/2-20M

Click on an image for a larger image

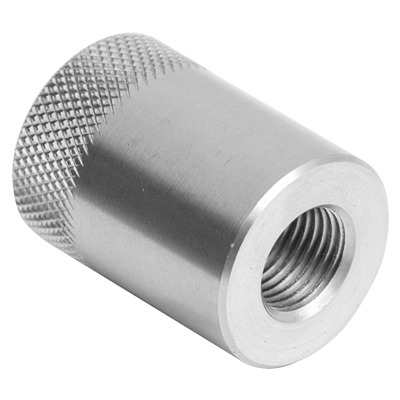

Thread Adapters & Couplings

Thread Adapters & Couplings are used between gauges, load cells, test stands grips, and attachments.
They enable fixtures and devices with different threads or M/F combinations to be used together.

Depending on the application they are suitable for tension and compression applications.

Features

Different capacities available from 100 N to 9000 N
Connect gauges and load cells to fixtures with different thread
Connect male/male or female/female threads

Dimensions

Available adapters and couplings

Model	Capacity (N)	Length A (mm)	Thread B	Thread C
G1051	500	14,0	#4-40M	#10-32M
G1050	500	19,1	#10-32F	#4-40M
G1039	1000	19,1	#10-32F	#10-32F
G1030	1000	12,7	#10-32F	5/16-18M
G1067	1000	19,1	#10-32F	1/2-20M
G1048	1000	19,1	#10-32F	M4M
G1057	1000	19,1	#10-32F	M6F
G1054	1000	19,1	#10-32F	M6M
G1060	1000	19,1	#10-32M	#10-32M
G1063	1000	33,0	5/16-18F	#10-32M
G1047	1000	19,1	M4F	#10-32M
G1069	2500	31,8	5/16-18F	1/4-28M
G1037	2500	25,4	5/16-18F	5/16-18F
G1059	2500	28,7	5/16-18F	1/2-20F
G1066	2500	19,1	5/16-18F	1/2-20M
G1049	2500	31,8	5/16-18F	M6M
G1040	2500	23,4	5/16-18M	5/16-18M
G1091	5000	33,0	1/2-20F	1/2-20F
G1041	2500	26,9	1/2-20M	5/16-18M
G1044*	-	Adapter plate	1/2-20F	-
G1113	500	19,1	#4-40F	M3M
AC1082	500	19,1	#10-32M	#10-32M
AC1082-1	2500	25,4	5/16-18M	5/16-18M
AC1082-2	9000	38,1	1/2-20M	1/2-20M
*Compatible with any Mark-10 test stand with a threaded hole matrix base plate, such as TSF, ESM303, etc.

Downloads

Data Sheet for all Grips and Attachments
