G1076 Wire Terminal Grip

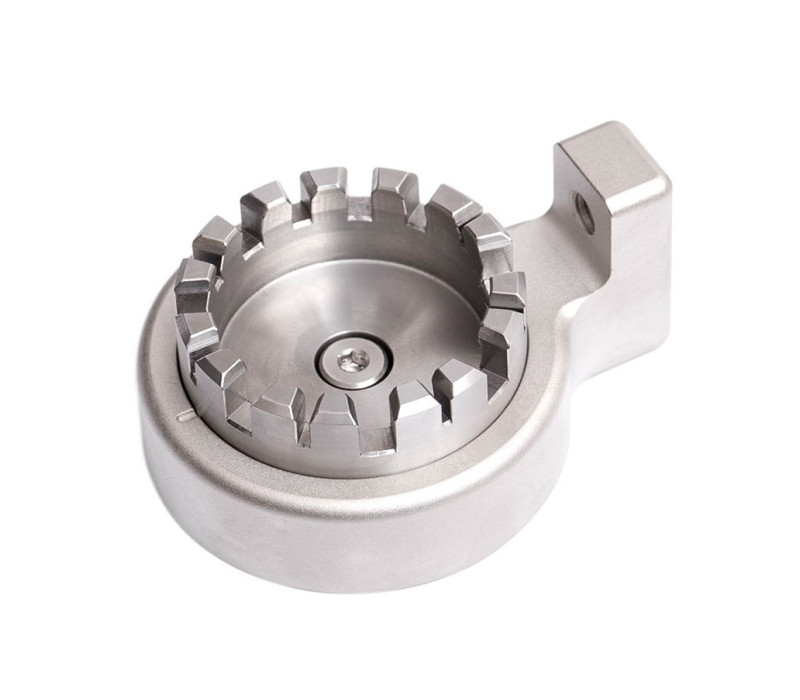

G1076 wire terminal grip accommodates wire diameters of various sizes. Rotate the turret wheel to the desired groove size.

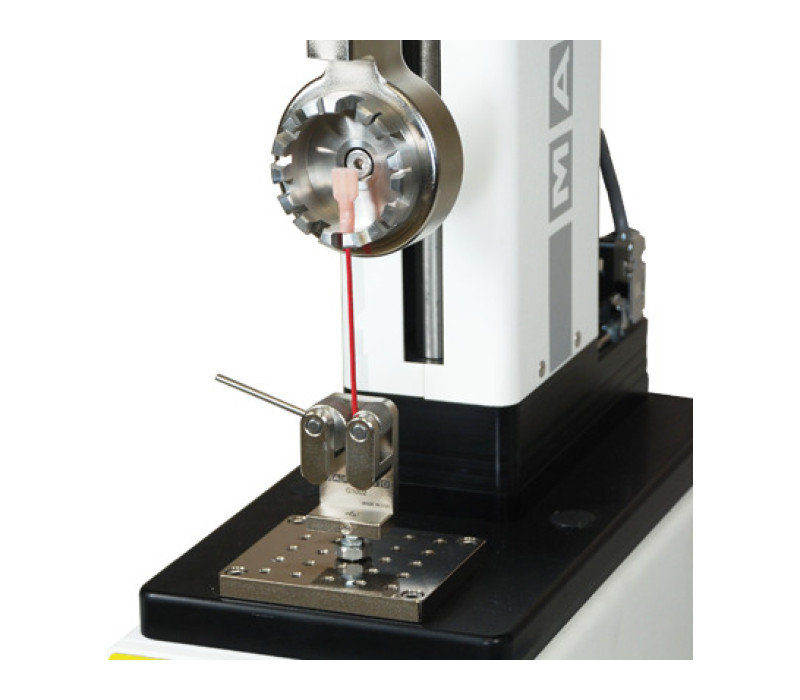

G1076 shown in a typical wire terminal pull testing application, used in conjunction with a digital force gauge, test stand, and G1002 dual roller grip.

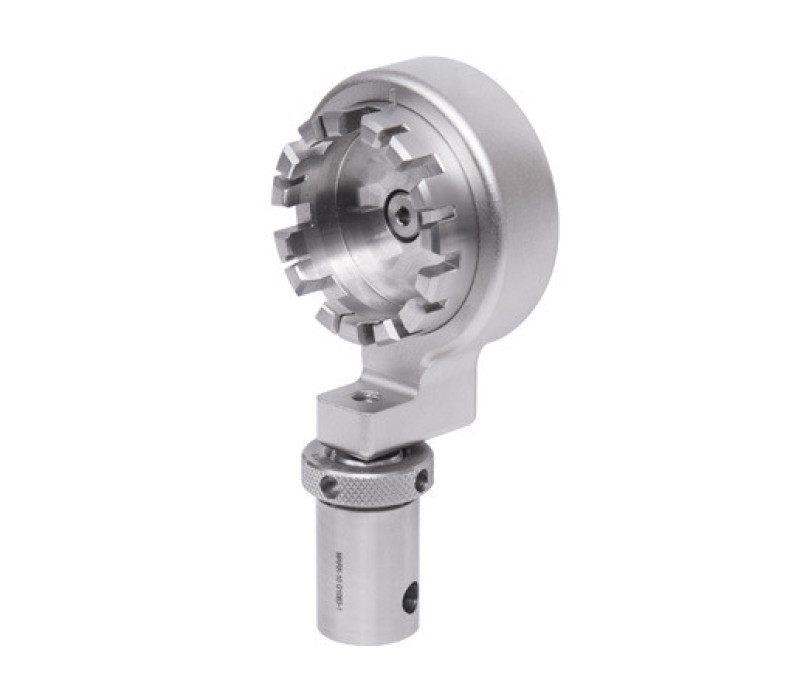

Compatible with quick-change eye end adapters that allow for simple grip removal / installation, and also prevent rotation.

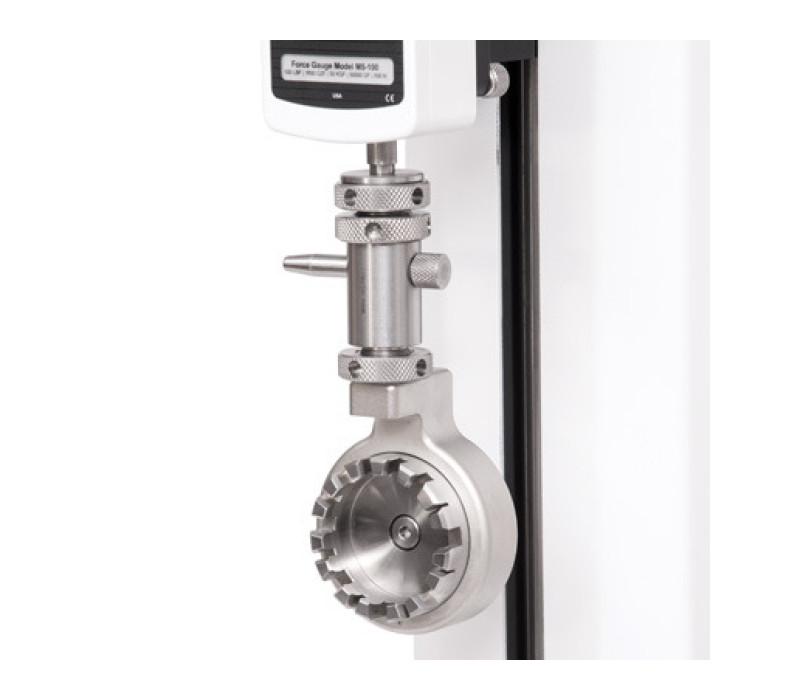

G1076 shown in a typical application with eye end adapter, digital force gauge and test stand

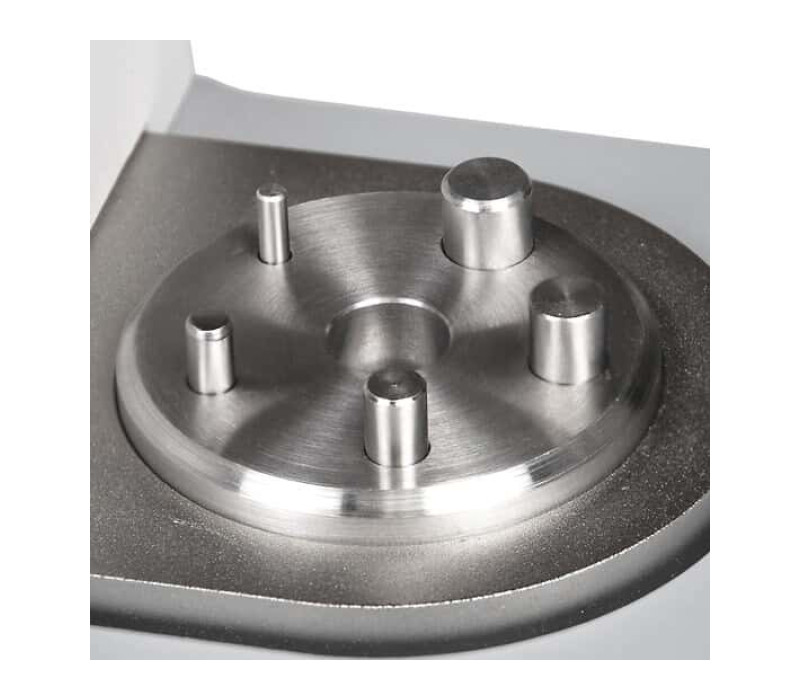

Optional Ring terminal fixture (WT3002) with Multiple pin sizes from 3.2 to 9.5 mm diameter

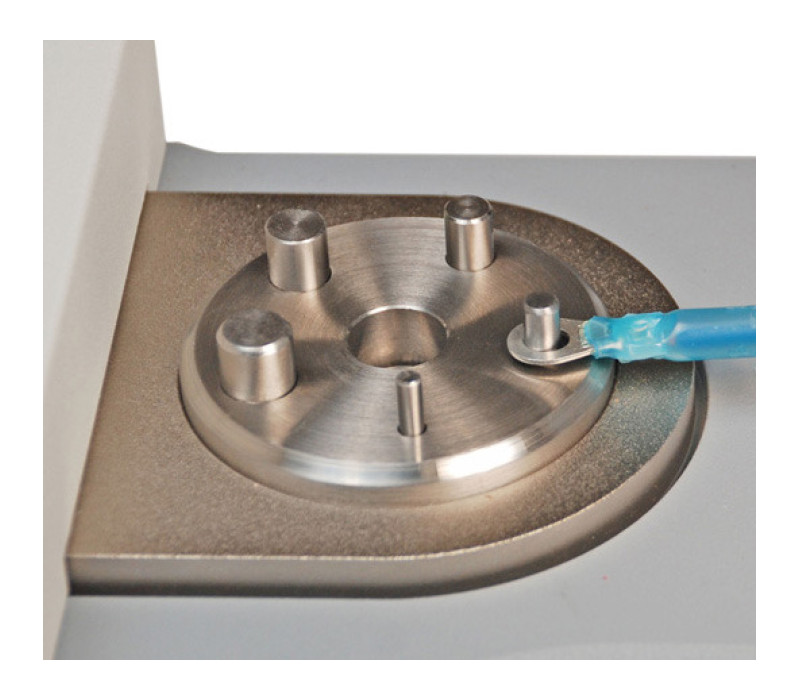

WT3002 used for ring terminal testing

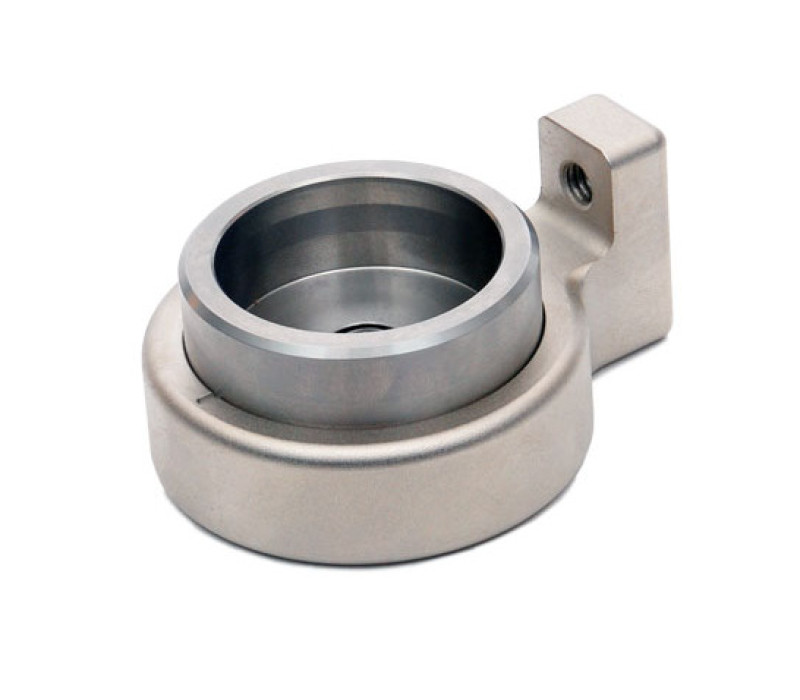

Optional blank fixture is available for machining in the field, to accommodate unique sample shapes and sizes.

G1076 Wire Terminal Grip

Name: G1076 Wire Terminal Grip
SKU: 127055
Price: 456.00 EUR
Availability: PreOrder

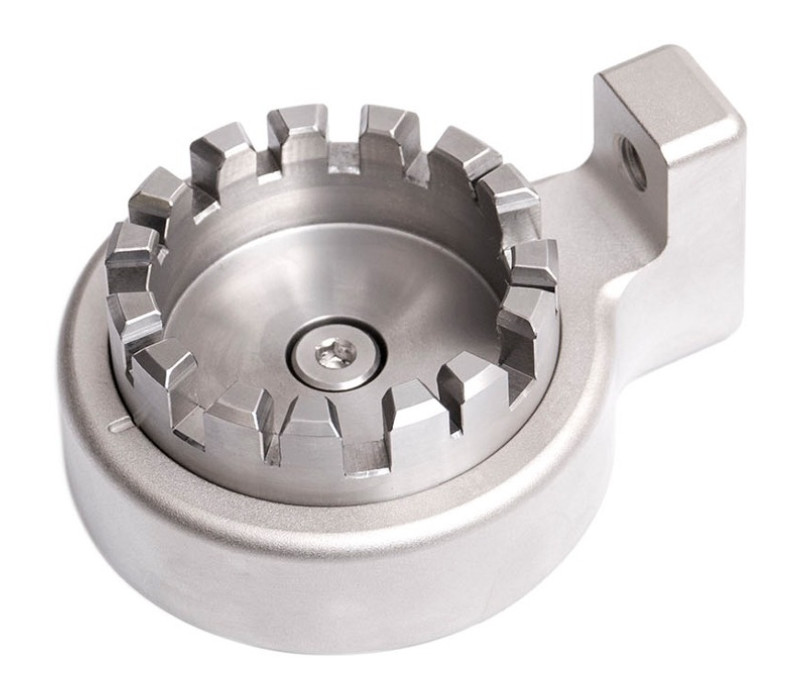

The G1076 wire terminal grip is a turret style fixture designed to secure wire terminals, cables, connectors, and other samples for pull testing.
The turret wheel of this grip is equiped with 15 slots with an opening from 0,7 to 6,3 mm and has a capacity of up to 2,5 kN.

The bracket that holds the turret wheel connects to a force gauge or loadcell in a test stand with a 5/16-18 UNC female thread.
It is setup by simply turning the appropriate opening to the desired size, integrated magnets will hold the wheel in the chosen position.

The G1076 wire pull grip is often used in combination with the G1002 dual roller grip

This grip comes with a 5/16-18M to #10-32F thread adapter, 5/16-18 M/M stud with jam nuts, and #10-32 M/M stud with jam nuts.

An optional Ring terminal fixture (WT3002) with Multiple pin sizes from 3.2 to 9.5 mm diameter is available.
Another option is a blank machinable terminal fixture (WT3003), this makes it possible to create unique sample shapes and sizes.

€ 456,00

Order now

Rotating turret with magnetic detents snaps to the desired slot width
Equiped with wire slots from 0,7 to 6,3 mm
Includes a 5/16-18M to #10-32F thread adapter and #10-32 M/M stud with jam nuts.
Available blank insert for unique sample dimensions

All sizes are noted in Inches with metric sizes in [MM] behind.

Capacity:	2500 N (500 lbF)
Weight:	0.45 Kg (1.0 lb)
Groove sizes: mm (in):	0,7 (0.03), 1,0 (0.04), 1.5 (0.06), 2,0 (0.08), 2,3 (0.09), 2,8 (0.11), 3,0 (0.12), 3,5 (0.14), 3,8 (0.15), 4,3 (0.17), 4,5 (0.18), 5,1 (0.20), 5,3 (0.21), 5,8 (0.23), 6,3 (0.25)
Wire diameter range:	0 - 6.3 mm (0 - 0.25 in)

Solid Models G1076

Data sheet all grips

Products

Item	Product	Price	Quantity	Action
133820	G1076 Wire terminal grip, turret style, 5/16-18F	€ 456,00

Accessories

Item	Product	Price
134591	WT3003 Machinable blank terminal fixture	€ 184,00
130808	G1018-2 Swivel adapter, 5/16-18M to 5/16-18F	€ 120,00
134246	WT3002 Ring terminal fixture	€ 203,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

G1076 Wire Terminal Grip

Features

Dimensions

Specifications

Series-3 Digital Force Gauge

Series-4 Advanced Digital Force Gauges

Series-5 Advanced Digital Force Gauge

G Series Thread Adapters & Couplings

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

G1018 Swivel Adapters

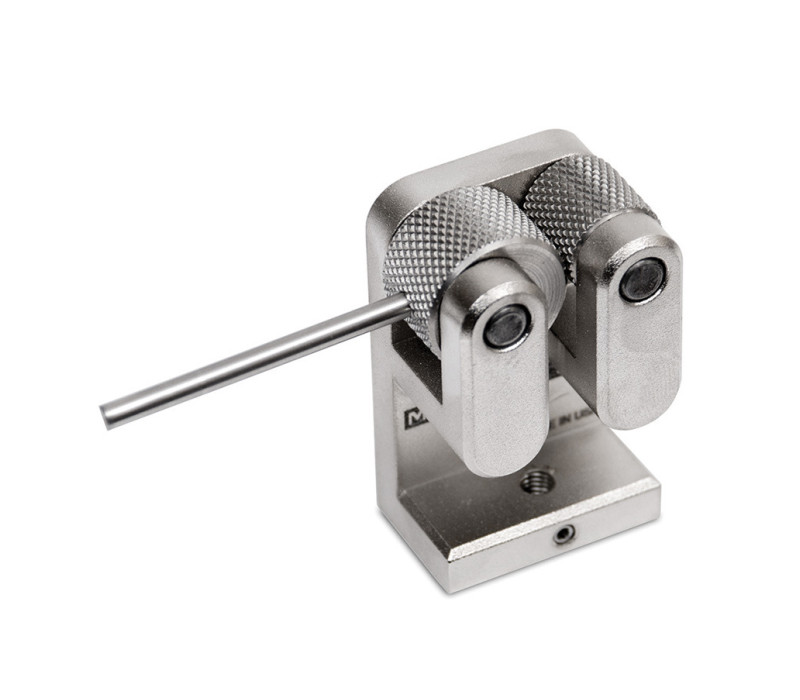

G1002 Dual Roller Cam Grip

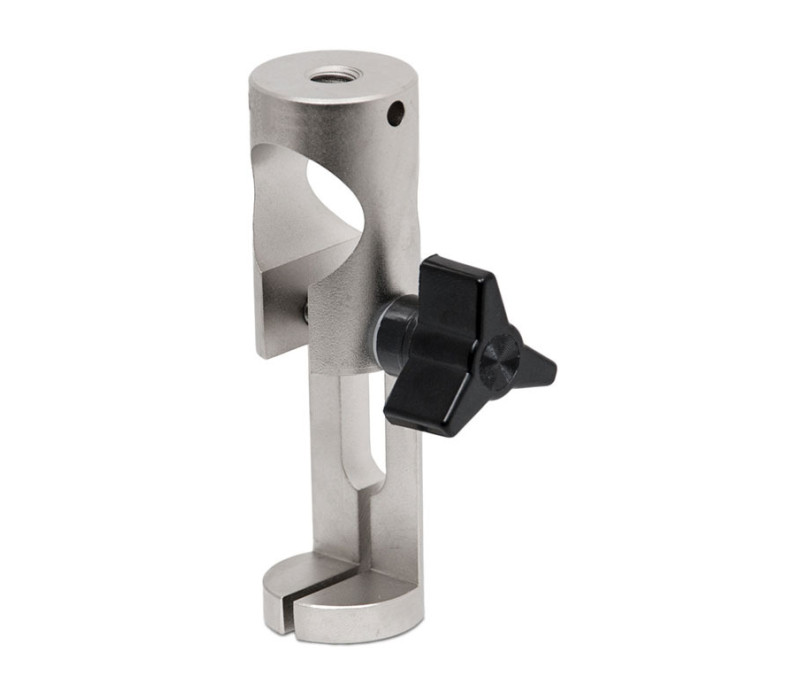

G1001 Wire Terminal Grips
