AC1073

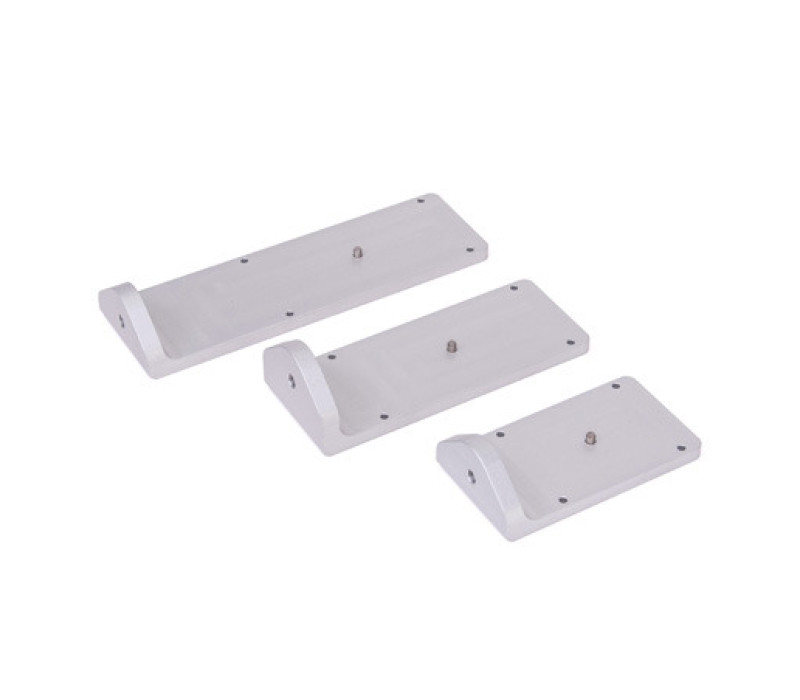

Three adapters are available, accommodating Mark-10 force gauges with capacities up to 500 lbF (2.5 kN). A 5/16-18 mounting hole is supplied for a hook or other attachment

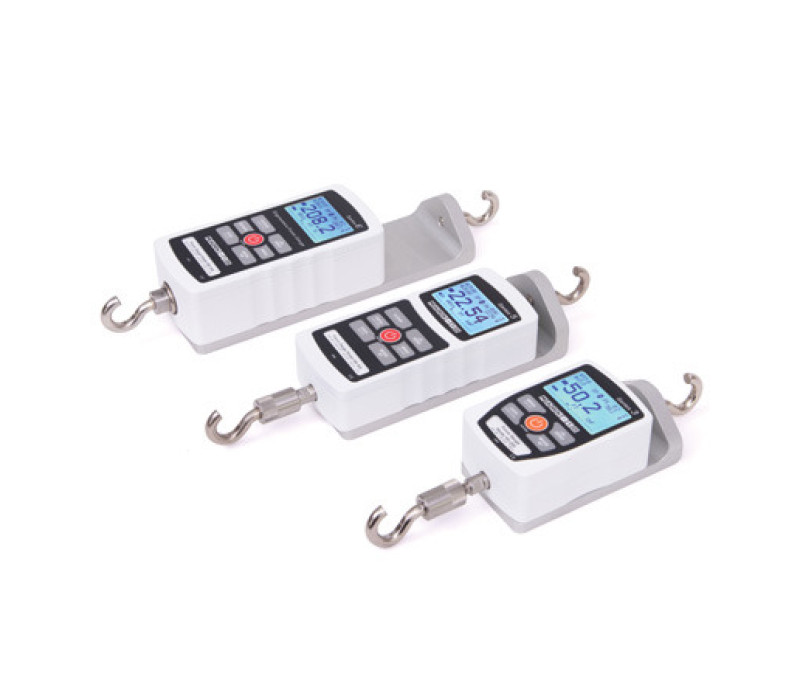

Shown with force gauges and hooks (not included)

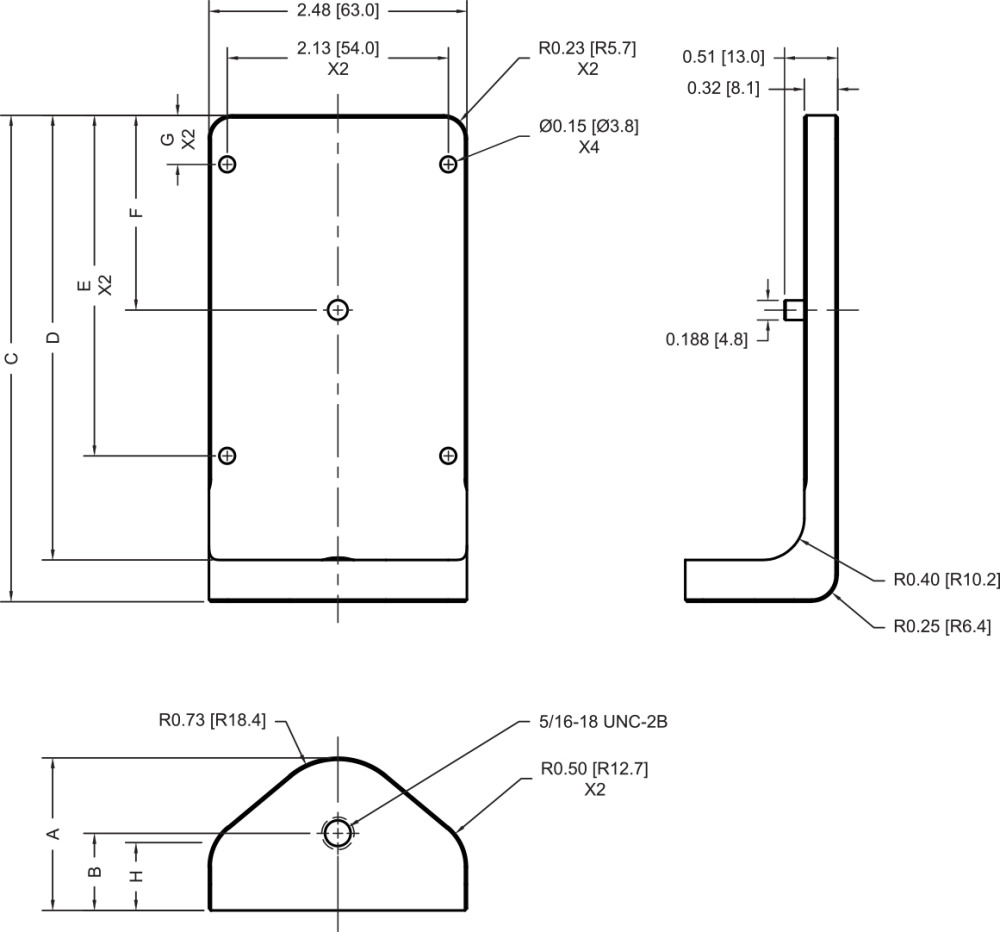

Dimensions
| Model | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| AC1073-1 | 38.1 mm (1.47 in) | 18.8 mm (0.74 in) | 118.6 mm (4.67 in) | 24.1 mm (4.27 in) | 83.1 mm (3.27 in) | 47.5 mm (1.87 in) | 12.0 mm (0.47 in) | 16.5 mm (0.65 in) |
| AC1073-2 | 38.1 mm (1.47 in) | 18.8 mm (0.74 in) | 211.1 mm (8.31 in) | 38.1 mm (7.91 in) | 126.3 mm (4.97 in) | 69.1 mm (2.72 in) | 12.0 mm (0.47 in) | 16.5 mm (0.65 in) |
| AC1073-3 | 47.0 mm (1.85 in) | 28.4 mm (1.12 in) | 25.4 mm (6.46 in) | 154.0 mm (6.06 in) | 126.3 mm (4.97 in) | 69.1 mm (2.72 in) | 12.0 mm (0.47 in) | 26.2 mm (1.03 in) |

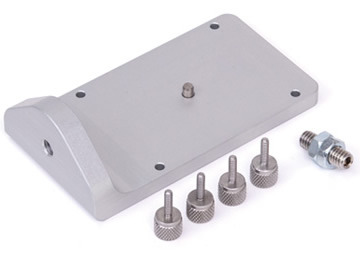

The inline adapters are shipped with the following accessories (Picture shows the AC1073-3):
- (4) Thumb screw for force gauge
- (1) 5/16-18 male/male stud with jam nuts
