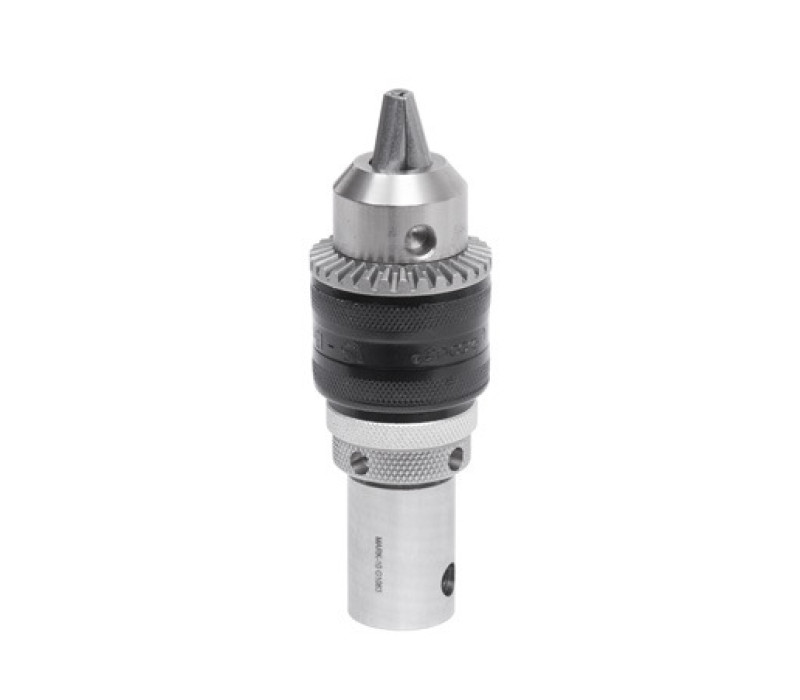

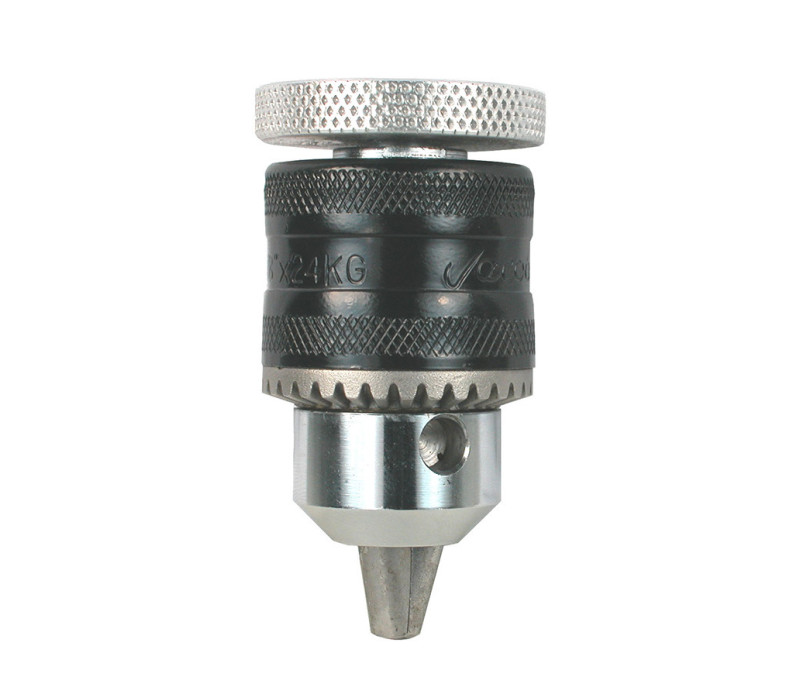

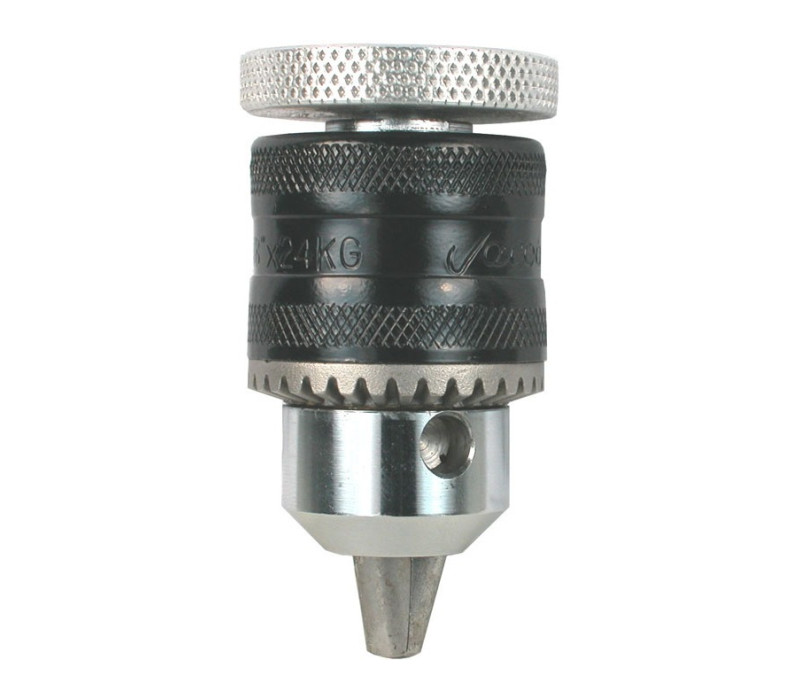

    G1010 Jacobs Chuck Pin Vise

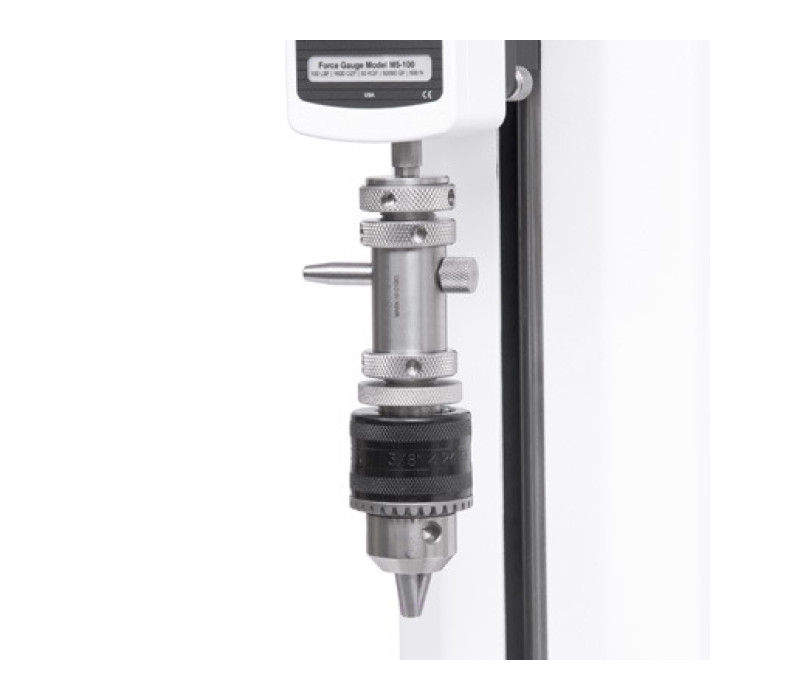

    The G1010 Jacobs Chuck Pin Vice Grips mount to a force test stand and/or force meter.
    This grip is used to hold wire, bits, round samples or fixtures in a force test set-up.

    They are available in 3 different versions with a capacity of 150N (15 kg) each with a different sample size range.

    Each G1010 vice grip is supplied with a chuck key for its size.
    Price from € 102,00
    Order now
    • Jacobs chuck secures bits, attachments, and samples
    • Select from three chuck sizes
    • Capacity 150 N
    • Comes with chuck key
    G1010 Pin Vice Grip
    Dimensions-G1010 Pin Vice Grip
    D1 no header
    ModelCapacity NØA mm
    G10101501.6 - 9.5
    G1010-11500.7 - 6.3
    G1010-21502.0 - 12.7
    Capacity:150 N (30 lb)
    Size:35 mm x 59 mm(D x H)
    (1.38" x 2.33")
    Sample size:G1010-1: 0,7-6,3 mm diameter (0.028"-0.25")
    G1010: 1,6-9,5 mm diameter (0.062"-0.375" )
    G1010-2: 2,0-12,7 mm diameter (0.078"-0.5")
    Weight:G1010-1: 110 g (0.25 lb)
    G1010: 160 g (0.35 lb)
    G1010-2: 300 g (0.66 lb)
    Thread:#10-32 UNF
    Includes a chuck key and #10-32 M/M stud with jam nuts

    Data Sheet for all Grips and Attachments
    Solid Models - G1010
    Solid Models - G1010-1
    Solid Models - G1010-2

    Related Products

    Browse Related Products

    G1018 Swivel Adapters

    G1018 Swivel Adapters

    G Series Thread Adapters & Couplings

    G Series Thread Adapters & Couplings

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

    G1061 Series Wedge Grip

    G1061 Series Wedge Grip

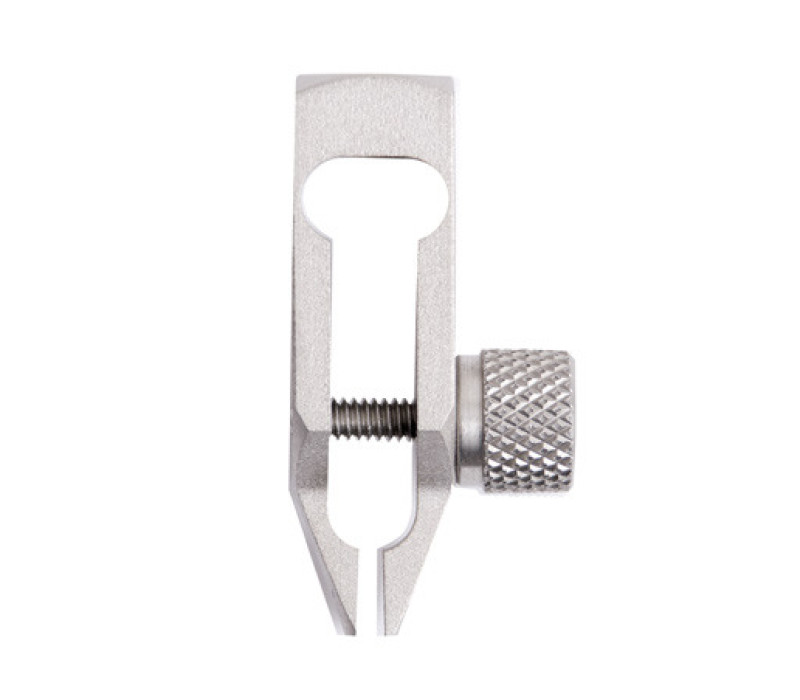

    G1003 Miniature Component Grip

    G1003 Miniature Component Grip

    Order Now

    Products
    Item Product Price  Quantity Action
    130318G1010 Pin vise, 0.062”-0.375” dia., #10-32F € 129,00
    135932G1010-1 Pin vise, 0.028” - 0.25” dia., #10-32F € 102,00
    136806G1010-2 Pin vise, 0.078 - 0.5” dia., #10-32F € 138,00
    Accessories
    Item Product Price  Quantity Action
    130807G1018-1 Swivel adapter, #10-32M to #10-32F € 101,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
