G1085

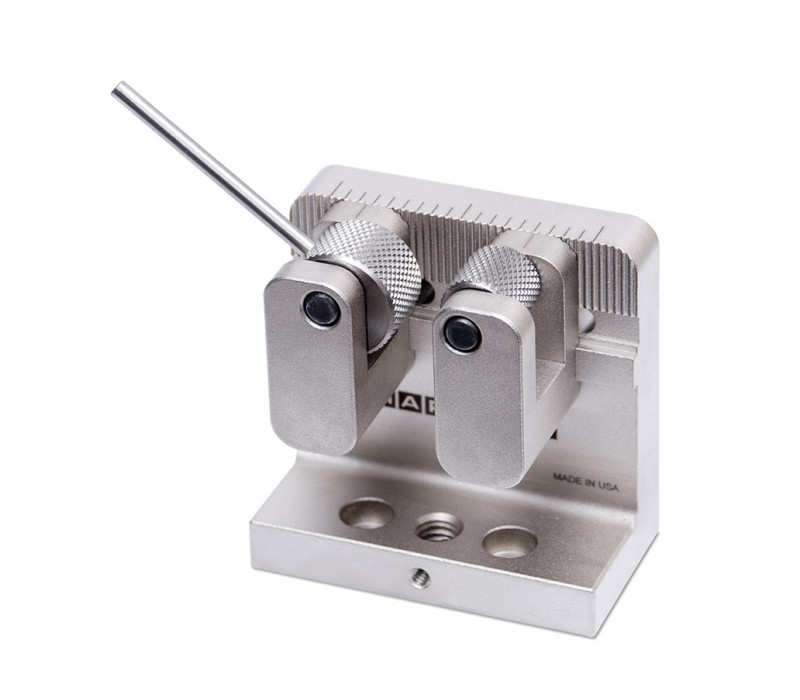

G1085 front view. Serrated cams effectively secure a wide range of sample shapes and sizes.

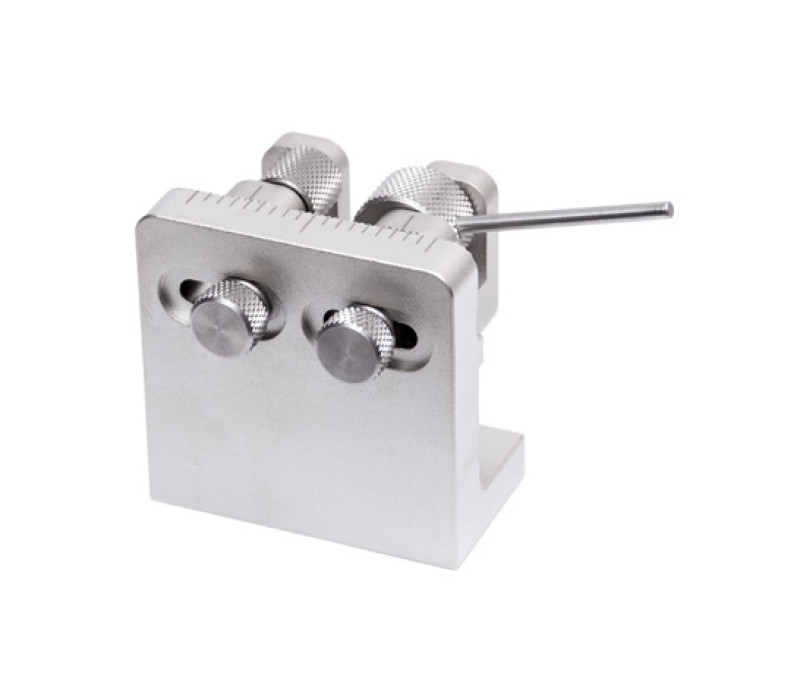

To reposition the cams, loosen the thumb screws in the rear of the housing, slide in either direction, and retighten. Interlocking teeth in the front of the housing ensure the cams are properly positioned for the test. Distance markers are provided for visual convenience.

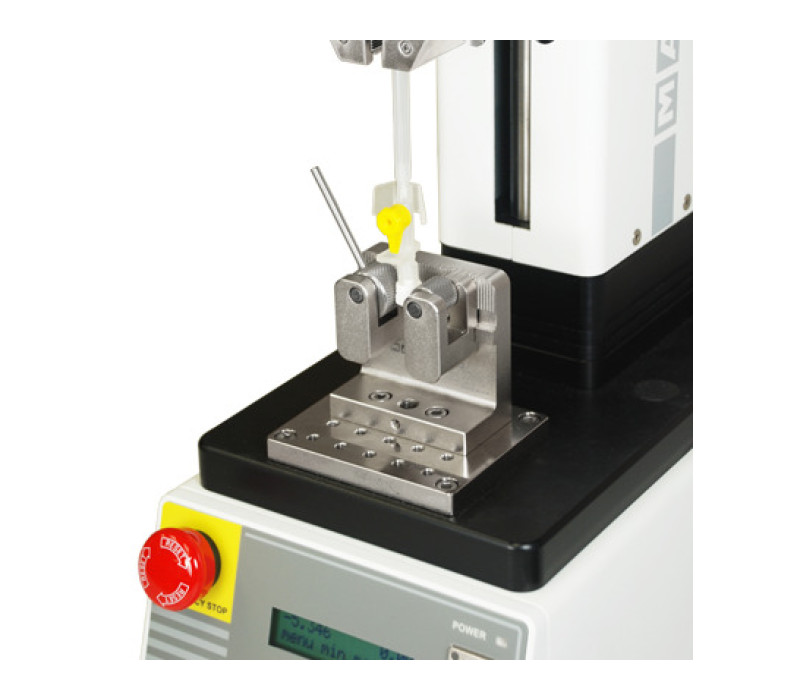

G1085 and G1061 wedge grip shown mounted to a motorized test stand for a medical device pull testing application.

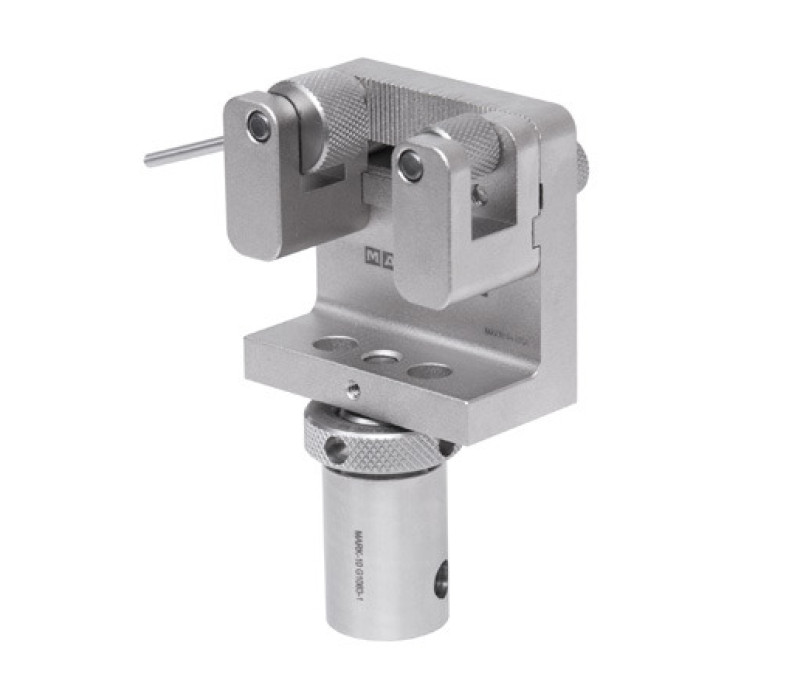

Eye end adapters are compatible with various test stands, load cells, and force gauges

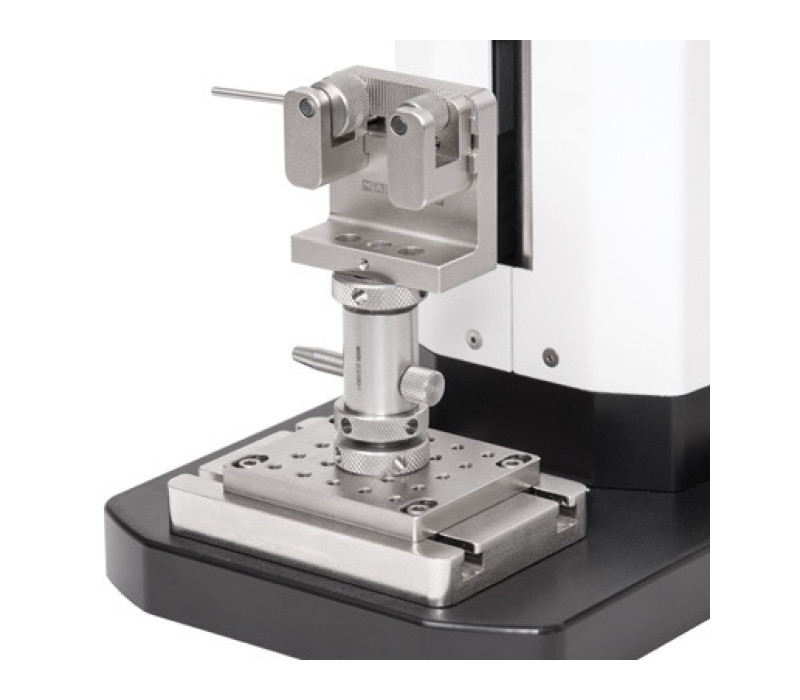

Compatible quick-change eye end adapters allow for simple grip removal / installation, and also prevent rotation.

G1085 Adjustable Dual Roller Grip

Name: G1085 Adjustable Dual Roller Grip
SKU: 127509
Price: 430.00 EUR

The G1085 Adjustable Dual Roller Grip is designed for accuracy and versatility in pull testing.
Its a robust cam grip mechanism, expertly secures the ends of tubing, cables, and even those irregularly shaped samples with a load capacity of up to 2.5 kN and a maximum width of 25 mm.

A special feature of the G1085 is its innovative roller cam adjustments. Every roller can be individually adjusted sideways, allowing for effortless expansion or contracting the total width of the sample opening to suit your precise requirements.

The quality of this grip ensures not only the precision of the test results but also their reliability over time.

The G1085 includes accessories a 5/16-18M to #10-32F thread adapter, a 5/16-18 M/M stud with jam nuts, and a #10-32 M/M stud with jam nuts.

€ 430,00

Order now

Self-tightening cam mechanism effectively grips wires and tubing
Adjustable cam spacing accommodates a wide range of sample sizes
Easy engagement / disengagement of samples
Accepts samples of up to 25 mm wide

G1085 Adj. Dual Roller Grip

D1 no header

A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)
61,0	62,2	33,0	0 - 25,4	8,6	30,5	45,3

Maximum capacity	2,5 kN
Weight	230 g

Datasheet all Grips

Solid Models G1085

Products

Item	Product	Price	Quantity	Action
135002	G1085 Dual roller grip, adjustable, 5/16-18F	€ 430,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out
