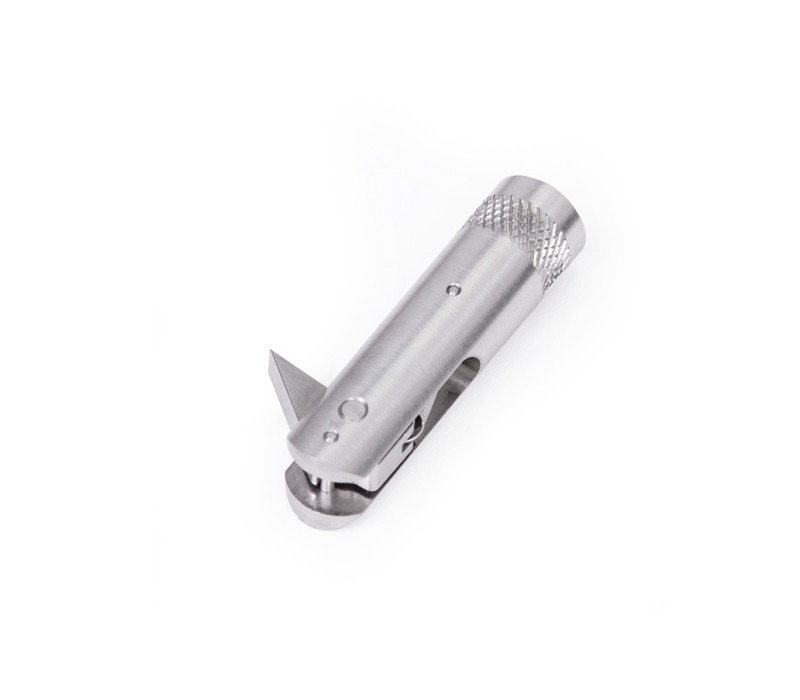

    G1104 Flip Cap Pull Grip

    The G1104 Flip Cap Pull Grip is designed to measure the force required to pull the tab on a flip cap.

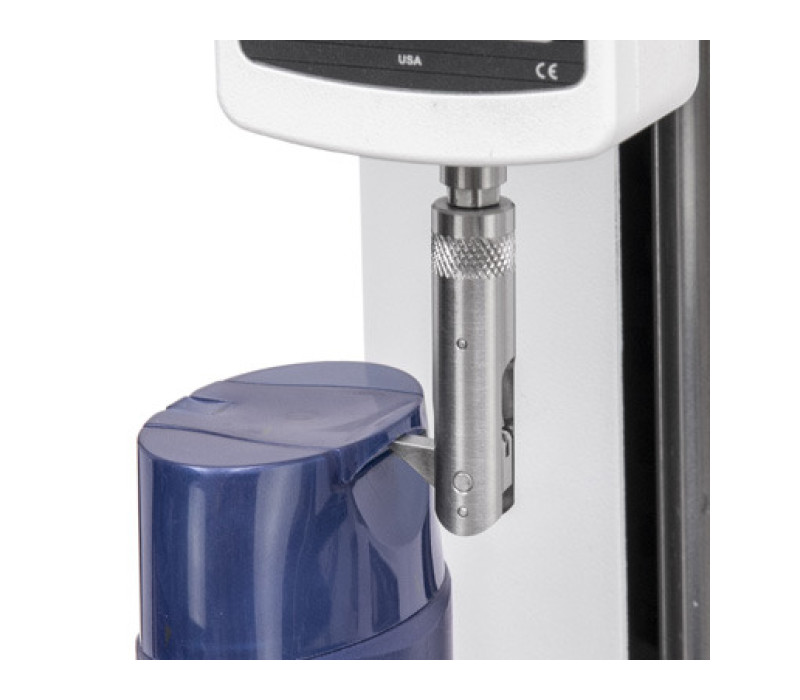

    This fixture features a spring-loaded retractable tab, the test sample is placed in its test-position after which the G1104 is lowered until the tab snaps into place below the flip cap.
    When pulled the maximum required force is measured. The spring loaded tab ensures the test can be repeated without repositioning the test sample.

    The G1104 has a maximum capacity of 100 N, has a #10-32F threaded connection making it compatible with a wide variety of force gauges, load cells and test stands.

    A  #10-32 M/M stud with jam nuts is included with this fixture.
    € 174,00
    Order now
    • Designed for flip cap pull testing
    • Spring-loaded hook engages the sample, then automatically retracts
    • 3 year waranty
    G1104 Flip Cap Pull Grip
    Dimensions-G1104 Flip Cap Pull Grip

    All sizes are noted in Inches with metric sizes in [mm] behind.

    Video
    Video Preview for ID: 0O-Us7X5Zpo
    ▶
    Capacity100 N
    Weight40 gr
    Shipping weight500 gr

    Data Sheet for all Grips and Attachments
