Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

These adapters provide a commonly accepted industry method of attaching fixtures to load cells and test frames. They prevent grip rotation and allow for quick removal and installation. Several thread sizes and variations are available to suit most common test frames, load cells, grips, and force gauges. Eye ends and adapters are available individually or as kits.

Force Gauge Adapter Kits

Model no.	Description

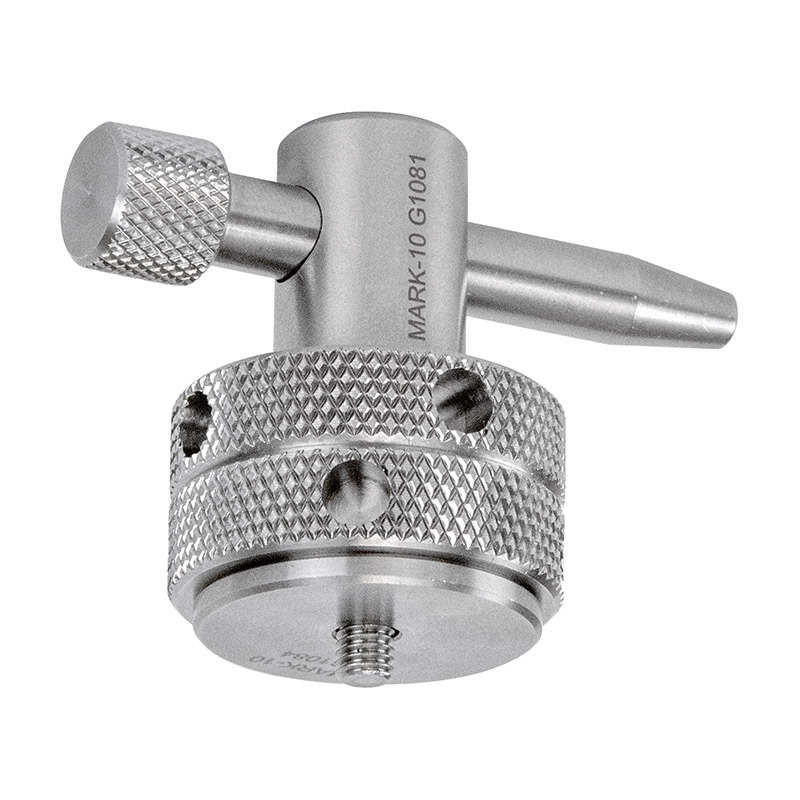

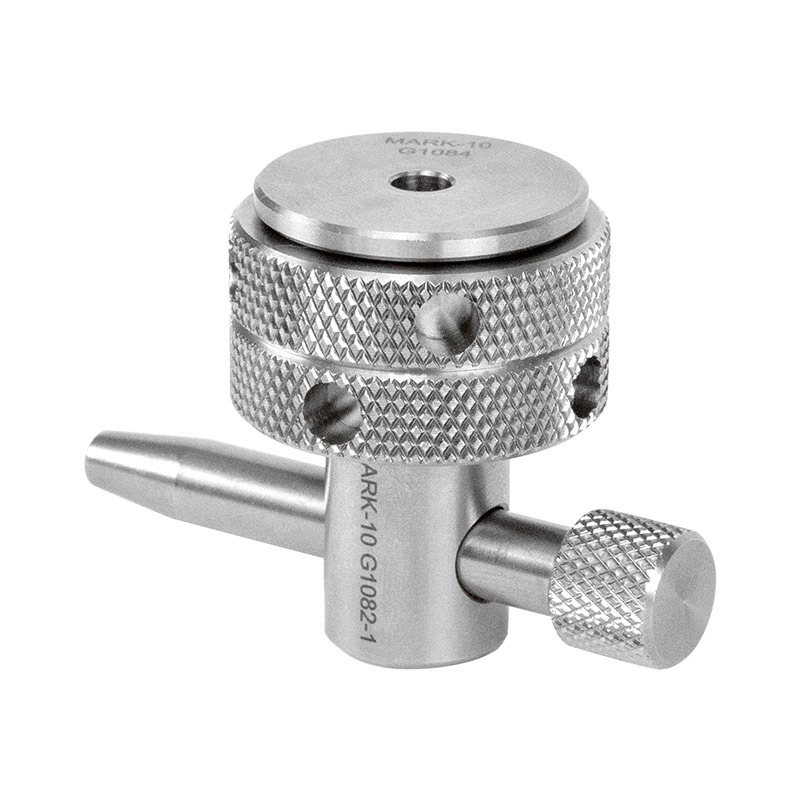

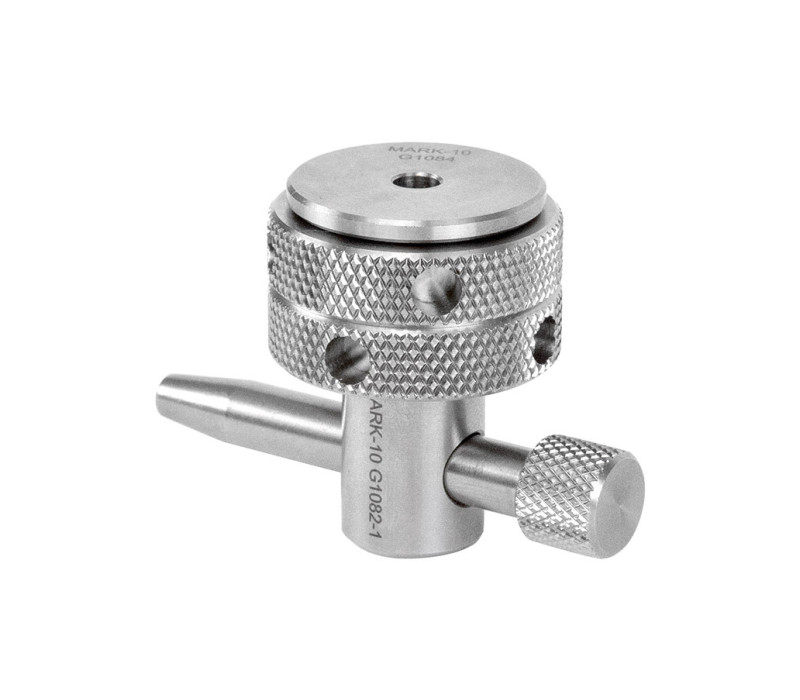

AC1045	Force gauge adapter kit, #10-32F

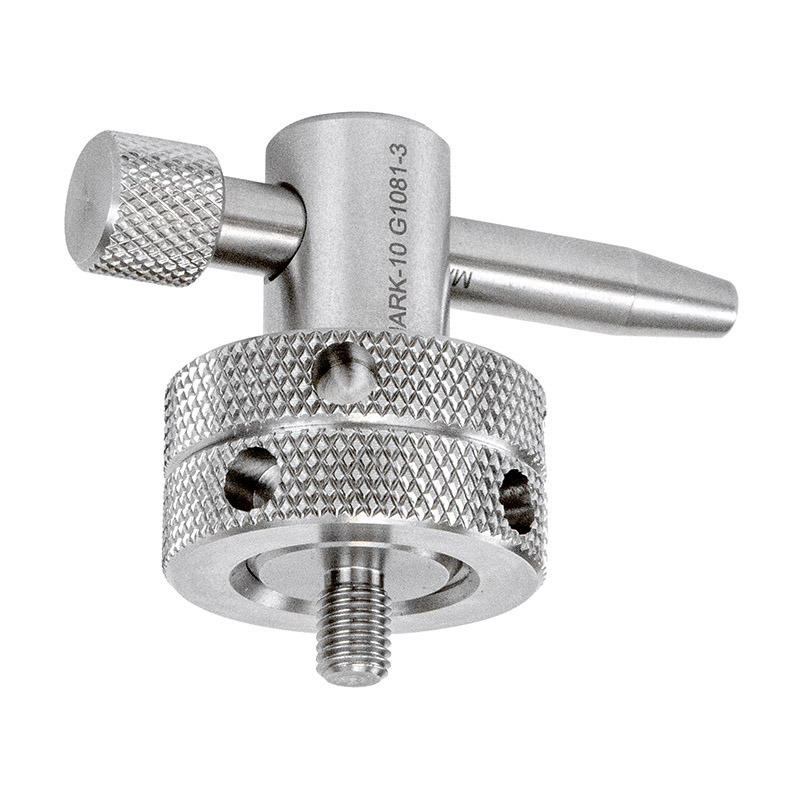

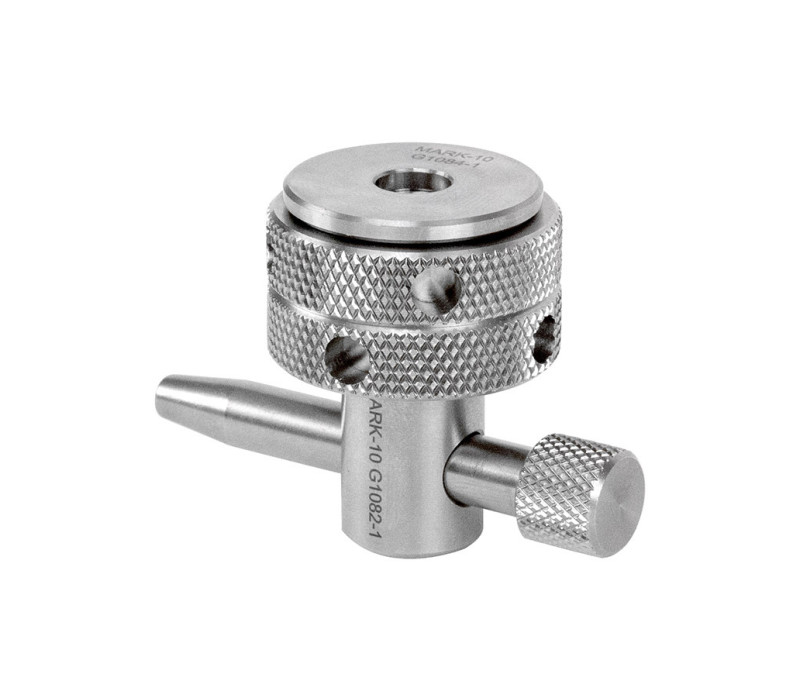

AC1045-1	Force gauge adapter kit, 5/16-18F

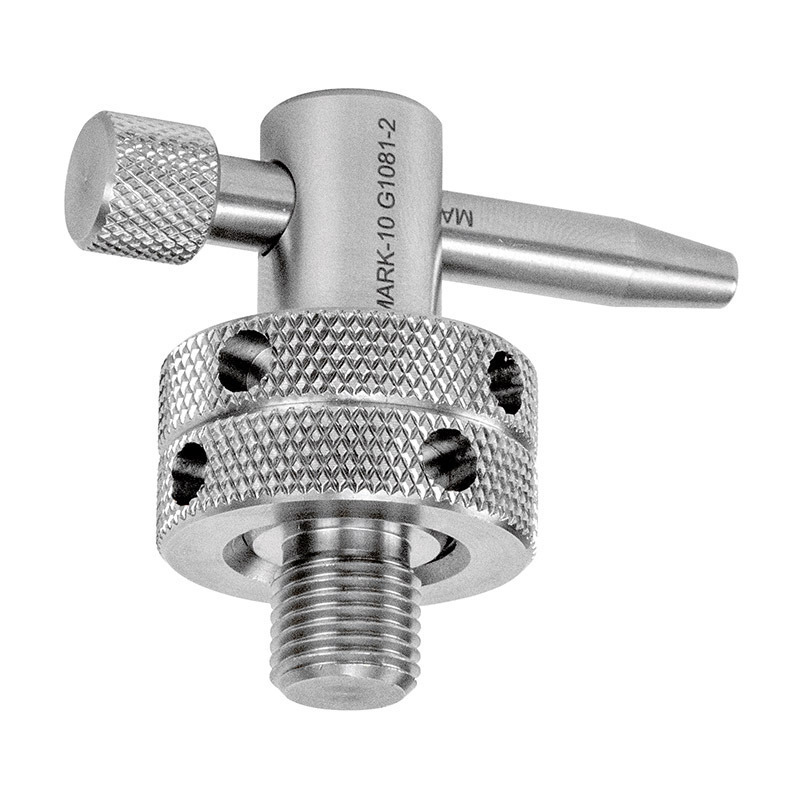

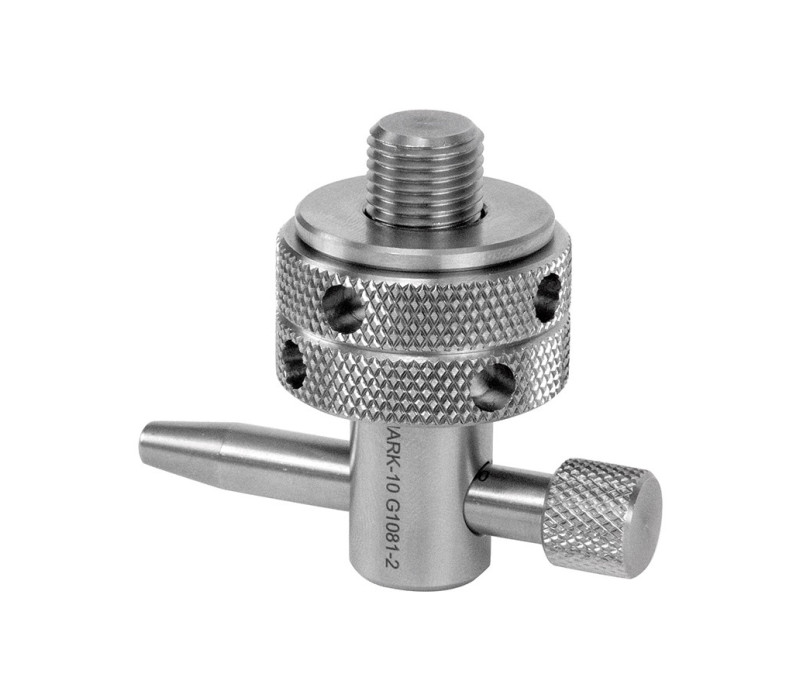

AC1045-2	Force gauge adapter kit, 1/2-20M

Grip Adapter Kits

Model no.	Description

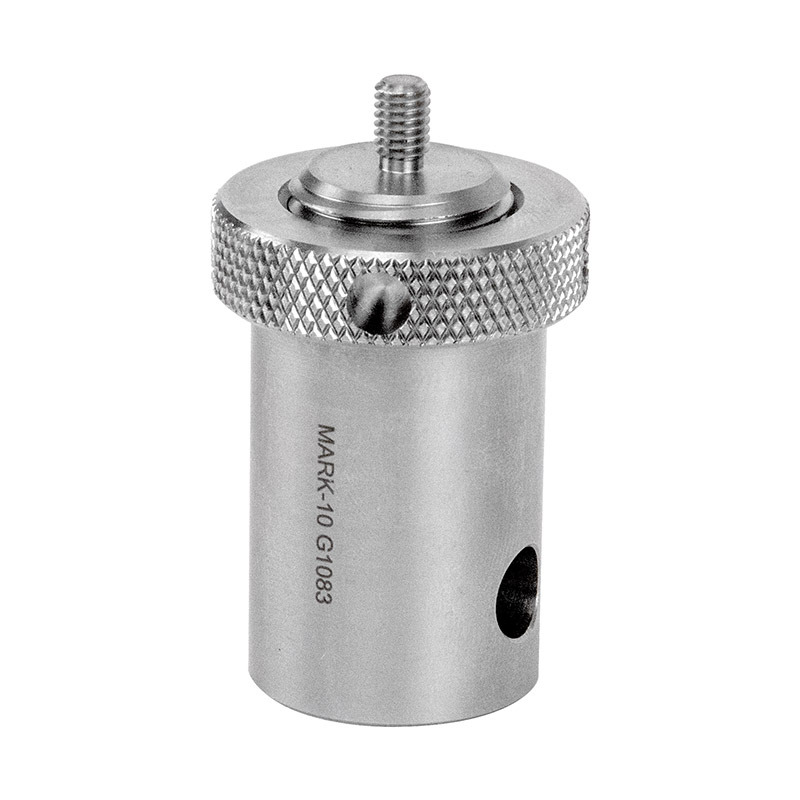

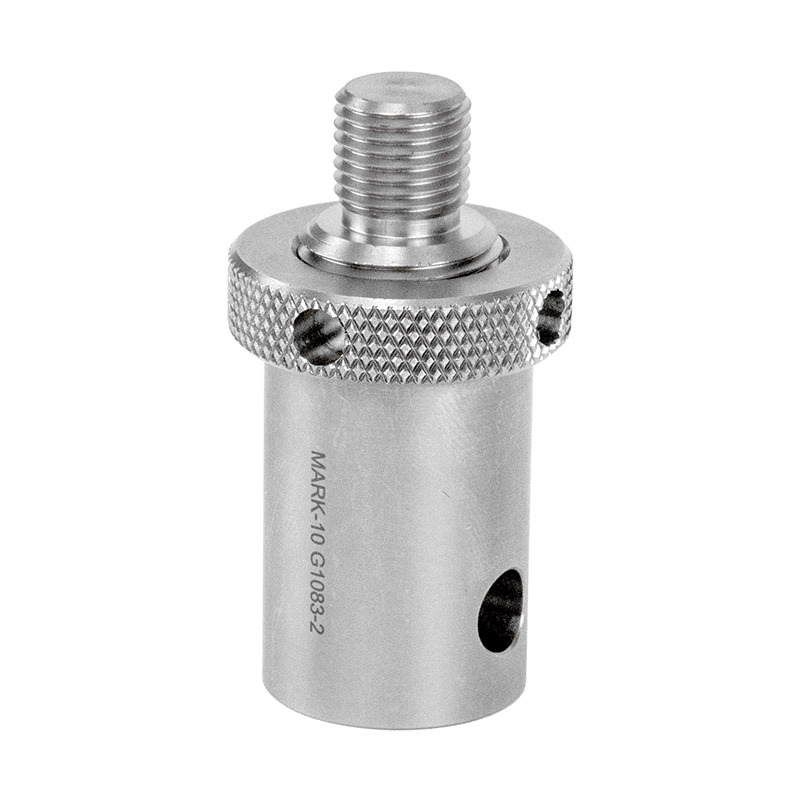

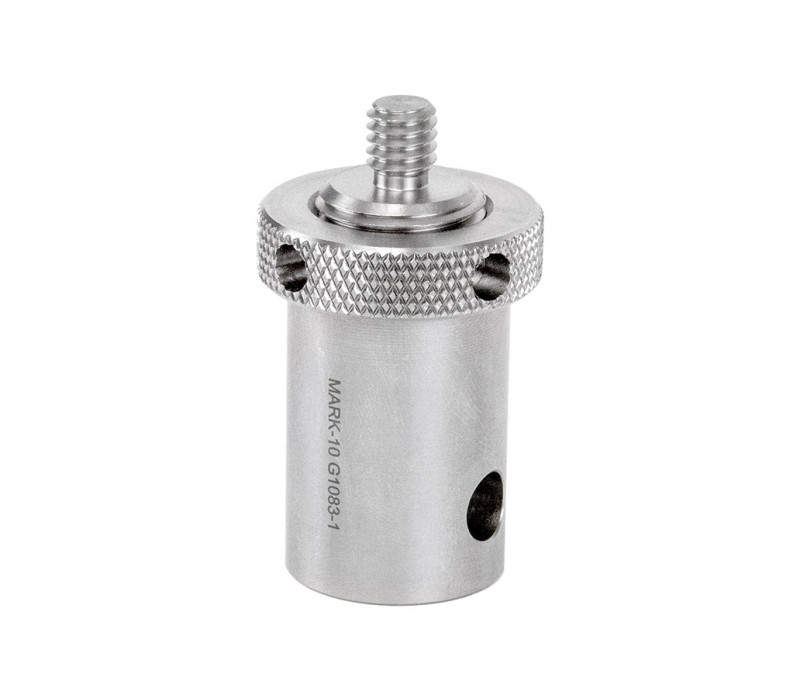

AC1046	Grip adapter kit, #10-32M

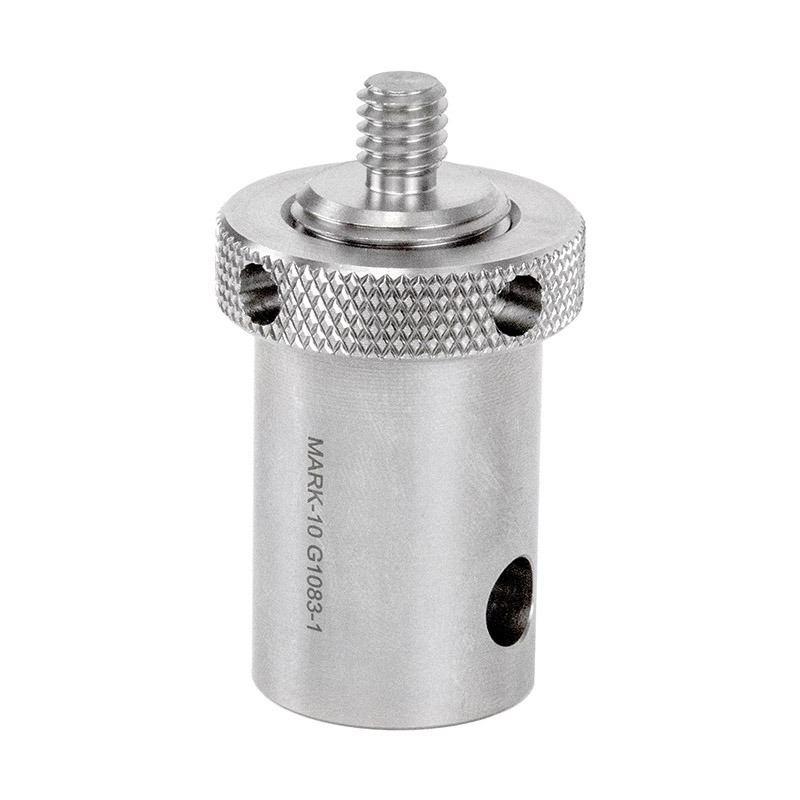

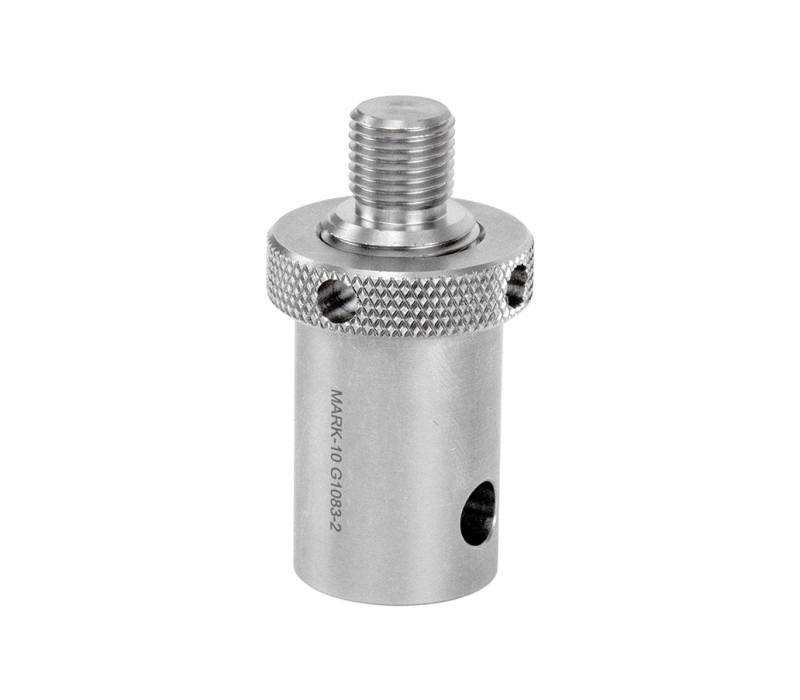

AC1046-1	Grip adapter kit, 5/16-18M

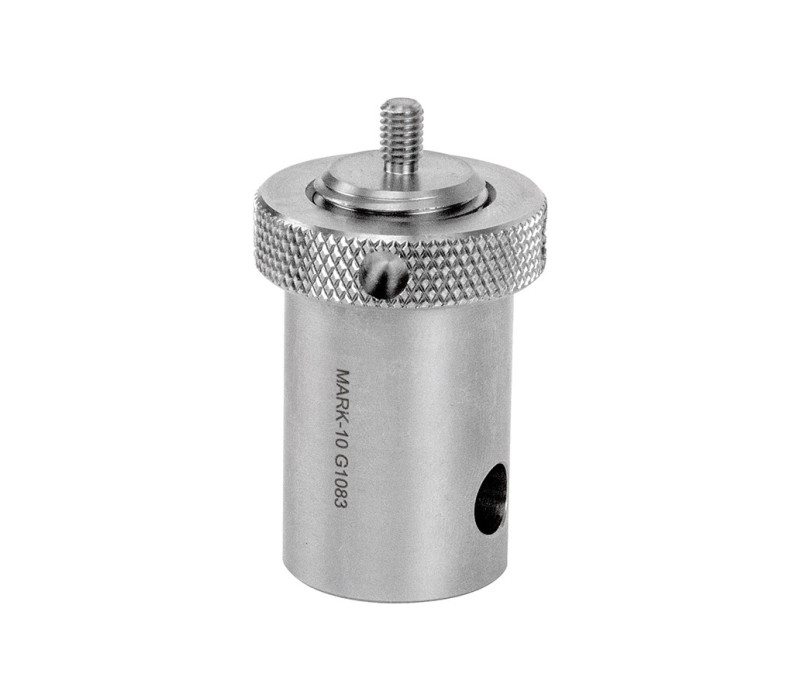

AC1046-2	Grip adapter kit, 1/2-20M

Base / Load Cell Adapter Kits

Model no.	Description

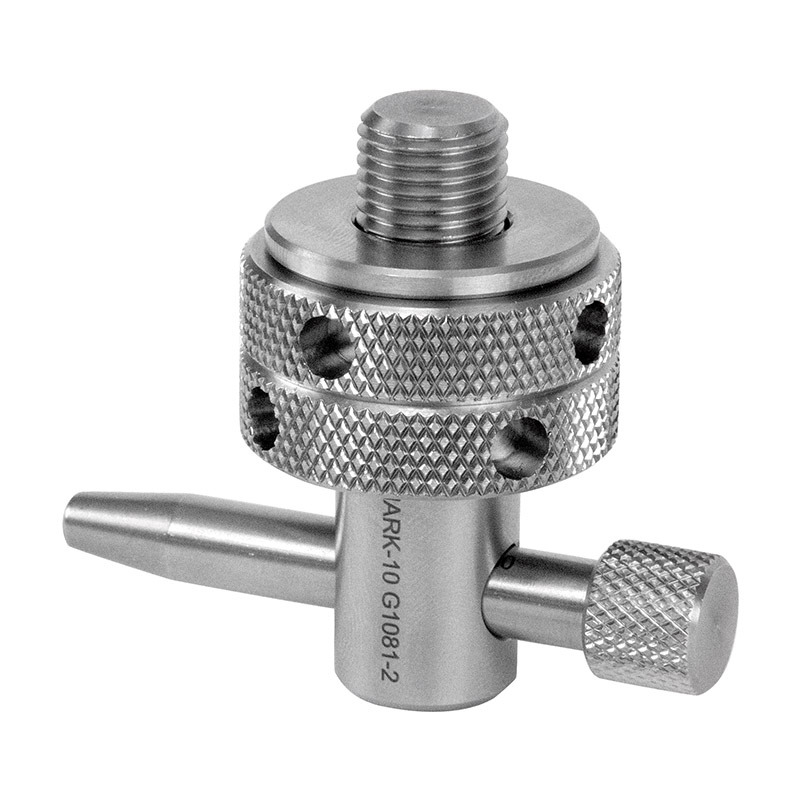

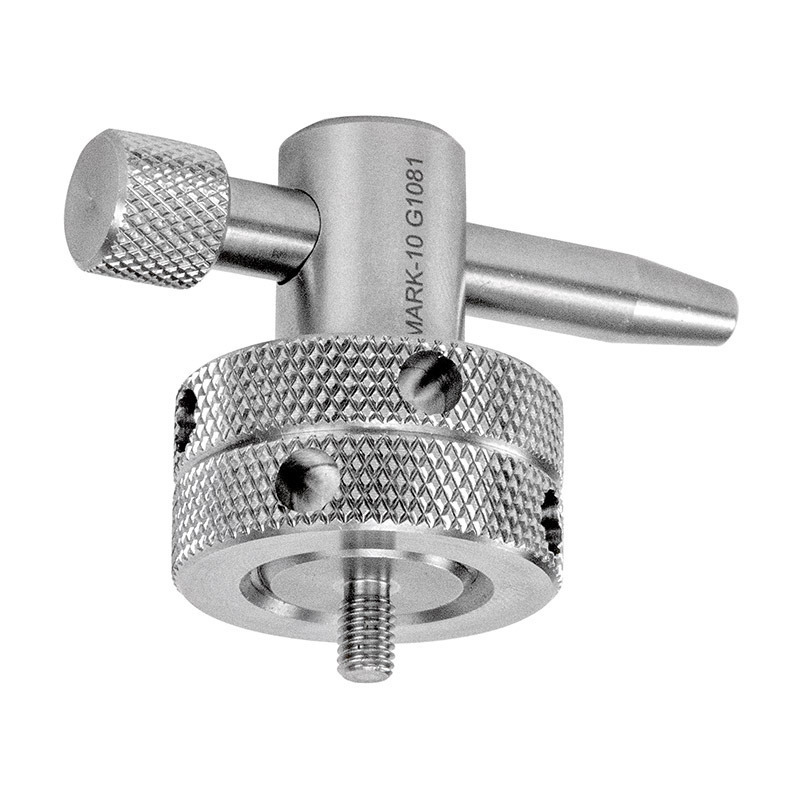

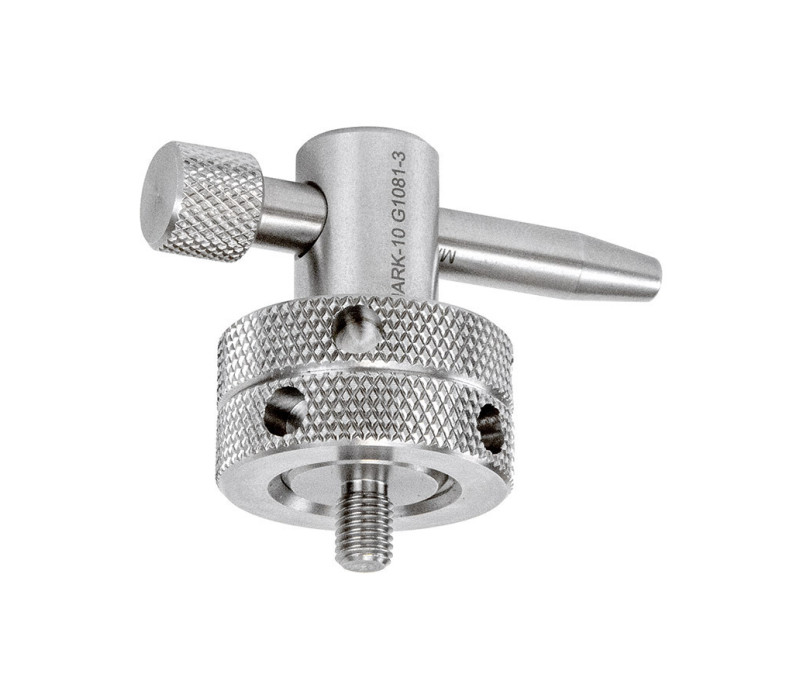

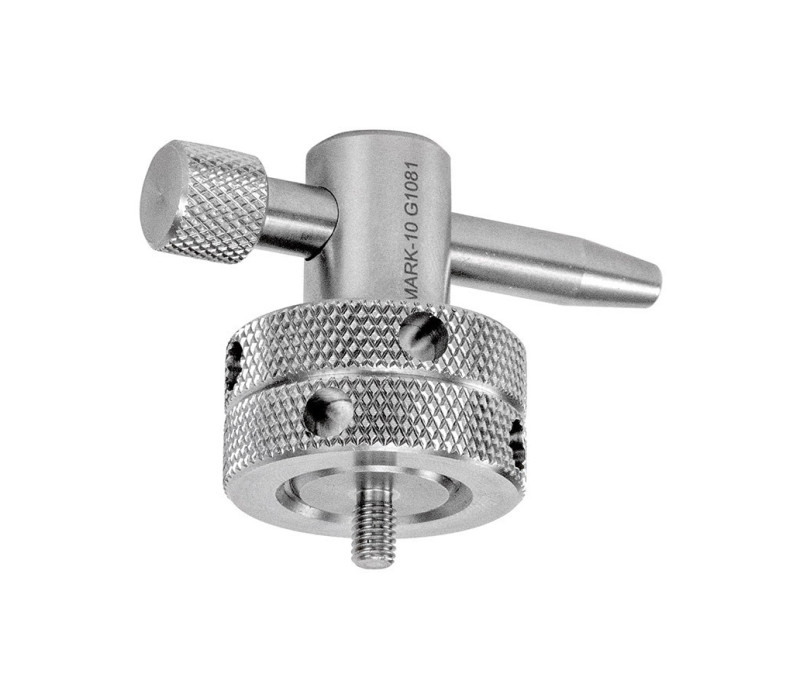

AC1047	Base / load cell adapter kit, #10-32M
AC1047-1	Base / load cell adapter kit, 5/16-18M

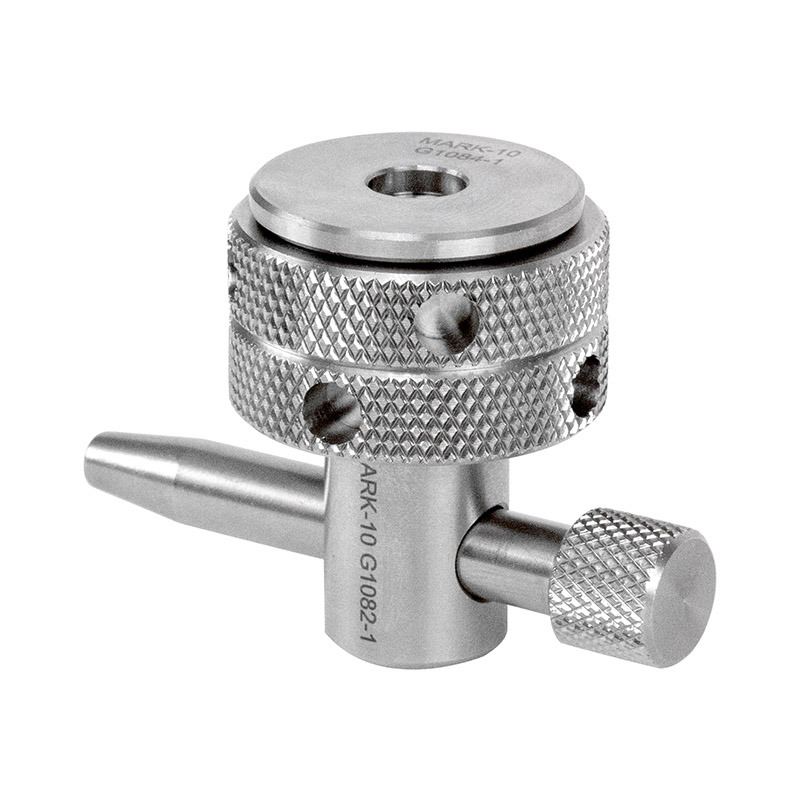

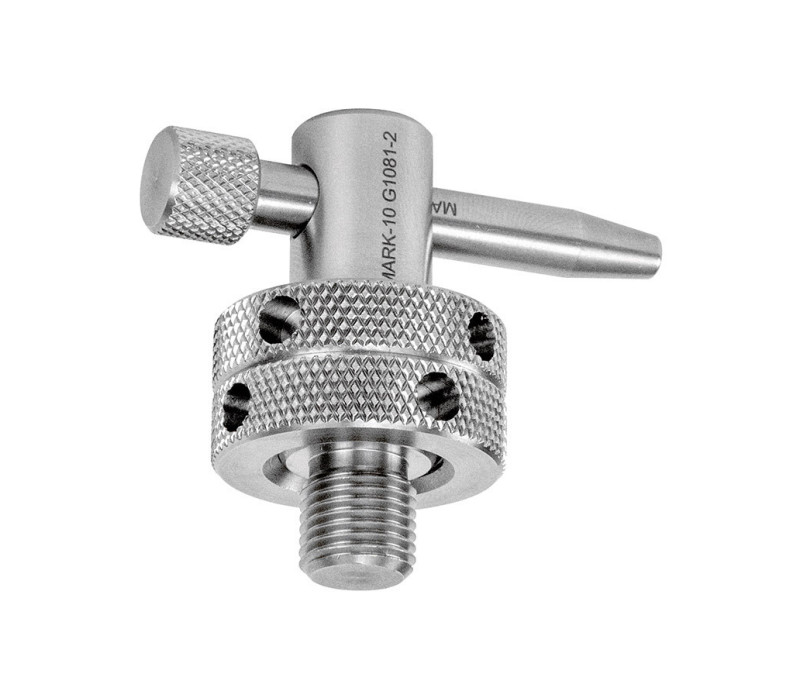

AC1047-2	Base / load cell adapter kit, 1/2-20M
AC1047-3	Base / load cell adapter kit, 1/4-28M

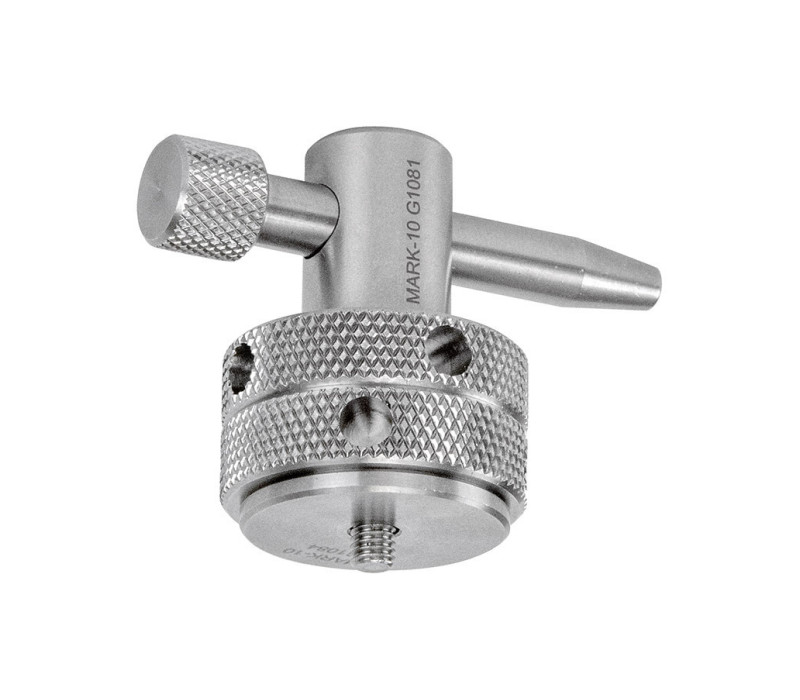

AC1047-4	Load cell adapter, Series R03, #10-32M

Price from € 51,00

Order now

Kit Compatibility Chart

Model no.	Description	Compatibility
AC1045	Force gauge adapter kit, #10-32F	Force gauges up to 100 lbF capacity
AC1045-1	Force gauge adapter kit, 5/16-18F	Force gauges with 200, 300, and 500 lbF capacities
AC1045-2	Force gauge adapter kit, 1/2-20M	Models M5-750 - M5-2000 force gauges
AC1046	Grip adapter kit, #10-32M	Grips with #10-32 mounting
AC1046-1	Grip adapter kit, 5/16-18M	Grips with 5/16-18 mounting
AC1046-2	Grip adapter kit, 1/2-20M	Grips with 1/2-20 mounting
AC1047	Base / load cell adapter kit, #10-32M	Test stand bases with #10-32 mounting
AC1047-1	Base / load cell adapter kit, 5/16-18M	Test stand bases with 5/16-18 mounting
AC1047-2	Base / load cell adapter kit, 1/2-20M	Test stand bases with 1/2-20 mounting Models MR01-300 / -500 / -750 / -1000 / -1500 / -2000 load cells
AC1047-3	Base / load cell adapter kit, 1/4-28M	Models MR01-50 / -100 / -200 load cells
AC1047-4	Load cell adapter, Series R03, #10-32M	Series R03 load cells

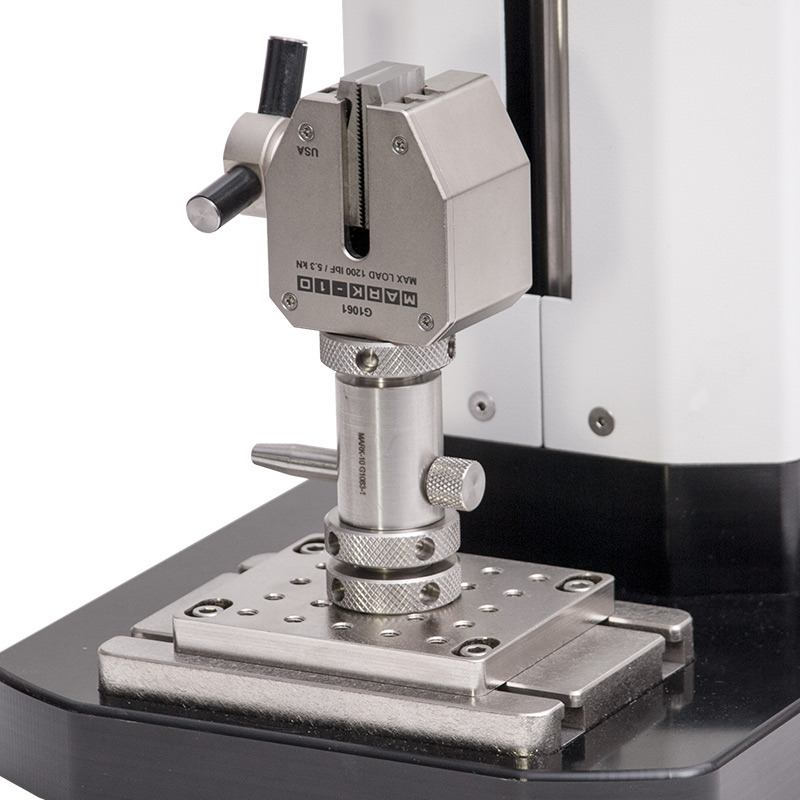

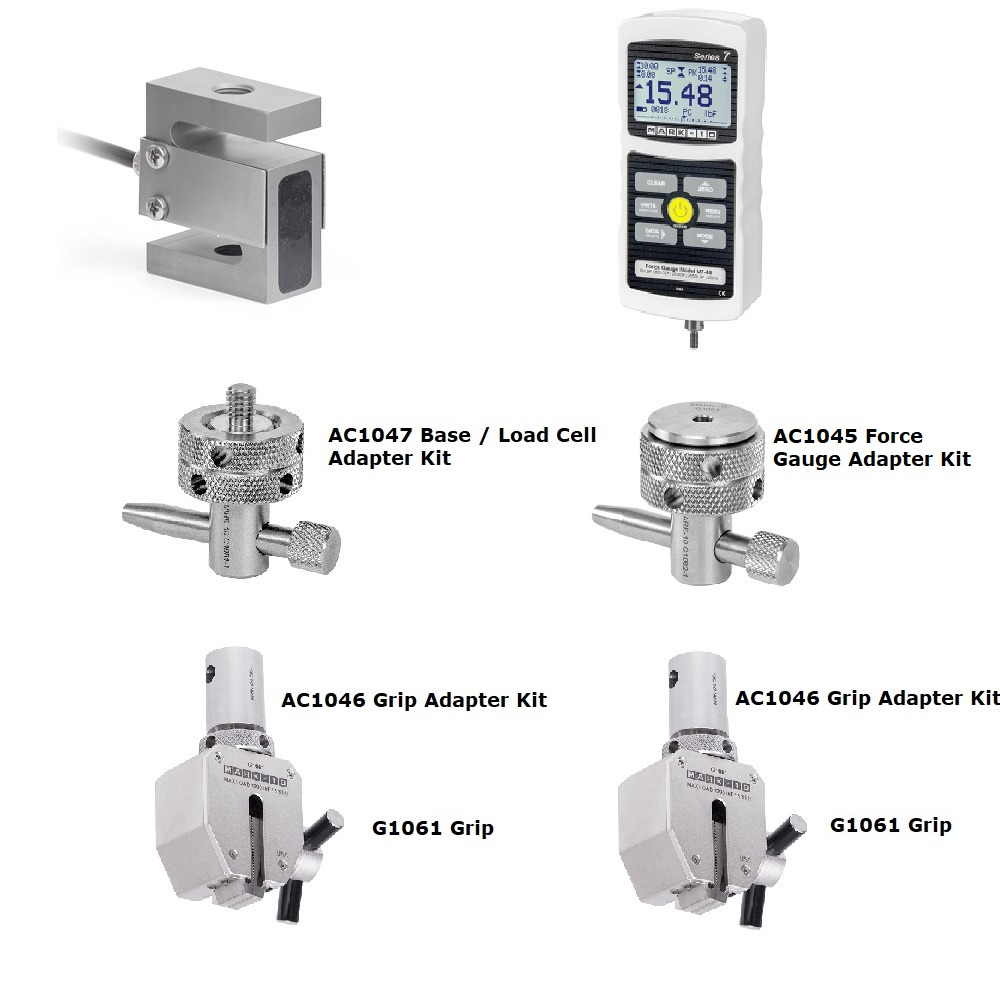

Grip to Force Gauge-Sensor configuration

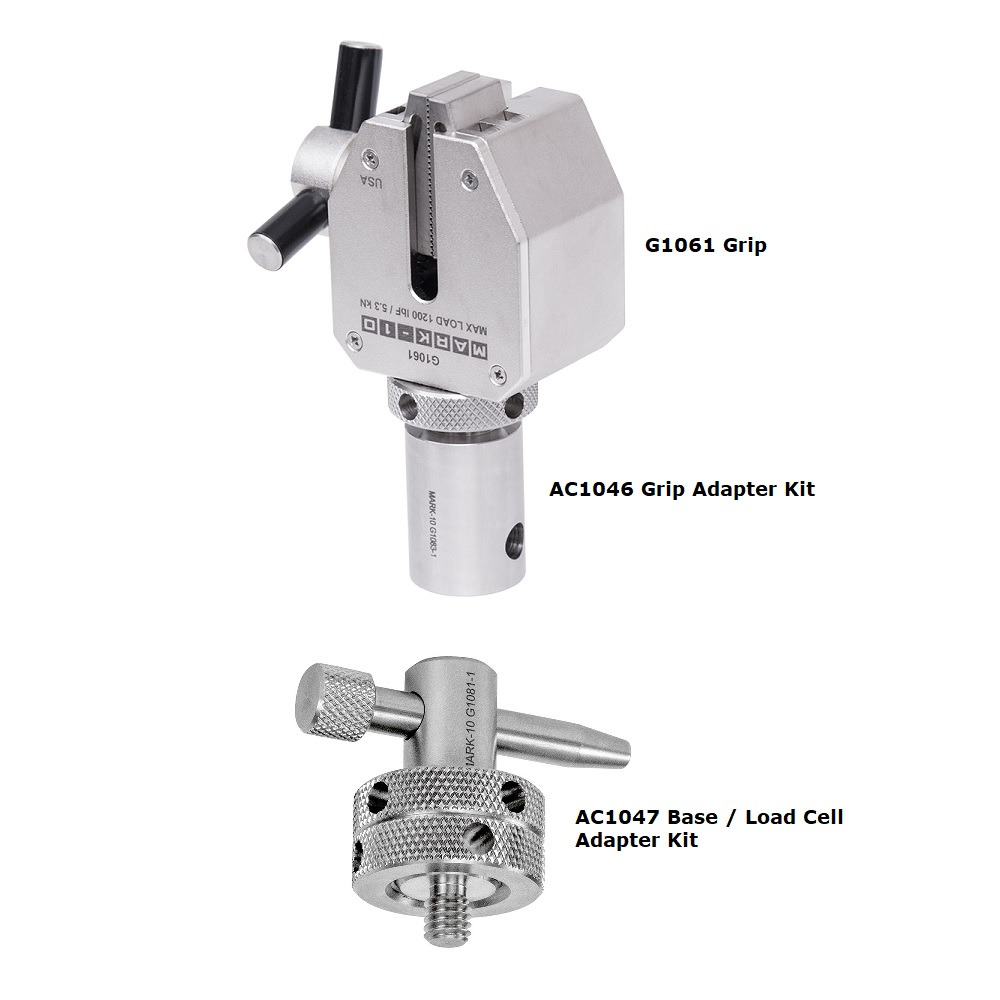

Grip to Base configuration
