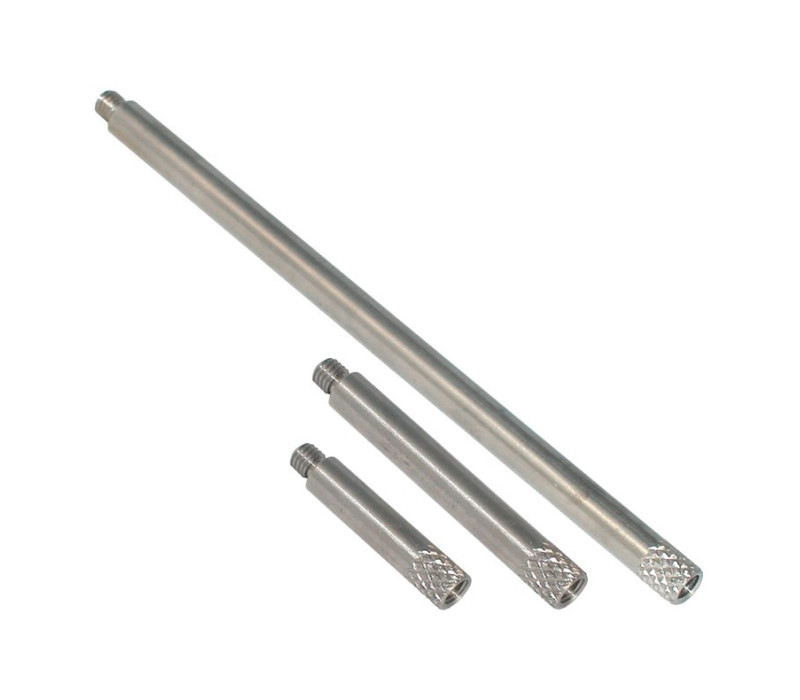

G1024-G1031 Extension Rods

Name: G1024-G1031 Extension Rods
SKU: 126108

The G1024 and G1031 extension rods are used in situations where an attachment or grip cannot be used directly connected to a load cell, or mounting feature.

Both G1024 and G1031 come in three length sizes, 25,4 – 50,8 – 127 mm.
G1024 comes in a diameter of 6,4 mm with a #10-32F/M thread, with a capacity of 1000 N.
G1031 comes in a diameter of 12,7 mm and a 5/16-18F/M thread, with a capacity of 2500 N.

These extension rods are suitable for tension and compression testing however it is not recommended for compression applications as misalignment could result in buckling and damage to the force sensor.

Price from € 18,00

Order now

Suitable for tension and compression testing (not reconmended for compression testing see general)
Capacity 1000/2500 N
Male and Female thread
Available in 2 thicknes and 3 length versions

Model	Capacity N (lb)	Weight kg (lb)	A mm(in)	ØB mm(in)	C	D
G1024	1000 (200)	0.023 (0.05)	127.0 (5.0")	6.4 (0.25")	#10-32F	#10-32M
G1024-1		0.009 (0.02)	50.8 (2.0")
G1024-2		0.005 (0.01)	25.4 (1.0")
G1031	2500 (500)	0.113 (0.25)	127.0 (5.0")	12.7 (0.5")	5/16-18F	5/16-18M
G1031-1		0.045 (0.10)	50.8 (2.0")
G1031-2		0.023 (0.05)	25.4 (1.0")

D1 no header

Model	A mm	ØB mm	C	D
G1024	127	6,4	#10-32F	#10-32M
G1024-1	50,8	6,4	#10-32F	#10-32M
G1024-2	25,4	6,4	#10-32F	#10-32M
G1031	127	6,4	5/16-18F	5/16-18M
G1031-1	50,8	6,4	5/16-18F	5/16-18M
G1031-2	25,4	6,4	5/16-18F	5/16-18M

Data Sheet for all Grips and Attachments

Products

Item	Product	Price
130813	G1024 Extension rod, 5”, #10-32M/F	€ 18,00
130814	G1024-1 Extension rod, 2”, #10-32M/F	€ 18,00
130572	G1024-2 Extension Rod, 1", #10-32M/F	€ 18,00
130816	G1031 Extension rod, 5”, 5/16-18M/F	€ 23,00
130336	G1031-1 Extension rod, 2”, 5/16-18M/F	€ 23,00
130344	G1031-2 Extension rod, 1”, 5/16-18M/F	€ 23,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
