    G1089 Syringe Compression Fixture

    The G1089 Syringe Compression Fixture is designed for precise assessment of the compression force applied by a syringe plunger, conforming to ISO 7886-1 and other relevant standards.

    It includes four blank stainless steel inserts that can be customized on-site to accommodate syringe barrels of different sizes.

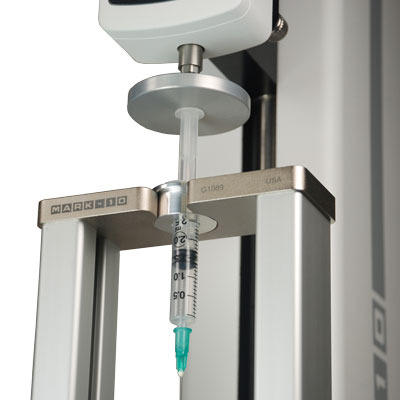

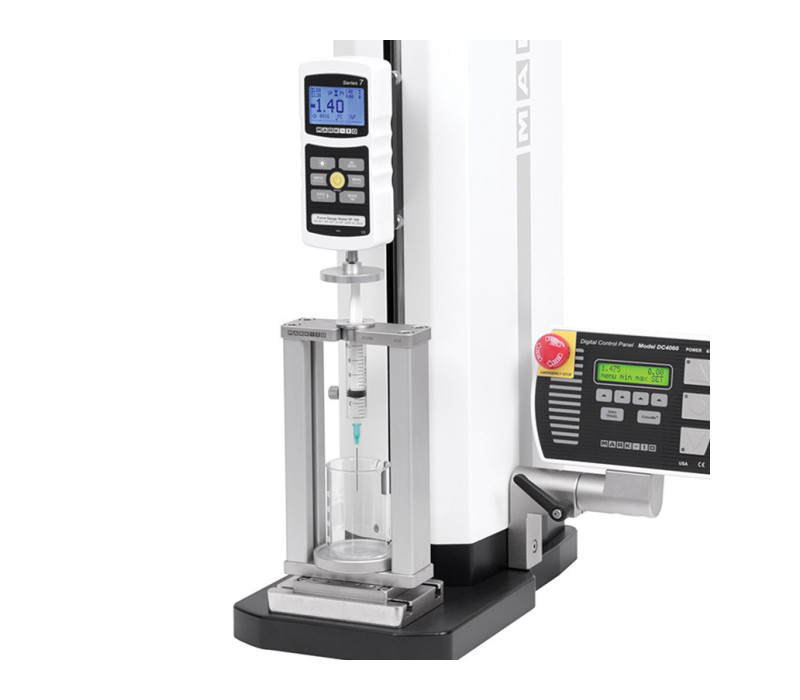

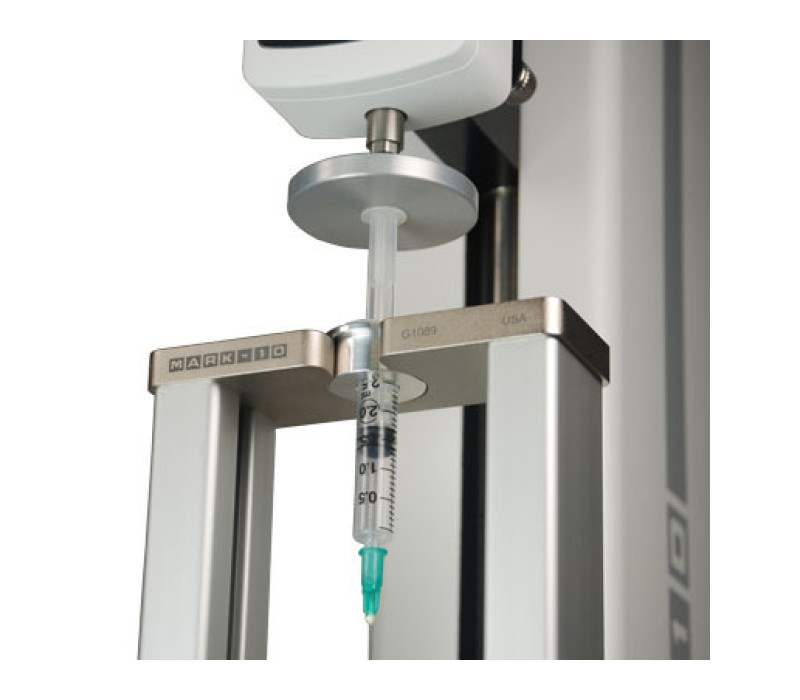

    When used with compatible equipment like the F-Series Intellimesur test stand or a ESM303 test stand and Series 7 force gauge, this fixture allows you to capture both initial and secondary force peaks and calculate the average force over a specified period.

    Get in touch if you require customized drilled inserts tailored to your specific needs as we can provide bespoke solutions upon request.
    € 1.042,00
    Order now
    • Secures a syringe assembly for plunger compression force testing
    • Designed to meet the rigorous standards of ISO 7886-1 and other relevant industry benchmarks,
    • Replaceable inserts, may be drilled in the field up to 0.85 in [21.6 mm] dia.

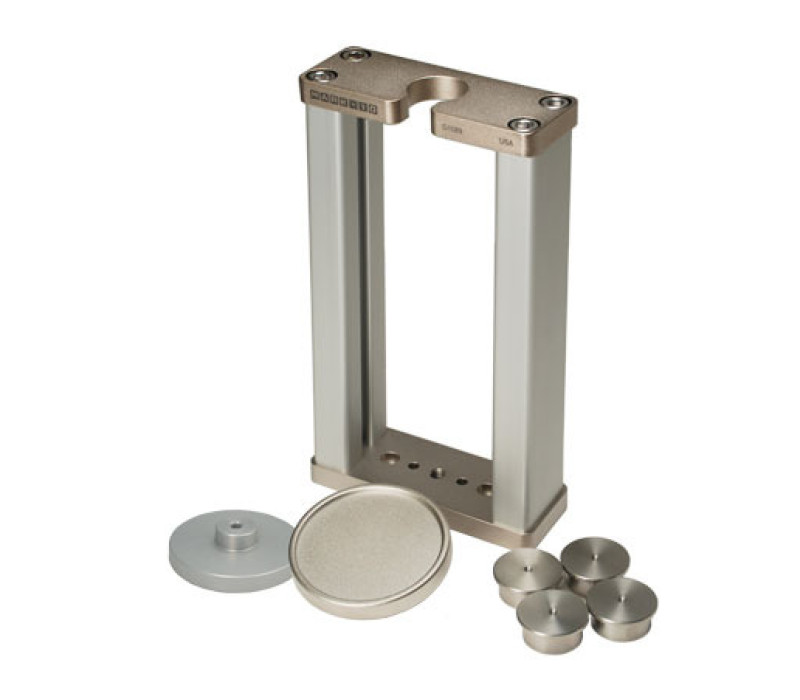

    • Comes with four blank stainless steel inserts, giving you the flexibility to tailor the fixture to accommodate syringe barrels of various diameters
    • Removable cup tray
    G1089 Syringe Compr. Fixture
    Dimensions-G1089 Syringe Compr. Fixture

    All sizes are noted in inch with metric sizes in [mm] behind.

    Capacity500 N
    Material fixture Nickel-plated aluminum upper and lower brackets, anodized aluminum upright supports
    Material cup plate Nickel-plated aluminum
    Material replaceable inserts Stainless steel
    Material compression plate Anodized aluminum
    WeightFixture, including cup plate and one insert: 860 g

    Compression plate: 40 g

    Datasheet all grips
    Solid Models G1089

    Related Products

    Browse Related Products

    G1009 Compression Plates

    G1009 Compression Plates

    Test stand with IntelliMESUR® F105 / F305 / F505 / F505H

    Test stand with IntelliMESUR® F105 / F305 / F505 / F505H

    Test Stand with EasyMESUR® F105 / F305 / F505 / F505H

    Test Stand with EasyMESUR® F105 / F305 / F505 / F505H

    Series-7 Professional Digital Force Gauge

    Series-7 Professional Digital Force Gauge

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

    Order Now

    Products
    Item Product Price  Quantity Action
    136903G1089 Syringe fixture € 1.042,00
    Accessories
    Item Product Price  Quantity Action
    136845AC1053 Set of 4 blanks for G1089 € 161,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
