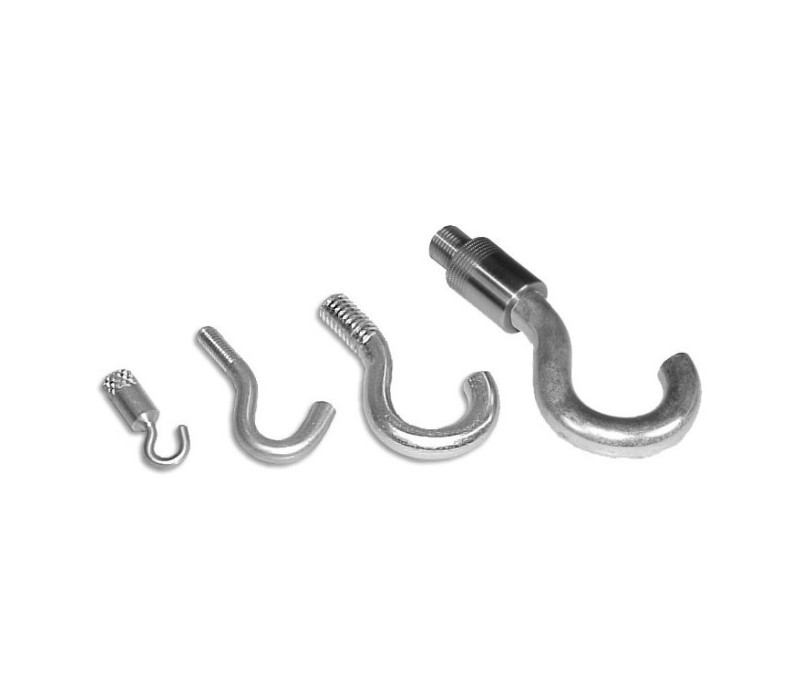

G1028, G1038, G1035 and G1042 Hooks
The G1028, G1038, G1035 and G1042 are a series of different sized hooks suitable for general pull test applications.
These attachments are in appropriate sizes, also part of the basic kit for various Series # Mark-10 force gauges.
These Hooks are available in 4 different sizes with a capacity of 100, 1000, 2500 and 4500 N.
There is also a snap hook version, G1107, available with a capacity of 2500 N
Features
- Tensile testing
- Capacities available from 100 N up to 4500 N
- Select from four sizes, snap hook is also available
Dimensions
G1028-G1038-G1035-G1042 Hooks
| Model: | RA (mm) | B (mm) | ØC (mm) | D |
|---|---|---|---|---|
| G1028 | 1,3 | 25.4 | 2,5 | #10-32F |
| G1038 | 5,1 | 38.1 | 4,8 | #10-32M |
| G1035 | 7,6 | 48.3 | 7,1 | 5/16-18M |
| G1042 | 12,7 | 104.1 | 11,4 | 1/2-20M |
| Model | Capacity (N) | Weight (g) |
|---|---|---|
| G1028 | 100 | 4,5 |
| G1038 | 1000 | 9 |
| G1035 | 2500 | 22,7 |
| G1042 | 4500 | 145 |
G1018 Swivel Adapters
- Swiveling adapter, for use between certain grips and force gauges.
- Capacity G1018-1: 1000 N
Capacity G1018-2: 2500 N - Designed for tensile (pull) testing applications only.
