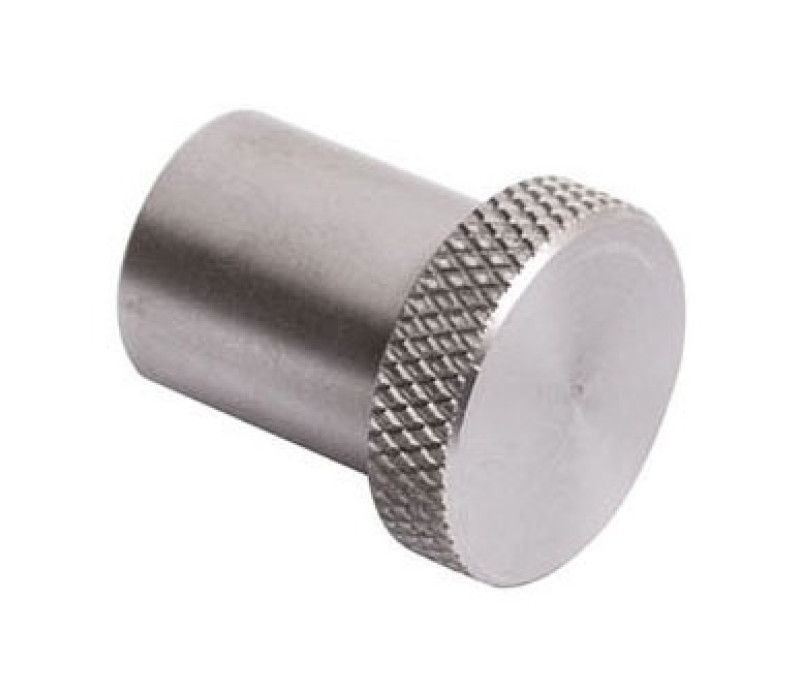

    G1029 - G1036 Flat Heads

    The G1029 and G1036 Flat head attachments are ideal for compression testing of buttons, membrane switches, small springs etc.
    These attachments are also part of the basic kit for most Series # Mark-10 force gauges.

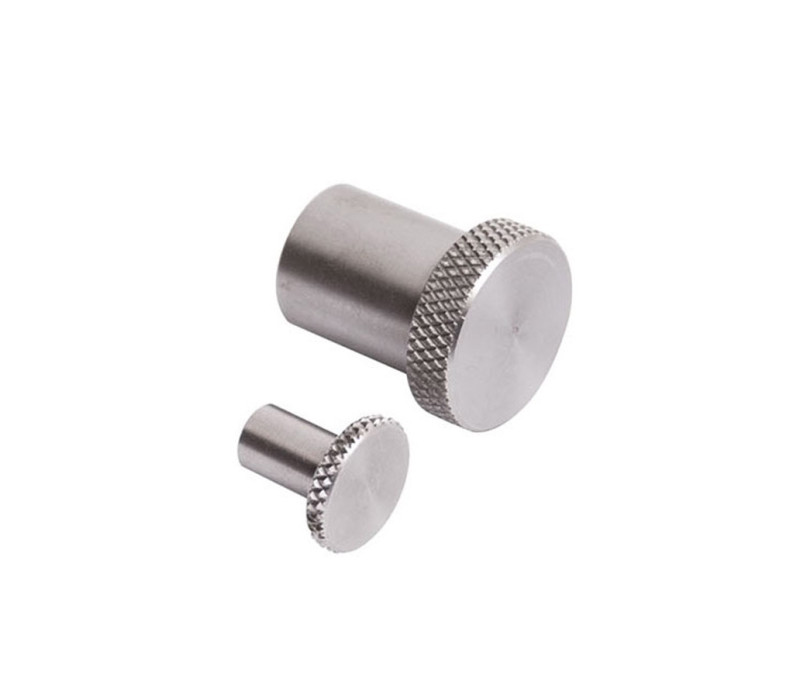

    These Flat head attachments are available in 2 sizes with a capacity of 1000 and 2500 N.



    Price from € 18,00
    Order now
    • General compression testing
    • Capacity 1000 N / 2500 N
    • Available in 2 sizes
    G1029 - G1036 Flat Heads
    Dimensions-G1029 - G1036 Flat Heads

    Model

    Capacity
    N (lb)
    Weight
    kg (lb)
    ØA
    mm
    B
    mm
    C

    G1029 1000
    (200)
    0.005
    (0.01)
    12.7
    (0.5")
    12.7
    (0.5")
    #10-32F
    G1036 2500
    (500)
    0.027
    (0.06)
    19.1
    (0.75")
    22.1
    (0.87")
    5/16-18F
    D1 no header
    ModelØA (mm)B (mm)C
    G102912,712,7#10-32F
    G103619,122,15/16-18F
    Specifications

    Specifications

    ModelCapacity (N)Weight (g)
    G102910004,5
    G1036250027,2

    Order Now

    Products
    Item Product Price  Quantity Action
    130277G1029 Flat head, #10-32F € 18,00
    130830G1036 Flat head, 5/16-18F € 23,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
