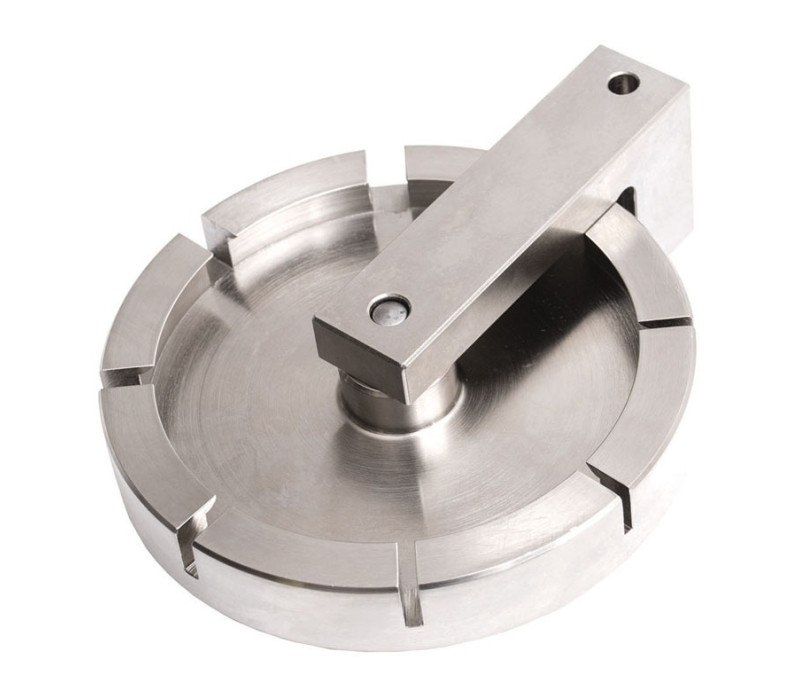

    G1093 High Capacity Wire Terminal Grip

    The G1093 High-Capacity Wire Terminal grip is the ultimate tool for securing cables, connectors, wire terminals, and various samples during high-capacity wire terminal pull tests.

    This fixture is securely mounted to the testing equipment by use of an eye-end-adapter.
    The turret wheel can be rotated until the correct size slot is located at the pulling location.

    The turret wheel is equipped with 8 slots varying from 2 mm to 11,8 mm.
    The wheel can be machined to accommodate different size samples if required.

    The G1093 has a capacity of up to 9 kN



    Attention: This fixture requires an Eye-End-Adapter to be attached to a test stand
    € 1.533,00
    Order now
    • Rotating turret wheel to the desired slot width
    • Rugged design
    • Eye end mounting
    • Machineable for larger samples if required
    G1093 Wire Terminal Grip
    Dimensions-G1093 Wire Terminal Grip

    Alle sizes are noted in Inches with metric sizes in [MM] behind.

    Data Sheet for all Grips
    G1093 Solid Models
    Groove sizes: mm (in)2.0(0.08"), 3.0(0.12"), 4.0(0.16"), 5.0(0.20"), 6.0(0.24"), 8.0(0.31"), 10.0(0.39"), 11.8(0.46")
    Capacity:9 kN (2000 lbF)
    Weight:2.9 kg (6.4 lb)
