G1027-G1034 V-Grooves

G1027 - G1034 V-Groove Attachments

Name: G1027 - G1034 V-Groove Attachments
SKU: 126112

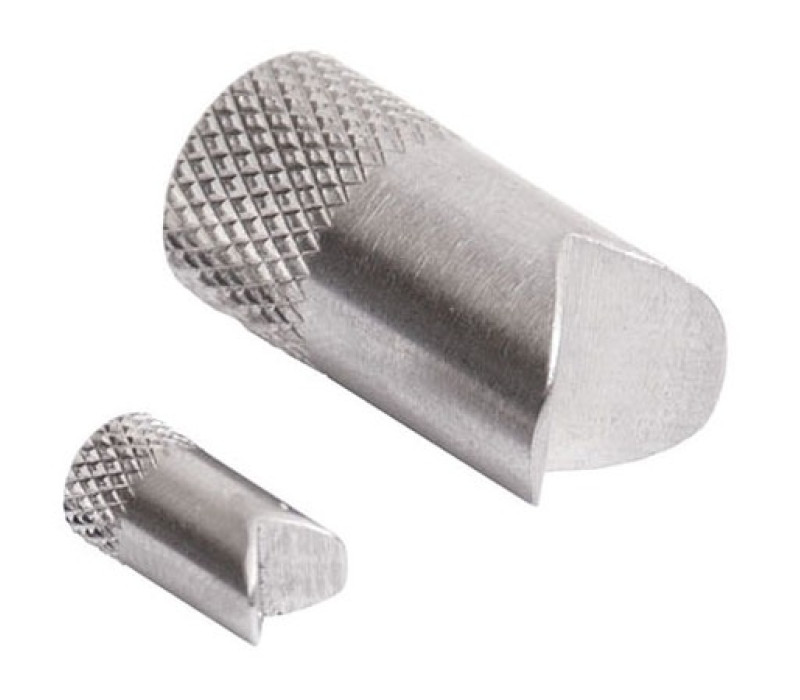

The G1027 and G1034 V-groove heads are suitable for performing compression tests on round or odd shaped test samples.
These attachments are also part of the basic kit for most Series # Mark-10 force gauges.

The V-groove heads are available in 2 sizes with a capacity of 1000 and 2500 N.

Price from € 18,00

Order now

Available in 2 sizes
200 lb / 500 lb capacity,
Compression testing

Model	Capacity N (lb)	Weight kg (lb)	A mm	ØB mm	C	D
G1027	1000 (200)	0.002 (0.004)	12.7 (0.5")	6.4 (0.25")	#10-32F	2.0 (0.08")
G1034	2500 (500)	0.018 (0.040)	25.4 (1.00")	12.7 (0.50")	5/16-18F	6.4 (0.25")

D1 no header

Model	A (mm)	ØB (mm)	C (mm)	D (mm)
	12,7	6,4	#10-32F	2,0
	25,4	12,7	5/16-18F	6,4

Specifications

Model	Capacity (N)	Weight (g)
G1027	1000	1,8
G1034	2500	18,1

Data Sheet for all Grips and Attachments

Products

Item	Product	Price	Quantity	Action
130582	G1027 V-Groove Tip, #10-32F	€ 18,00
130823	G1034 V-Groove Tip, 5/16-18F	€ 22,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

G1027 - G1034 V-Groove Attachments

Features

Dimensions

Specifications

G1028, G1038, G1035 and G1042 Hooks

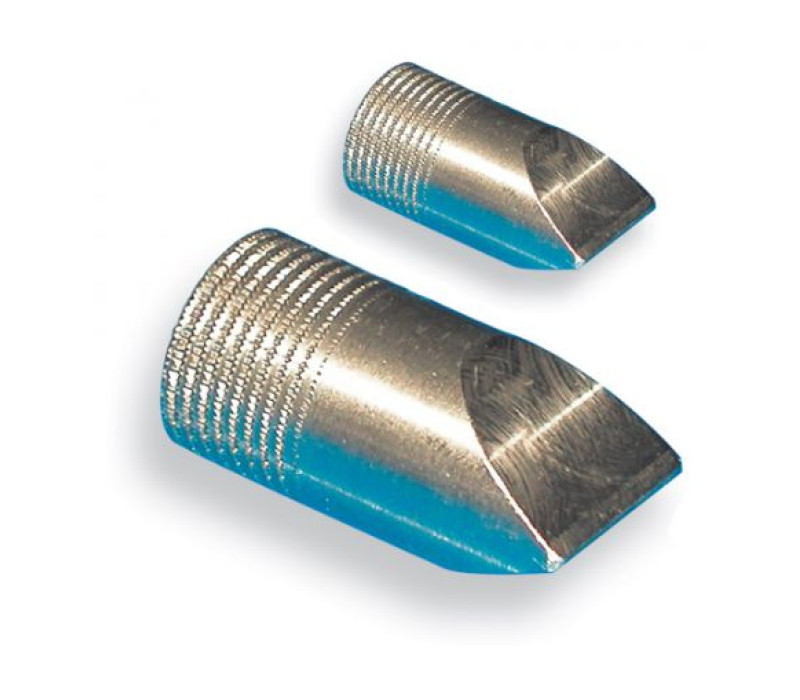

G1025-G1032 Chisels

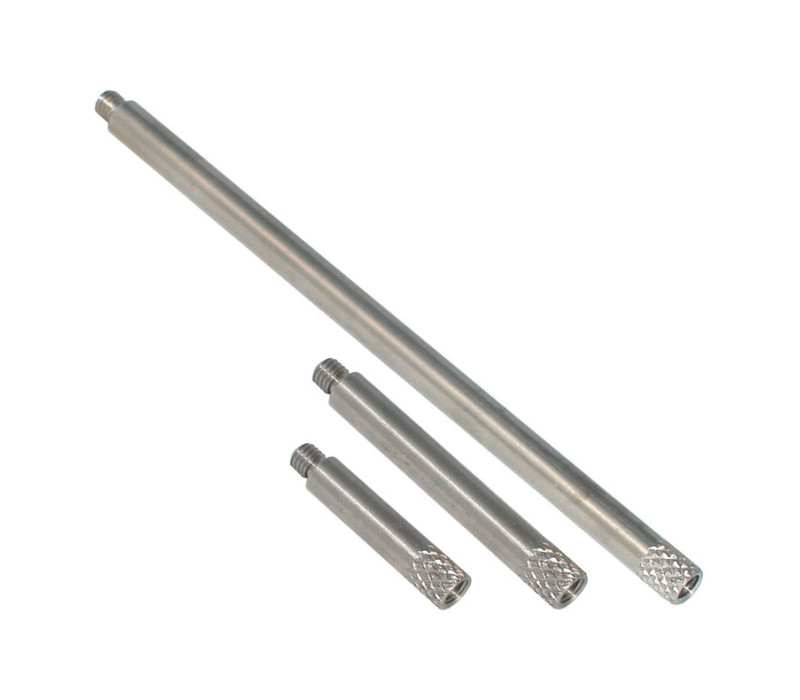

G1024-G1031 Extension Rods

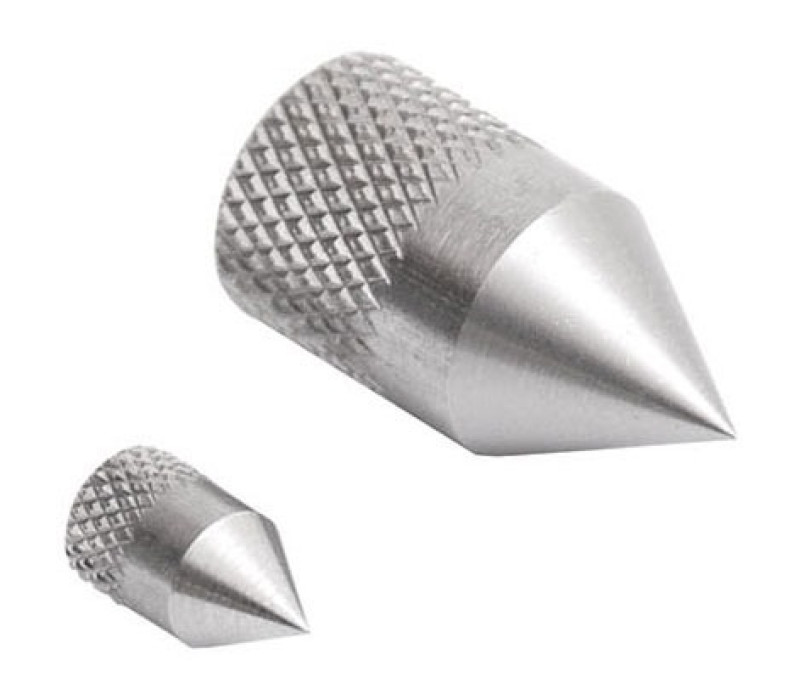

G1026-G1033 Cones

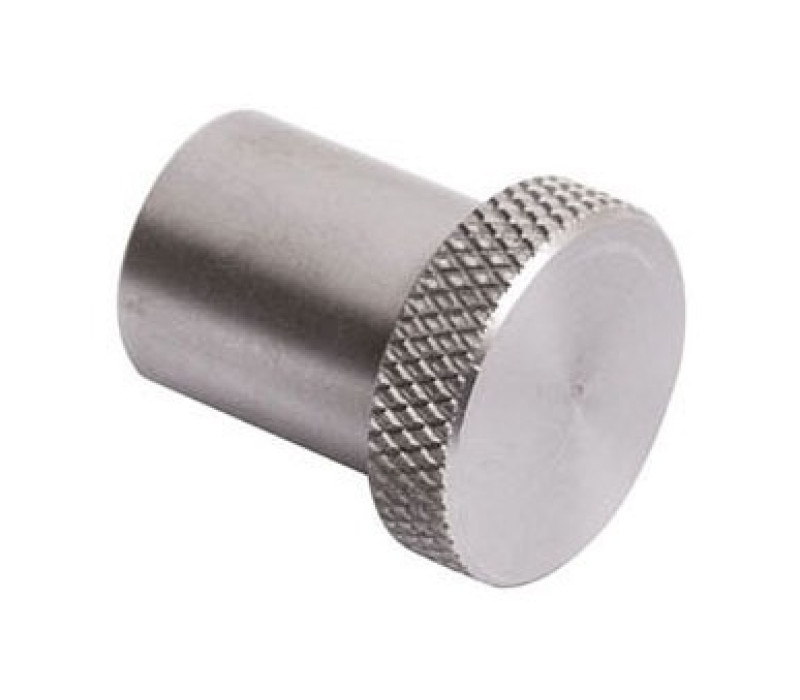

G1029 - G1036 Flat Heads

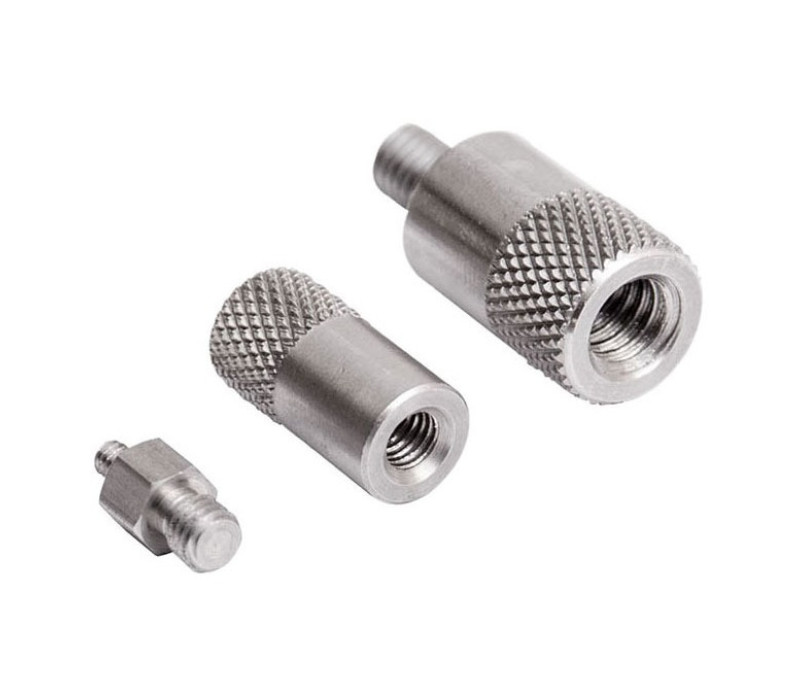

G Series Thread Adapters & Couplings
