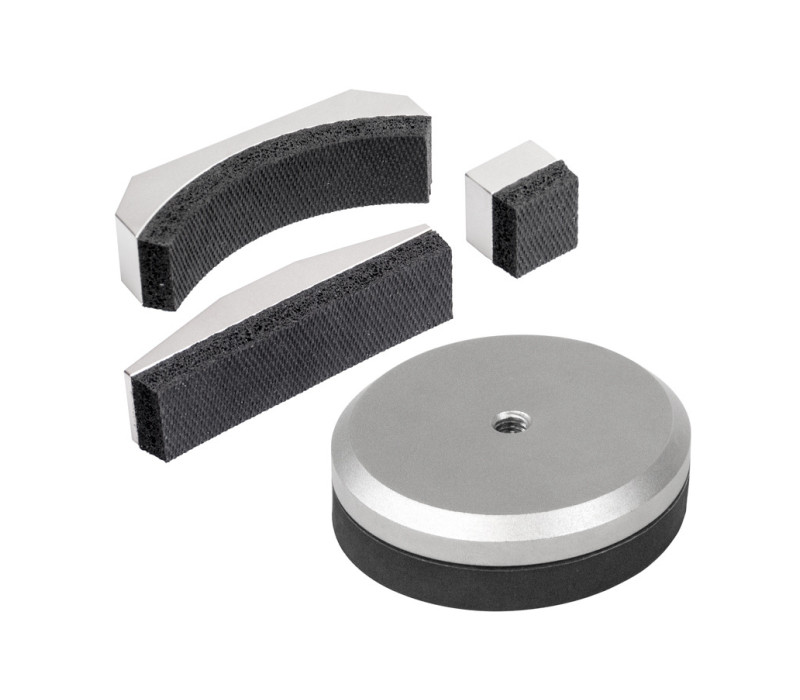

G1019-G1020-G1021 -G1112 Ergonomic Padded Attachments

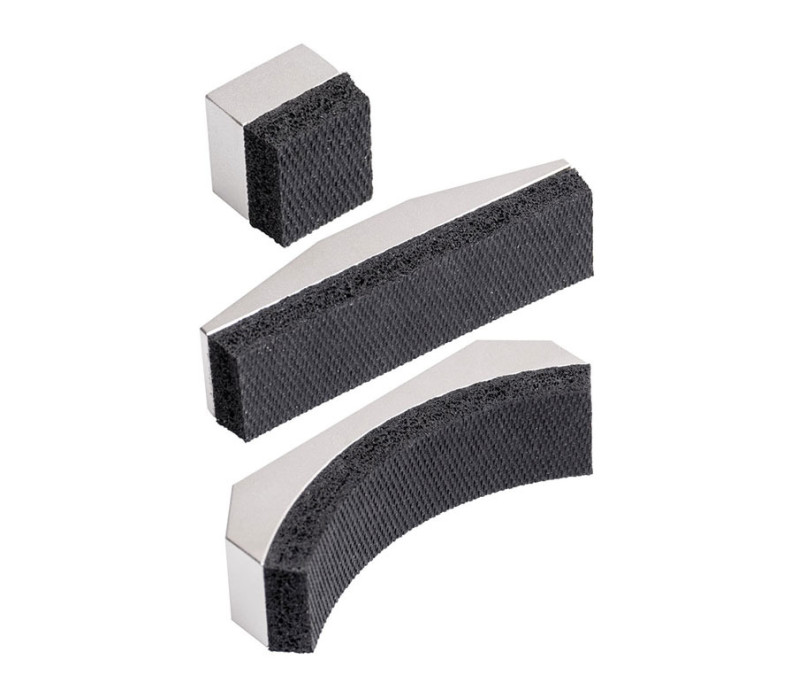

G1019-G1020-G1021 Padded Attachments.

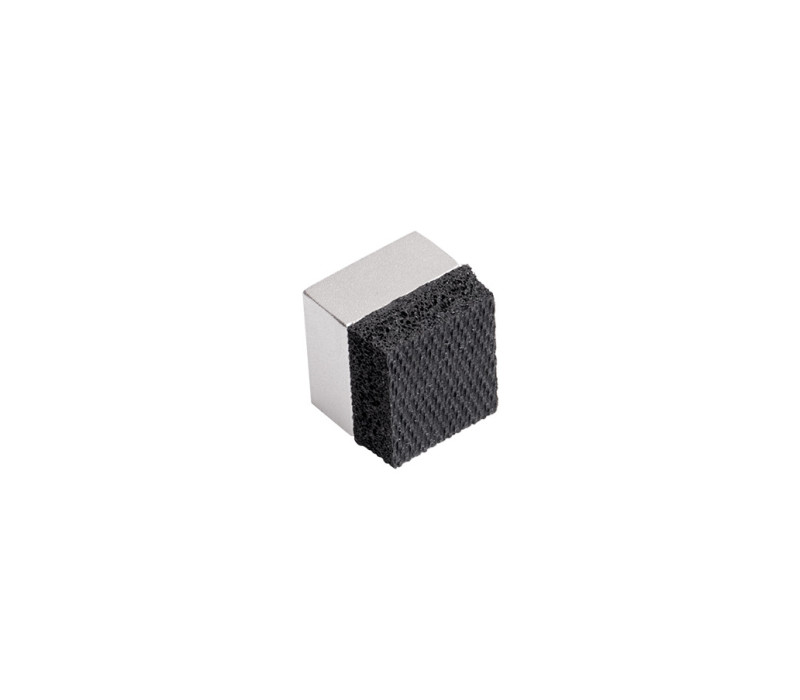

G1019 square padded attachment.

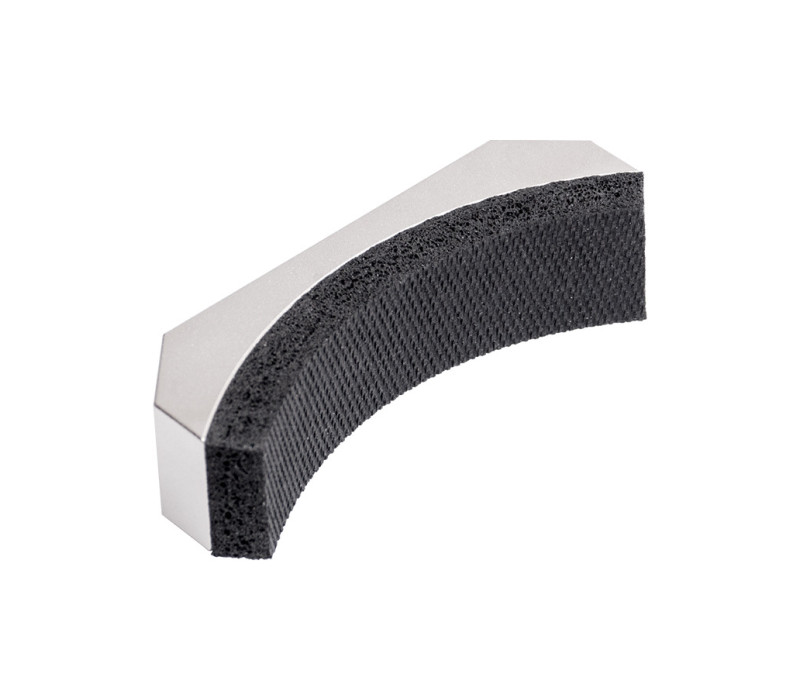

G1021 curved padded attachment.

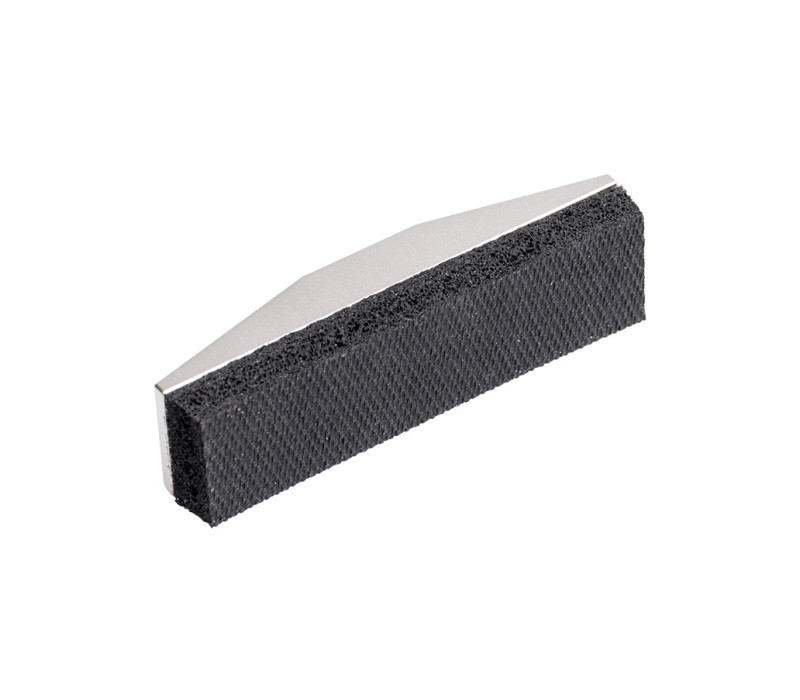

G1020 flat padded attachment.

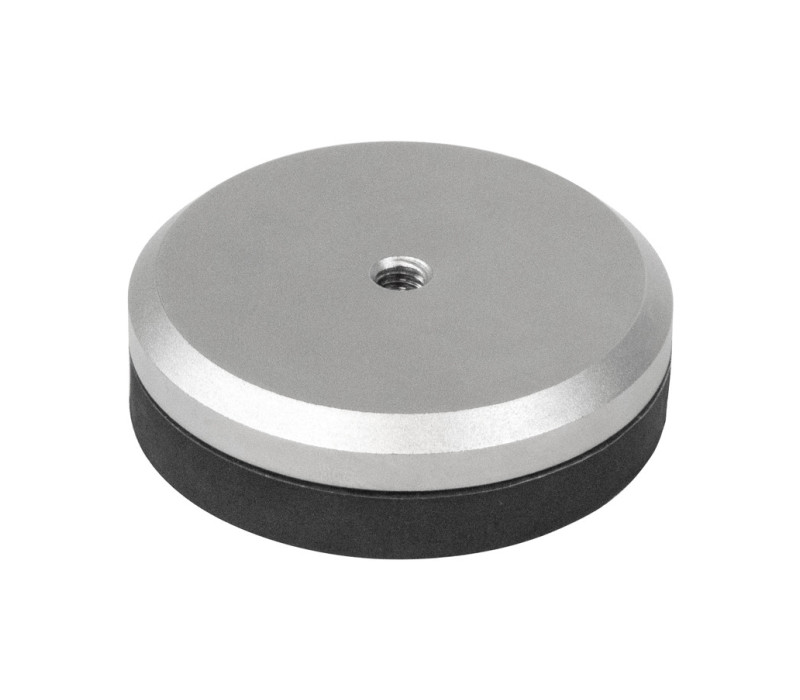

G1112 circular padded attachment.

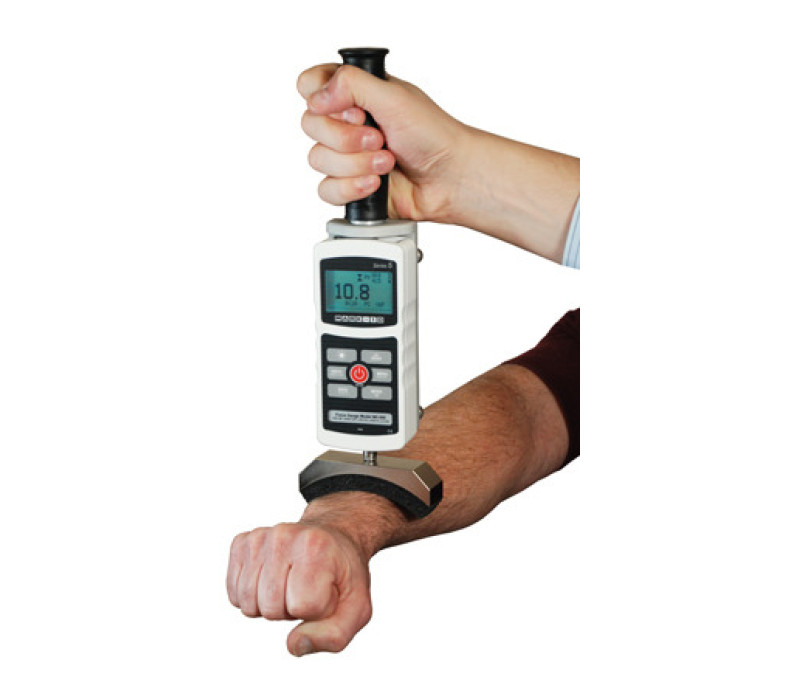

A typical muscle strength analysis application of a G1021 with Series 5 digital force gauge.

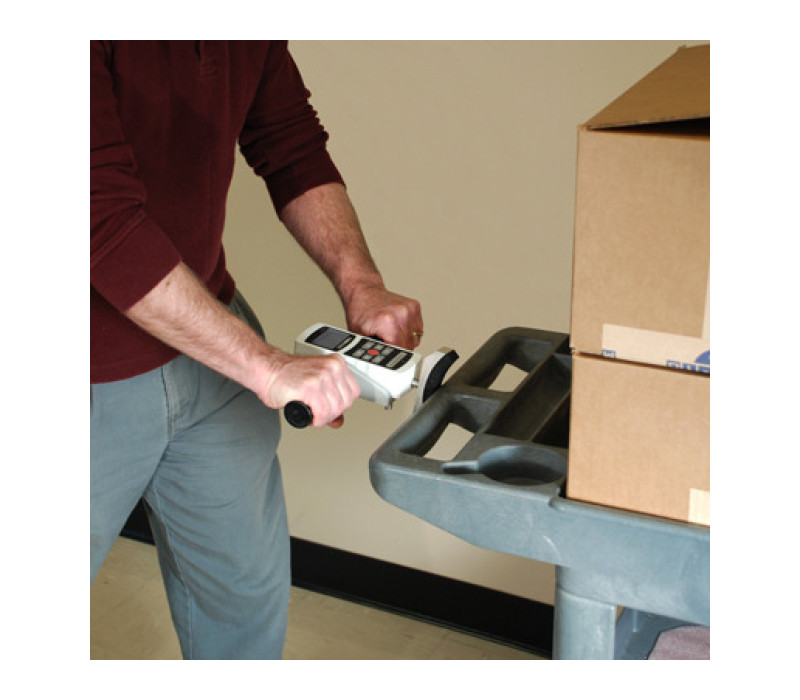

A typical job task analysis application of a G1021 with Series 5 digital force gauge.

G1019-G1020-G1021-G1112 Ergonomic Padded Attachments

This series of padded attachment is designed for ergonomic testing, job task requirements like open and closing doors and drawers and pushing carts by using ergo or myometers.
Physiotherapist can use these when testing muscle strength and document actual increase of strength, padding is added for user comfort.
In combination with a force gauge they can also be used for safety checks like measuring the force required to open a fire door.

This series consists of 4 different padded attachments each with their own shape and purpose, padding thickness is 11,5 mm.

G1019 is a square padded attachment of 25,4 mm
G1020 is a flat padded rectangle attachment of 101,6 and 25,4 mm
G1021 is a curved shape rectangle attachment with a radius of 81,3 and 25,4 mm
G1112 is a round attachment with a diameter of 75,7 mm

Each attachment will mount directly to Mark-10 Force or ergonomic gauges and are included in several ergonomic kits.

The attachments Include a 5/16-18M to #10-32F thread adapter, 5/16-18 jam nut, and #10-32 jam nut.

Price from € 51,00

Order now

Padded surface for user comfort
Select from four shapes
The attachments Include a 5/16-18M to #10-32F thread adapter, 5/16-18 jam nut, and #10-32 jam nut.

G1019, G1020, G1021, G1112

G1020

G1021

G1112

D1 no header

Model	Capacity (N)	Weight (g)
G1019	2500	10
G1020	2500	60
G1021	2500	110
G1112	2500	280

Capacity:	2500 N (500 lb)
Size (W x D x H):	G1019: 25.4 x 25.4 x 25.4 mm (1" x 1" x 1") G1020: 10.16 x 25.4 x 25.4 mm (4" x 1" x 1") G1021:10.16 x 25.4 x 35.6 mm (4" x 1" x 1.4") G1112(D x H) : 21.3 x 75.7mm (0.84" x 2.98")
Weight:	G1019:10 g (0.03 lb) G1020: 60 g (0.13 lb) G1021: 110 g (0.25 lb) G1112: 130g (0.28lb)
Thread:	5/16-18 UNC

Products

Item	Product	Price
130809	G1019 Padded attachment, square, 5/16-18F	€ 51,00
130810	G1020 Padded attachment, rectagular, 5/16-18F	€ 69,00
130811	G1021 Padded attachment, curved, 5/16-18F	€ 87,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
