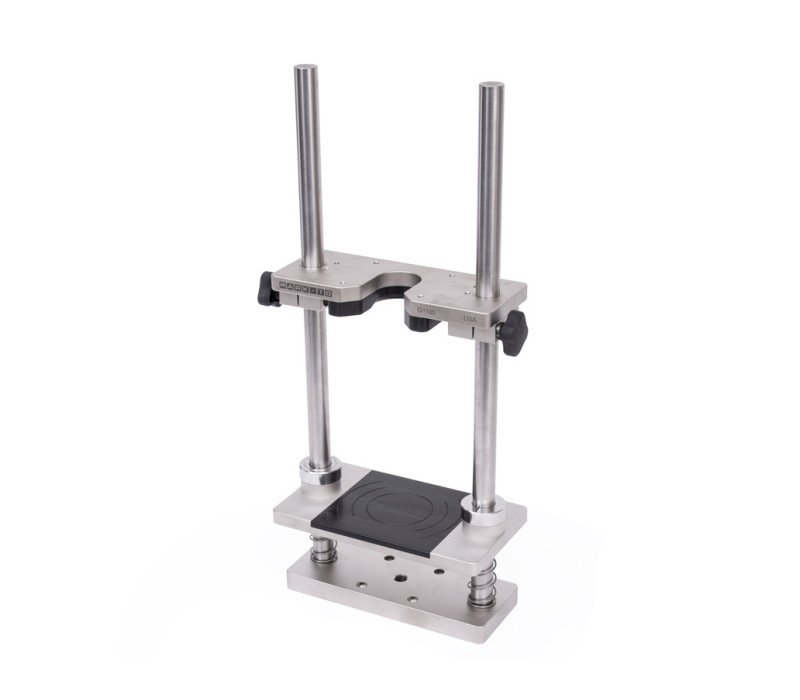

    G1105 Cork Pull Fixture

    The G1105 Cork Extraction Fixture is designed to measure the force required to extract the cork from a bottle in conformance with the ISO 9727 standard.
    This purpose-built fixture is designed to make measuring the cork extraction process seamless and accurate.

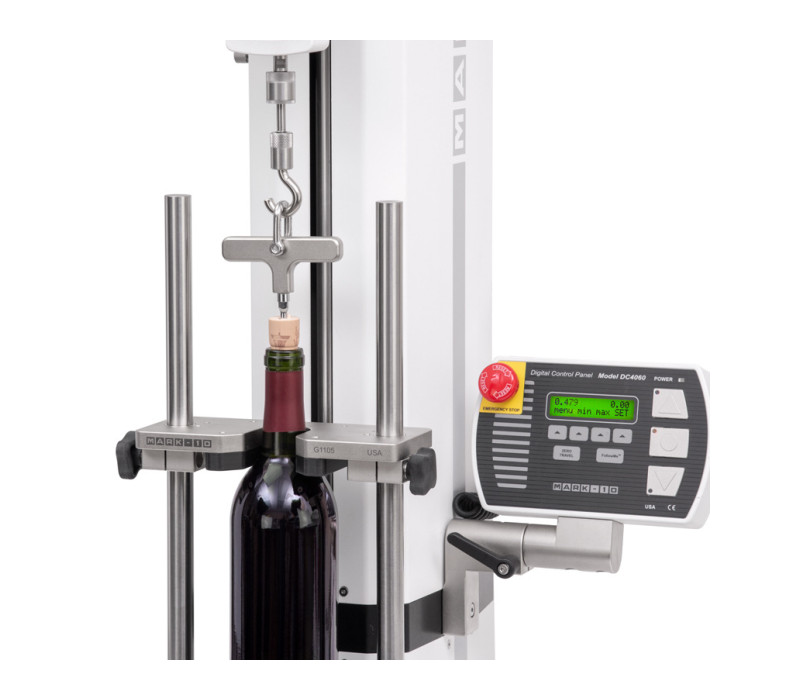

    The G1105 fixture can accommodate bottles with a capacity of up to 1.5 liters with natural or synthetic stoppers.

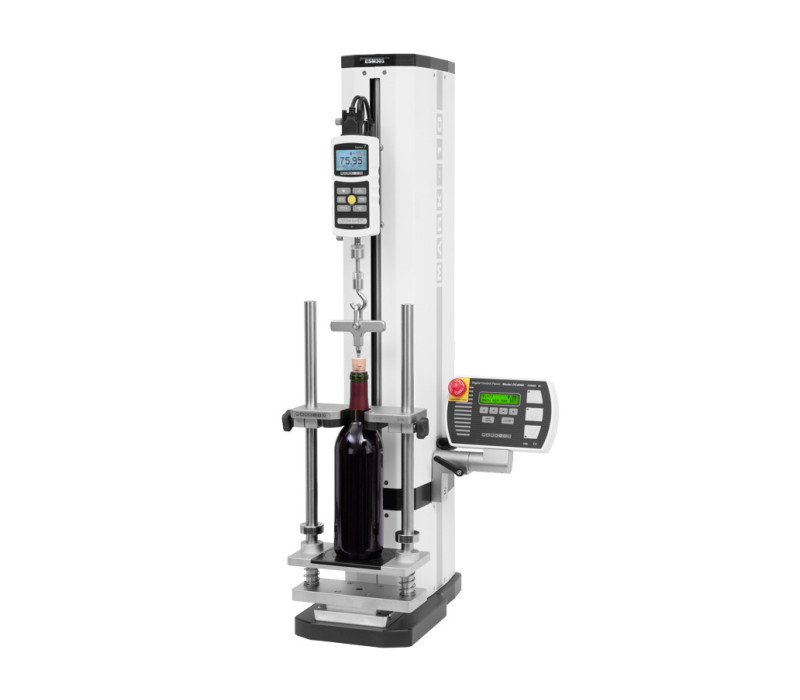

    Using the G1105 is easy, simply load your bottle onto the spring-loaded tray with the neck securely held in place by the upper bracket.
    Delrin is used to prevent damaging the bottle neck from the upper bracket. The supplied corkscrew is threaded into the cork and connected to the swivel hook.
    The hook is connected to the load cell or force gauge in the test stand.

    It is recommended to use a F Series motorized test stand or a force gauge in combination with an ES30 manual test stand. Depending on the type of test stand an extension may be required to accommodate for the height of the fixture.
    € 1.377,00
    Order now
    • Extracts cork stoppers from bottles
    • Adjusts to fit bottles up to 1.5 L
    • Compatible with natural and synthetic stoppers
    • Conforms to ISO 9727

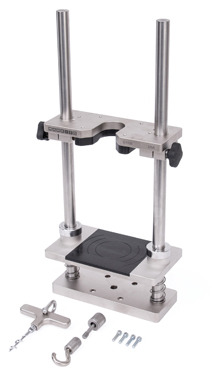

    Complete Kit

    The G1105 fixture is shipped as shown, and includes the following accessories:

    • Base fixture
    • Corkscrew assembly
    • G1035 large hook, 5/16-18
    • G1018-2 swivel adapter, 5/16-18
    • Test stand mounting hardware
    G1105 Cork Pull Fixture

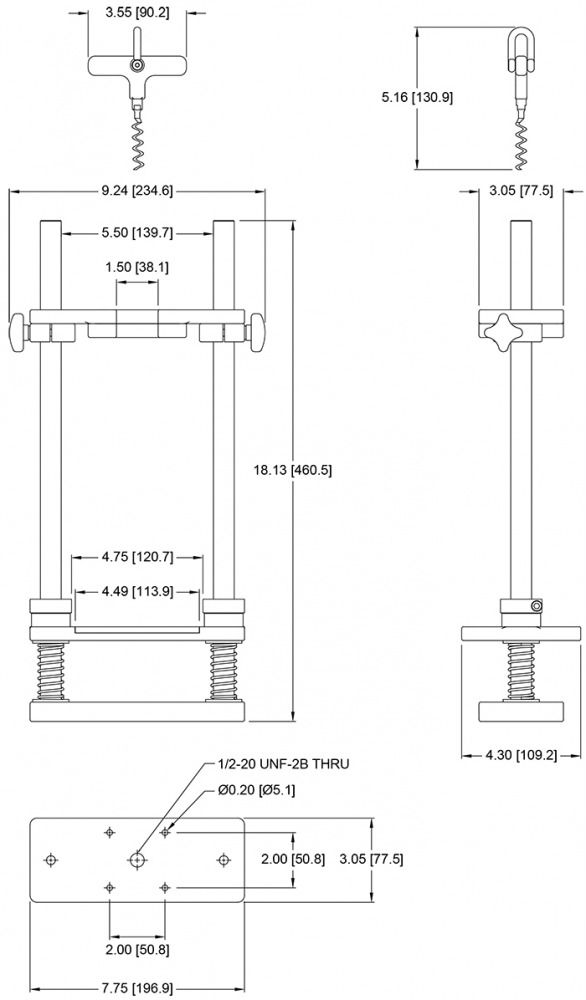

    Dimensions-G1105 Cork Pull Fixture

    All sizes are noted in inch with metric sizes in [mm] behind.

    Capacity1 kN
    Maximum botlle capacity1,5 ltr
    Weight4,3 kg
    Shipping Weight5,4 kg

    Data Sheet for All Grips
    Owners manual G1105
    Solid Models G1105

    Related Products

    Browse Related Products

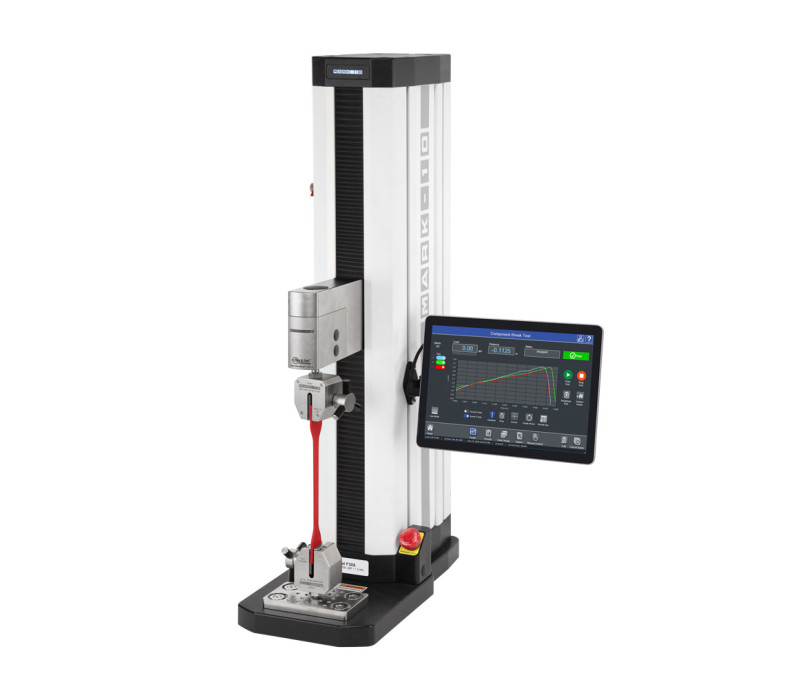

    Test stand with IntelliMESUR® F105 / F305 / F505 / F505H

    Test stand with IntelliMESUR® F105 / F305 / F505 / F505H

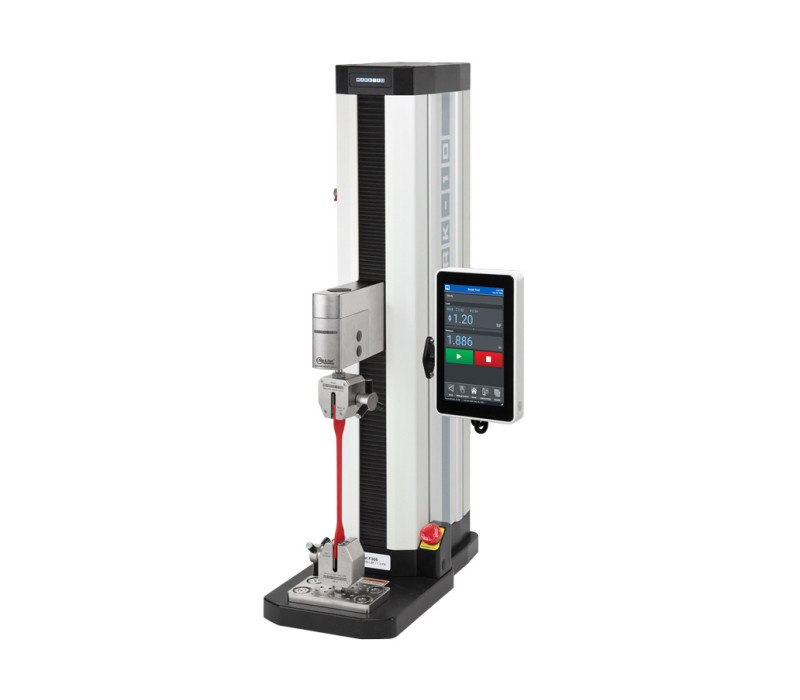

    Test Stand with EasyMESUR® F105 / F305 / F505 / F505H

    Test Stand with EasyMESUR® F105 / F305 / F505 / F505H

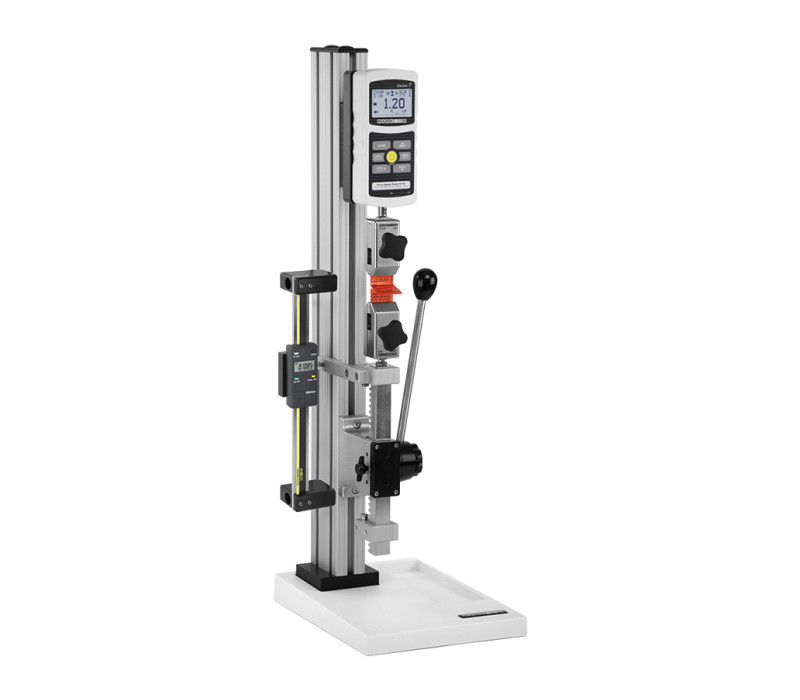

    TSA750 Horizontal or Vertical hand lever operated force test stand

    TSA750 Horizontal or Vertical hand lever operated force test stand

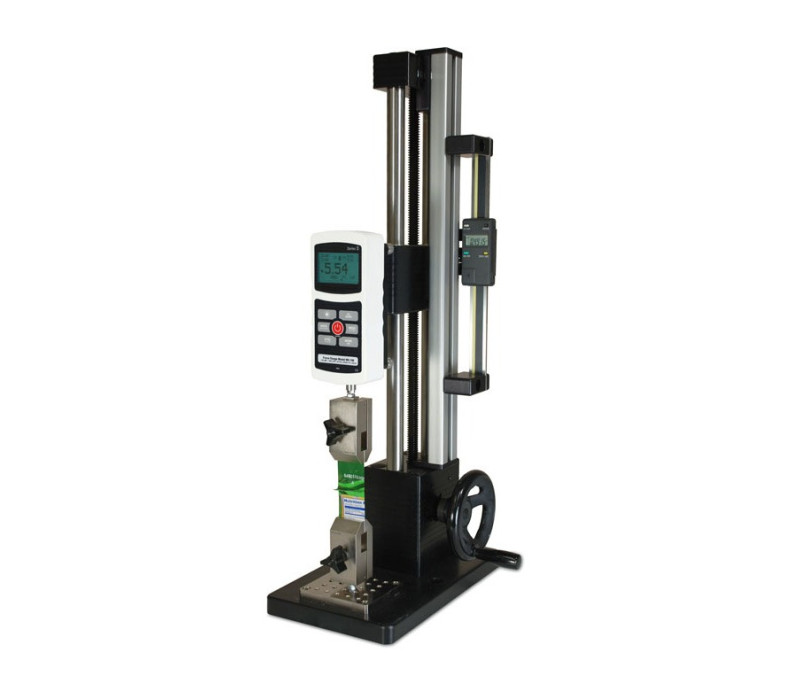

    ES30 1000N Precision Hand Wheel Operated Force Test Stand

    ES30 1000N Precision Hand Wheel Operated Force Test Stand

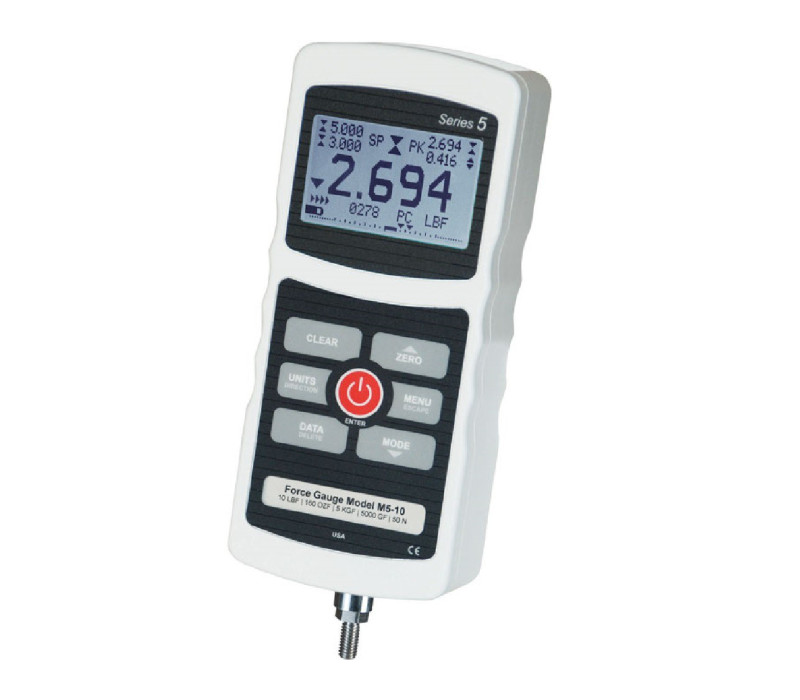

    Series-5 Advanced Digital Force Gauge

    Series-5 Advanced Digital Force Gauge

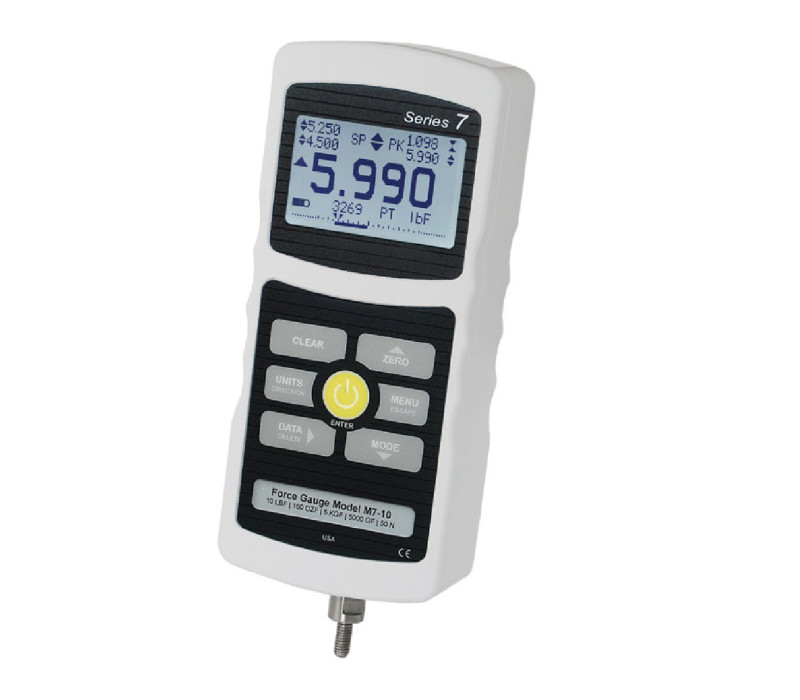

    Series-7 Professional Digital Force Gauge
