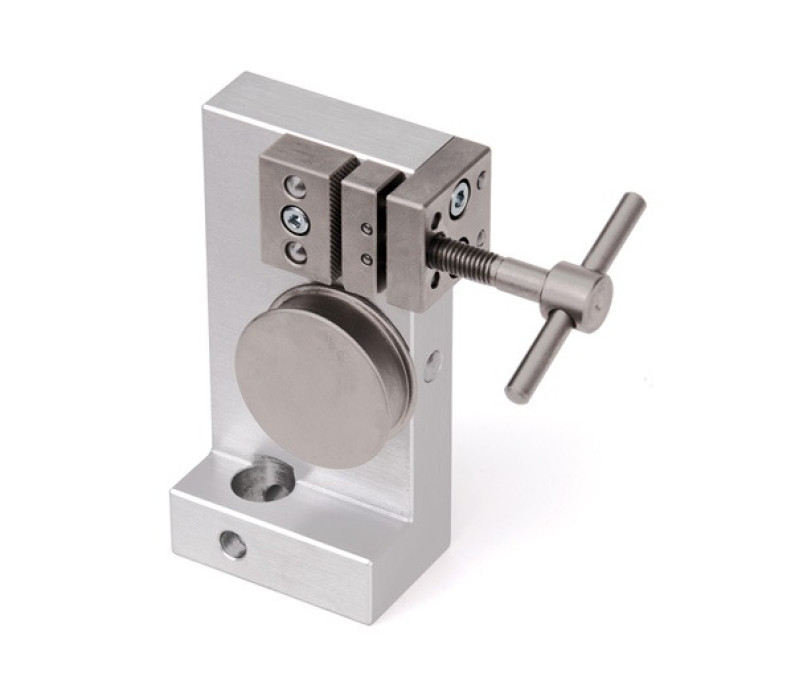

    G1102 Large Wire / Rope Grip

    The G1102 large Wire/Rope Grip is engineered to meet the demands of wire, rope, and yarn pull testing.
    This fixture is used for assessing the strength of materials or evaluating their durability.
    The maximum capacity is 5 kN with a maximum sample diameter of 5,8 mm.

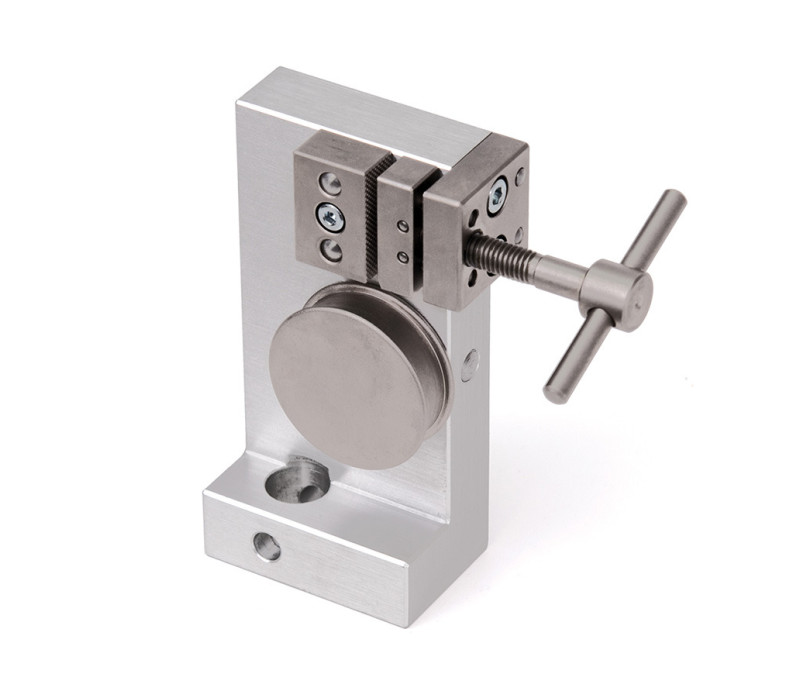

    The G1102 features a bollard / capstan design, the sample is wrapped around the bollard after which the free end is clamped in the adjustable vice.
    This ensures the sample remains in place during testing resulting in accurate and repeatable test results.

    It comes equipped with an integrated eye end mount, making it easier to attach this fixture securely to a force gauge, load cell or test stand.

    Attention: This fixture requires an Eye-End-Adapter to be attached to a test stand
    € 689,00
    Order now
    • Bollard / capstan design effectively secures rope, wire and other samples.
    • Integrated eye end mounting.
    • Designed for wire, rope, and yarn pull testing applications.
    G1102 Large Wire / Rope Grip
    Dimensions-G1102 Large Wire / Rope Grip

    All sizes are noted in inch with metric sizes in [mm] behind.

    G1102 Solid Models
    Datasheet for all Grips
    Capacity:5 kN
    Maximum sample diameter:5.3 mm
    Weight:0.8 kg
