G1061 Wedge Grip

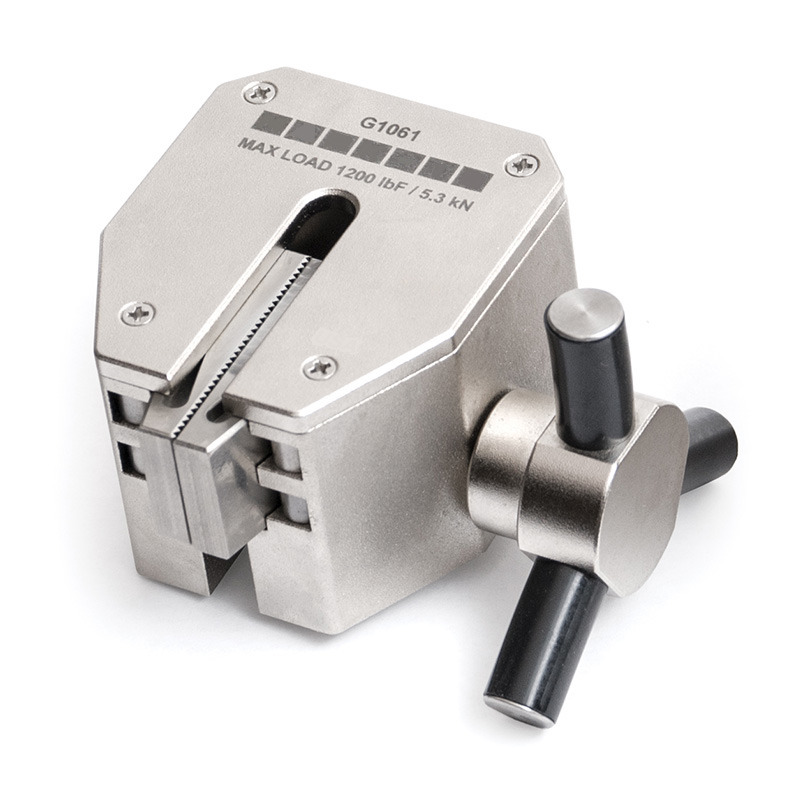

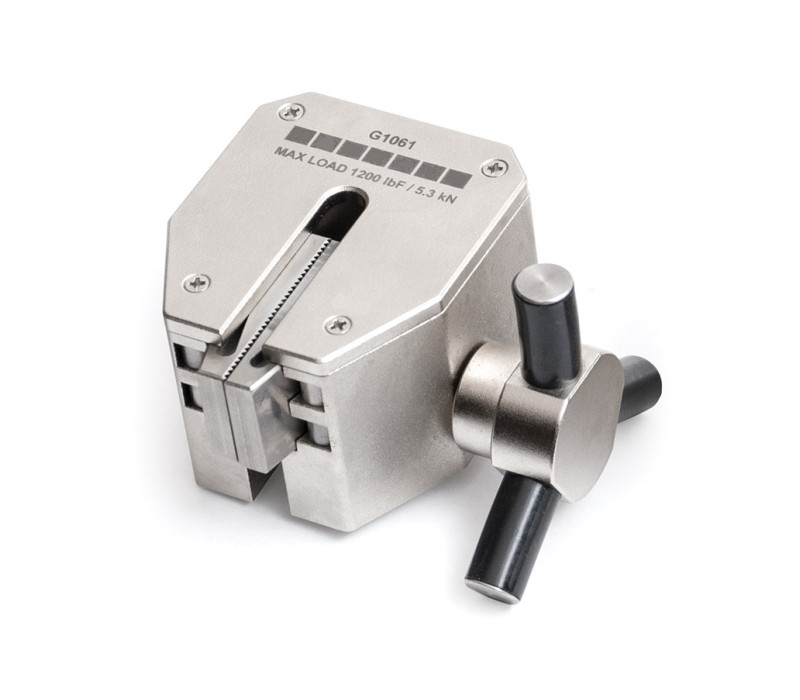

G1061 self-tightening wedge grip is useful for a wide range of tensile testing and pull testing requirements

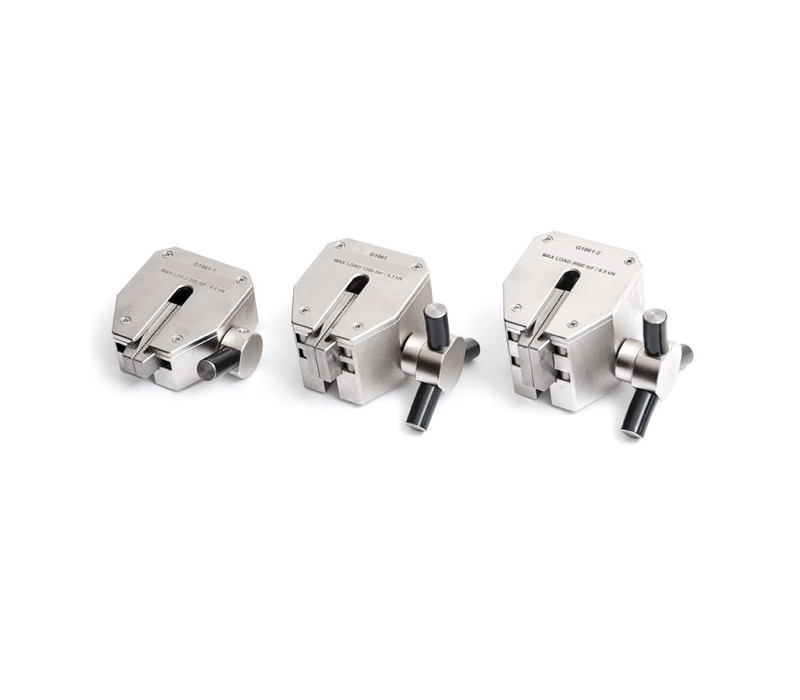

From left to right: G1061-1 (9,5 mm jaw width), G1061 (19,1 mm jaw width), G1061-2 (25,4 mm jaw width)

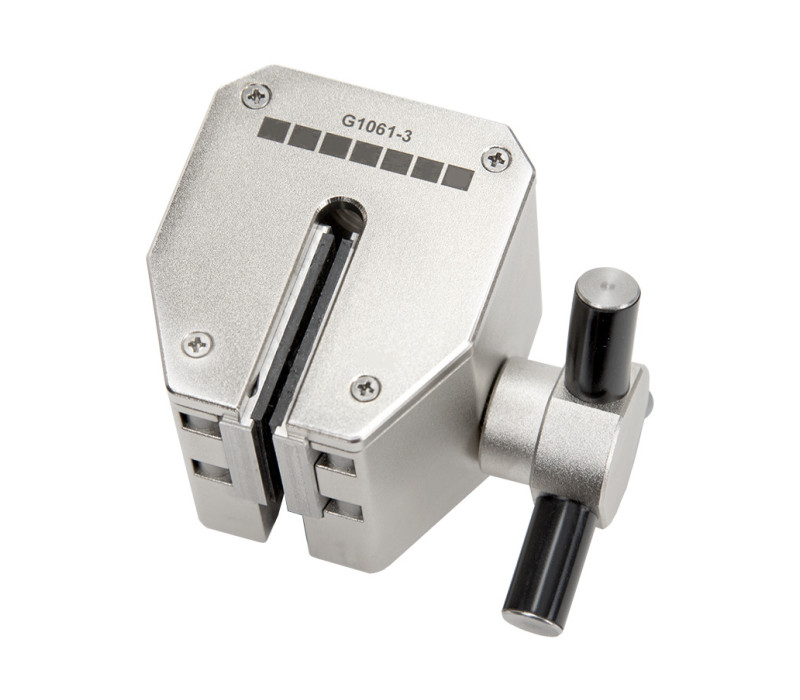

Model G1061-3 features 25,4 mm wide rubber-faced jaws

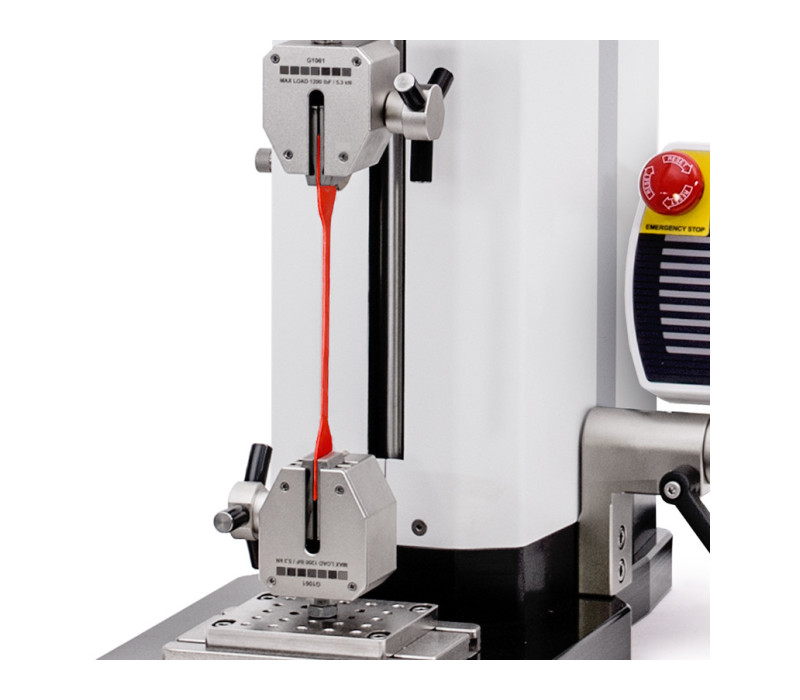

A pair of G1061 grips is shown in a typical tensile testing application, mounted to a test stand and digital force gauge

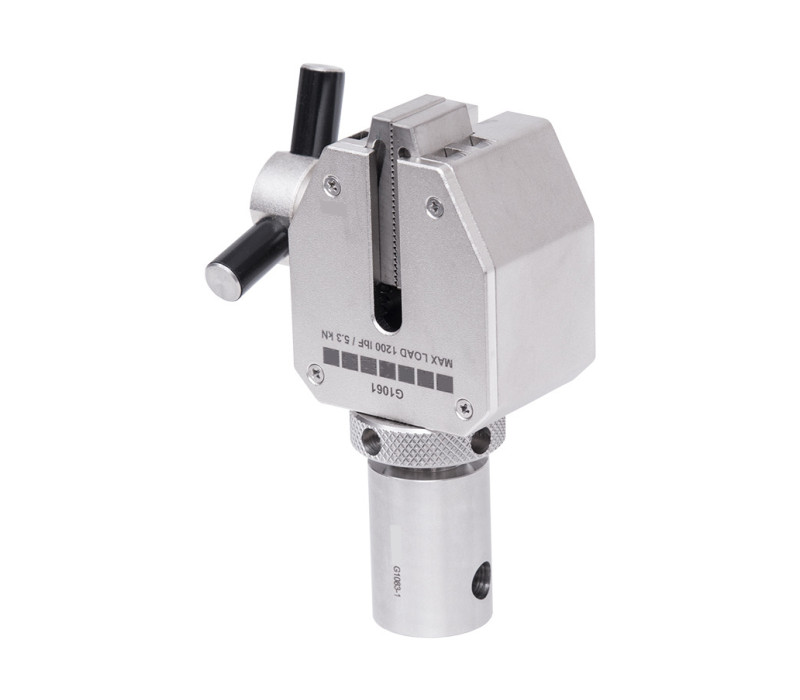

Eye end adapters are compatible with various test stands, load cells, and force gauges

G1061 Series Wedge Grip

Name: G1061 Series Wedge Grip
SKU: 126095

The G1061 Series Wedge Grips are designed as fully closed heavy duty self-tightening grips.
These easy to use grips come in 4 different versions for various applications with a capacity range from 250 N up to 9 kN.
The serrated hardened steel or rubber jaw faces ride on rollers instead of sliding along the surface of the housing, this unique design prevents jamming and improves gripping characteristics.

The jaws are spring loaded open and move with a very smooth rack and pinion lever mechanism for easy operation.
This makes the G1061 grips in combination with force gauges or test stands ideal for tensile testing of a wide range of materials.

The G1061 series grips each come with an assortment of adapters with jam nuts.

Price from € 569,00

Order now

Unique jam-free design
4 versions available
Ergonomic rack and pinion lever mechanism
Fully enclosed design
Hardened, serrated steel jaws or rubber jaw for film and paper tensile testing applications
Thru slot for samples of unlimited width

G1061 Series Wedge Grip

IN[MM]

Model	Capacity lbF [kN]	A	B	C	D	E	F	G	Included Adapters
G1061-1	200 [0.9]	1.95 [49.5]	2.45 [62.2]	0.375 [9.5]	0.95 [24.1]	5/16-18 UNC	0 - 0.25 [0 - 6.4]	0.62 [15.7]	#10-32F to 5/16-18M adapter, #10-32 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts
G1061	1,200 [5.3]	1.95 [49.5]	2.45 [62.2]	0.75 [19.1]	1.50 [38.1]	1/2-20 UNF	0 - 0.25 [0 - 6.4]	1.00 [25.4]	#10-32F to 5/16-18M adapter, #10-32 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts, 5/16-18F to 1/2-20M adapter, 1/2-20 M/M stud with jam nuts
G1061-2	2,000 [9.0]	1.95 [49.5]	2.45 [62.2]	1.00 [25.4]	1.75 [44.5]	1/2-20 UNF	0 - 0.25 [0 - 6.4]	1.13 [28.7]	5/16-18F to 1/2-20M adapter, 1/2-20 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts
G1061-3	50 [0.25]	1.95 [49.5]	2.45 [62.2]	1.00 [25.4]	1.75 [44.5]	1/2-20 UNF	0 - 0.20 [0 - 5.1]	1.13 [28.7]	5/16-18F to 1/2-20M adapter, 1/2-20 M/M stud with jam nuts, 5/16-18 M/M stud with jam nuts

D1 no header

Model	A mm	B mm	C (mm)	D (mm)	E	F (mm)	G (mm)
G1061	49.5	62.2	19.1	38.1	1/2-20 UNF	0 - 6.4	25.4
G1061-1	49.5	62.2	9.5	24.1	5/16-18 UNC	0 - 6.4	15.7
G1061-2	49.5	62.2	25.4	44.5	1/2-20 UNF	0 - 6.4	28.7
G1061-3	49.5	62.2	25.4	44.5	1/2-20 UNF	0 - 5.1	28.7

Datasheet for all grips

Solid Models - G1061

Solid Models - G1061-1

Solid Models - G1061-2

Solid Models - G1061-3

Products

Item	Product	Price
130850	G1061 Wedge grip, 0.75” jaw width, 5/16-18F	€ 634,00
132873	G1061-1 Wedge grip, 0.375” jaw width, 5/16-18F	€ 569,00
132874	G1061-2 Wedge grip, 1” jaw width, 1/2-20F	€ 693,00
136113	G1061-3 Wedge grip, 1" jaw width, rubber jaw faces, 1/2-20F	€ 693,00

Accessories

Item	Product	Price	Quantity	Action
130808	G1018-2 Swivel adapter, 5/16-18M to 5/16-18F	€ 119,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out
