G1111

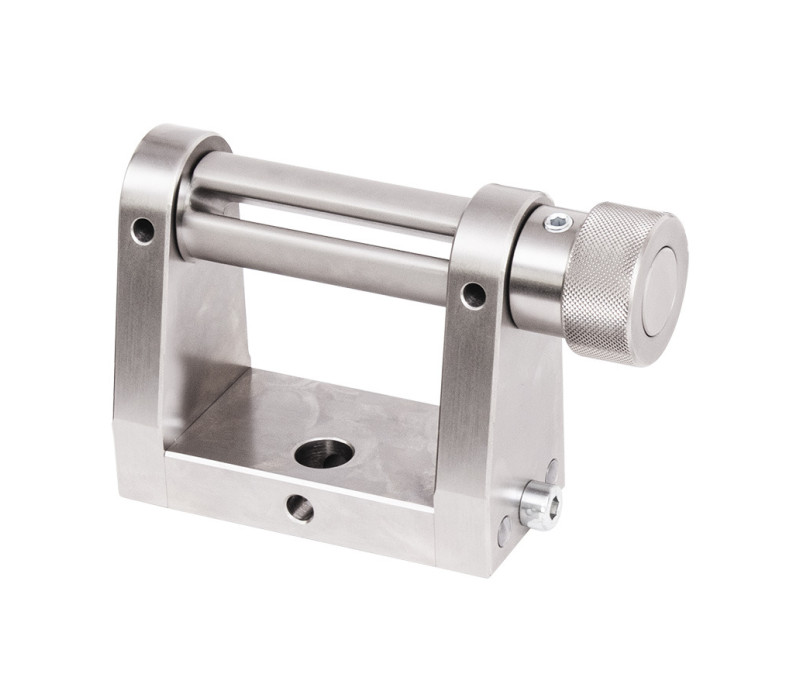

G111 Ribbon Wrap Grip for ASTM D6775

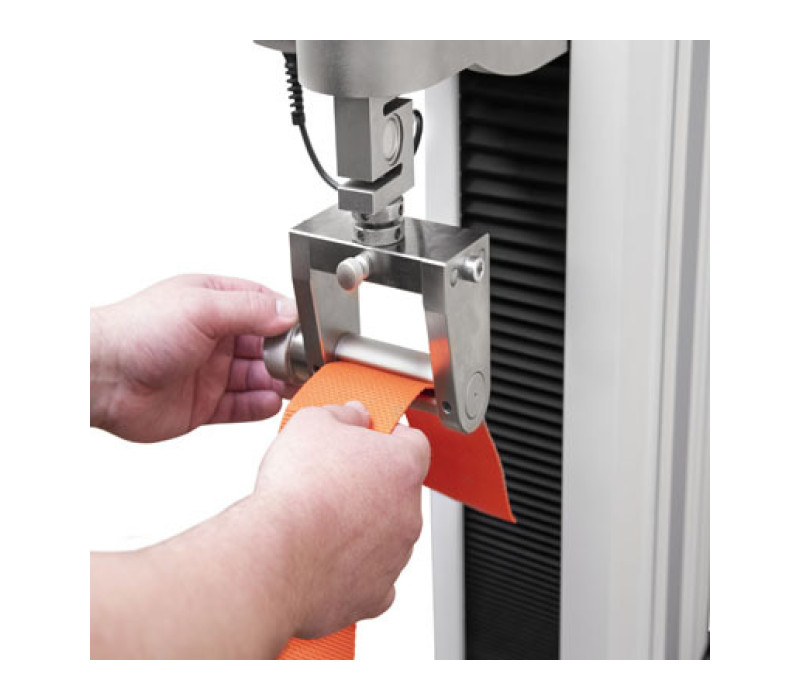

To load the sample, (1) insert the material through the slot, then (2) turn the dial to wrap the material around itself, then (3) insert the anchor pins (not pictured).

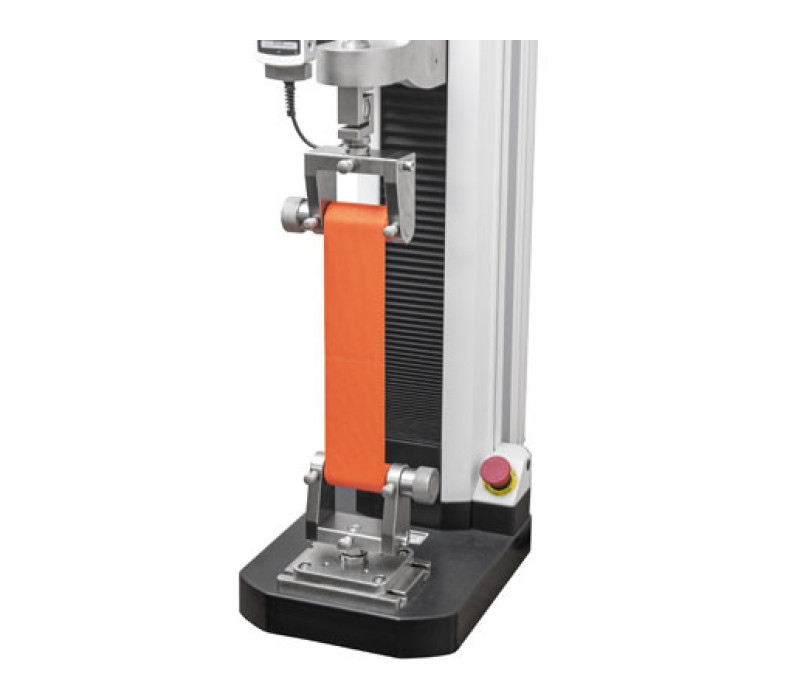

A pair of G1111 ribbon grips are shown in a typical application, with force test stand and load cell.

G1111 Ribbon Wrap Grip

Name: G1111 Ribbon Wrap Grip
SKU: 127518
Price: 836.00 EUR

The G1111 Ribbon Wrap Grip is specifically developed for the testing of braided materials, tapes, and textile webbing employed in shipping, construction, and various industrial applications.

It boasts a maximum test sample width of 80 mm and a capacity of 10 kN.
To connect it to a test stand, force gauge, or load cell, the standard eye-end mounting is utilized; please note that it does require an eye-end adapter for proper mounting.

This grip is suitable for conducting tests in accordance with ASTM D6775 and other relevant standards.
The G1111 package includes an eye-end anchor pin as well as two anchor pins designed for securing a sample drum.

Attention: This fixture requires an Eye-End-Adapter to be attached to a test stand

€ 836,00

Order now

Secures webbing, tape, and braided materials for pull testing, as per ASTM D6775
Secures samples up to 80 mm wide
Features eye-end mounting

The G1111 ribbon wrap grip is shipped as shown at left, and includes the following accessories:

Fixture assembly
Eye end anchor pin
2 Anchor pins for blocking the sample drum

G1111 Ribbon Wrap Grip

All sizes are noted in Inches with metric sizes in [mm] behind.

Datasheet all grips

Capacity	10 kN
Weight	2,4 kg
Shipping Weight	3,2 kg

Products

Item	Product	Price	Quantity	Action
139591	G1111 - Ribbon Wrap Grip, 2,000 lbF capacity	€ 836,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

G1111 Ribbon Wrap Grip

Features

Dimensions

Specifications

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

G1027 - G1034 V-Groove Attachments

Universal V-Jaw Grip

Universal Cap Grip

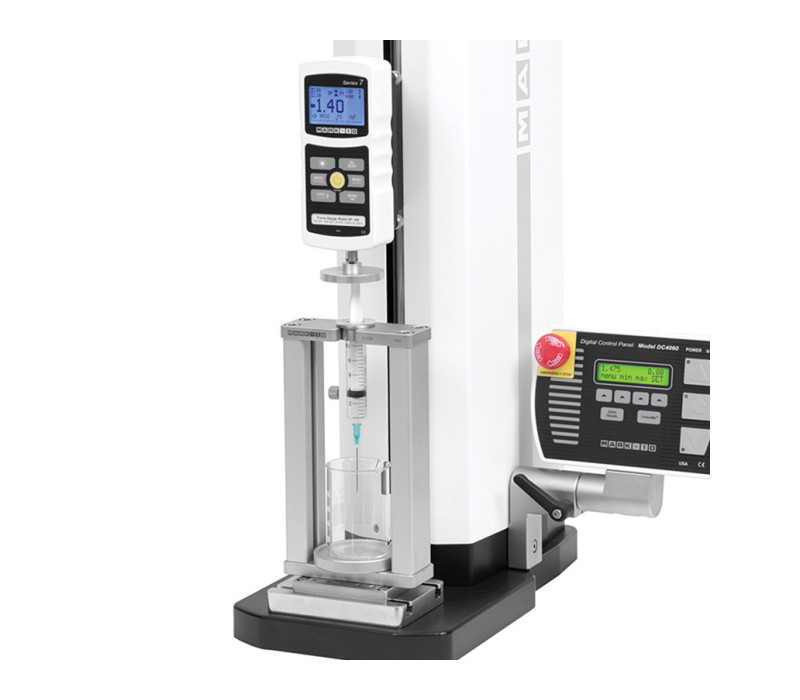

G1089 Syringe Compression Fixture

G1018 Swivel Adapters

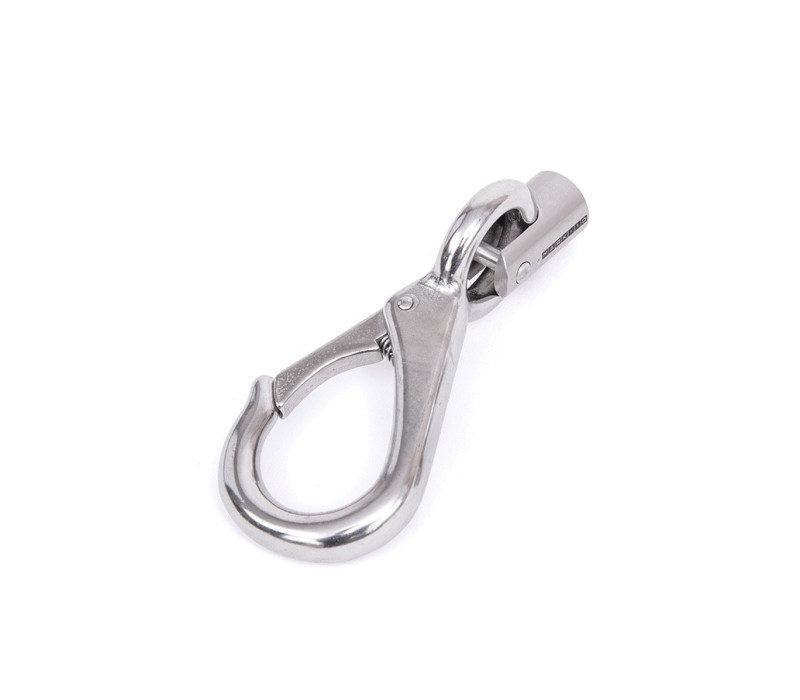

G1107 Snap Hook
