G1109 90° Peel Test Fixture

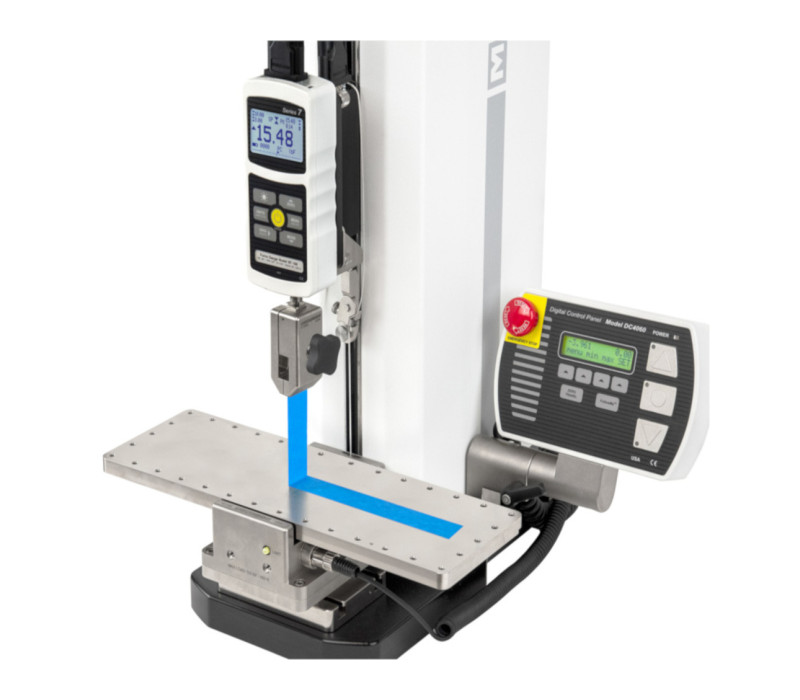

G1109 shown in typical tape peel application. A G1008 grip is connected to the force gauge.

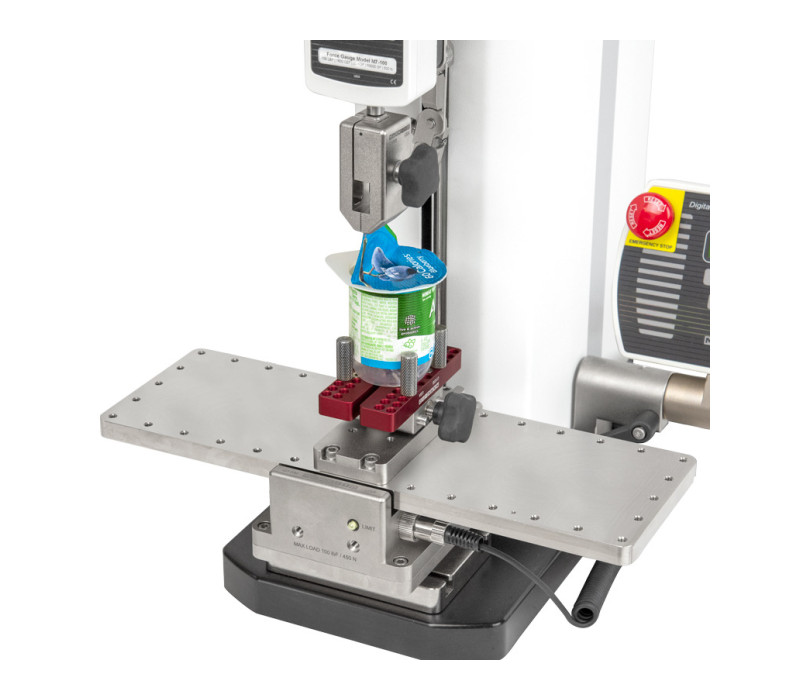

G1109 shown in a peel test of a foil seal, with G1058 bottle grip and AC1080 grip adapter.

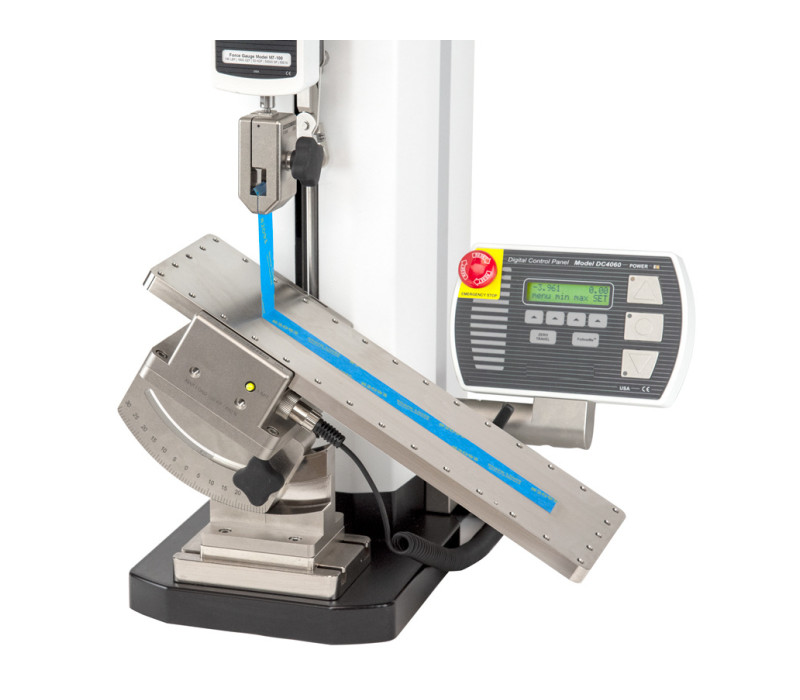

Side view of G1109 with optional AC1079 adjustable angle fixture.

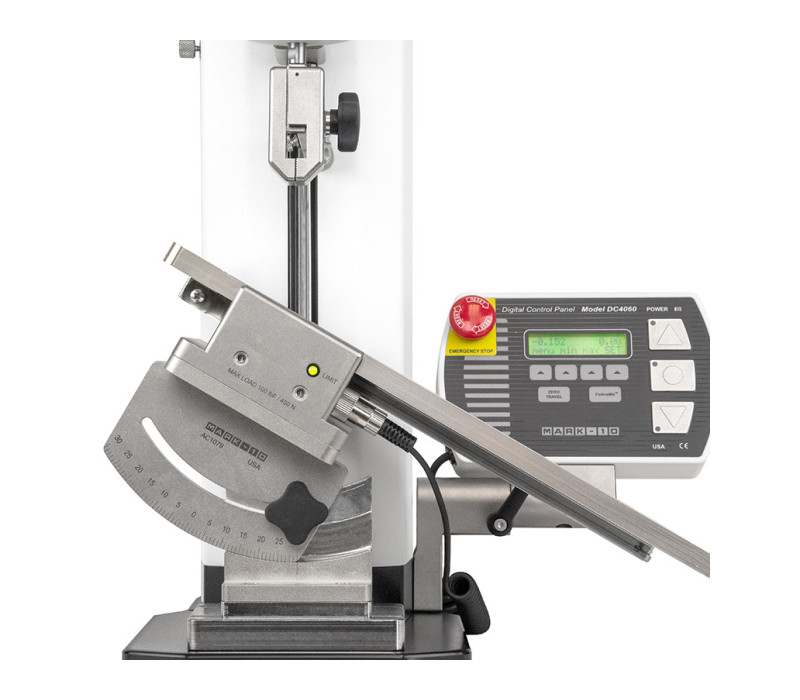

Side view of optional AC1079 adjustable angle fixture.

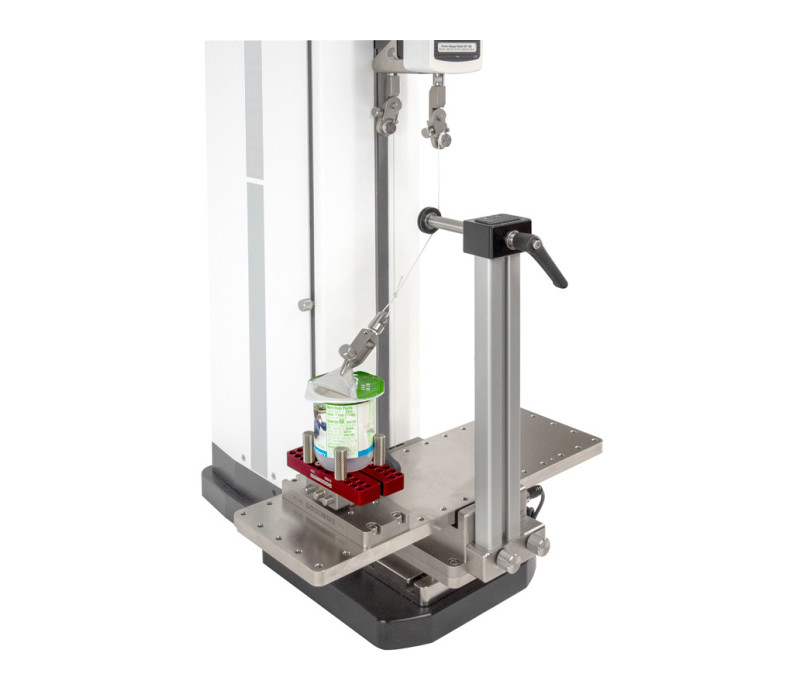

G1109 shown in a peel test with optional AC1078 adjustable angle fixture, G1058 bottle grip, and AC1080 grip adaptoer. G1003 miniature component grip secures the foil tab.

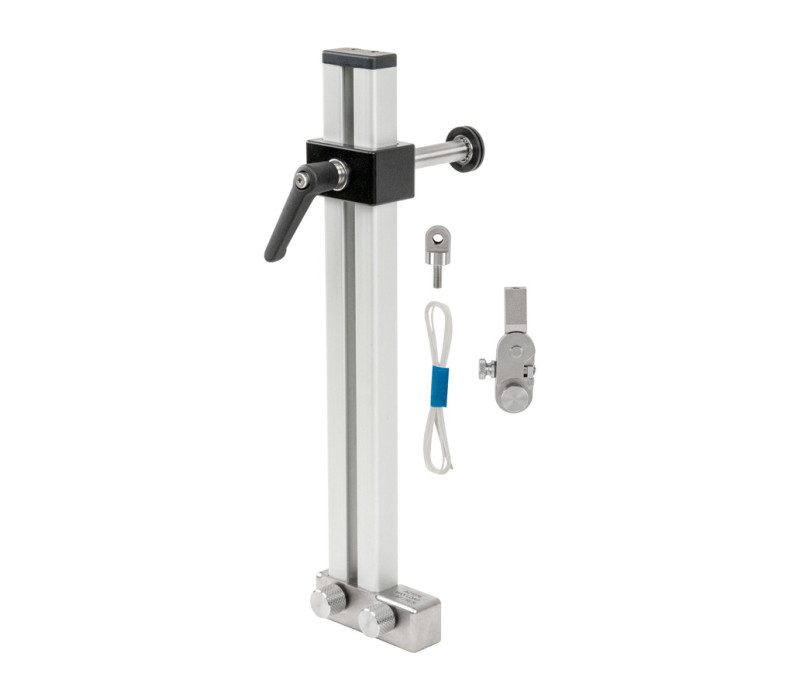

AC1078, as supplied. Includes a G1078 miniature bollard grip, cable, and #10-32M attachment for a peel grip.

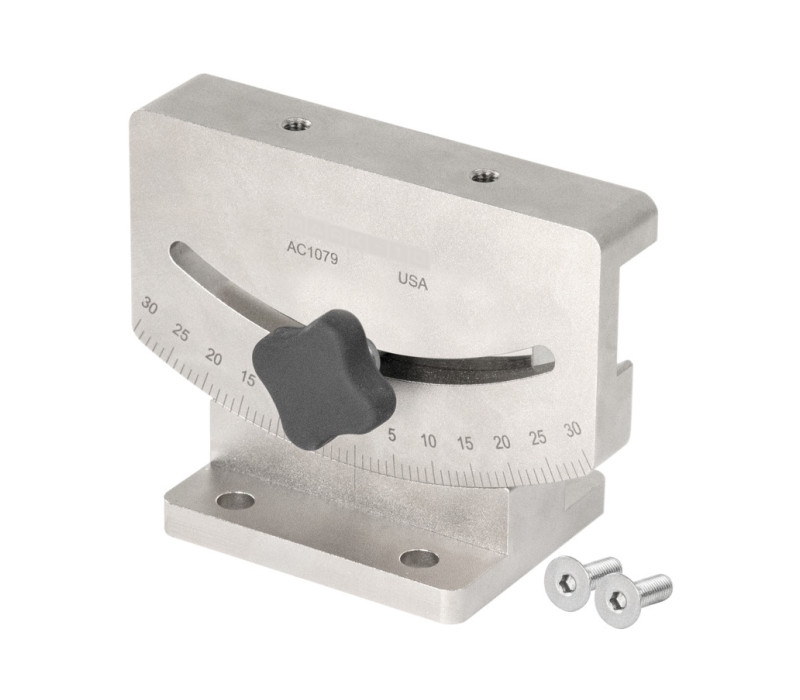

AC1079, as supplied. Includes mounting hardware for the G1109 fixture and ESM303 test stand.

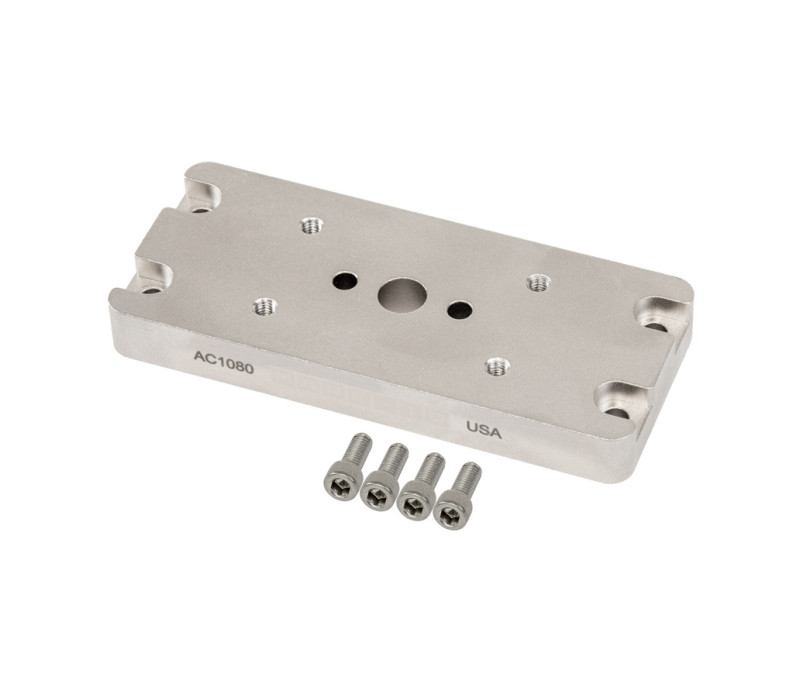

AC1080, as supplied. Includes mounting hardware for the work plate.

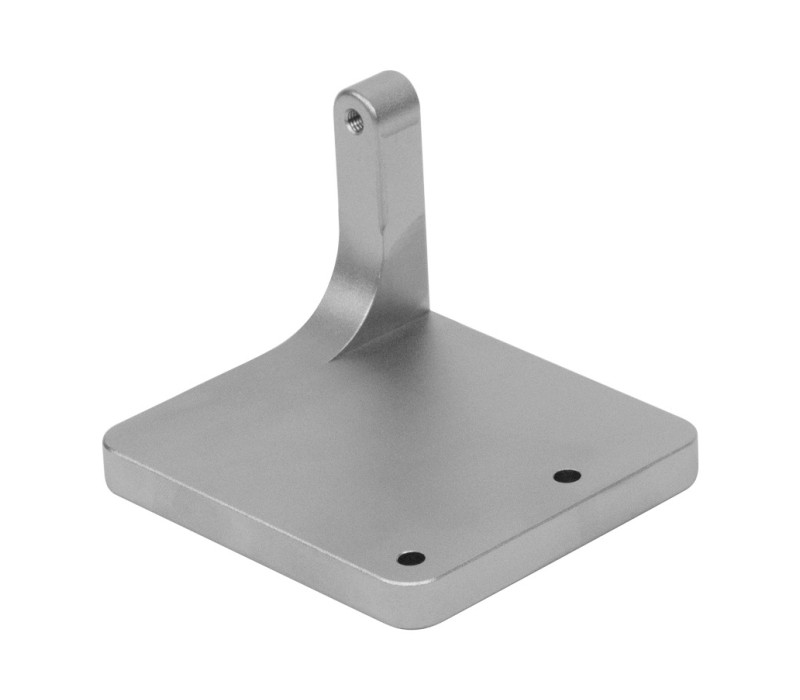

AC1087 Adapter, connecting G1109 to ESM750(S) / ESM1500(S) / F755(S) / test stands.

G1109 90° Peel Test Fixture

Name: G1109 90° Peel Test Fixture
SKU: 127376
Price: 1966.00 EUR

The G1109 fixture has been engineered to facilitate the peel testing of a wide range of materials, including tapes, films, foil seals, and more, in accordance with ASTM standards D6862, D3330, and D903.
It boasts a maximum capacity of 500 N and offers a maximum table travel distance of 210 mm.

For added versatility, you have the option to incorporate an adjustable-angle mount(AC1079) that can tilt the fixture up to ±30°. Alternatively, an optional angle pulley adapter (AC1078) is available, allowing you to set the angle of pull anywhere between 0° and 90°, all while maintaining a level working table. This horizontal configuration is particularly well-suited for conducting seal tests on filled containers and can also be applied to tape and material testing.

This fixture is equipped with an integrated limit switch that automatically halts the motion of the test stand's crosshead when the working table has reached the end of its travel. This feature is compatible with Series F test frames and the ESM303*,

*Certain test stands require the AC1087 adapter.

Don’t hesitate to contact us for more information regarding this fixture or a complete test system.

€ 1.966,00

Shop now

Maintains 90° angle between the table and the direction of pull.
Optional adjustable angle mount tilts the fixture up to ±30°.
0° to 90° optional adjustable angle adapter with pulley, while preserving horizontal table orientation. (max. force: 150N).
Conforms to ASTM D6862, D3330, D903.
Large working area with threaded mounting holes.

Y1 no header

Compatible with:

Models F105, F305, F505 test frames.
Model ESM303 motorized test stand, when using a force gauge.
Models F755, F1505 test frames, and ESM1500LC, ESM1500SLC, ESM750LC, ESM750SLC motorized test frames, when using AC1087 adapter.

Not Compatible with:

Model ESM303 motorized test stand, when using the AC1062 load cell / indicator mounting kit.
Model ESM1500FG, ESM1500SFG, ESM750FG, ESM750SFG motorized test stands.

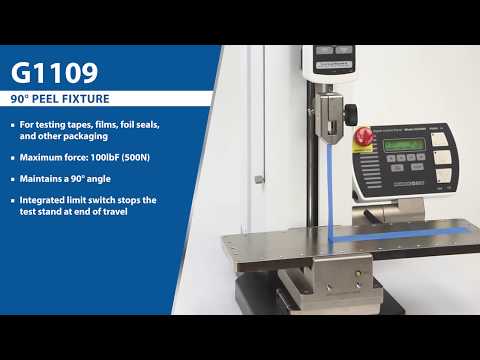

Video

▶

The G1109 peel test fixture is delivered with the following items included:

G1109 fixture
Limit switch cable
Crosshead bracket
G1078 miniature bollard grip
Test stand mounting adapter
Mounting hardware

G1109 90° peel fixture

All sizes are noted in inch with metric sizes in [mm] behind.

AC1078 Adj. angle pully adapter

All sizes are noted in inch with metric sizes in [mm] behind.

AC1079 Adjustable angle mount

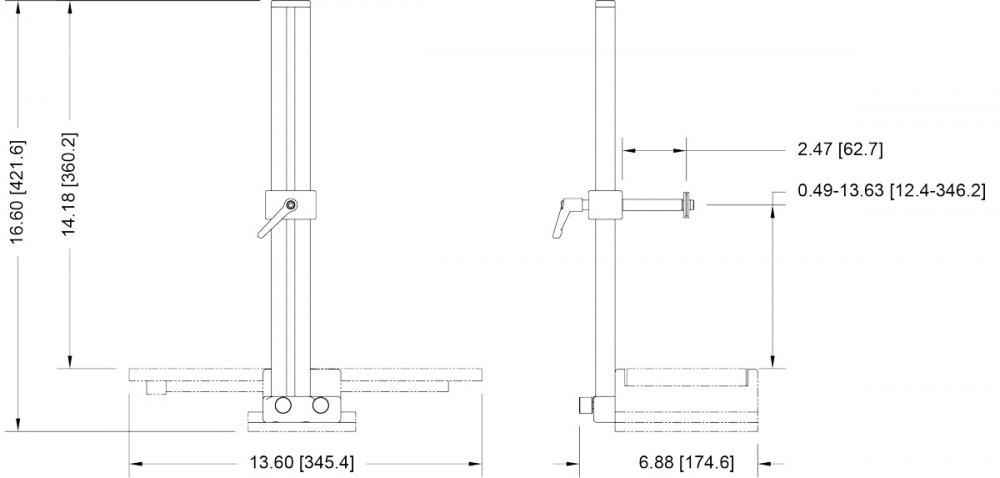

All sizes are noted in inch with metric sizes in [mm] behind.

Manual G1109

Datasheet for All Grips

Products

Item	Product	Price	Quantity	Action
137296	G1109 90° Peel Test Fixture	€ 1.966,00

Accessories

Item	Product	Price
137910	AC1078 - Adjustable Angle Pulley Adapter for G1109	€ 459,00
137909	AC1079 - Adjustable Angle Fixture for G1109	€ 505,00
137497	AC1080 - Adapter G1023 / G1058 Grip to G1109	€ 138,00
137911	AC1087 - Adapter G1109 to ESM750 / 1500 / F755 / F1505 Test Stand	€ 161,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out
