G1095-G1096-G1097 3-point / 4-point Bend Fixtures

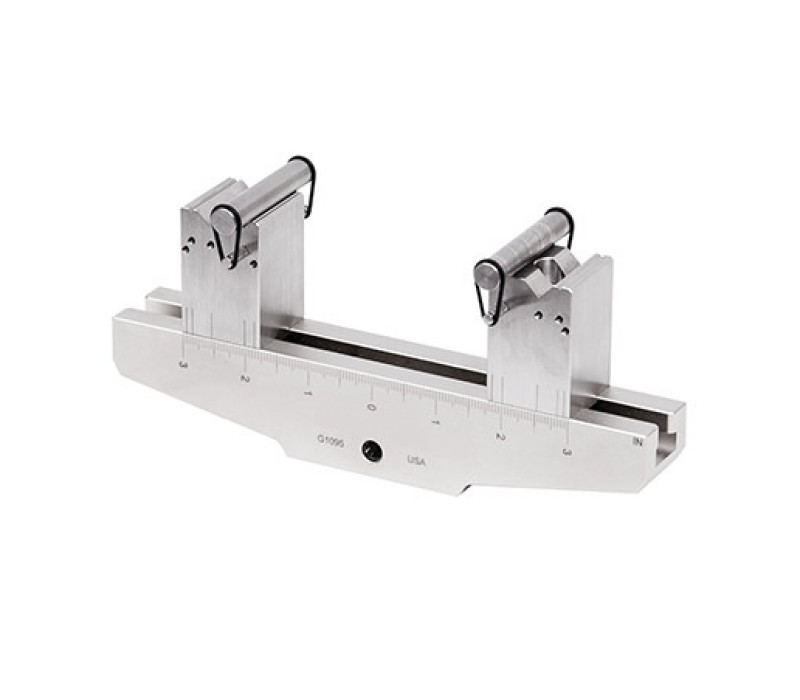

G1095 bend fixture base features movable blocks with 10 mm dia. rollers. Accommodates forces up to 2.5 kN.

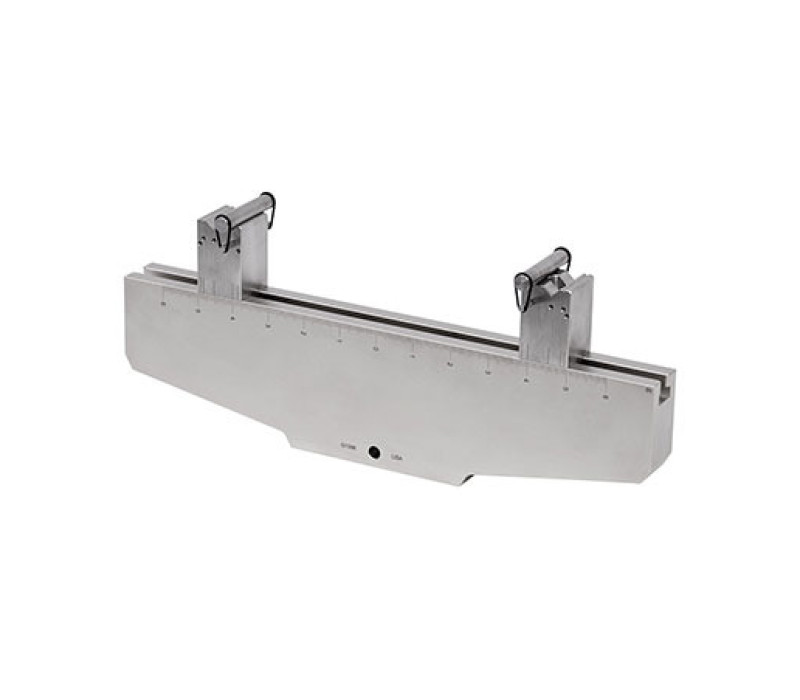

G1096 bend fixture base features movable blocks with 10 mm dia. rollers. Accommodates forces up to 10 kN.

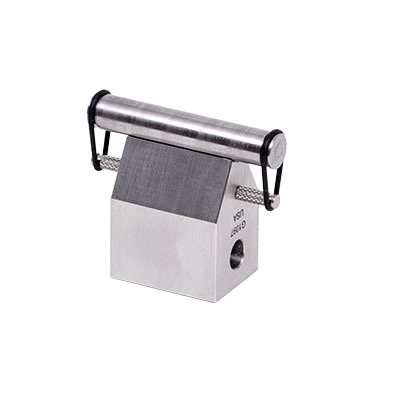

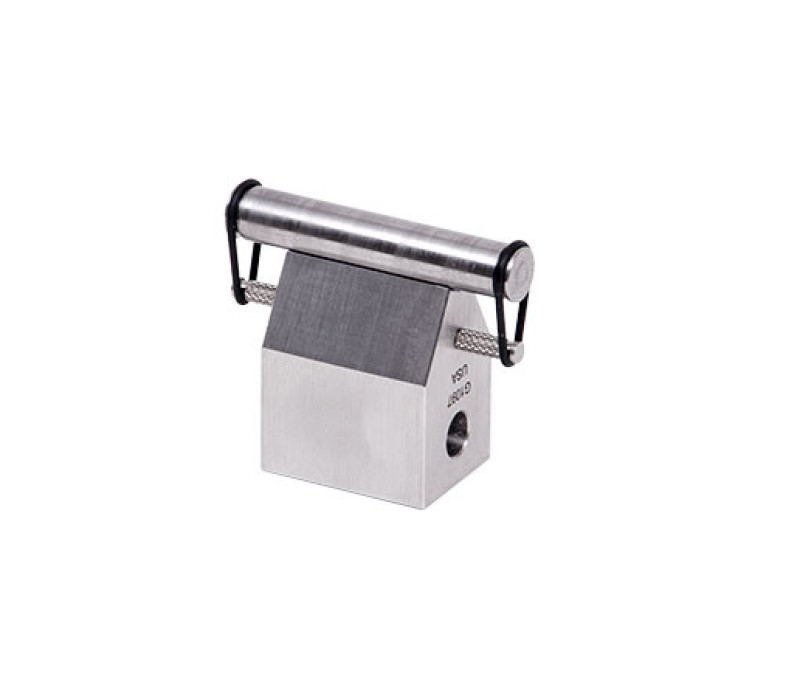

G1097 anvil is designed for use with either bend fixture base, with a capacity of 10k kN.

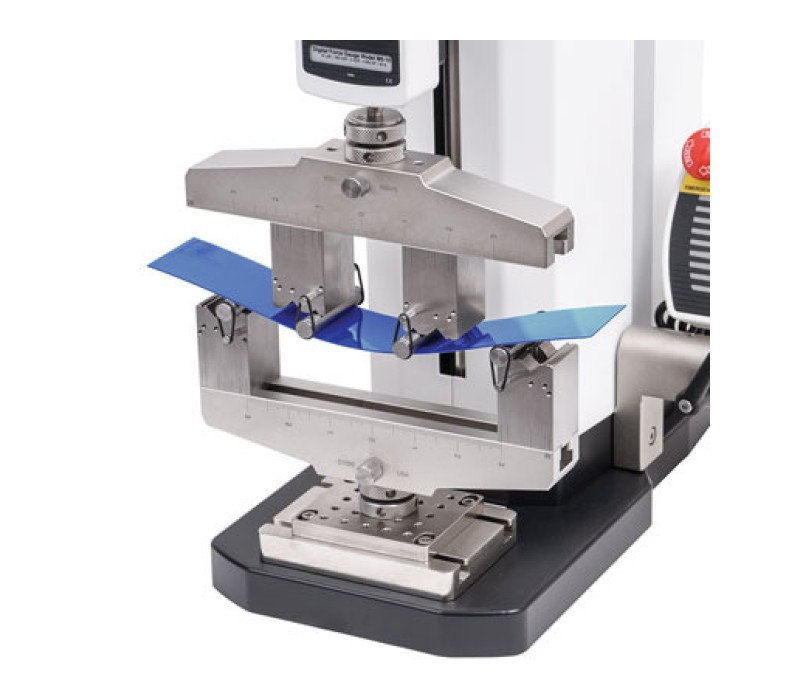

4-point bend testing, with a motorized test stand.

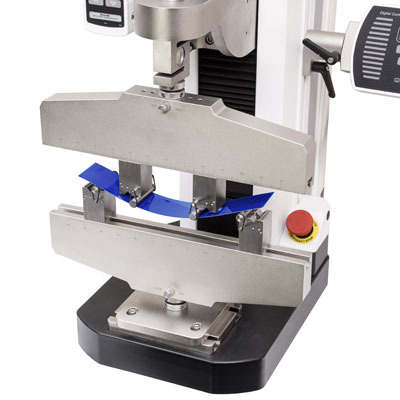

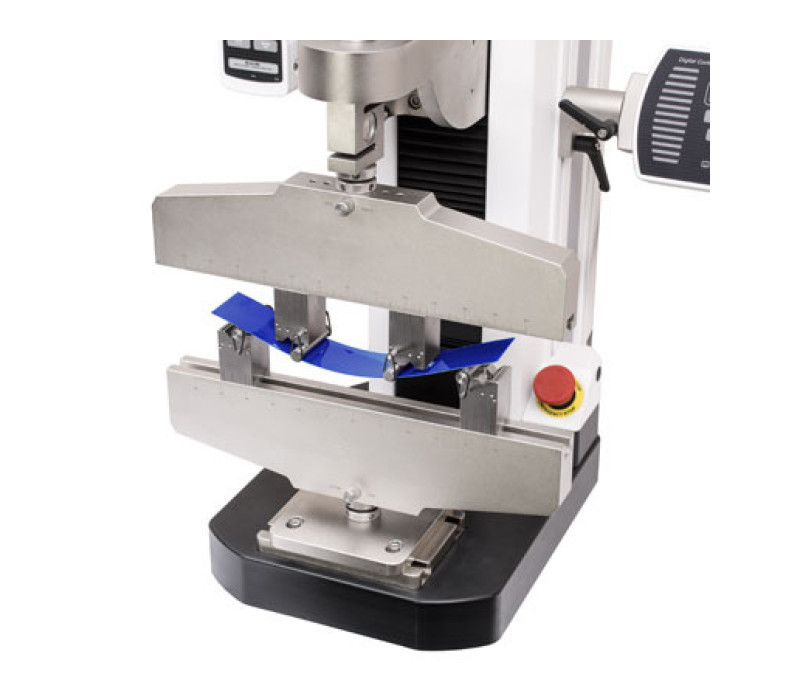

A typical 4-point bend testing application, including two G1096 base fixtures, mounted to a motorized test stand.

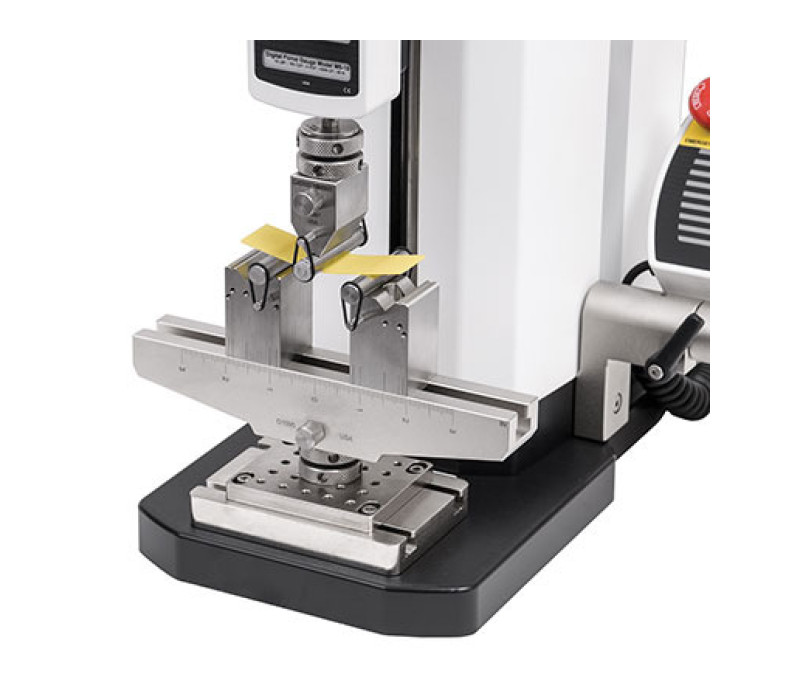

A typical 3-point bend testing application, including a G1095 base fixture and G1097 anvil. Shown mounted to a motorized test stand.

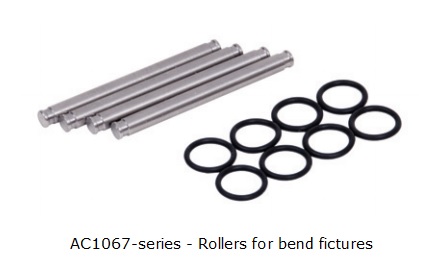

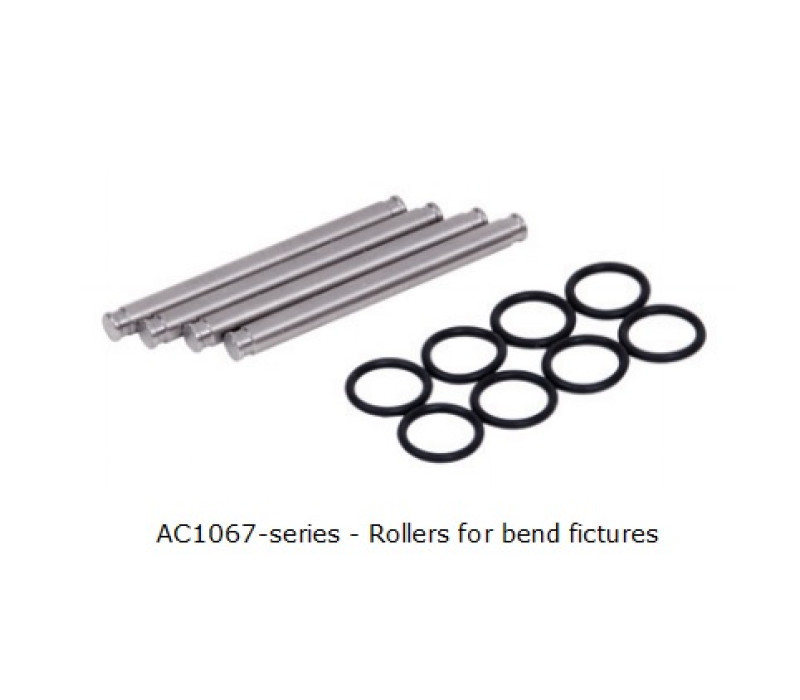

AC1067 Rollers for bend fixtures.

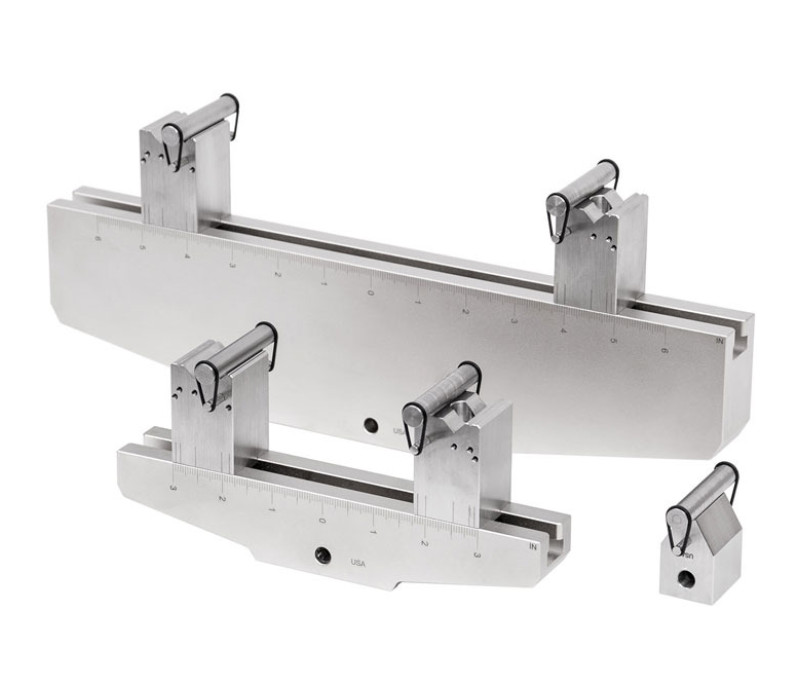

The G1095-G1096-G1097 3-point / 4-point Bend Fixtures

Name: The G1095-G1096-G1097 3-point / 4-point Bend Fixtures
SKU: 127227

The G1095/96/97 series of 3-point / 4-point Bend test fixtures is developed as a versatile bend test system that conforms to ASTM C393, C1161, D790, and related standards.

This comprehensive range of bend fixtures is purpose-built for both 3-point and 4-point bend testing across a diverse array of materials, including plastics, metals, ceramics, and tubing. Available in two distinct base sizes, each fixture comes equipped with an upper anvil and the option to select the preferred support diameters. Choose a base-anvil combination for 3-point bend testing or opt for two bases for 4-point bend testing.

The bases of these fixtures feature movable blocks with multiple V-grooves, designed to accommodate various support diameters. As a standard inclusion, 10 mm diameter supports are provided, with the option to choose from a range of other sizes to suit your specific needs.

Additionally, the fixtures come complete with engraved rulers that are dual-graduated, featuring both inch and millimeter scales on opposite sides. They also feature integrated eye-end mounting, which requires an eye-end adapter for seamless compatibility with Mark-10 force gauges, force sensors, and test stands. For added convenience, the bases are equipped with thru-holes and mounting screws, allowing for direct attachment to specific test stands.

Additional kits with 1 mm, 2 mm, and 5 mm support diameters accommodate other testing requirements. Each kit includes four supports and eight o-rings.
Contact us for custom sizes up to 15 mm.

Price from € 253,00

Order now

Designed for 3-point and 4-point bend testing
Rugged design
May be used with eye end adapters or mounted to test stands with mounting screws (except anvil - eye end mounting only).
Accommodate a broad sample size range
Dual graduated rulers - in and mm
Recommended for use with a motorized test stand.

G1095－2 Point Base

All sizes are noted in inch with metric sizes in [mm] behind.

G1096 －2 Point Base

All sizes are noted in inch with metric sizes in [mm] behind.

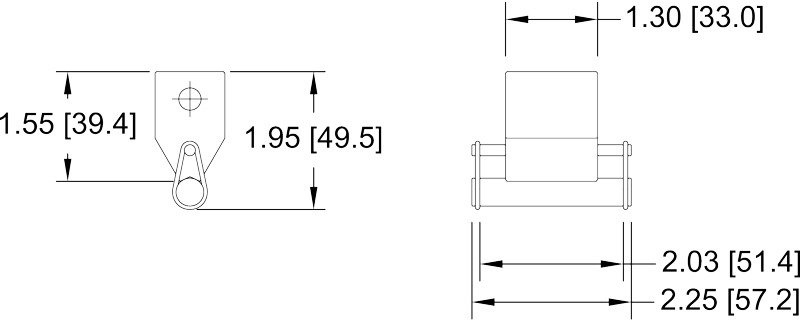

G1097 －Anvil

All sizes are noted in inch with metric sizes in [mm] behind.

Specifications

Model	Capacity (kN)	Weight (kg)	Shipping weight (kg)	Housing material	Block material	Support material	Includes
G1095	2,5	1,3	1,8	2024 Al	303 SS	416 SS, Hardened	Screws for test stand mounting, two 10 mm dia. supports and o-rings
G1096	10	3,2	4,1	2024 Al	303 SS	416 SS, Hardened	Screws for test stand mounting, two 10 mm dia. supports and o-rings
G1097	10	0,2	0,5	303 SS	-	416 SS, Hardened	10 mm. dia. support and o-rings
Weight includes two blocks and 10 mm dia. supports

G1095 Solid Models

G1096 Solid Models

G1097 Solid Models

Datasheet for all grips

Products

Item	Product	Price
135425	G1095 Bend fixture, eye end	€ 872,00
135426	G1096 High capacity bend fixture, eye end	€ 1.194,00
135427	G1097 Upper anvil for bend fixtures, eye end	€ 253,00

Accessories

Item	Product	Price
135428	AC1067 Rollers for bend fixtures, 1 mm, set of 4	€ 83,00
135429	AC1067-1 Rollers for bend fixtures, 2 mm, set of 4	€ 83,00
135430	AC1067-2 Rollers for bend fixtures, 5 mm, set of 4	€ 83,00
135431	AC1067-3 Rollers for bend fixtures, 10 mm, set of 4	€ 83,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
