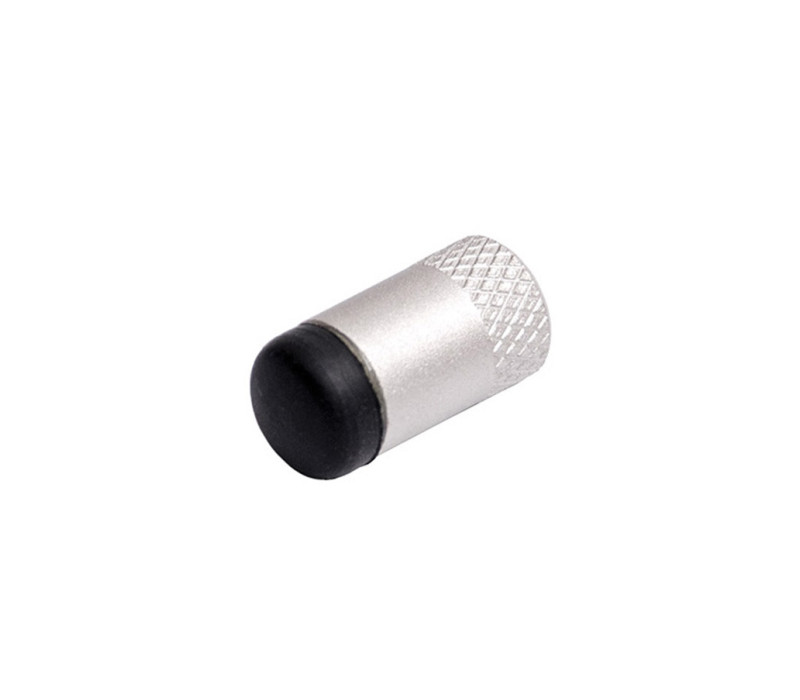

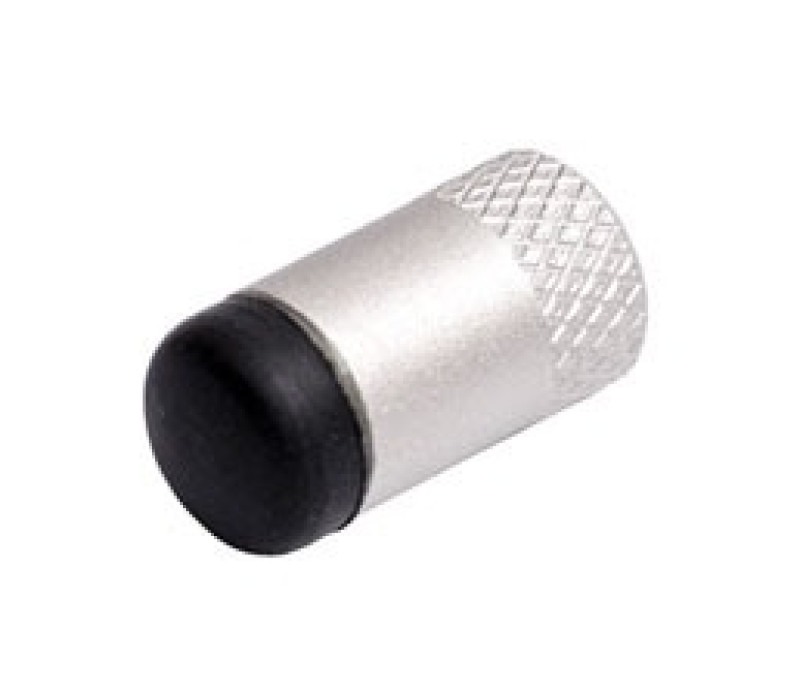

    G1011 Rubber Tip

    The G1011 Rubber Tip is designed to act as a finger simulation when testing keyboards, membrane switches and other types of pushbuttons.

    This attachment features a threaded hole for direct attachment to a force gauge or test stand.

    The G1011 is supplied with a #10-32M/M threaded stud with jam nuts.



    € 41,00
    Order now
    • Finger simulation for button tests
    • Capacity 250 N
    • Thread #10-32 UNF
    G1011
    Dimensions-G1011

    All sizes are noted in inch with [mm] behind


    Dimensions-G1011
    Capacity:50 lbF (250 N)
    Size:24.4 mm x 12.4 mm (L x D)
    (0.96" x 0.49")
    Rubber material:Non-marking SBR, Durometer=70
    Weight:0.01 lb (0.004 kg)
    Thread:#10-32 UNF

    Order Now

    Products
    Item Product Price  Quantity Action
    130800G1011 Rubber tip, #10-32F € 41,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
