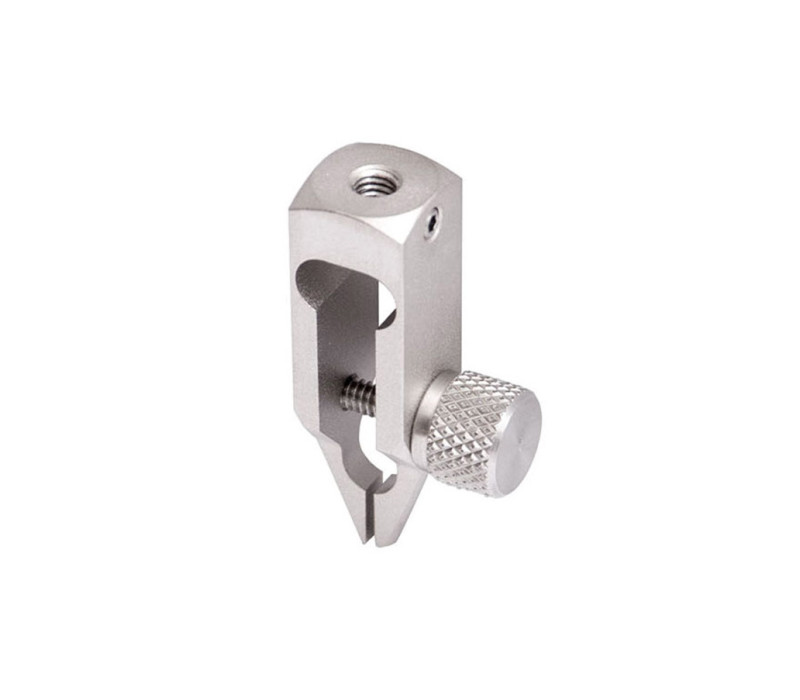

    G1003 Miniature Component Grip

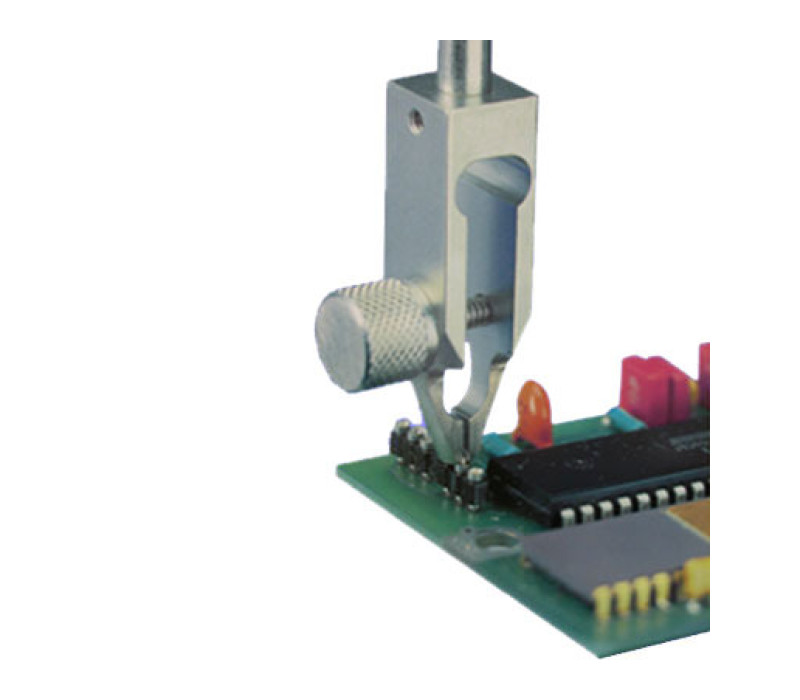

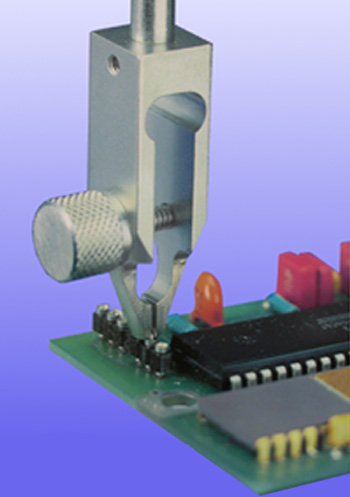

    The G1003 grip is a compact versatile grip that is used to perform pull tests on smaller, hard to reach items like PCB components on a electronics board.

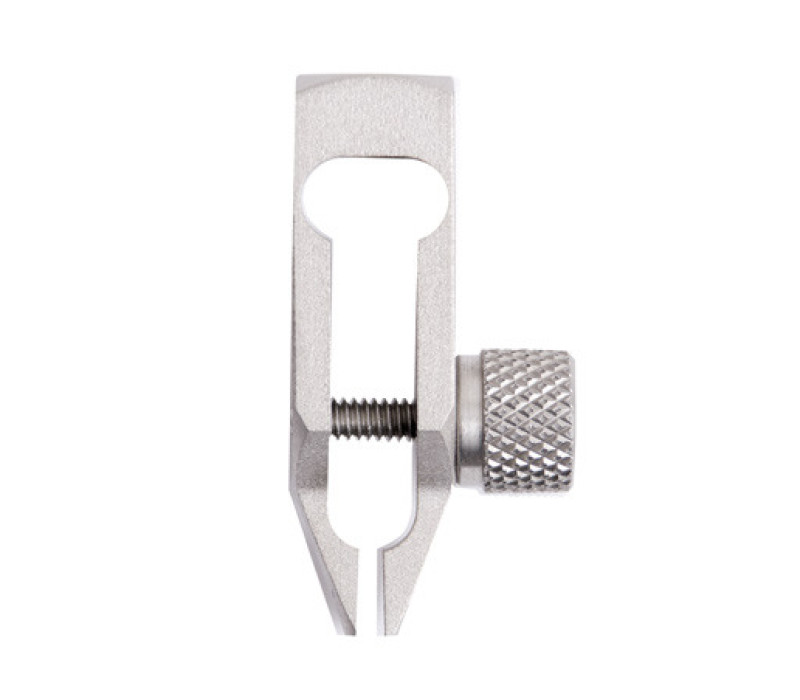

    Its slender profile allows it to grip components in a wide range of applications.

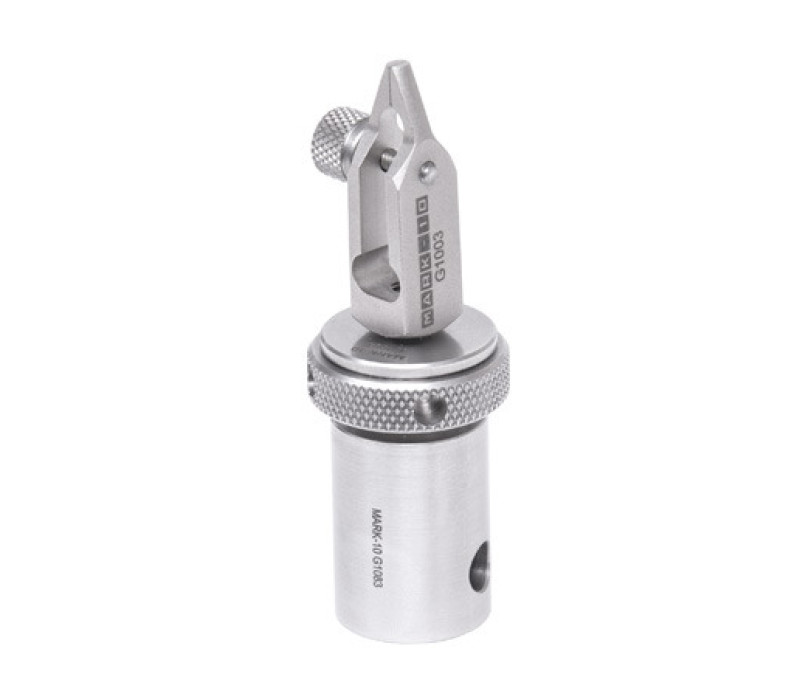

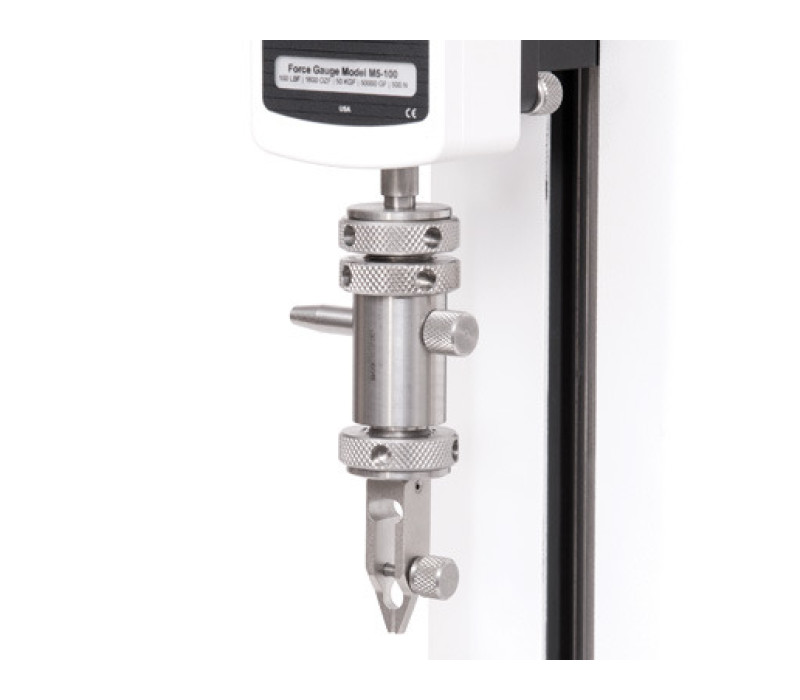

    The G1003 miniature component grip can be connected to a test stand, load cell or force gauge by means of an (quick-change) eye end adapter and/or swivel adapter.
    Eye end adapters make it easier to quickly change a test setup or run a number of tests with different samples and prevent grip rotation during testing.

    This grip has a capacity of 150 N.
    € 183,00
    Shop now
    • Capacity 150 N (30lbF)
    • weight 20 gr (0.05lb)
    • Max sample thickness 1.8 mm (0.07 in)
    Dimensions-G1003
    D1 no header
    ABCDE
    12,7 [0.5]43,7 [1.7]12,7 [0.5]0 - 1,8 [0 - 0.07]3,8 [0.15]
    Sizes are in mm with imperial sizes in [inches] behind them
    Capacity:150 N (30 lb)
    Size:1.3 x 1.3 x 4.3 cm (L x W x H)
    0.5" x 0.5" x 1.7"
    Weight:0.02 kg [0.05 lb]
    Shipping weight:0.5 kg [1 lb]
    Thread:#10-32 UNF
    Sample size:1.8 mm (0.07") max
    Country of originUSA

    Data Sheet for all Grips and Attachments
    G1003 Solid Models

    Related & Optional Products

    Browse Related Products

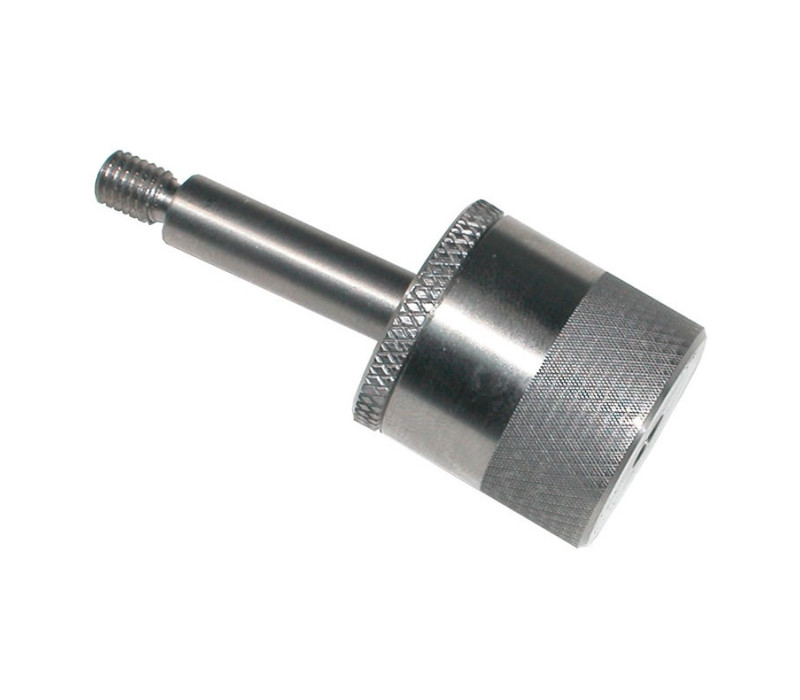

    G1018 Swivel Adapters

    G1018 Swivel Adapters

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

    G Series Thread Adapters & Couplings

    G Series Thread Adapters & Couplings

    Buy Now

    Products
    Item Product Price  Quantity Action
    130798G1003 Miniature component grip, #10-32F € 183,00
    Accessories
    Item Product Price  Quantity Action
    130807G1018-1 Swivel adapter, #10-32M to #10-32F € 101,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
