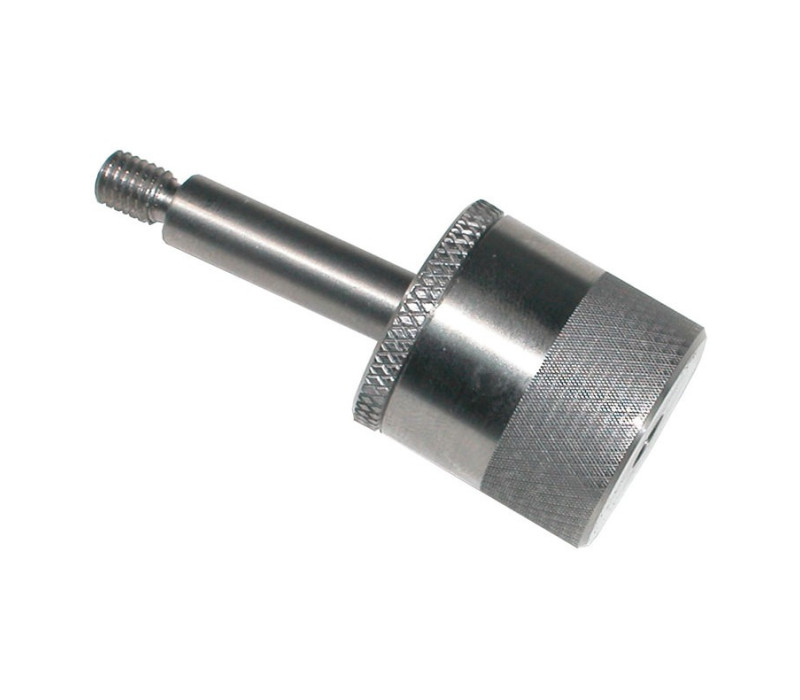

G1018 Swivel Adapters

Name: G1018 Swivel Adapters
SKU: 126100

G1018 swivel adapters are used to improve alignment between sample/fixture and test equipment when required.
They are capable to compensate for a small angle using a ball joint.

Available in 2 sizes these adapters are only suitable for tensile testing.

G1018-1 is equipped with a male and female thread of #10-32 and has a capacity of 1000 N.
G1018-2 is equipped with a male and female thread of 5/16-18 and has a capacity of 2500 N.

Price from € 100,00

Order now

Swiveling adapter, for use between certain grips and force gauges.
Capacity G1018-1: 1000 N
Capacity G1018-2: 2500 N
Designed for tensile (pull) testing applications only.

G1018 Swivel Adapter

D1 no header

Model	Capacity (N)	Weight (g)	A	B
G1018-1	1000	50	#10-32M	#10-32F
G1018-2	2500	120	5/16-18M	5/16-18F
Sizes are noted in Inch with [mm] behind

Capacity:	G1018-1: 1000 N (200 lbF) G1018-2: 2500 N (500lbF)
Size:	52.3 (L) x 20.3 mm (D)
Weight:	G1018-1: 50 grams G1018-2: 120 grams
Thread:	G1018-1: #10-32 UNF G1018-2: 5/16-18 UNC

Data Sheet for all Grips and Attachments

G1018-1 Solid Models

G1018-2 Solid Models

Products

Item	Product	Price	Quantity	Action
130807	G1018-1 Swivel adapter, #10-32M to #10-32F	€ 100,00
130808	G1018-2 Swivel adapter, 5/16-18M to 5/16-18F	€ 118,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out
