G1013 Parallel Jaw Grip

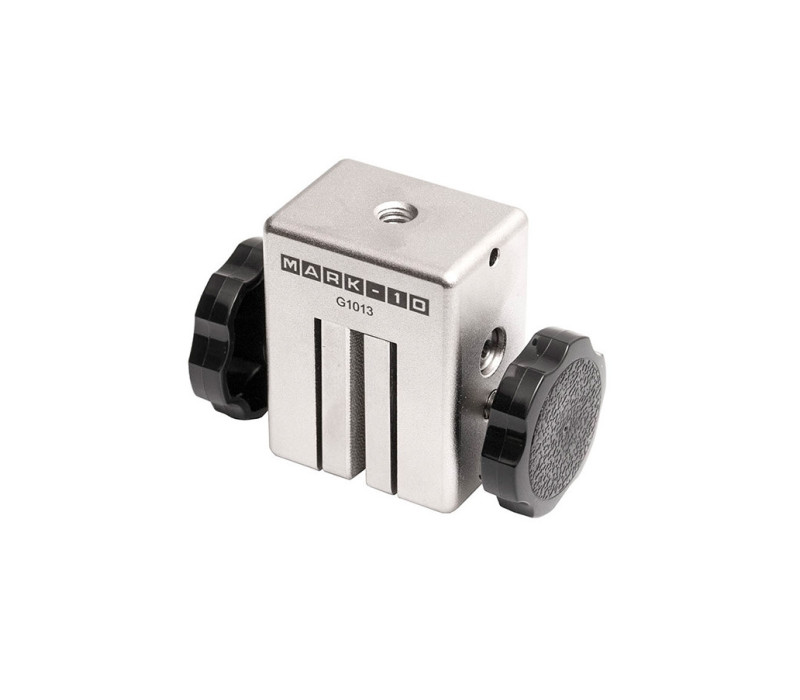

G1013 parallel jaw grip is useful for a wide range of pull testing requirements

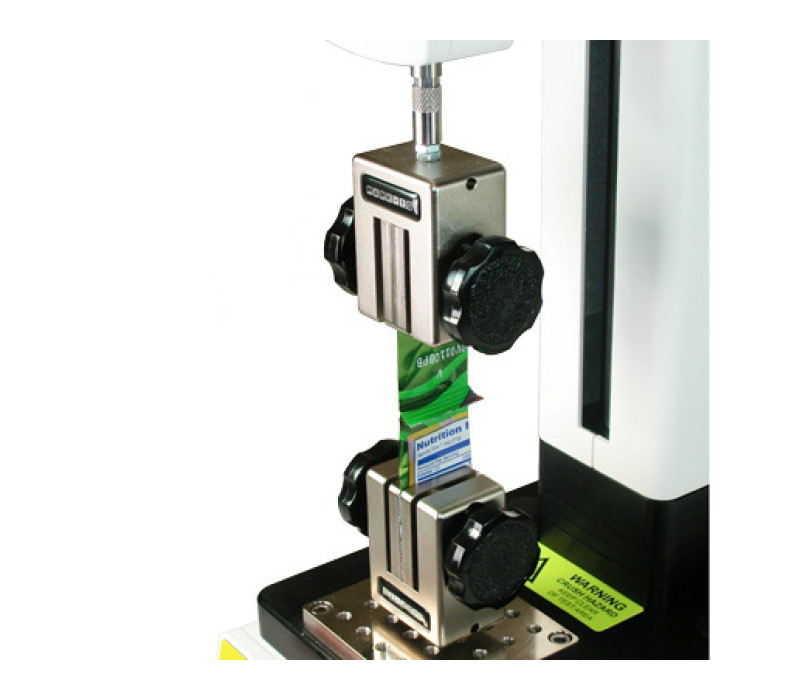

Pair of G1013 grips shown in a typical pull test

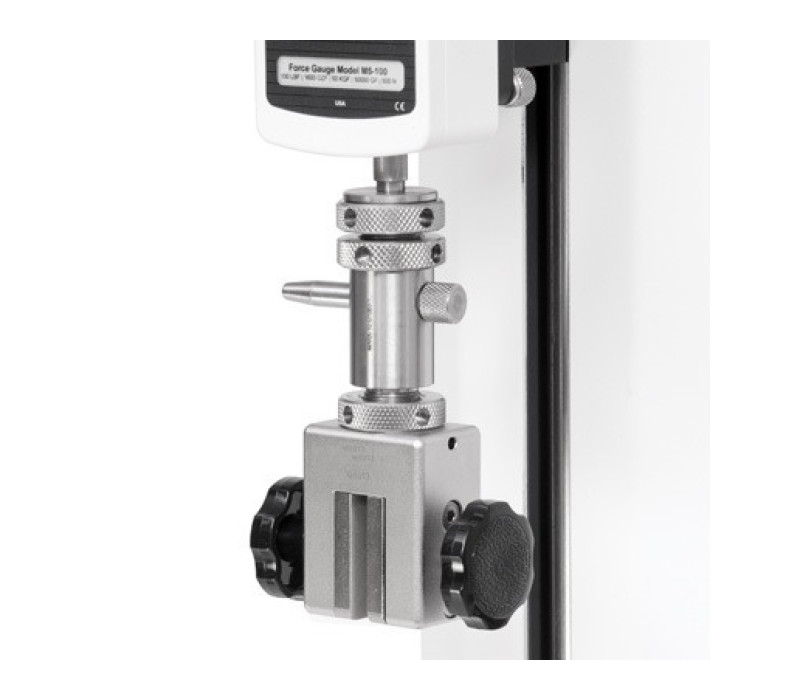

The G1013 is compatible with quick-change eye end adapters that allow for simple grip removal / installation, and prevent rotation

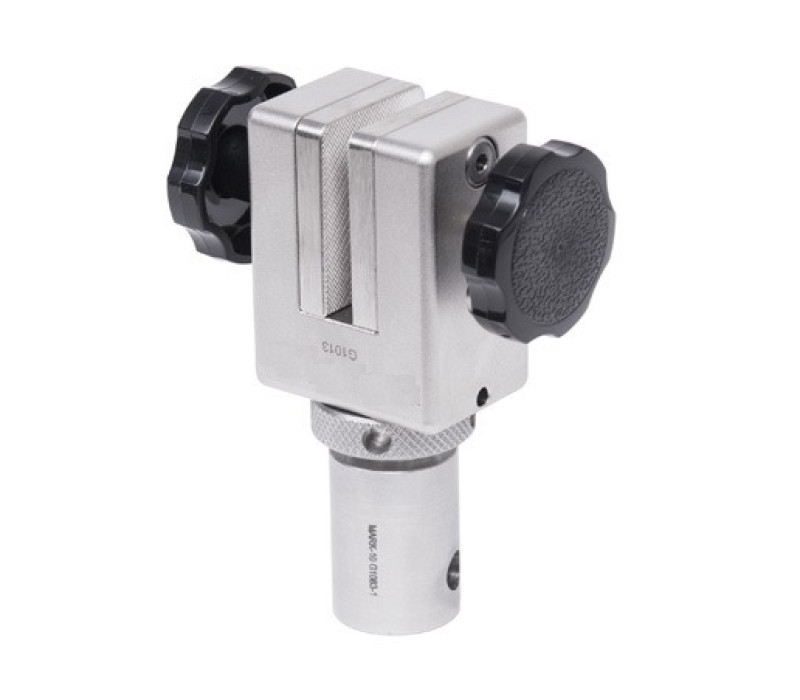

G1013 with Eye end adapter

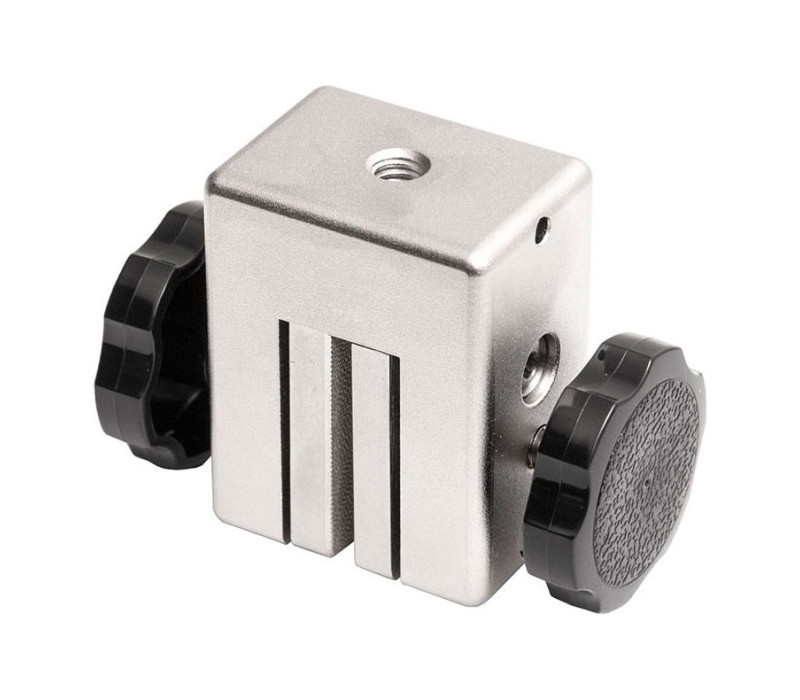

G1013 Parallel Jaw Grip

Name: G1013 Parallel Jaw Grip
SKU: 126094
Price: 234.00 EUR
Availability: PreOrder

The G1013 Parallel Jaw Grip is developed for general pull test applications.
It is equipped with individually adjustable, serrated, jaws and can clamp a sample up to 6,3 mm thick with a capacity of up to 1000 N pull force.

This versatile jaw features a knob on each side to adjust each jaw, and can connect directly to a load cell, test stand or force gauge with its threaded hole with 5/16-18 thread.

The G1013 can mount to quick-change eye end adapters which allow for simple grip removal / installation, and also prevent rotation.

A 5/16-18M to #10-32F thread adapter, 5/16-18 M/M stud with jam nuts, and #10-32 M/M stud with jam nuts are included.

€ 234,00

Order now

Small parallel grip with individually adjustable jaws
Capacity 1000 N
Rugged and compact with serrated jaws
Comes with thread adapter 2 studs and jam nuts

G1013

D1 no header

A	B	C	D
44,5 [1.75]	57,2 [2.25]	31,8 [1.25]	0 - 6,3 [0 - 0.25]
All sizes are noted in mm with [inch] behind

Capacity:	1000 N (200 lb)
Size:	31.8 x 44.5 x 57.2 mm (L x W x H) (1.25" x 1.75" x 2.25")
Maximum sample thickness:	6.3 mm (0.25")
Thread:	# 5/16-18 UNC
Included items:	A 5/16-18M to #10-32F thread adapter 5/16-18 M/M stud with jam nuts #10-32 M/M stud with jam nuts
Weight:	0.29 kg (0.8 lb)
Shipping Weight:	0.9 kg (2 lb)

Data Sheet for all Grips and Attachments

Solid Models - G1013

Products

Item	Product	Price	Quantity	Action
130054	G1013 Parallel Jaw Grip, 5/16-18F	€ 234,00

Accessories

Item	Product	Price	Quantity	Action
130808	G1018-2 Swivel adapter, 5/16-18M to 5/16-18F	€ 119,00

All mentioned prices are excluding VAT & excluding shipment costs.
