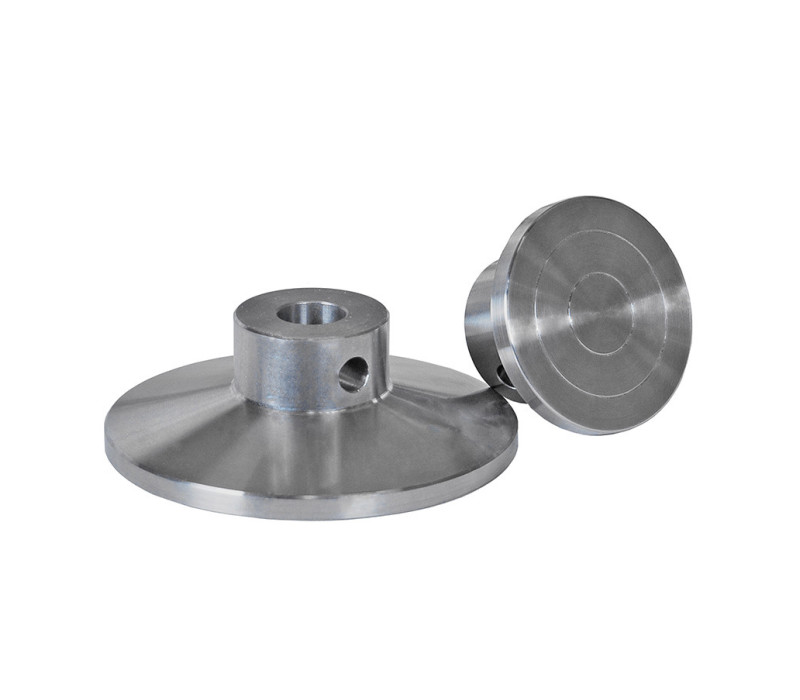

    G1087 Compression Plates, High Capacity

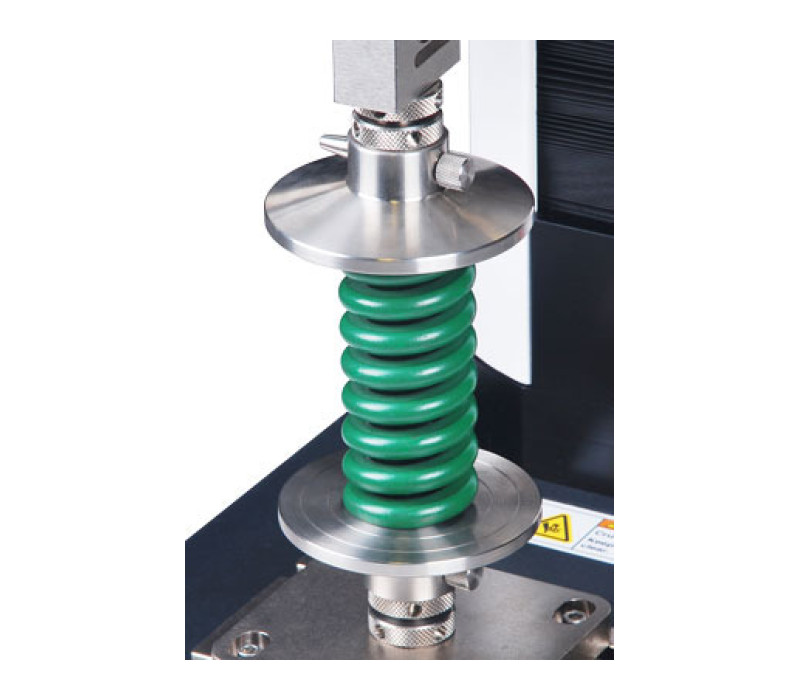

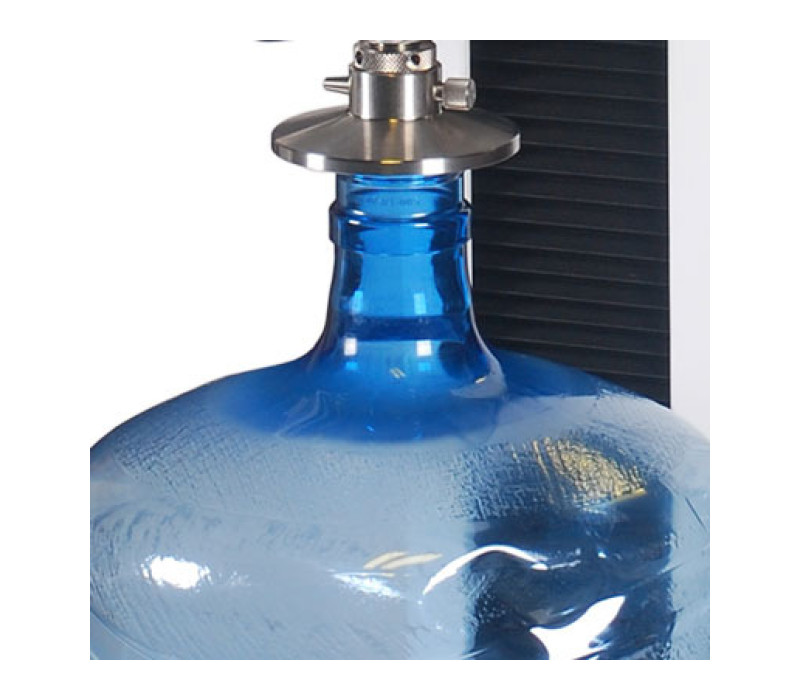

    High capacity G1087 compression plates are ideal for springs, foams, top load, and other compression tests. The plates include an integrated eye end mount, and can attach to force gauges, load cells, and test stands. Concentric circular grooves aid in centering the sample.



    Attention: This fixture requires an Eye-End-Adapter to be attached to a test stand
    Price from € 161,00
    Shop now
    • Concentric grooves aid in sample positioning
    • Select from two sizes
    • Integrated eye end mounting
    Dimensions-G1087

    IN [MM]

    Model ØA B
    G1087 3.78" [96.0mm] 1.28" [32.5mm]
    G1087-1 2.20" [55.9mm] 1.18" [30.0mm]
    G1087 Solid Models
    G1087-1 Solid Models
    Data Sheet for all Grips
    Capacity:9 kN (2000 lbF)
    Weight:G1087: 0.68kg (1.50 lb)
    G1087-1: 0.54kg (1.18lb)
    Material:303 SS

    Related Products

    Browse Related Products

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

    G1009 Compression Plates

    G1009 Compression Plates

    G1029 - G1036 Flat Heads

    G1029 - G1036 Flat Heads

    G1011 Rubber Tip

    G1011 Rubber Tip

    The G1095-G1096-G1097 3-point / 4-point Bend Fixtures

    The G1095-G1096-G1097 3-point / 4-point Bend Fixtures

    Buy Now

    Products
    Item Product Price  Quantity Action
    136902G1087 Compression plate, 3.78" dia., eye end € 230,00
    135566G1087-1 Compression plate, 2.20" dia., eye end € 161,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
