G1002 Dual Roller Cam Grip

G1002 dual roller grip is available in two sizes to accommodate a wide range of sample diameters. Cam action and serrated rollers secure the sample.

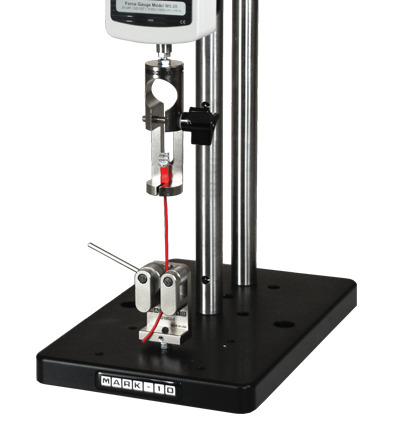

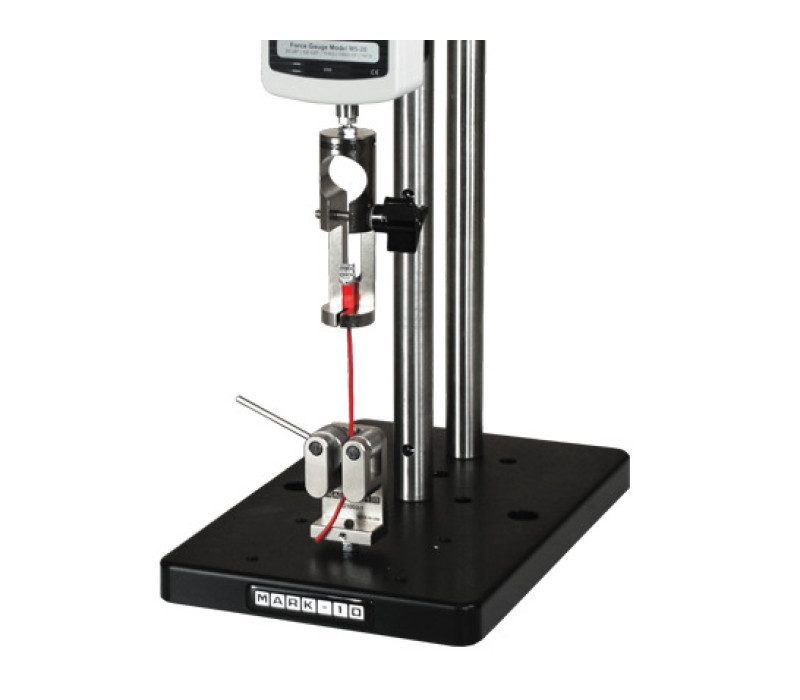

G1002 shown in a typical wire terminal pull testing application, used in conjunction with a digital force gauge, test stand, and G1001 wire terminal grip.

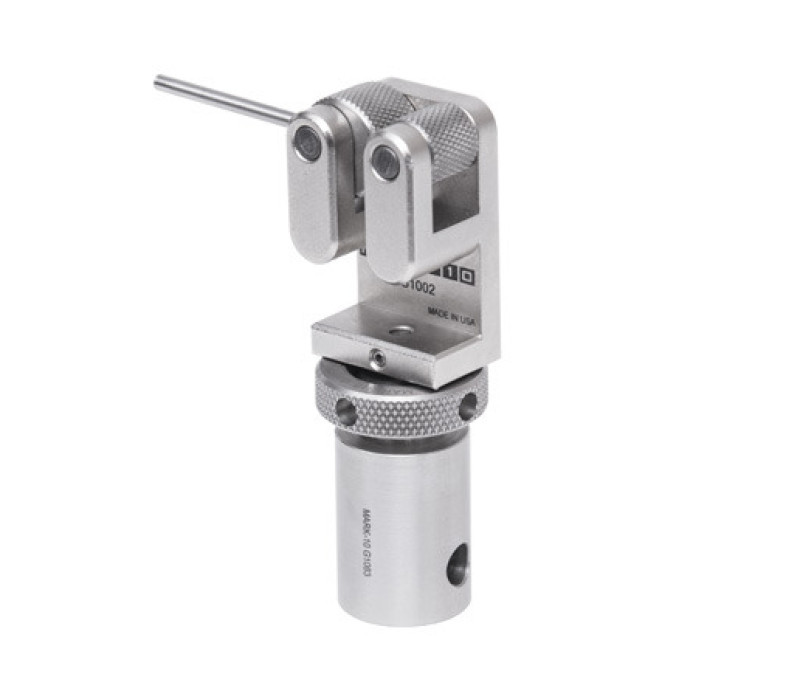

Eye end adapters are compatible with certain Mark-10 and third-party test stands, load cells, and force gauges

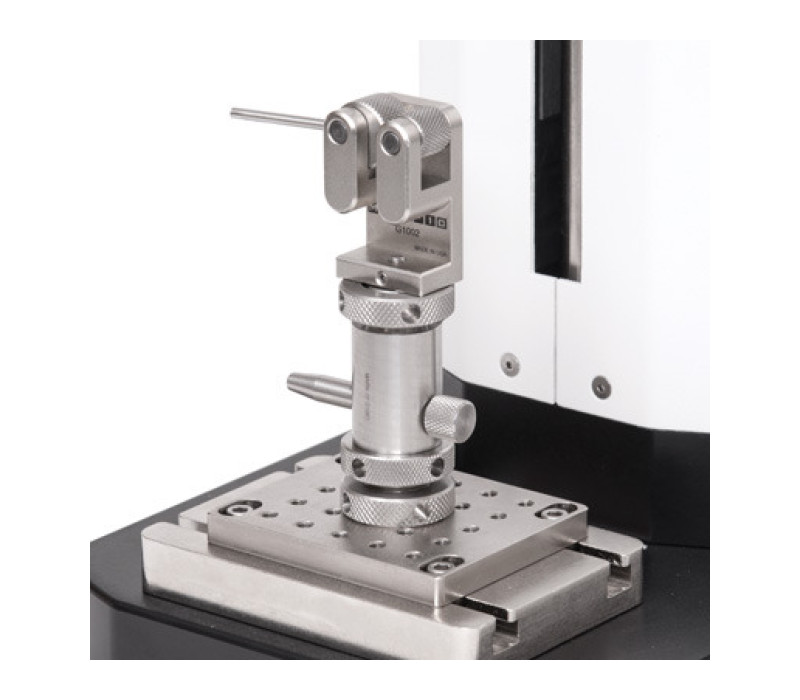

Available quick-change eye end adapters allow for simple grip removal / installation, and also prevent rotation.

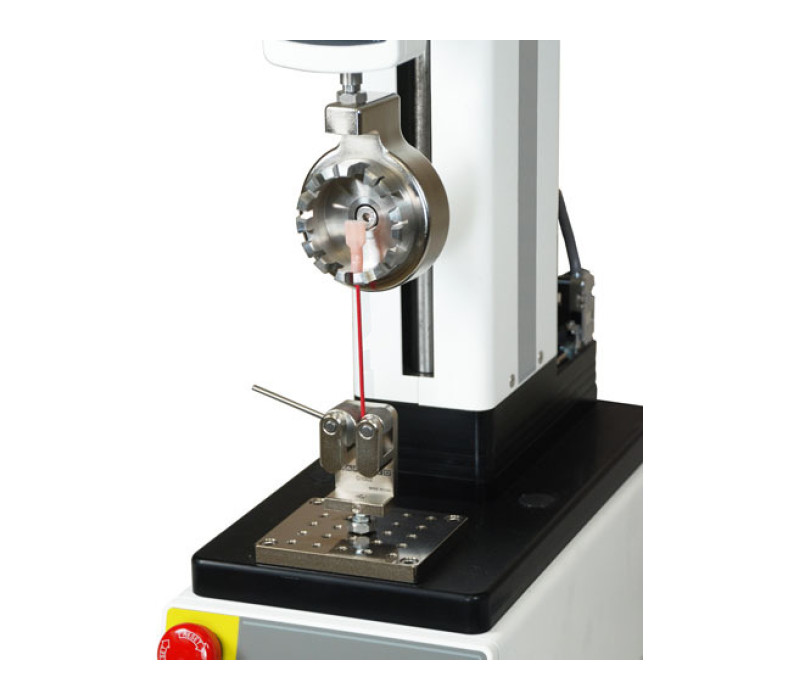

G1002 in a pull test application with G1076 wire Terminal Grip as top fixture

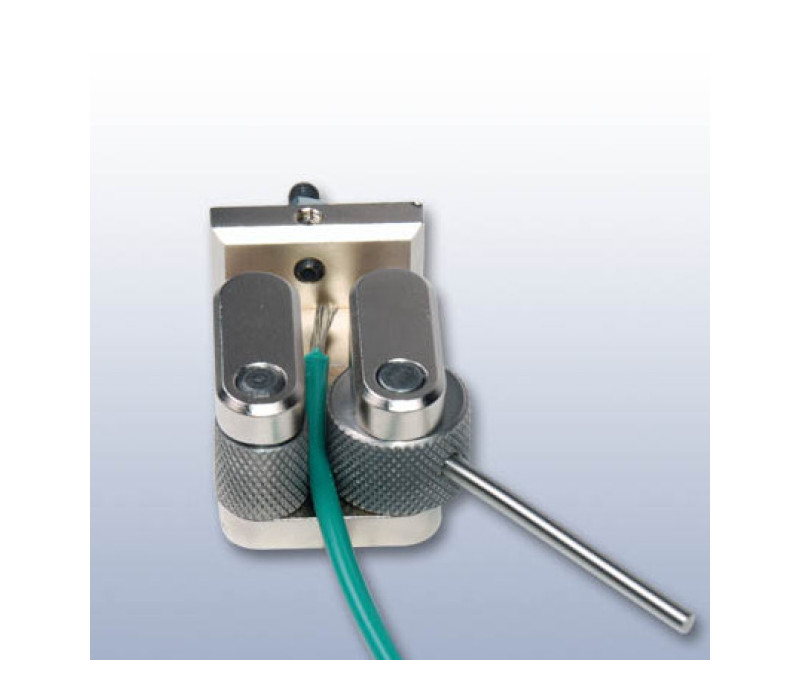

Wire clamped in G1002 grip

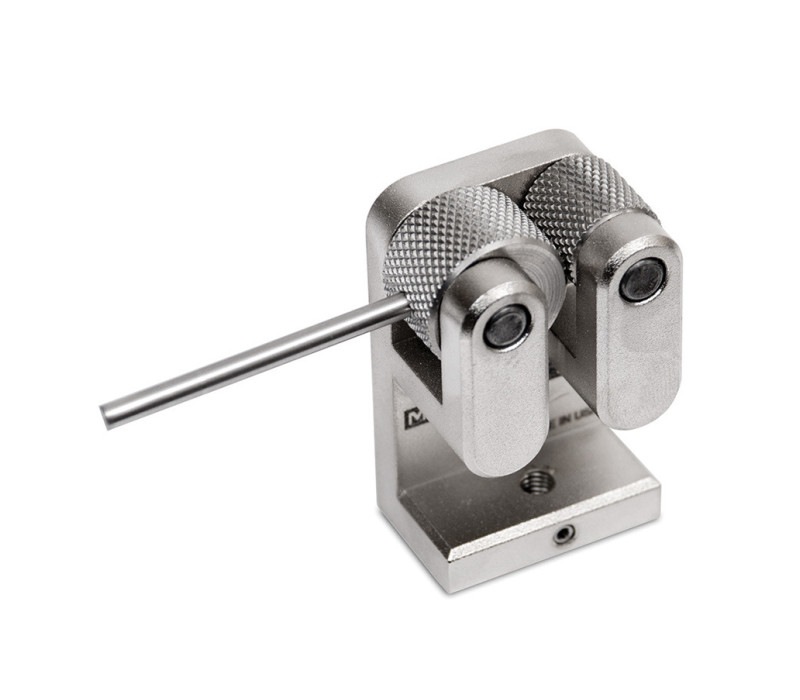

G1002 Dual Roller Cam Grip

The G1002 Cam Grip wedges the end of a wire, between a fixed and an eccentric, serrated steel roller, securing it for pull testing.
Engaging and disengaging samples can be done quick and easy, with a side slot for sample insertion.

The G1002 grip is available in two sizes that fit samples in between 0 and 5,6mm and 2,5 and 8,6mm. It grips the ends of wires, cable, and tubing samples for pull testing.

It is commonly used with the G1001 wire terminal grip and (Quick Change) Eye end adapters to secure the grips to a Test Stand, Load Cell or Force Gauge.

€ 243,00

Shop now

Capacity: 2500 N (500 lb)
Thread: #10-32 UNF
Sample size: 0-8.6 mm

G1002

D1 no header

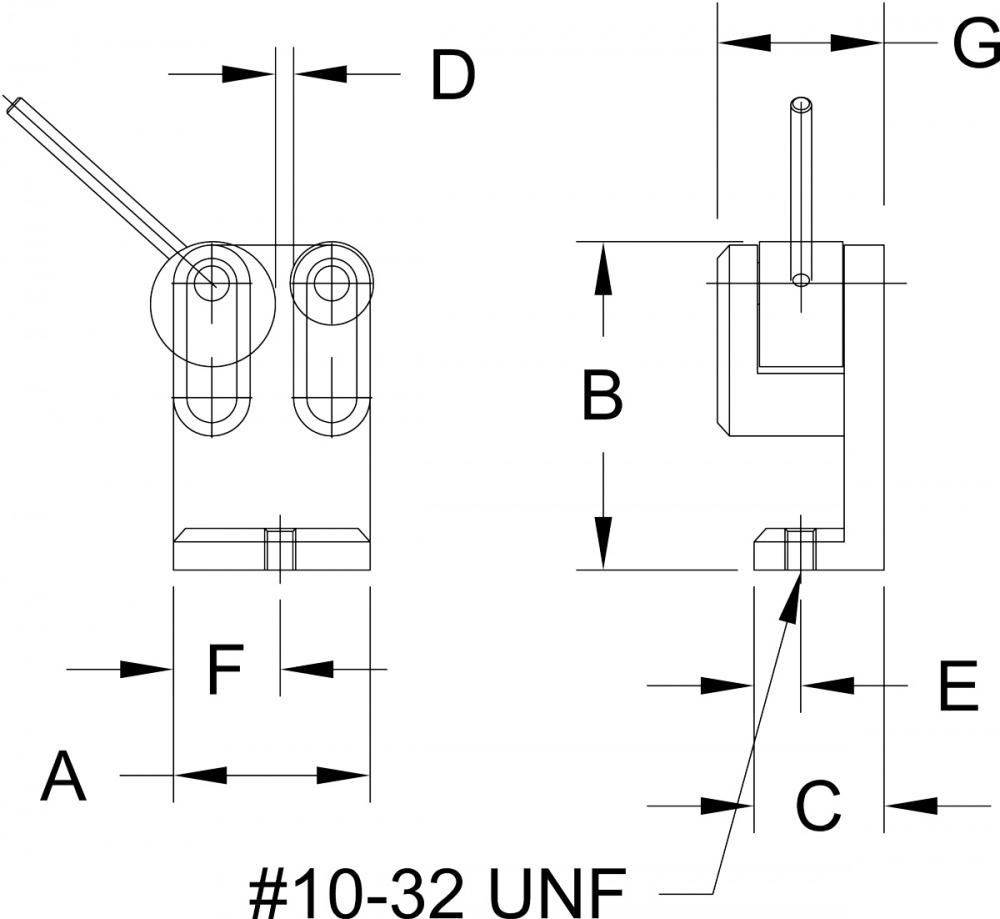

Model	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	G [mm]
G1002-1	33,0	50,8	19,1	2,5 - 8,6	6,4	16,5	25,4

Capacity:	2500 N (500 lb)
Thread:	#10-32 UNF
Sample size:	G1002: 6.3mm x 12.7mm max. G1002-1: 8.6mm x 12.7mm max.
Weight:	G1002: 90 g. G1002-1: 110 g.

Data Sheet for all Grips and Attachments

G1002 Solid Models

Products

Item	Product	Price	Quantity	Action
130792	G1002 Dual Roller Cam Grip, 0-6,3 mm, #10-32F	€ 243,00

Accessories

Item	Product	Price	Quantity	Action
130807	G1018-1 Swivel adapter, #10-32M to #10-32F	€ 101,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
