G1056 Multi-jaw Grip

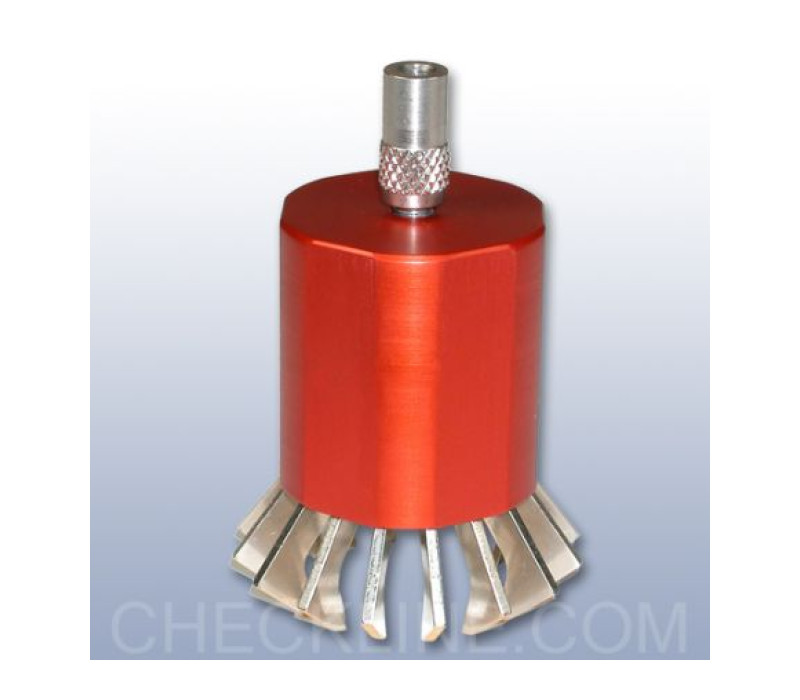

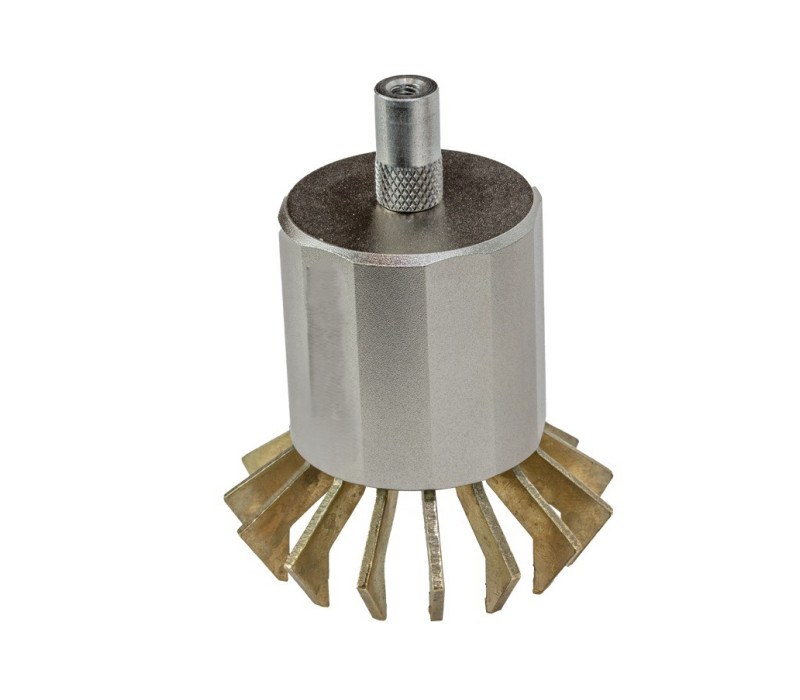

G1056 is a universal grip for a wide variety of pull testing applications in the garment, consumer products, and other industries.

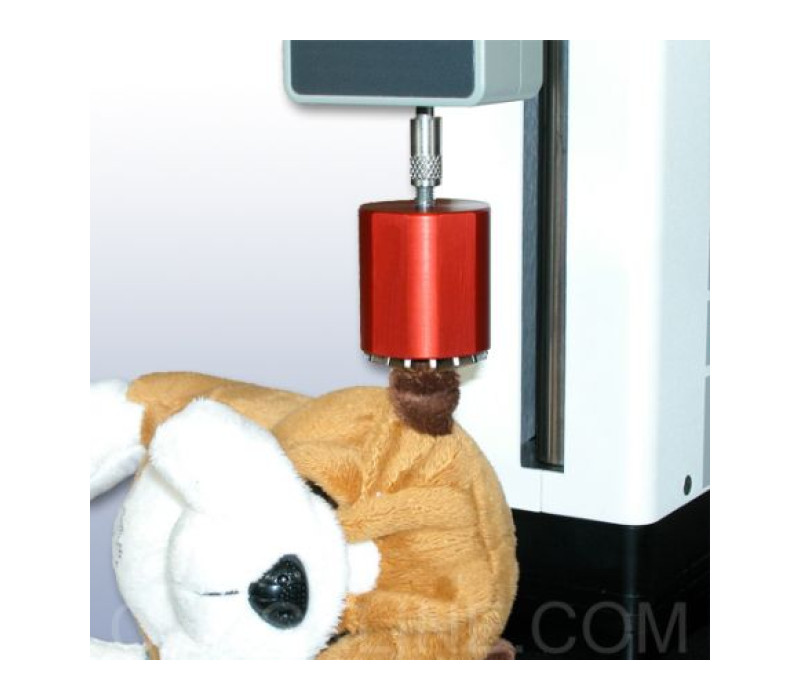

G1056 shown in a plush toy testing application.

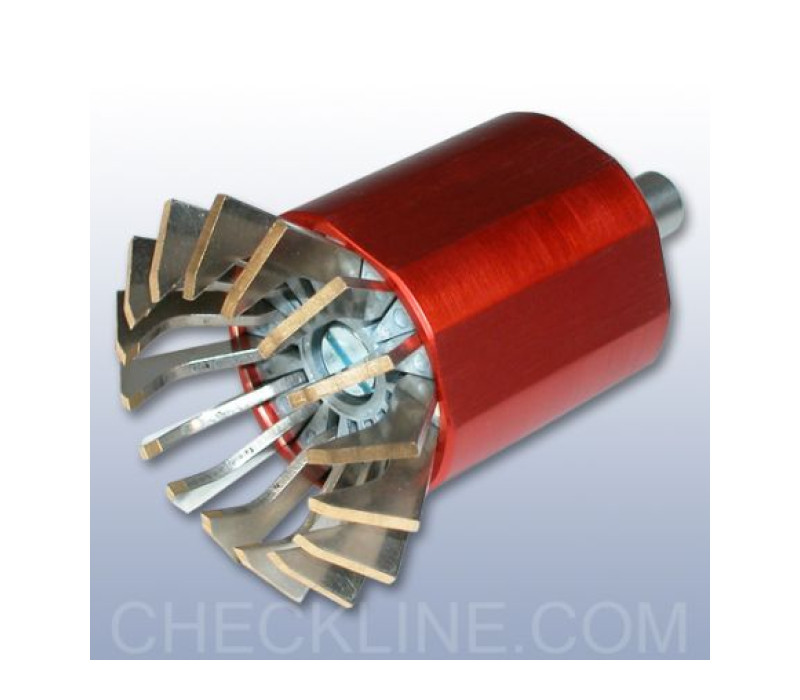

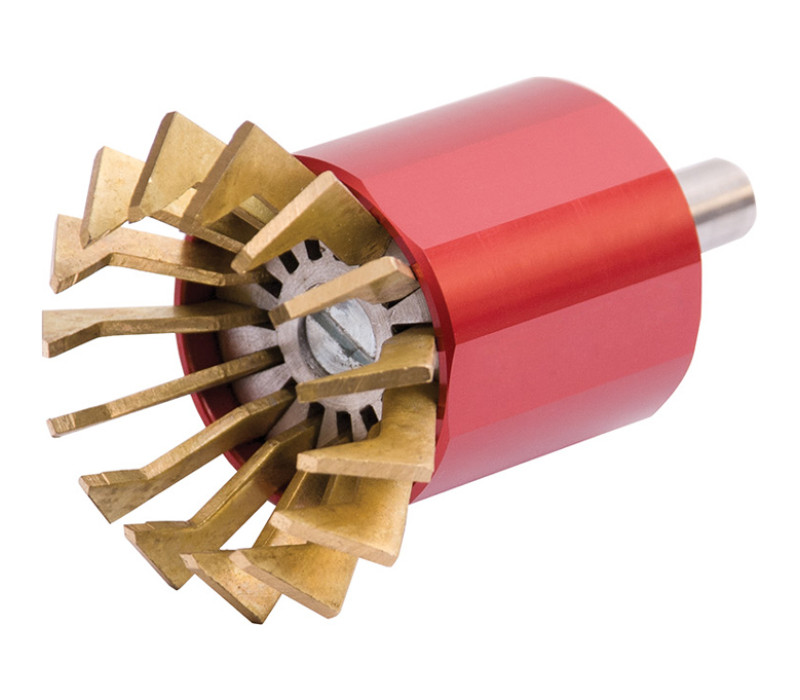

Adjustable jaws accommodate a range of sample shapes and sizes. Rotate the housing to open and close the jaws.

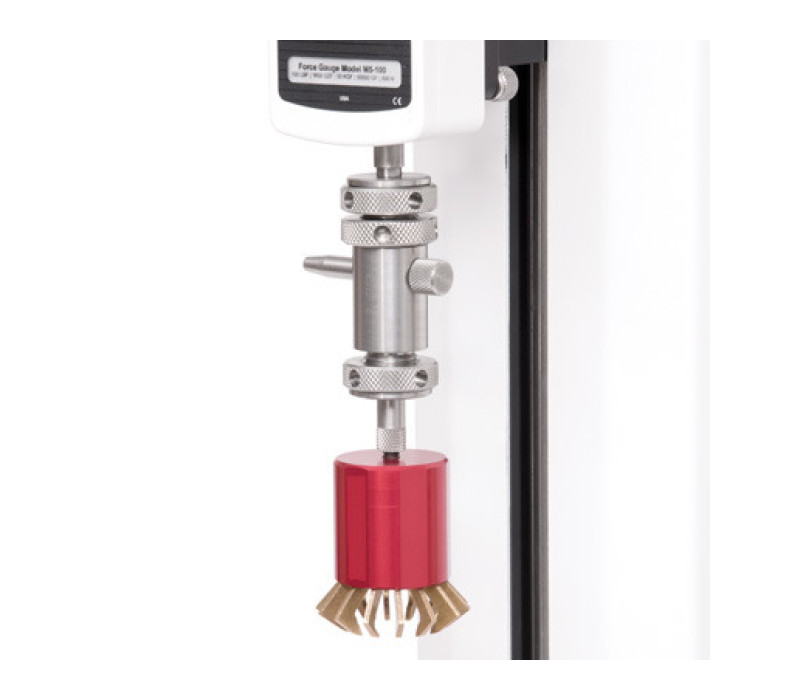

Compatible with eye end adapters which allow for simple grip removal / installation, and also prevent rotation.

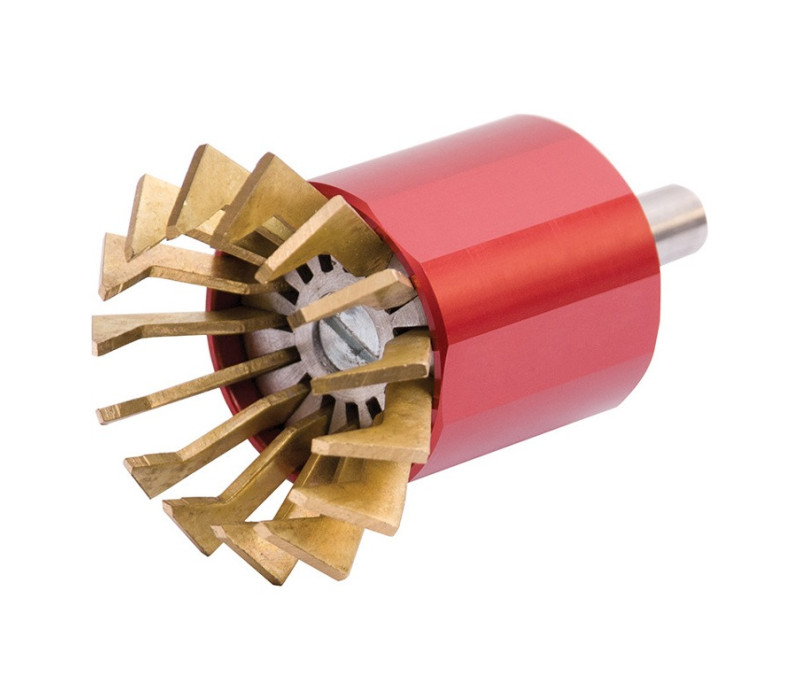

G1056 Multi-jaw Grip

The G1056 Multi-jaw Grip is developed for multi-use pull applications.
With its 15 jaws this grip is well suited to grip round and irregular shapes.
Typically it is used for pulling,

Small components
Textiles, clothing or toys
Bottles caps

Jaws open and close by rotating the housing, it can support an opening of up to 31,7 mm and has a capacity of 500 N.

The G1056 can be attached directly to a force gauge, load cell or test stand with its #10-32 M/M stud and it can be used in combination with an eye-end- or swivel-adapter.
Thread adapters can provide alternative attachment solutions.

Delivery of this grip Includes a #10-32 M/M stud with jam nuts

€ 321,00

Order now

Multi-jaw Grip for pull testing
15 adjustable jaws jaws accommodate a range of sample shapes and sizes
Opens and closes by rotating the housing
Includes a #10-32 M/M stud with jam nuts

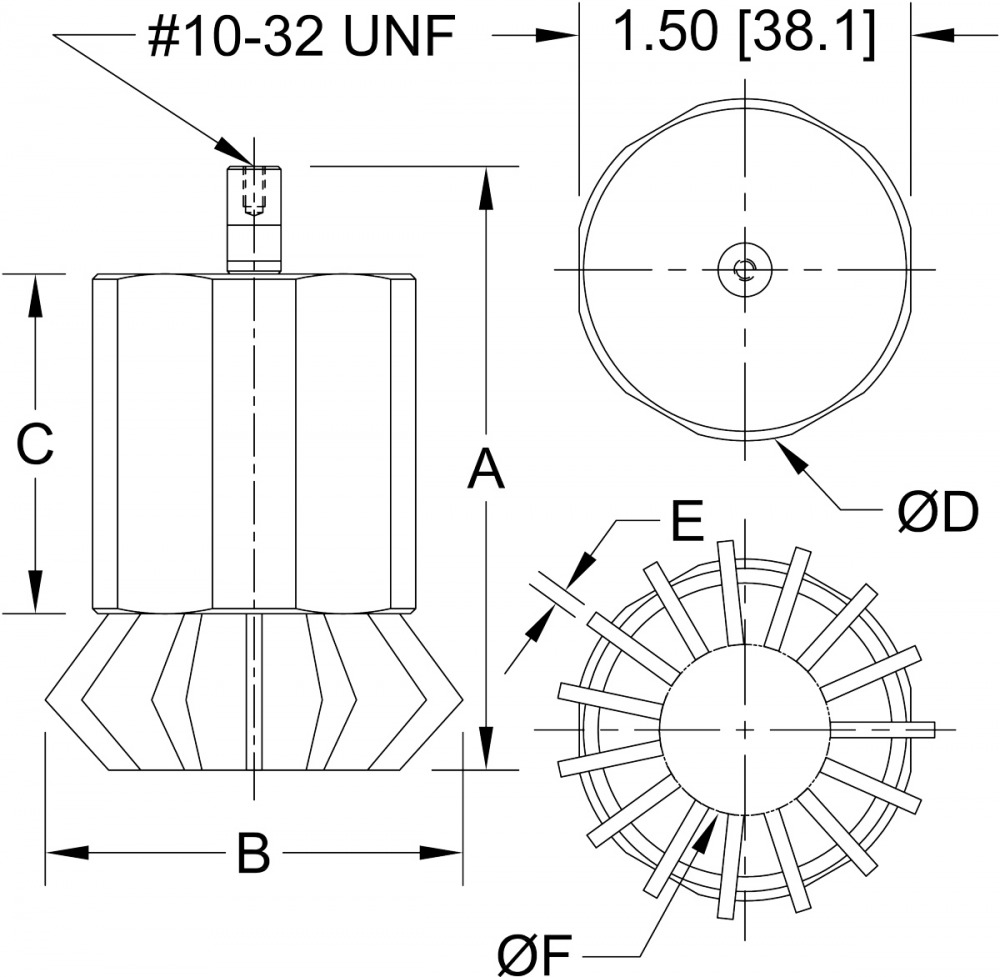

G1056 Multi-jaw Grip

IN [MM]

A	B	C	ØD	E	ØF
3.50 [88.9]	2.30 [58.4] MAX	1.63 [41.4]	1.55 [39.4]	0.075 [1.91]	0.40 - 1.25 [10.2- 31.7]

D1 no header

A	B	C	ØD	E	ØF
3.50 [88.9]	2.30 [58.4] MAX	1.63 [41.4]	1.55 [39.4]	0.075 [1.91]	0.40 - 1.25 [10.2- 31.7]
Sizes are noted in inches with metric sizes in [mm] behind them

Capacity	500 N [100 lbF]
Max. sample diameter:	58.4 mm [2.30 in]
Thread	10-32 UNF
Weight	0.14 kg [0.30 lb ]
Shipping weight	0,5 kg [1 lb]

Products

Item	Product	Price	Quantity	Action
131928	G1056 Multi-jaw grip, #10-32F	€ 321,00

Accessories

Item	Product	Price	Quantity	Action
130807	G1018-1 Swivel adapter, #10-32M to #10-32F	€ 101,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
