G1046 Pneumatic Film & Paper Grip

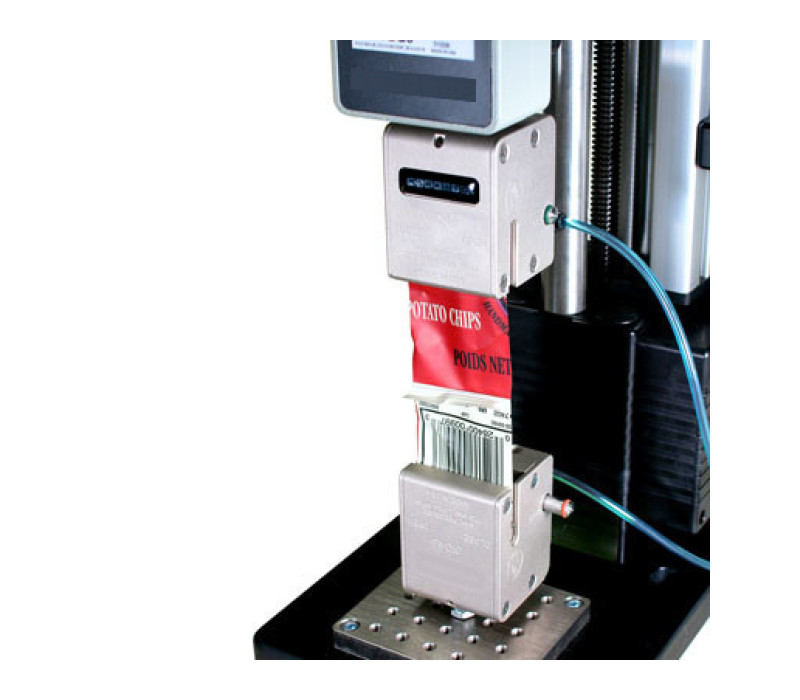

Pair of G1046 grips shown in a typical 180° peel test of a sealed package strip, used in conjunction with a digital force gauge and test stand.

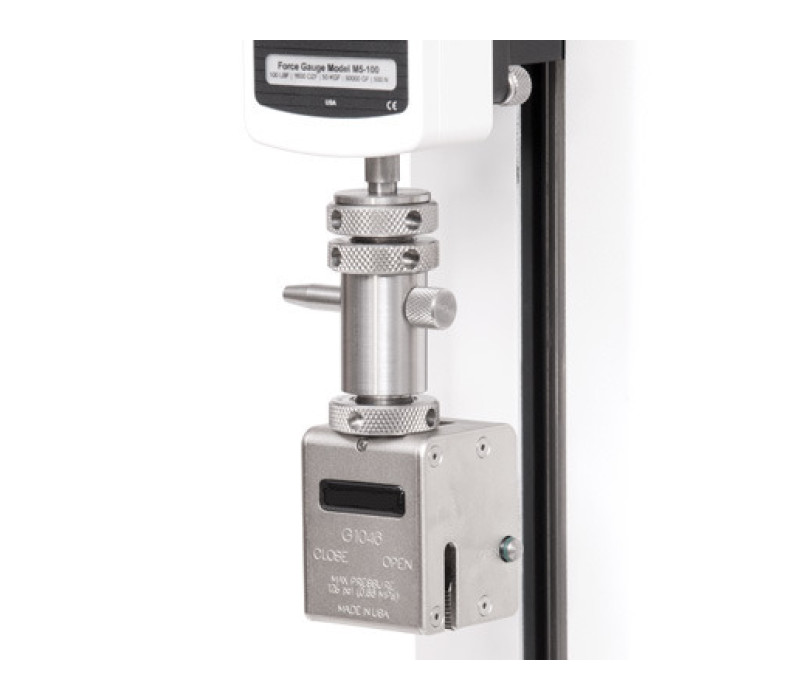

Compatible with eye end adapters and certain third-party test stands, load cells, and force gauges.

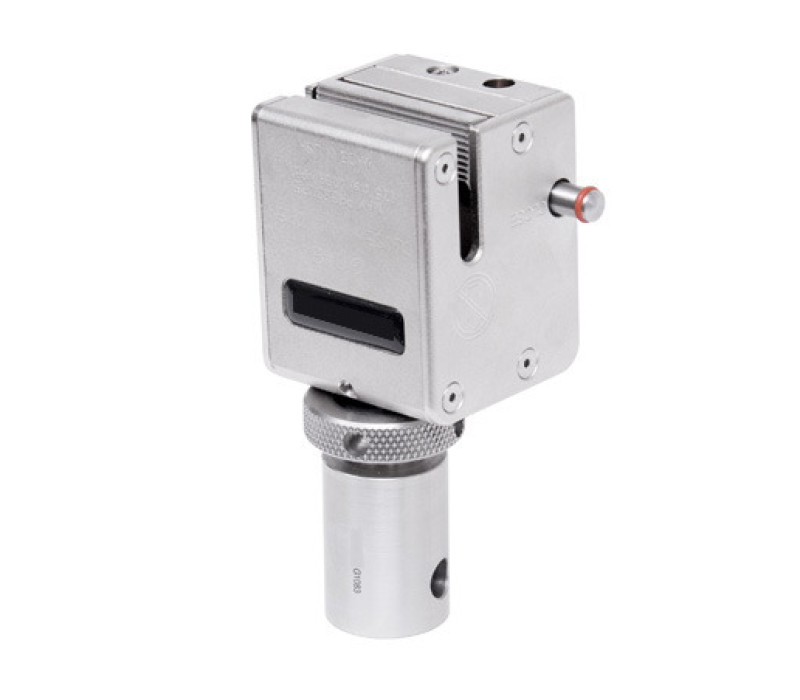

Quick-change eye end adapters allow for simple grip removal / installation, and prevent rotation.

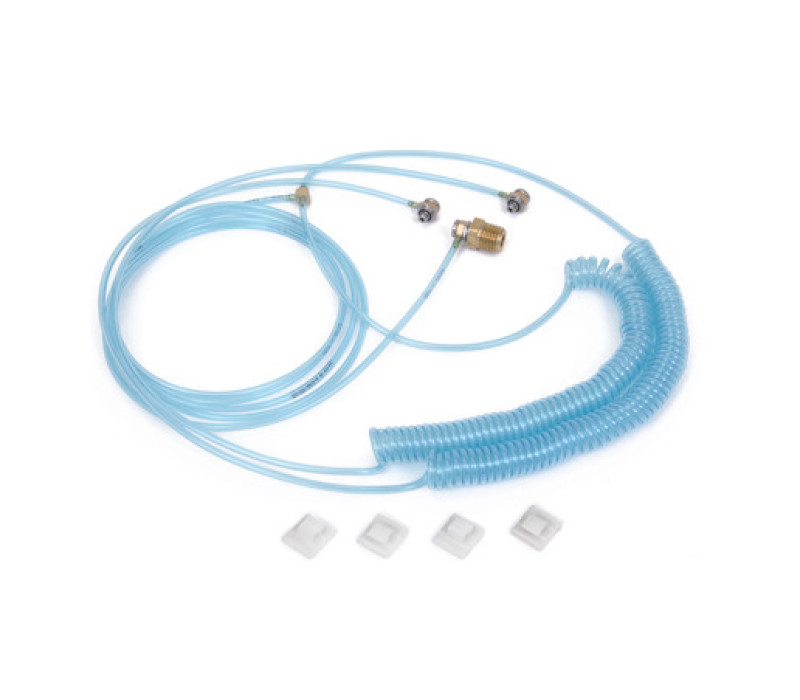

Optional air connection kit contains a complete set of accessories for two G1046 grips.

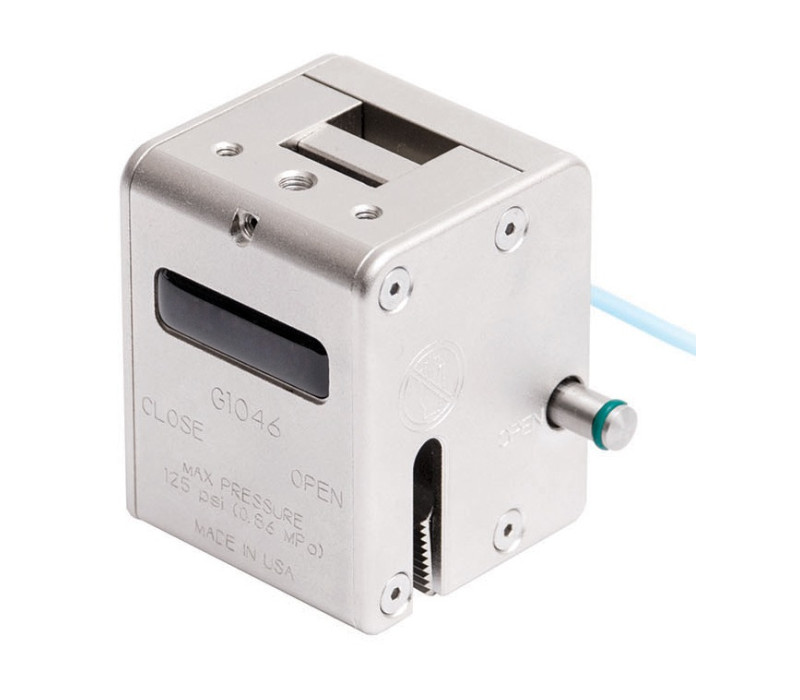

G1046 Pneumatic Film & Paper Grip

Name: G1046 Pneumatic Film & Paper Grip
SKU: 126762
Price: 646.00 EUR
Availability: PreOrder

The G1046 Pneumatic film and paper grip is designed as a safe and efficient grip for thin materials.
Serrated interlocking jaws create a firm grip on test samples and with a capacity of 500 N (at 6,9 bar air pressure) this grip will suit most thin sample materials.

It is designed for strength testing the seal of packaging, elongation testing of various materials and other thin material tensile testing applications.

The G1046 is fully enclosed and features a unique integrated open/close valve for quick sample engagement and disengagement.
An optional air connection kit (AC1019) is available with all materials required to connect 2 G1046 grips to work simultaneously.

The flexible internal membrane actuating the movable jaw has a variable life expectancy dependent upon the maximum air pressure used and the quality of the compressed air.
Compressed air should be free from impurities, solvents and oils. Since field conditions are outside of the manufacturers control, the standard 3-year warranty does not apply to the flexible membrane.

A maintenance kit for G1046 (AC1044), including a membrane repair kit, may be purchased from Checkline.EU.

The G1046 Pneumatic film and paper grip comes with a #10-32 M/M stud with jam nuts, one spare rubber membrane, one alcohol wipe, and two cotton swabs.

€ 646,00

Order now

Integrated open/close valve
Fully enclosed design for safety
Air operated interlocking jaws
Can be paired with second pneumatic grip for simultanious operation using an air connection kit AC1019
Ideal for high volume testing

G1046

A: 0 - 3.3 mm (0 - 0.13 inch)

Capacity:	500 N @ 0.86 MPa (100 lbF @ 100 PSI)
Weight:	0.3 kg (0.6 lb)
Max. Pressure:	0.86 MPa (125 PSI)
Air input thread:	#10-32 UNF

Optional air connection kit

Set containing	Description	Quantity
A.	Coiled tubing Outer diameter: 1/8 inch Inner diameter: 1/16 inch Retracted length: 8 inch	2
B.	Straight tubing Outer diameter: 1/8 inch Inner diameter: 1/16 inch Length: 5 inch	1
C.	Y-splitter	1
D.	Elbow fitting, tubing termination	1
E.	Straight fitting tubing to #10-32M	1
F.	Thread adapter #10-32F to 1/4 inch NPT M	1
G.	Adhesive-backed guide	4

Optional Maintenance kit*

Set containing	Description	Quantity
A.	Rubber membrane	5
B.	Cotton swab	12
C.	Alcohol wipe	5
D.	Allen key set	1

Data Sheet for all Grips and Attachments

Solid Models G1046

Products

Item	Product	Price	Quantity	Action
131925	G1046 Pneumatic grip, #10-32F	€ 646,00

Accessories

Item	Product	Price
131960	AC1019 Air connection kit for G1046	€ 257,00
136833	AC1044 Maintenance kit for G1046	€ 99,00
130807	G1018-1 Swivel adapter, #10-32M to #10-32F	€ 99,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
