G1062 Miniature Wedge Grip

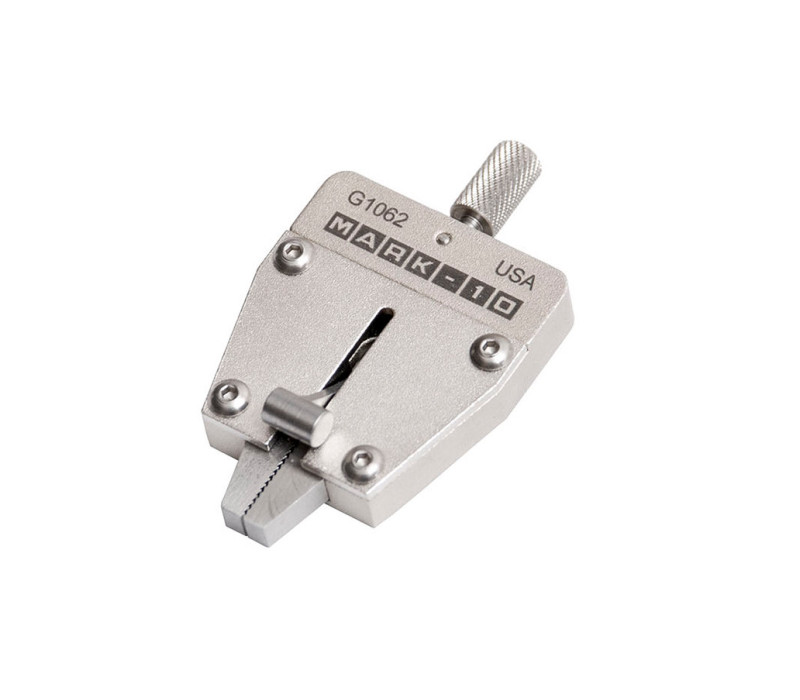

G1062 miniature self-tightening wedge grip is useful for low force pull testing of small samples.

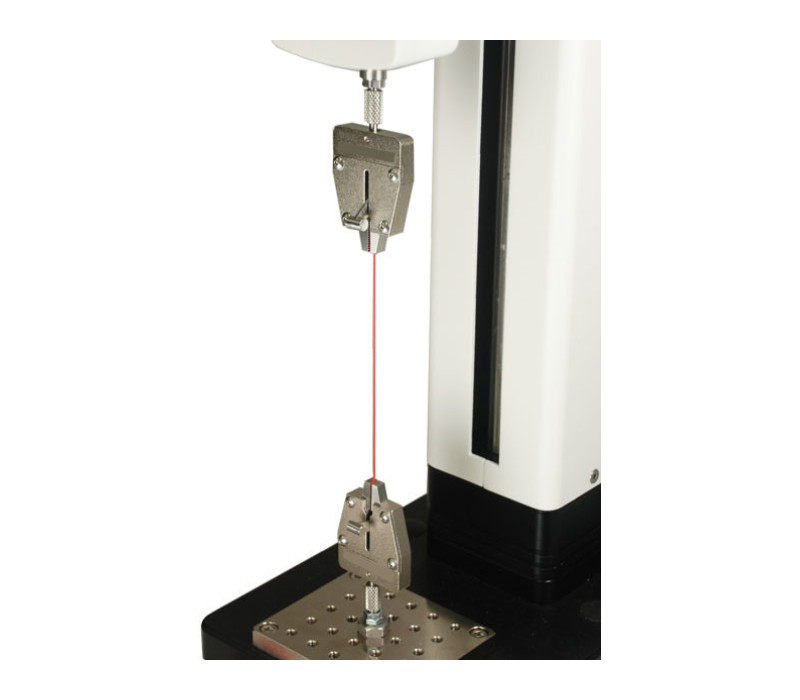

G1062 is shown in a wire testing application.

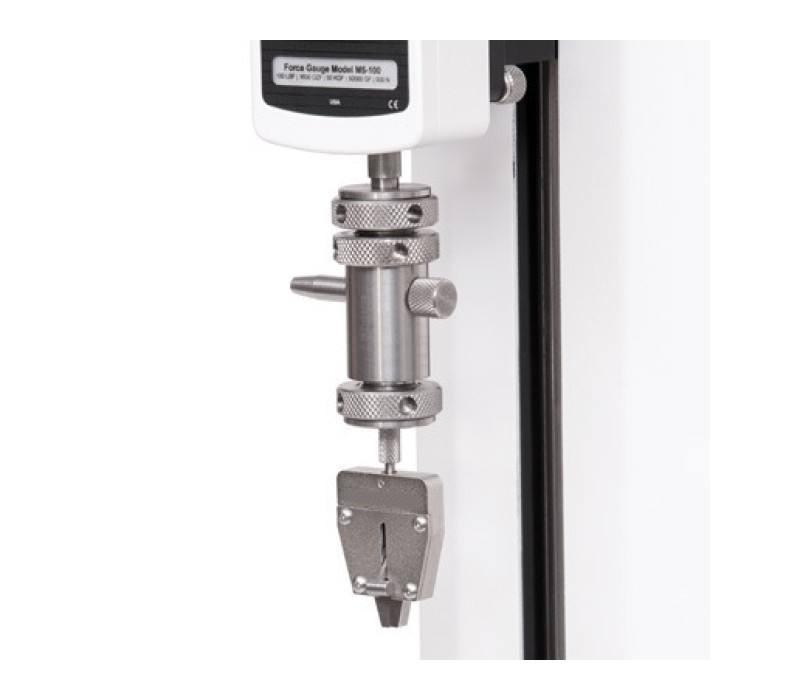

A compatible quick-change eye end adapters allows for simple grip removal / installation, and also prevents rotation.

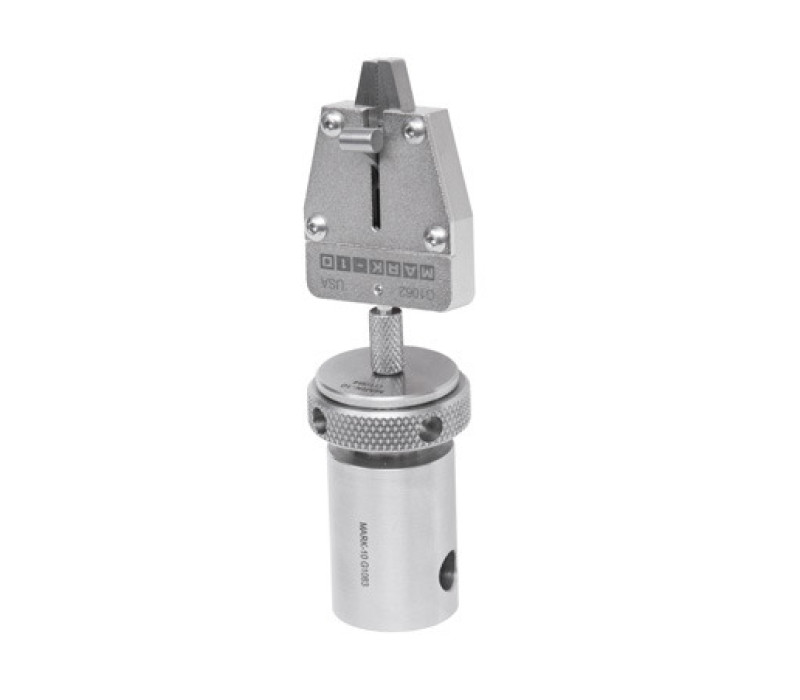

Eye end adapters are compatible with a variation of test stands, load cells, and force gauges
G1062 Miniature Wedge Grip
IN [MM]
| A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|
| 1.37 [34.8] |
2.49 [63.1] |
0.19 [4.8] |
0.32 [8.1] |
#10-32 UNF | 0 - 0.09 [0 - 2.3] |
0.15 [3.9] |
