    G1092 High Capacity Wire/Rope Grip

    The  G1092 High Capacity Wire/Rope Grip is developed as a solution for conducting tension tests on wires and ropes of up to 9 kN.

    Designed with precision, durability, and versatility in mind, this  grip is constructed from high quality materials and is easy to install with the use of an eye-end-adapter.
    It uses an unique bollard and vice construction to secure the test sample without the risk of slippage during testing. This allows the user to apply the desired tension consistently, ensuring the accuracy and consistency of a series of tests.

    The test sample is wrapped around a 92,9 mm diameter bollard and securely clamped between serrated jaws reducing the risk of inaccuracies in your tension tests.
    This fixture can test samples with a diameter of up to 10 mm.

    This fixture can be used for quality control assessments, research and development tests, or material testing.

    The G1092 High Capacity Wire/Rope Grip comes with integrated eye end mounting, and requires an eye end adapter to mount to various force gauges or force sensors, and test stands.



    Attention: This fixture requires an Eye-End-Adapter to be attached to a test stand
    € 927,00
    Order now
    • Fixture designed for pull testing of wire, rope, and yarn
    • Bollard / capstan design effectively secures wire, rope, and other samples
    • Max sample size: Ø 10 mm
    • Eye end mounting, requires eye-end-adapter

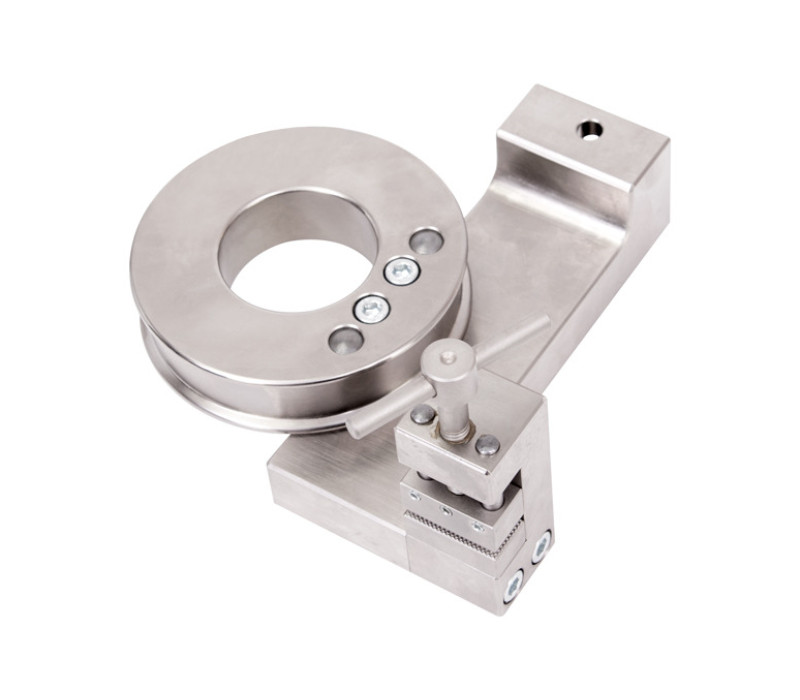

    G1092 wire / rope grip
    Dimensions-G1092 wire / rope grip

    All sizes are noted in inch with metric sizes in [mm] behind.

    Datasheet all Grips
    Solid Models g1092
    Capacity9 kN
    Maximum sample thickness10 mm
    Weight2,7 kg

    Related Products

    Browse Related Products

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

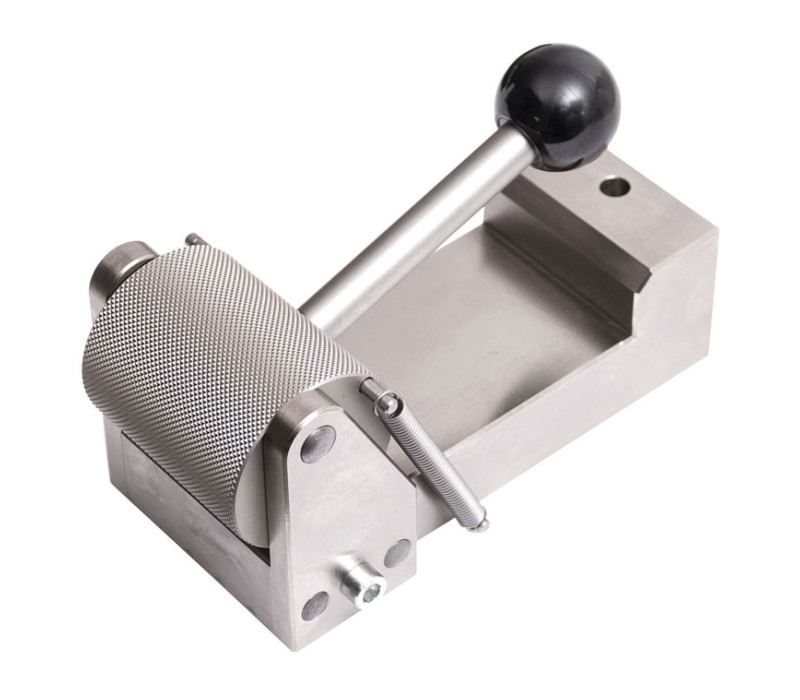

    G1094 High Capacity Eccentric Roller Grip

    G1094 High Capacity Eccentric Roller Grip

    G1078 Miniature Filament Grip

    G1078 Miniature Filament Grip

    G1102 Large Wire / Rope Grip

    G1102 Large Wire / Rope Grip

    Order Now

    Products
    Item Product Price  Quantity Action
    136905G1092 High capacity wire / rope grip, eye end € 927,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request

    View Cart Check out
