G1009 Compression Plates

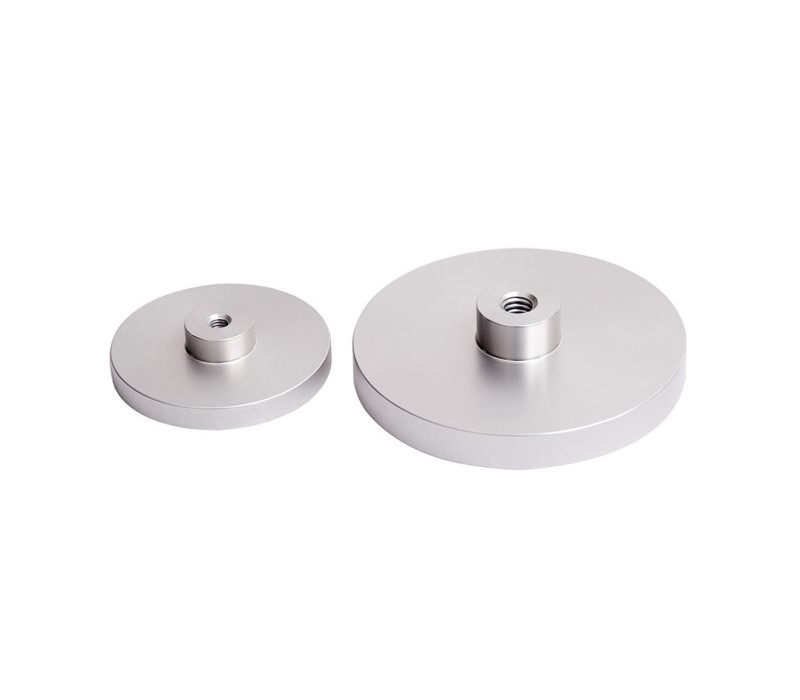

51 mm and 76,8 mm diameter compression plates with flat compression surface available for a variety of compression testing applications.

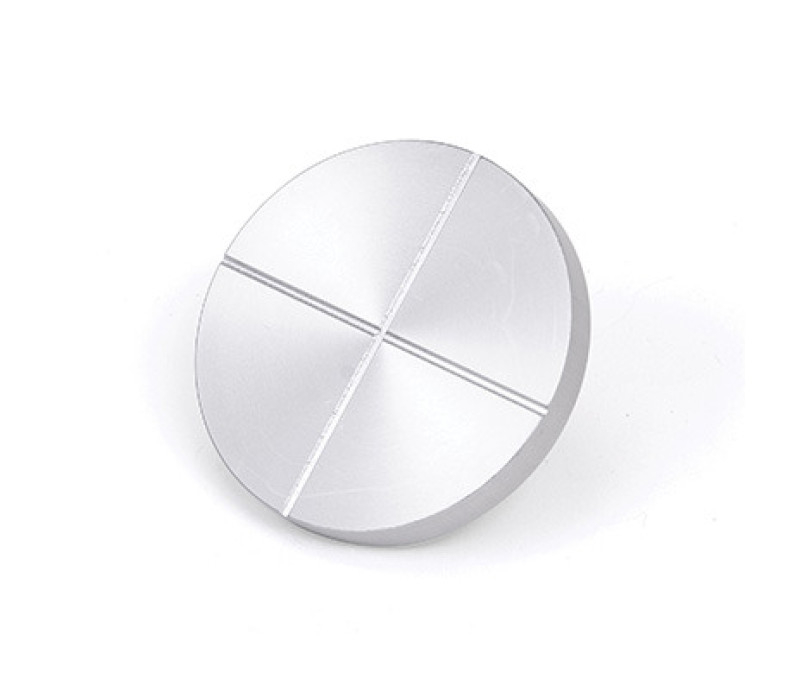

51 mm and 76,8 mm diameter compression plates with vented channels

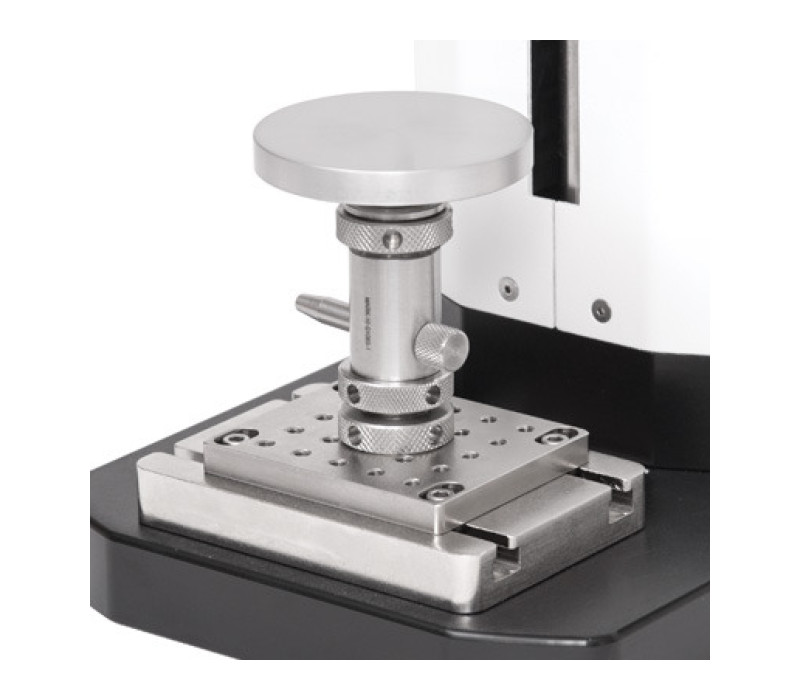

Compatible with quick-change eye end adapters that allow for simple grip removal / installation and also prevent rotation

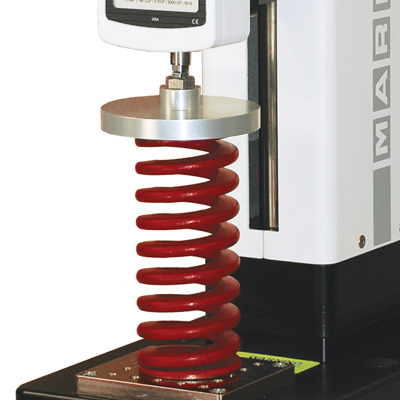

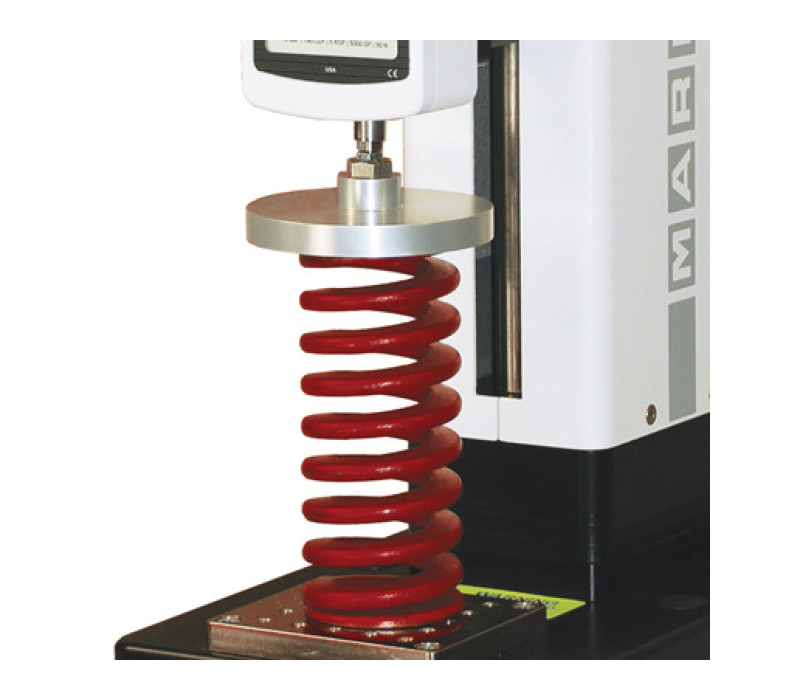

G1009-1 compression plate shown in a typical spring testing application with an ESM301 test stand and Series 5 digital force gauge.

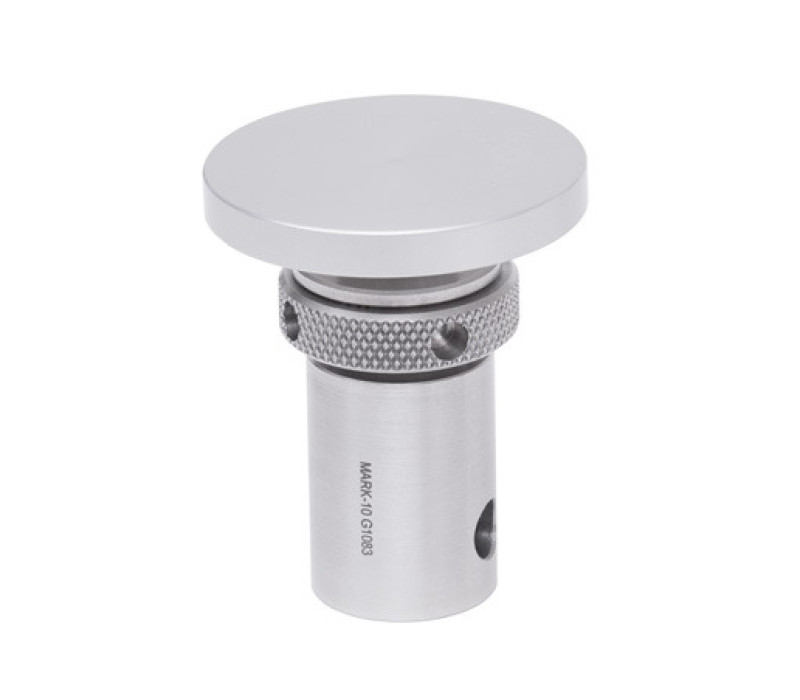

Eye end adapters are compatible with a variety of test stands, load cells, and force gauges

G1009 Compression Plates

Name: G1009 Compression Plates
SKU: 126101

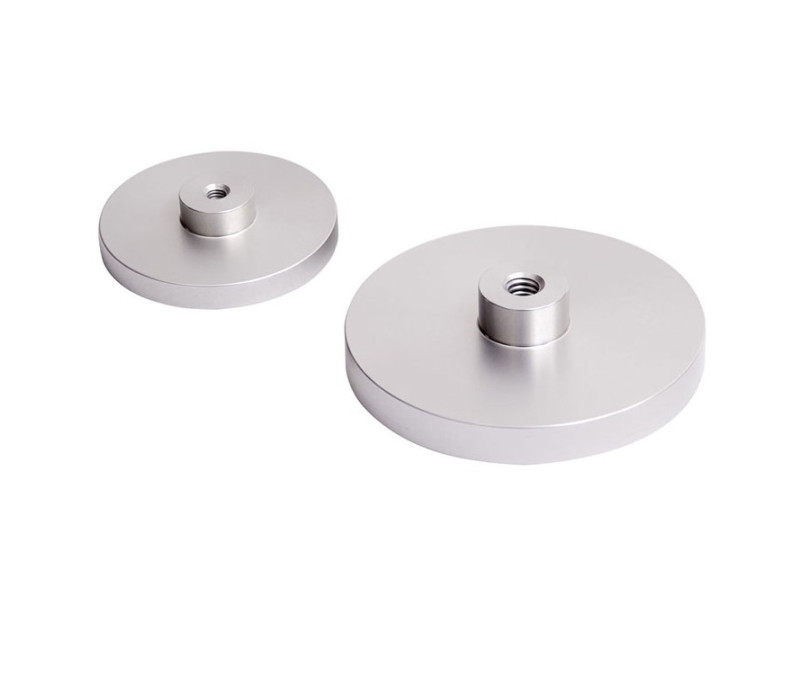

G1009 aluminum compression plates are available in two versions, one flat and one with vented channels, each come in two sizes, 51 and 76,2 mm.

These aluminum compression plates are ideal for testing springs, foams, cartons, aerosol cans and other materials like pressure testing sealed packages.

G1009 and G1009-2have a maximum compression capacity of 1000 N, G1009-1 and G1009-3 have a maximum compression capacity of 2500 N.
There are several options for connecting the pressure plates, directly to a force gauge or test stand, with thread adapter if required, a swivel adapter or by using an eye end adapter.

G1009 and G1009-2 include a #10-32 M/M stud with jam nuts.
G1009-1 and -3 include a 5/16-18M/M stud with jam nuts.

Price from € 50,00

Order now

Available in two sizes, 51 mm and 76,8 mm,
Available with and without vented channels
G1009 and G1009-2 include a #10-32 M/M stud with jam nuts G1009-1 and -3 include a 5/16-18M/M stud with jam nuts
Compatible with a variety of force gauges, sensors, and test stands

D1 no header

Model	ØA	Thread
G1009, G1009-2	51,0 [2.0	#10-32F
G1009-1, G1009-3	76,2 [3.0]	5/16-18F
Metric sizes are noted in mm with imperial sizes in [inch] behind them.

G1009 & G1009-2:	Compression plate, 50 mm (2") dia, include a #10-32 M/M stud with jam nuts G1009-2 is with vented channels
Capacity:	1000 N (200 lb)
Size (D x H):	50 mm x 12.7 mm (2" x 0.5")
Weight:	0,04 kg (0.08 lb)
Thread:	#10-32F
G1009-1 & G1009-3:	Compression plate, 75 mm (3") dia, include a 5/16-18 M/M stud with jam nuts G1009-3 is with vented channels
Capacity:	2500 N (500 lb)
Size (D x H):	76.2 mm x 19 mm (3" x 0.75")
Weight:	0,12 kg (0.27 lb)
Thread:	5/16-18F

Data Sheet for all Grips and Attachments

Solid Models - G1009 and G1009-2

Solid Models - G1009-1 and G1009-3
