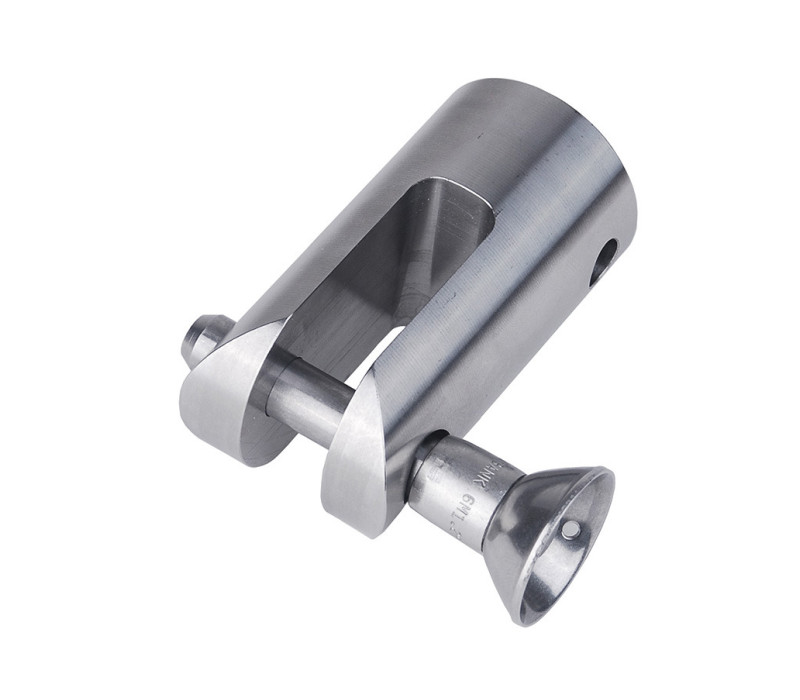

    G1090 High Capacity Clevis Grip

    The G1090 High-Capacity Clevis Grip is developed for pull testing up to 9 kN.

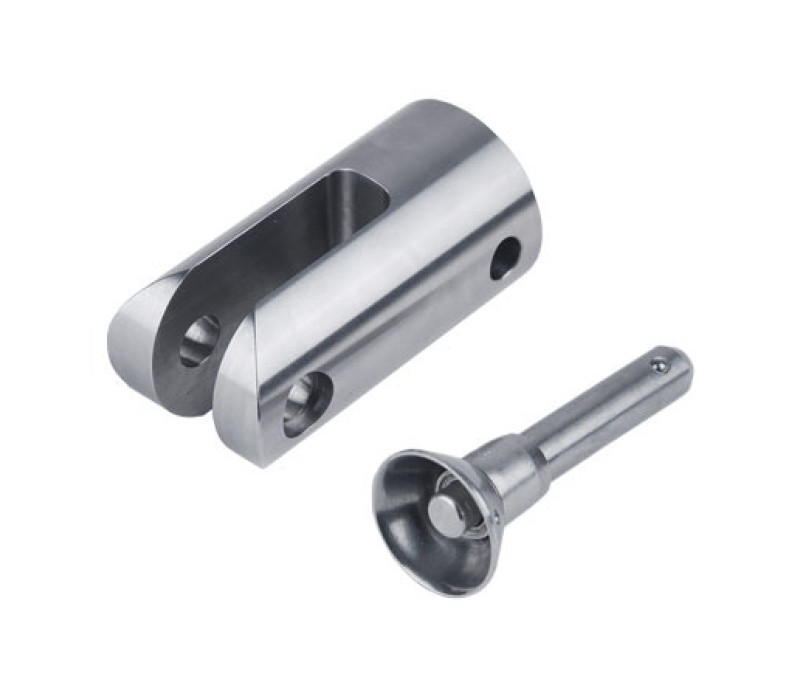

    It features a spring-loaded pin with a precision ball plunger to lock it in place, for a safe and solid connection during high-capacity tests.

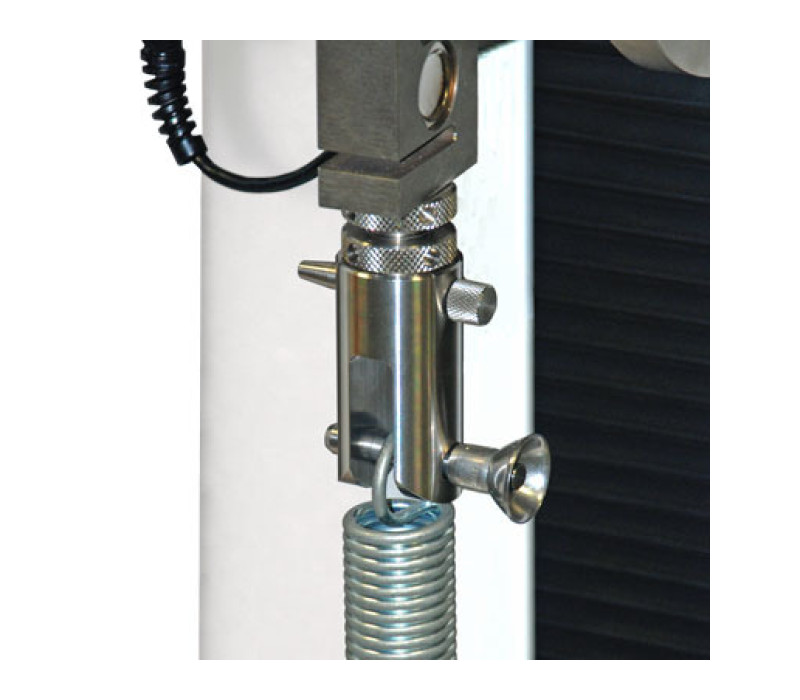

    This grip is well suited for various pull testing applications, including extension spring testing, chain link break force testing, and other applications.

    This robust grip is designed to work with an eye-end-adapter for easy connection to a load cell, force gauge or test stand.
    The integrated eye-end mounting, ensures a quick and secure attachment to your equipment.



    Attention: This fixture requires an Eye-End-Adapter to be attached to a test stand
    € 354,00
    Order now
    • Secures a spring, chain, or other sample during tensile testing
    • Maximum capacity 9 kN
    • Eye-End mounting for quick tool changes
    G1090 High Capacity Clevis Grip
    Dimensions-G1090 High Capacity Clevis Grip
    D1 no header
    A (mm)B (mm)C (mm)ØD (mm)E (mm)F (mm)ØG (mm)ØH (mm)ØI (mm)
    70,445,714,035,658,922,115,98,09,7
    Datasheet all Grips
    Solid Models G1090
    Capacity9 kN
    Gewicht400 g
    Shipping weight900 g
