G1078 Miniature Filament Grip

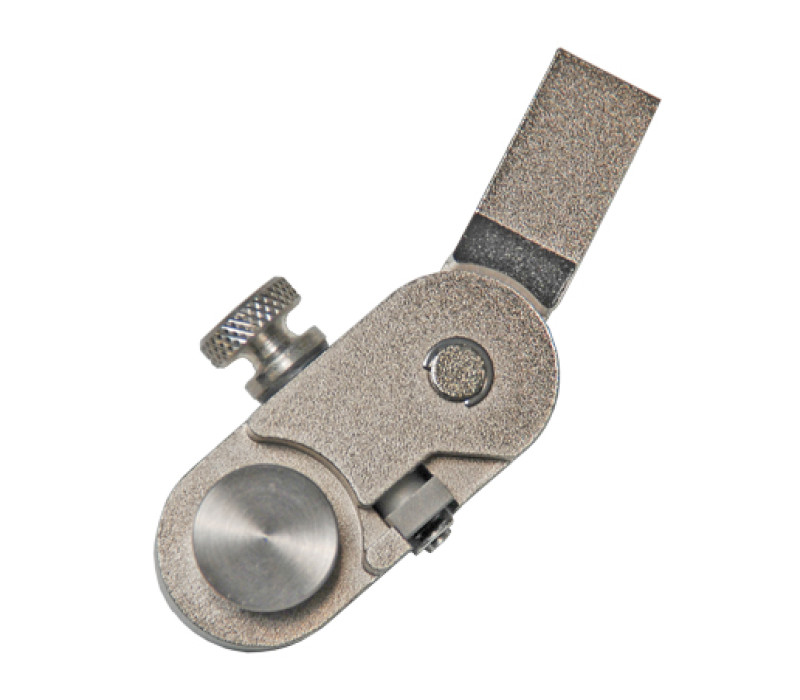

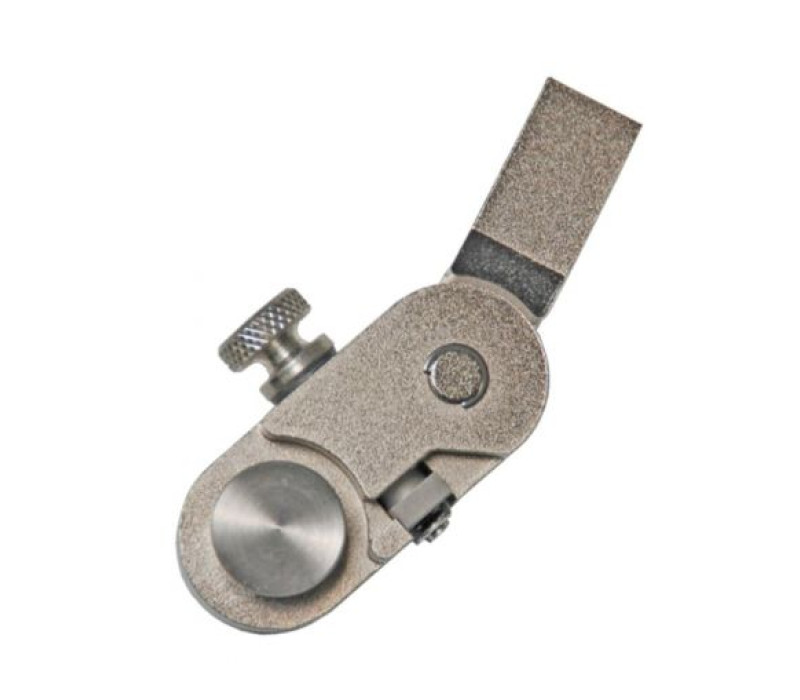

G1078 miniature filament grip.

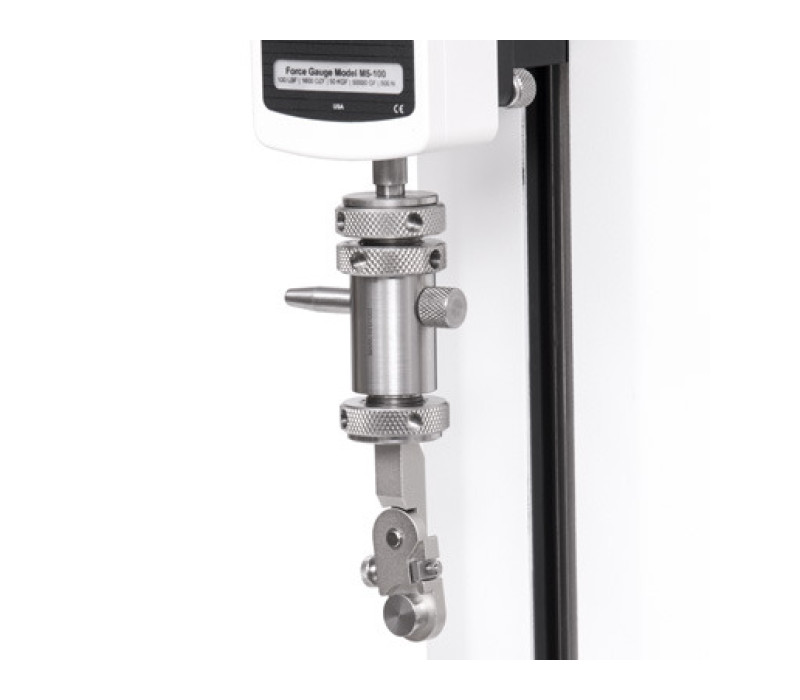

Compatible with quick-change eye end adapters that allow for simple grip removal / installation, and also prevent rotation.

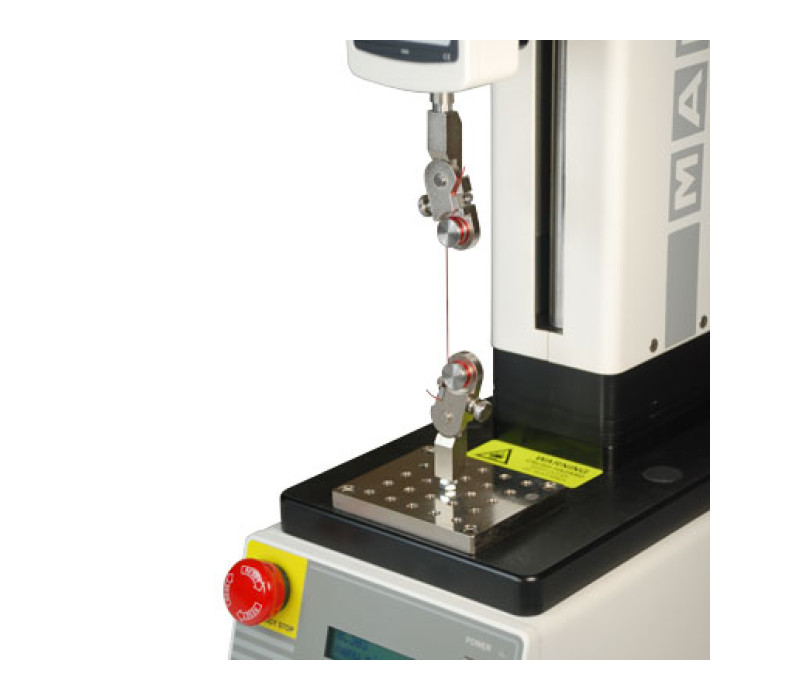

Pair of G1078 grips shown in a typical pull testing application, shown mounted to a motorized test stand with digital force gauge.

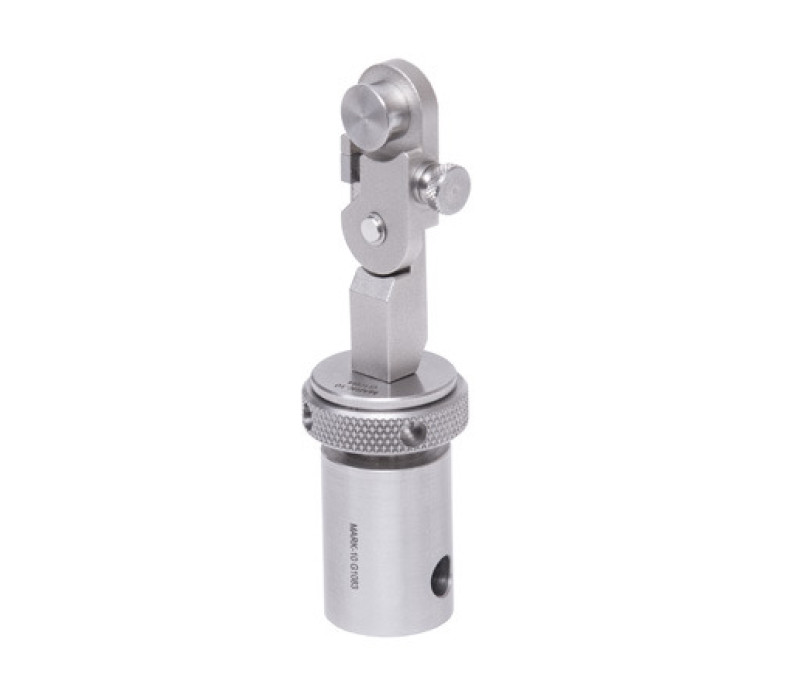

Eye end adapters are compatible with various test stands, load cells, and force gauges

G1078 Miniature Filament Grip

Name: G1078 Miniature Filament Grip
SKU: 127215
Price: 321.00 EUR
Availability: PreOrder

The G1078 Miniature Filament Grip is an innovative fixture designed for the precise and safe testing of fine filaments and fibers that are common in various industries such as textiles, aerospace, and materials science. This specialized grip is developed to perform precise tensile strength measurements on materials down to a very fine scale, in conjunction with a force gauge, load cell, or test stand.

Crafted with high-quality materials and precision engineering, the G1078 grip features a unique design to accommodate the delicate nature of thin wires and filaments. It consists of a spindle around which the filament is wrapped, followed by a clamp, which securely but gently holds the filaments in place during testing without causing any damage or slippage. The part that clamps the test sample can move relative to its attachment to the sensor to ensure optimal alignment during the test.

Whether it's assessing the strength of microfibers for aerospace applications or testing the durability of intricate textile yarns, the G1078 Miniature Filament Grip provides the precision and reliability necessary for accurate data collection and analysis. It is an indispensable tool for industries where the quality and performance of these materials play a crucial role in qua;ity control, product development and safety.

€ 321,00

Order now

Securely handles wires ranging from 0 to 2.5 mm
Ensures sample alignment under load with a swiveling bottom end
Optimizes sample support by anchoring it just below the clamp on a bollard
Bollard / capstan design effectively secures small diameter wires and filaments
Includes #10-32 M/M stud with jam nuts.

G1078 Miniature Filament Grip

IN [MM]

Capacity
N(lbF)

Weight
N(lb)

2.38

[60.4]

1.09

[27.7]

0.10

[2.5]

0.10

[2.5]

0.55

[14.1]

Ø0.45

[11.4]

0.20

[5.1]

250

(50)

0.03

(0.06)

D1 no header

A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	ØF (mm)	G (mm)
60,4	27,7	2,5	2,5	14,1	11,4	5,1

Capacity :	250 N
Weight :	30 g

Solid Models G1078

Datasheet all Grips

Products

Item	Product	Price	Quantity	Action
135083	G1078 Miniature Filament Grip, #10-32F	€ 321,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

G1078 Miniature Filament Grip

Features

Dimensions

Specifications
