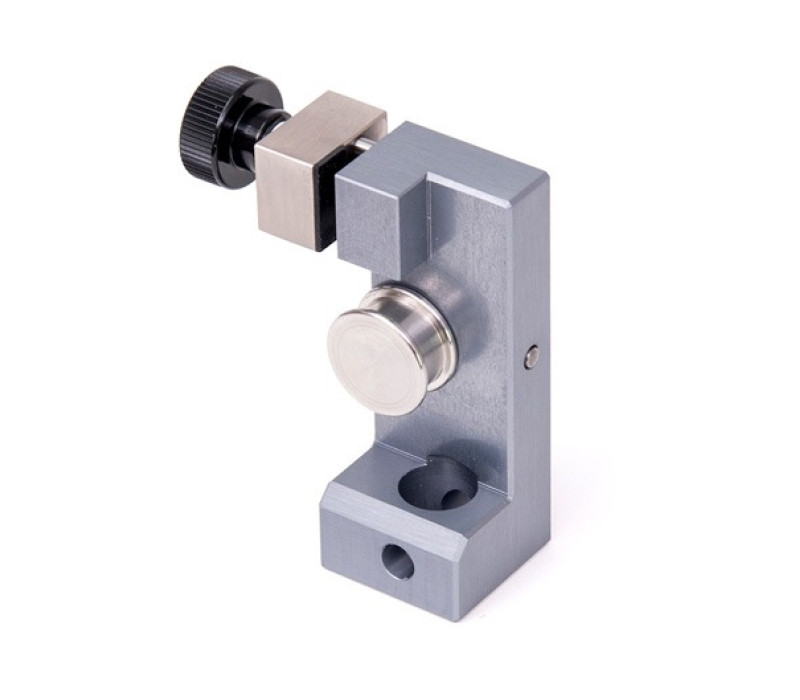

    G1103 Medium Wire / Rope Grip

    The G1103 is a medium size, versatile Wire, Rope, and Yarn Grip. This medium-sized grip is designed to ensure precise and reliable testing of wire, rope, and yarn samples.

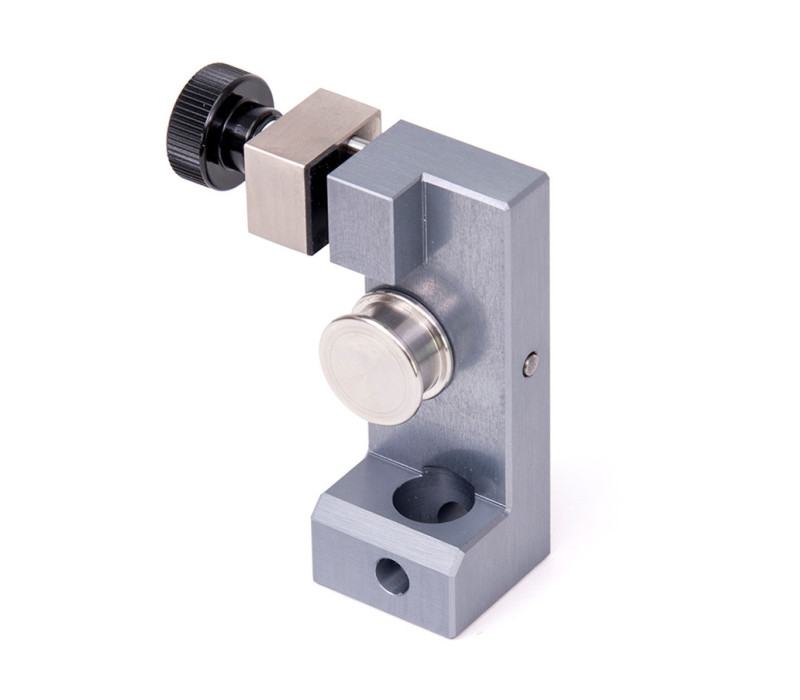

    With its innovative Bollard / capstan design, this fixture effectively secures wire, rope, and other samples providing accurate results.

    The combination of a bollard and a vise with a rubber-faced jaw to firmly secure the free end of your sample. This ensures that your sample remains intact and in place throughout the testing process, eliminating any chances of slip or distortion.

    The integrated eye end mount, facilitates quick and secure attachment to force gauges, load cells, or test stands.
    This grip accommodates sample sizes of up to Ø6.6 mm, with a maximum capacity of 1 kN making it suitable for a wide range of materials.

    Attention: This fixture requires an Eye-End-Adapter to be attached to a test stand
    € 418,00
    Shop now
    • Effectively secures wire, rope, and other samples with bollard / capstan design.
    • Integrated eye end mounting - eye end adapter required.
    • Features rubber jaw faces
    • 3 year waranty
    G1103 Medium Wire / Rope Grip

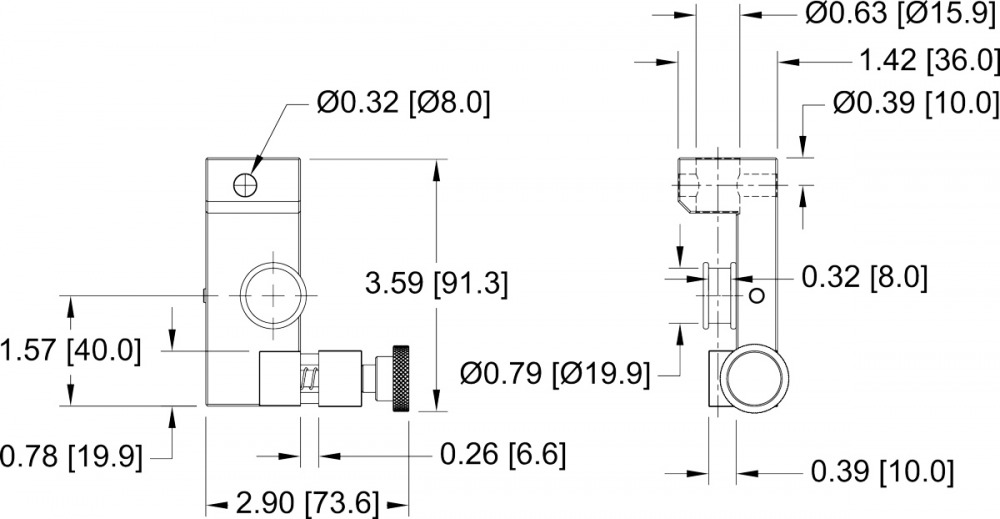

    Dimensions-G1103 Medium Wire / Rope Grip

    All sizes are noted in inch with metric sizes in [mm] behind.

    G1103 Solid Models
    Data Sheet for All Grips
    Capacity:1 kN
    Maximum Sample Diameter:6.6 mm
    Mounting:Eye-end-adapter (not included)
    Weight:0.3 kg (200 lb)

    Related Products

    Browse Related Products

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

    Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

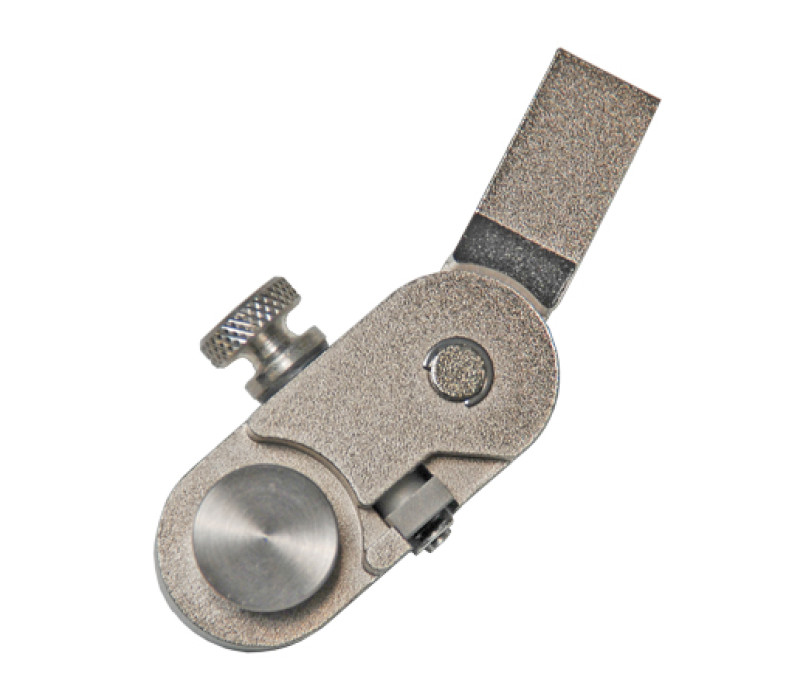

    G1078 Miniature Filament Grip

    G1078 Miniature Filament Grip

    G1102 Large Wire / Rope Grip

    G1102 Large Wire / Rope Grip

    G1092 High Capacity Wire/Rope Grip

    G1092 High Capacity Wire/Rope Grip

    G Series Thread Adapters & Couplings

    G Series Thread Adapters & Couplings

    Buy Now

    Products
    Item Product Price  Quantity Action
    136164G1103 Wire / Rope Grip, medium, eye end € 418,00

    All mentioned prices are excluding VAT & excluding shipment costs.
    Availability:
    Available: 1 - 3 days ,
    Delivery time: 1 - 3 weeks ,
    special order request
