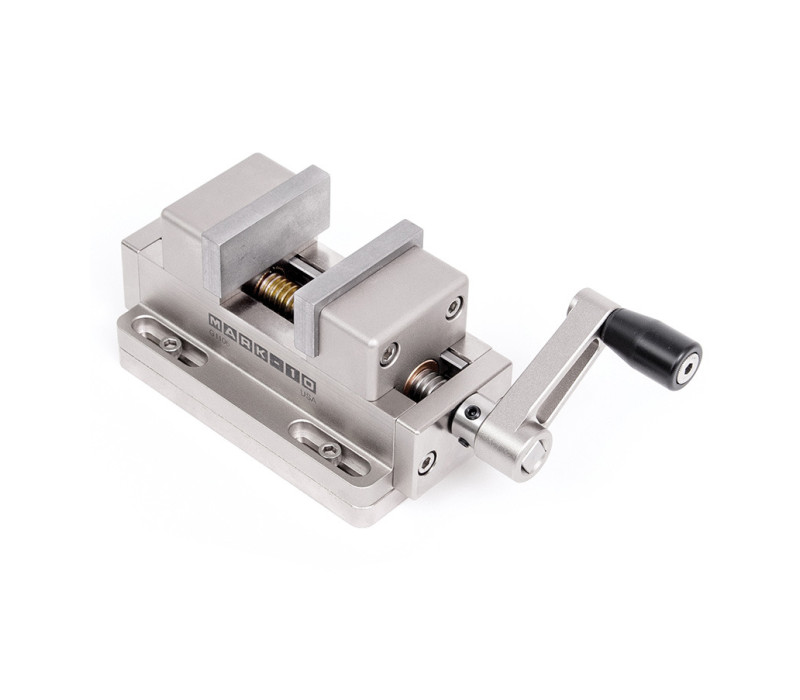

G1106 self-centering vise grip

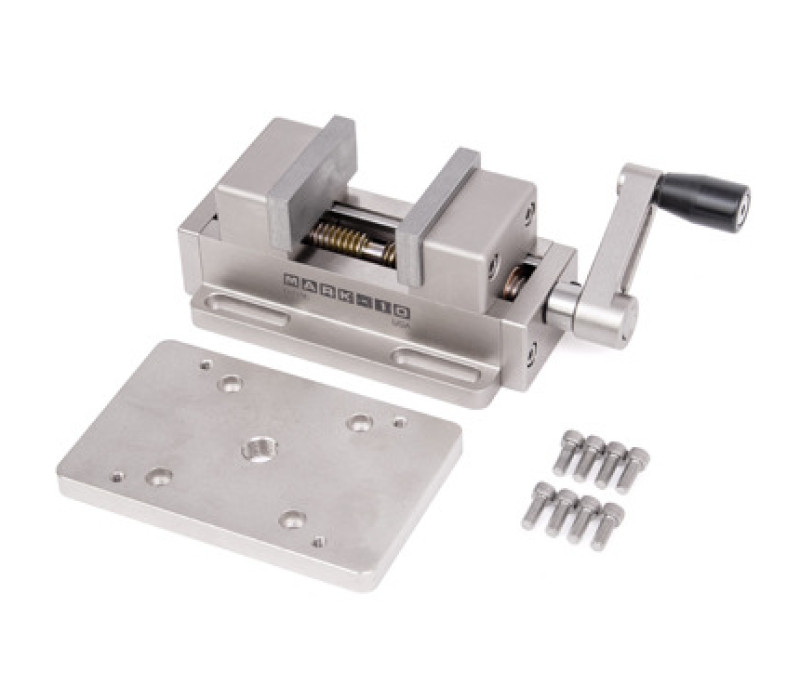

G1106 self-centering vise grip features an ergonomic handle and removable jaws.

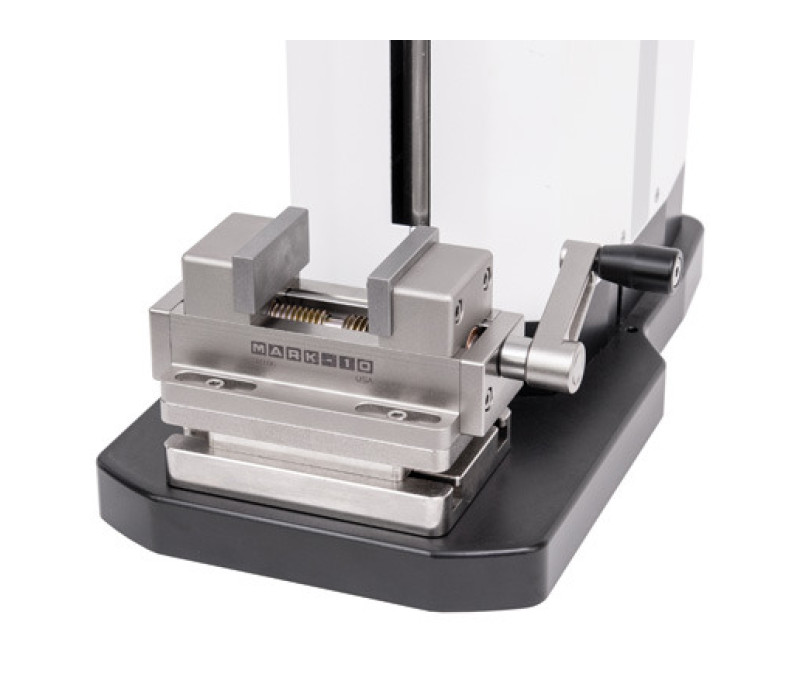

G1106 is shown mounted to a motorized test stand.

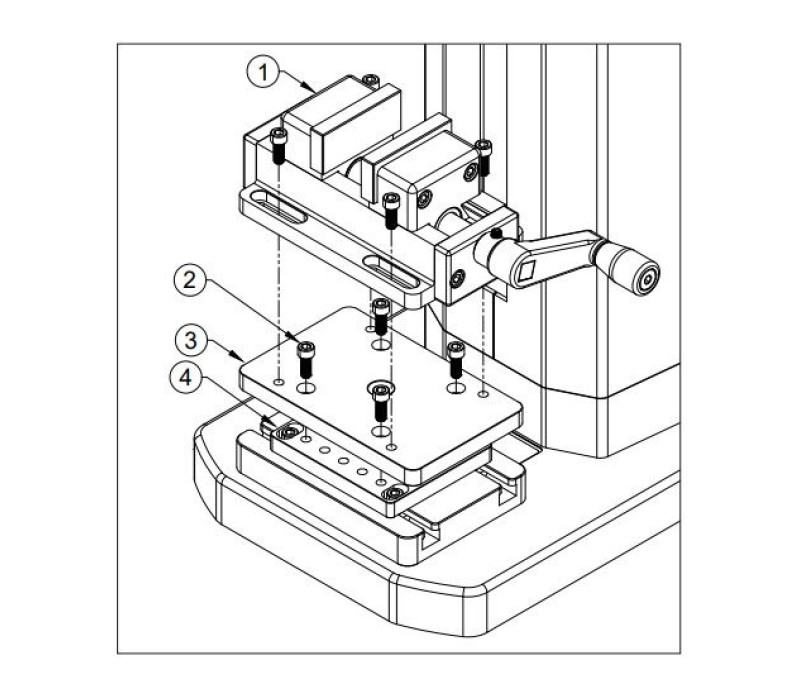

G1106 is supplied with adapter plate that fits directly to Mark-10 base plates.

G1106 Self Centering Vice Grip

The G1106 vise grip is a versatile tool suitable for a wide array of tension and compression testing applications. Its robust design allows for testing loads of up to 2,5 kN.
The vise features a wide opening range, 50,8 mm, to accommodate various sample sizes.
Additionally, the self-centering jaws are smooth and can be modified in the field to enhance their gripping capabilities for pull testing purposes.

To adjust the jaws, simply use the lever to move them closer or further apart. If needed, the jaws can be removed for customization or replacement by removing the two screws securing them to the slider.

The G1106 vise grip is a general-purpose tool suitable for a broad range of tension and compression testing applications. It comes complete with mounting hardware and adapters for easy installation on the following test stands:

F105, F305, F505, F755 and F1505 test frames
ESM303, ESM1500/750 test stand (with AC1055 plate)
ES30, TSC1000, TSF, test stand
ES10/ES20 test stand (with AC1060 plate)

This vise grip replaces Model G1070.

€ 1.097,00

Order now

Self-centering vise grip
Smooth removable jaws
Ergonomic lever for smooth operation
Mounts directly to the following test frames (motorized test frames recommended): F105, F305, F505, F755, and F1505 test frames. ESM303, ESM750, ESM1500, ES30, TSC1000, and TSF test stands. Also compatible with models ES10/ES20 test stands when ordered with optional AC1060 mounting plate.
Warranty 3 years

The G1106 vise comes with the following accessories:

Vise assembly
Test stand adapter plate
8 pcs #10-32 mounting screws

G1106 Self Centering Vice Grip

All sizes are noted in Inches with metric sizes in [mm] behind.

Maximum Tension Force	2,5 kN
Maximum Sample Thickness	50,8 mm
Material	Aluminum
Weight	1,4 kg
Shipping Weight	1,8 kg

Products

Item	Product	Price	Quantity	Action
136912	G1106 Vise grip, self-centering	€ 1.097,00

Accessories

Item	Product	Price	Quantity	Action
136882	AC1060 Base plate with matrix of threaded holes	€ 87,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

G1106 Self Centering Vice Grip

Features

Dimensions

Specifications

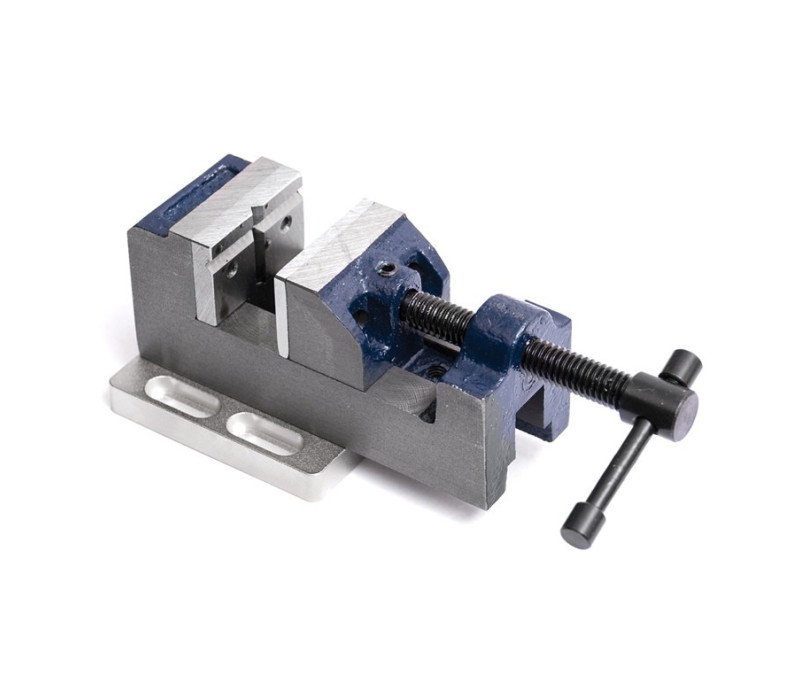

G1074 General Purpose Vise Grip

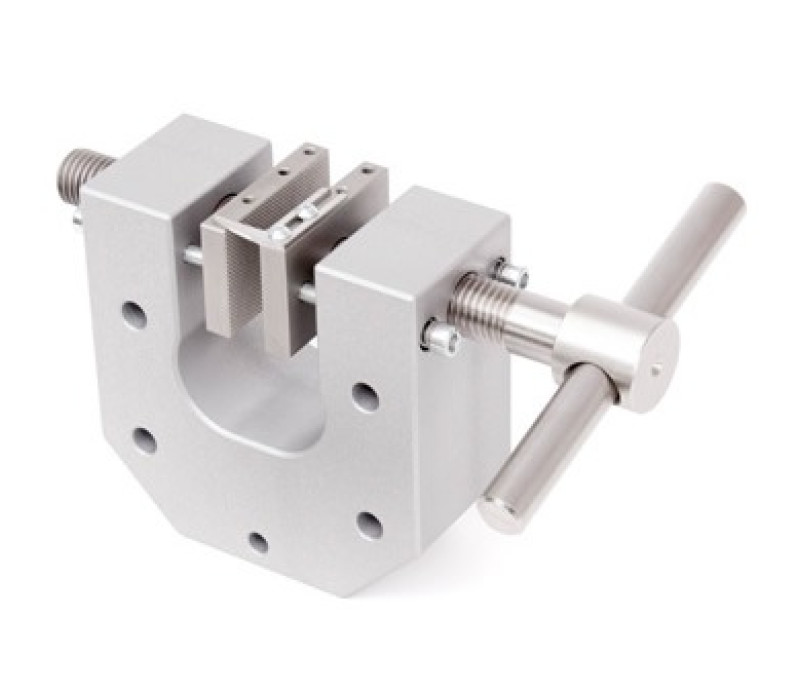

G1100 Large Parallel Jaw Grip

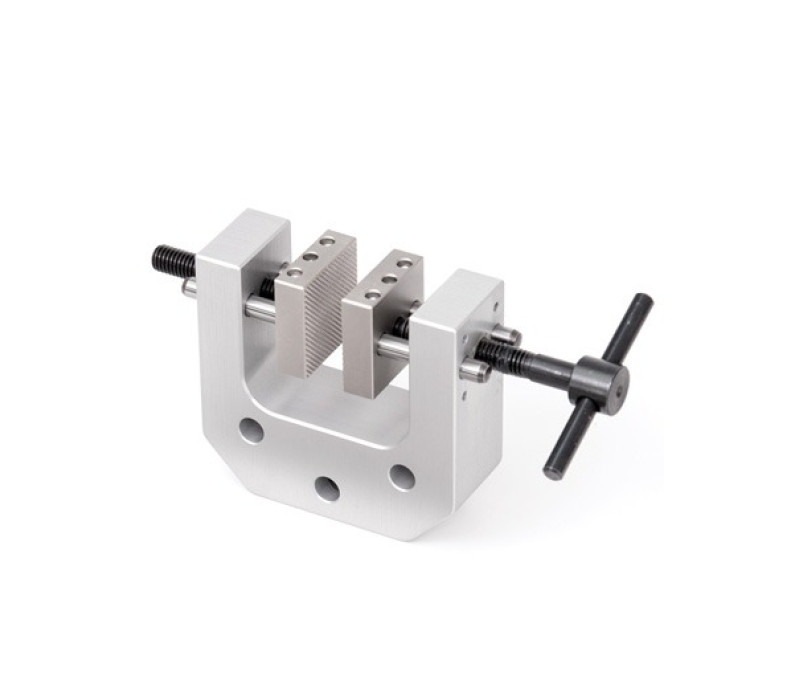

G1101 Medium Parallel Jaw Grip

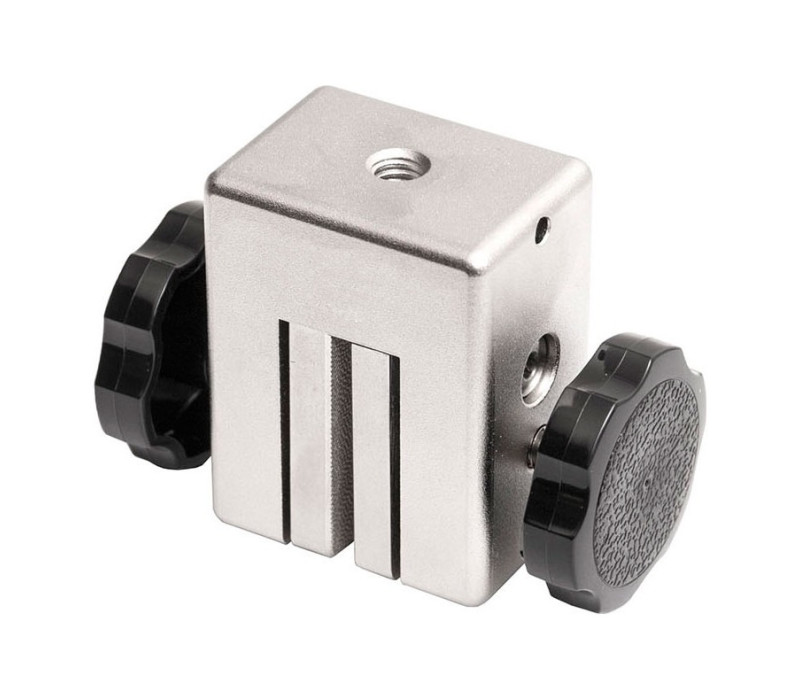

G1013 Parallel Jaw Grip
