Mark-10 Attachments




AC1004 Mounting Kit for 5I, 3I or TT03 to TS-Series Test Stands

AC1004
  • For mounting a 5i, 3i, or TT03 to any TS-series test stand
Price € 93,00
More information

AC1008 Table Top Stand for 5I, 3I or TT03

AC1008
  • Table Top Stand
  • Suitable for models 3i, 5i and TT03
Price € 157,00
More information

G Series Thread Adapters & Couplings

G Series
  • Thread Adapters & Couplings
  • Adapters, Male - Female, Male - Male, different threads available
  • Capacity: 500 N / 1000 N / 2500 N / 5000 N
Price from € 15,00
More information

G1001 Wire Terminal Grips

G1001
  • Wire Terminal Grip
  • Pull testing of wire and tube terminals/crimps
  • Capacity: 1000 N (200 lb)
Price € 265,00
More information

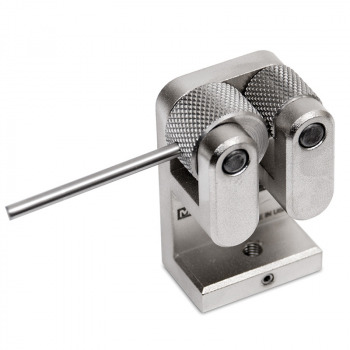

G1002 Dual Roller Cam Grip

G1002
  • Dual Roller Cam Grips
  • Capacity: 1000 N (200 lb)
  • Pull testing of wires, tubes, and other slender samples
Price from € 216,00
More information

G1003 Miniature Component Grip

G1003
  • Mininature Component Grip
  • Ideal for testing a variety of pull-off tests on small and hard-to-reach parts
  • Capacity: 150 N (30 lb)
Price € 162,00
More information

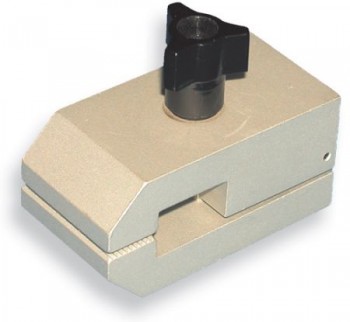

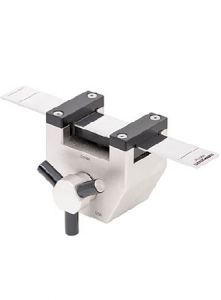

G1008 and G1015 Paper & Film Grips

G1008
  • Film & Paper Grips
  • Tensile testing of film, paper, and other thin materials (1 inch wide)
  • Capacity: 500 N (100 lb)
Price from € 282,00
More information

G1009 Compression Plates

G1009
  • Compression Plates
  • Compresses samples during testing
  • Capacity: 1000 N (200 lb) / 2500 N (500 lb)
Price from € 49,00
More information

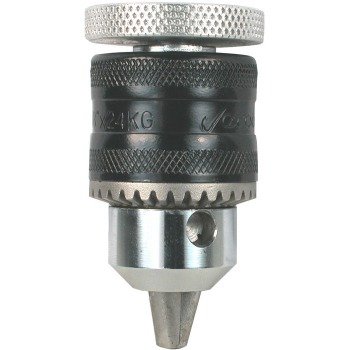

G1010 Jacobs Chuck Pin Vise

G1010
  • Jacobs Chuck Grip (Force)
  • Capacity: 150 N (30 lb)
  • Compatible with Checkline force gauges, load cells, and test stands
Price € 113,00
More information

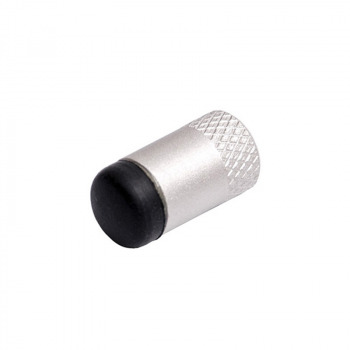

G1011 Rubber Tip

G1011
  • Rubber Tip
  • Capacity: 250 N (50 lb)
  • Simulates a human finger in compression testing
Price € 39,00
More information

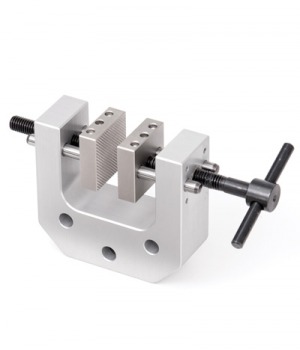

G1013 Parallel Jaw Grip

G1013
  • Parallel Jaw Grips
  • Capacity: 1000 N (200 lb)
  • Individually adjustable, serrated jaws, rugged and compact
Price € 241,00
More information

G1008-G1015 ASTM F88/D1876 Film & paper Peel Test Grips

G1015
  • Film & Paper Grips
  • Tensile & peel testing of film, paper, and other thin materials (1-7" wide)
  • Capacity: 500 N (100 lb)
Price from € 282,00
More information

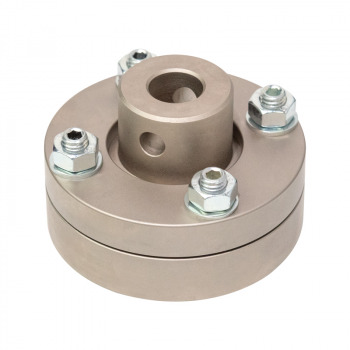

G1016 - G1017 Attachments for R51 Torque Sensor

G1016-G1017
  • Toque sensors Attachments
  • 11,5 Nm capacity
  • Secures fixtures, bits, or samples during torque testing
Price from € 157,00
More information

G1018 Swivel Adapters

G1018
  • Swivel Adapters for tensile testing
  • Capacity: 1000 N (200 lb) / 2500 N (500 lb)
  • Swiveling adapter, for use between gripping fixtures
Price € 69,00
More information

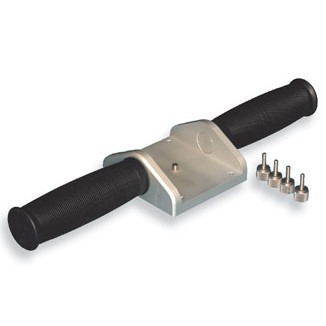

G1019-G1020-G1021-G1112 Ergonomic Padded Attachments

G1019-G1020-G1021
  • Padded Attachments
  • Capacity: 2500 N (500 lbF)
  • Padded attachments for ergonomics analysis and job task analysis
Price from € 49,00
More information

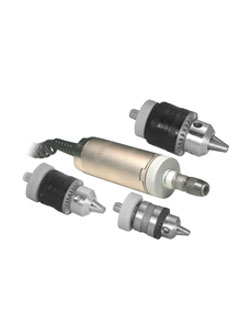

G1022 Jacobs Chuck Grips For TSTM

G1022
  • Jacobs Chuck Grips
  • 11,3 Nm [100 lbFin] capacity
  • Secures a fixture or sample during torque testing
Price from € 201,00
More information

G1023 Universal Bottle Grip For TST

G1023
  • Bottle Grip
  • Torque and top-load testing of closures, bottles.
  • Capacity: Toque-11.3Nm / Force-250N
Price € 565,00
More information

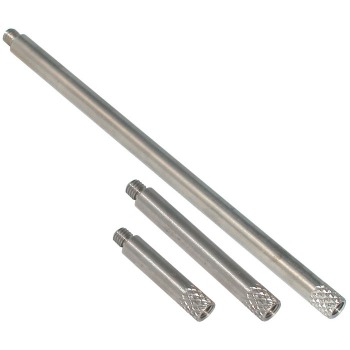

G1024-G1031 Extension Rods

G1024-G1031
  • Extension Rods
  • Capacity: 1000 N (200lb) / 2500 N (500lb)
  • Extension Rods, different threads and lengths available
Price from € 20,00
More information

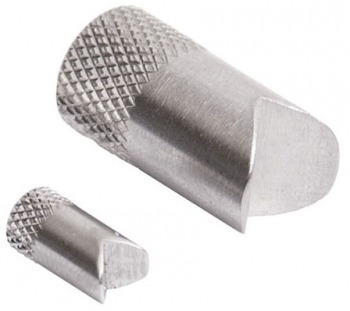

G1025-G1032 Chisels

G1025-G1032
  • Chisels for compression testing
  • Chisels, available in 2 different sizes
  • Capacity: 1000 N (200lb) / 2500 N (500lb)
Price from € 20,00
More information

G1026-G1033 Cones

G1026-G1033
  • Cones for compression testing
  • Cones, available in 2 different sizes
  • Capacity: 1000 N (200 lb) / 2500 N (500 lb)
Price from € 20,00
More information

G1027 - G1034 V-Groove Attachments

G1027-G1034
  • V-Grooves
  • Capacity: 1000 N (200 lb) / 2500 N (500 lb)
  • V-Grooves, available in 2 different sizes
Price from € 20,00
More information

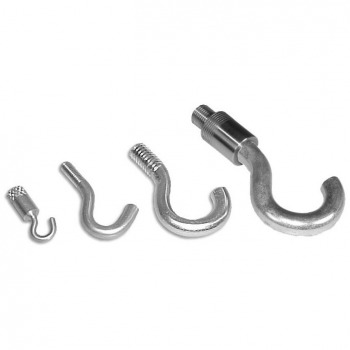

G1028, G1038, G1035 and G1042 Hooks

G1028-G1038-G1035-G1042
  • Hooks for pull test applications
  • Capacity: 100 N, 1000 N, 2500 N, 4500 N
  • Available in different sizes and threads
Price from € 15,00
More information

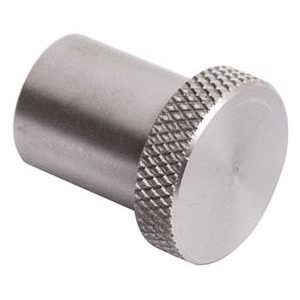

G1029 - G1036 Flat Heads

G1029-G1036
  • Flat Head
  • Flat Heads, available in 2 different threads
  • Capacity: 1000 N (200lb) / 2500 N (500lb)
Price from € 20,00
More information

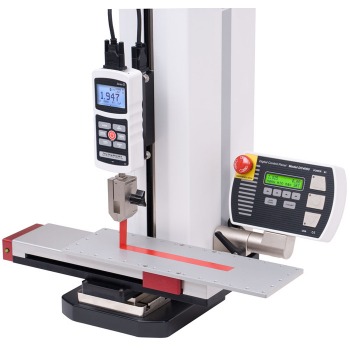

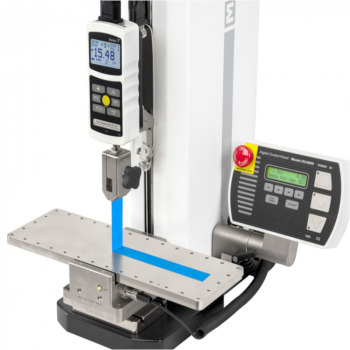

G1045 90° Peel Tester

G1045
  • Typical applications include the testing of adhesives, films, and packaging
  • Maintains 90° angle between the table and the direction of pull
  • Maximum table travel: 8.2 in (210 mm)
More information

G1046 Pneumatic Film & Paper Grip

G1046
  • Pneumatic Film & Paper Grip
  • Capacity 500 N
  • Integrated open/close valve
  • Air operated interlocking jaws
Price € 683,00
More information

G1053 Universal V-Jaw Grip

G1053
  • Cap Grip
  • 11.3 Nm (100 lbin) capacity
  • Secures bottle caps during torque testing
  • Suitable for Torque and force measurements
Price € 369,00
More information

G1056 Multi-jaw Grip

G1056
  • Multi-jaw Grip for pull testing
  • Capacity 500 N
  • For gripping round and irregularly shaped items
Price € 334,00
More information

G1058 Universal Cap Grip

G1058
  • Universal Cap Grip
  • 11,3 Nm capacity
  • Secures bottle caps during torque testing
  • Suitable for torque and pull testing
Price € 452,00
More information

G1061 Series Wedge Grip

G1061
  • Heavy Duty Wedge Grip
  • Capacity 250 N up to 9 kN
  • General tensile testing
  • Available in 4 versions
Price from € 506,00
More information

G1062 Miniature Wedge Grip

G1062
  • Miniature Wedge Grip
  • 500 N capacity
  • Low force self tightening grip
Price € 275,00
More information

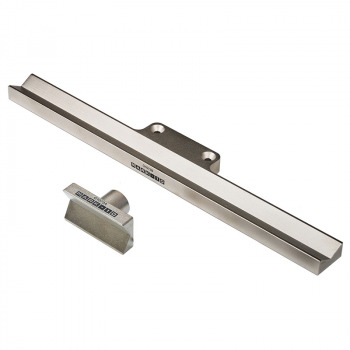

G1071 Score Bend Fixture

G1071
  • Set of upper and lower dies produce 90° bend in corrugated board and plastics
  • Meets the requirements of TAPPI T829
  • Mounts directly to F-Series test frames
Price € 506,00
More information

G1072 Opening Force Fixture

G1072
  • Set of upper lower dies provided to accommodate various sized packaging materials
  • Fixtures are easily removable
  • Mounts directly to the following test frames (motorized test frames recommended): F105, F305, F505, F755, and F1505 test frames. ESM303, ESM750, ESM1500, ES30, TSC1000, and TSF test stands. Also compatible with models ES10/ES20 test stands when ordered with optional AC1060 mounting plate.
Price € 457,00
More information

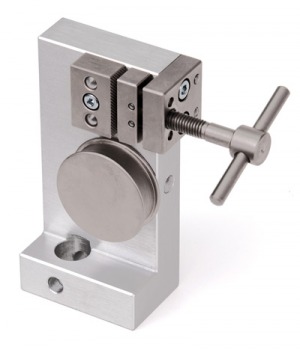

G1074 General Purpose Vise Grip

G1074
  • Vise Grip for general tension and compression testing
  • Capacity: 2500 N
  • Max. sample thickness: 38.1 mm
Price € 334,00
More information

G1076 Wire Terminal Grip

G1076
  • Wire Terminal Grip
  • Capacity: 2,5 kN
  • Pull testing of crimped terminals
  • Multiple sample slot widths, up to 6.3 mm (0.25 in)
Price € 393,00
More information

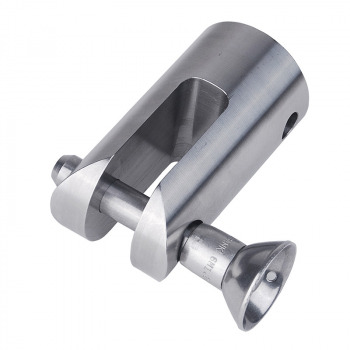

G1077 Clevis Grip

G1077
  • Secures a spring, chain, or other sample during tensile testing
  • Capacity 2,2 kN
  • A spring-loaded pin with ball plunger provides added safety
Price € 138,00
More information

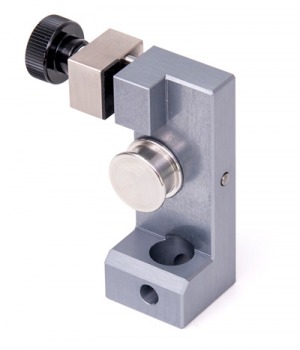

G1078 Miniature Filament Grip

G1078
  • Miniature Filament Grip
  • Maximum capacity 250 N
  • Optimizes sample support by anchoring it just below the clamp on a bollard
  • Securely handles wires ranging from 0 to 2.5 mm
Price € 285,00
More information

G1085 Adjustable Dual Roller Grip

G1085
  • Pull testing of tubes, cables, and odd sample shapes
  • Maximum capacity 2,5 kN
  • Adjustable cam spacing
Price € 452,00
More information

G1086 Coefficient of Friction Fixture

G1086
  • Coefficient Of Friction Fixture
  • In conformance to ASTM D1894
  • Static and kinetic coefficients can be measured using the M5-2-COF gauge
  • The sled weight can be configured from 100 to 1000 g
Price € 1.700,00
More information

G1087 Compression Plates, High Capacity

G1087
  • Compression Plates
  • for testing springs, foams, and other materials
  • High Capacity 2,000lbF [9kN]
Price from € 159,00
More information

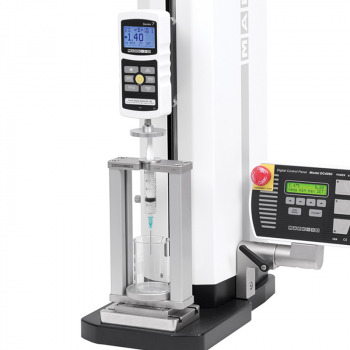

G1089 Syringe Compression Fixture

G1089
  • Plunger compression force testing
  • Conforms to ISO 7886-1
  • Maximum capacity 500 N
Price € 1.081,00
More information

G1090 High Capacity Clevis Grip

G1090
  • Secures a spring, chain, or other sample during tensile testing
  • Capacity 9 kN
  • Eye-End-Mounting
Price € 369,00
More information

G1092 High Capacity Wire/Rope Grip

G1092
  • Pull testing of wire, rope, and yarn
  • Maximum capacity 9 kN
  • Max sample size: Ø 10 mm
  • Eye end mounting
Price € 914,00
More information

G1093 High Capacity Wire Terminal Grip

G1093
  • High Capacity Wire Terminal Grip
  • Maximum Capacity 9 kN
  • Pull testing of crimped terminations
  • For wire diameters up to 11.8 mm (0.46")
  • Machineable for larger samples if required
Price € 1.519,00
More information

G1094 High Capacity Eccentric Roller Grip

G1094
  • High Capacity Eccentric Roller Grip
  • Capacity up to 9 kN
  • Pull testing of wire and other materials
  • Max. sample size: 32 mm thick x 60 mm wide
  • Eye end mounting
Price € 1.081,00
More information

The G1095-G1096-G1097 3-point / 4-point Bend Fixtures

G1095-G1096-G1097
  • 3-point / 4-point Bend Fixtures
  • Capacity: 2,5 to 10 kN
  • Accommodate a wide range of materials
  • 3-point and 4-point bend testing – mix and match upper and lower fixtures
  • Conform to ASTM C393, C1161, D790
Price from € 241,00
More information

G1098 Loop Tack Fixture

G1098
  • ASTM D6195 Loop Tack Fixture
  • Capacity: 500 N
  • Adhesive tack testing
  • Each Test strip supports three 25 mm2 test areas
  • Conforms to ASTM D6195
Price from € 282,00
More information

G1100 Large Parallel Jaw Grip

G1100
  • General tensile testing
  • Capacity: 9 kN
  • Max. sample thickness: 34.0 mm
  • Eye end mounting
  • Optional extended jaws available for large objects
Price € 678,00
More information

G1101 Medium Parallel Jaw Grip

G1101
  • General tensile testing
  • Capacity: 1 kN
  • Eye end mounting
  • Optional extended jaws available for large objects
  • Max. sample thickness: 32.3 mm
Price € 369,00
More information

G1102 Large Wire / Rope Grip

G1102
  • Pull testing of wire, rope, and yarn
  • Capacity: 5 kN
  • Maximum sample diameter: 5,3 mm
  • Integrated eye end mounting
Price € 678,00
More information

G1103 Medium Wire / Rope Grip

G1103
  • Pull testing of wire, rope, and yarn
  • Capacity: 1 kN
  • Maximum Sample Diameter: 6.6 mm
  • Integrated eye end mounting
Price € 432,00
More information

G1104 Flip Cap Pull Grip

G1104
  • Flip cap pull testing
  • Capacity 100 N
  • Spring loaded hook engages the cap’s tab
Price € 172,00
More information

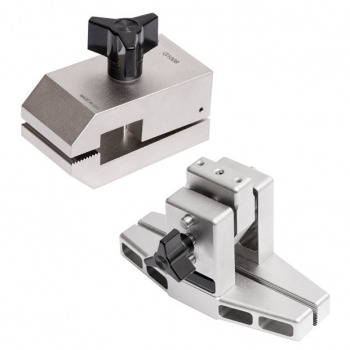

G1106 Self Centering Vice Grip

G1106
  • Self-centering vise grip with removable jaws
  • Capacity: 2500 N
  • General tension / compression testing
  • Maximum sample thickness 50,8 mm
Price € 850,00
More information

G1107 Snap Hook

G1107
  • General pull testing
  • Capacity 2,5 kN
  • Snap clasp provides added safety
  • Swiveling action ensures alignment
Price € 108,00
More information

G1109 90° Peel Test Fixture

G1109
  • Typical applications peel testing of tapes, films, foil seals, and other materials.< /b>
  • Capacity 500 N
  • Maintains 90° angle between the table and the direction of pull
  • Maximum table travel: 210 mm
  • Optional adjustable angle mounts, for 30°, 45°, and other angles
  • Conforms to: ASTM D6862, D3330, D903
Price € 2.044,00
More information

G1110 Puncture Fixture

G1110
  • Puncture resistance of plastic films and other thin materials
  • Capacity 5 kN
  • Conforms to ASTM D5748
  • Integrated eye-end mounting for fixture and probe

More information

G1111 Ribbon Wrap Grip

G1111
  • Secures textile webbing, tape, and braided materials during tensile testing
  • Capacity 10 kN
  • Conforms to ASTM D6775

More information

G1123 Self-Aligning Compression Plate

G1123
  • Self-leveling compression for ensuring parallelism and complete sample engagement
  • Integrated eye end mounting
  • Capacity: 9 kN / 900 Kgf
Price € 993,00
More information

Double Handle Grip

Double Handle Grip
  • Double handle grip for force and torque gauges
Price from € 113,00
More information

Single Handle Grips For Force Gauges

Single Handle Grip
  • Single handle grip for force and torque gauges
Price from € 93,00
More information

PTA

PTA
  • Plug & Test Load Cell Adapter
  • Suitable for 3i, 5i indicator
More information

Eye End Adapter For Mounting of Grips to Force Gauges / Sensors and Test Stands

Eye End Adapter
  • Method of attaching fixtures to load cells and test frames
  • Available as kits or individual components
Price from € 39,00
More information
