PTA PTA/PTAF Plug & Test Load Cell Adapter

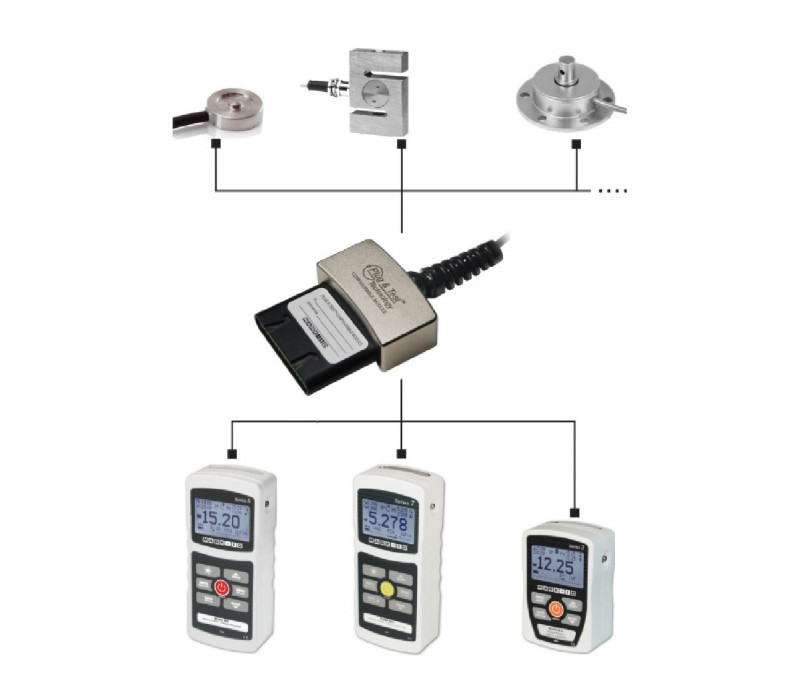

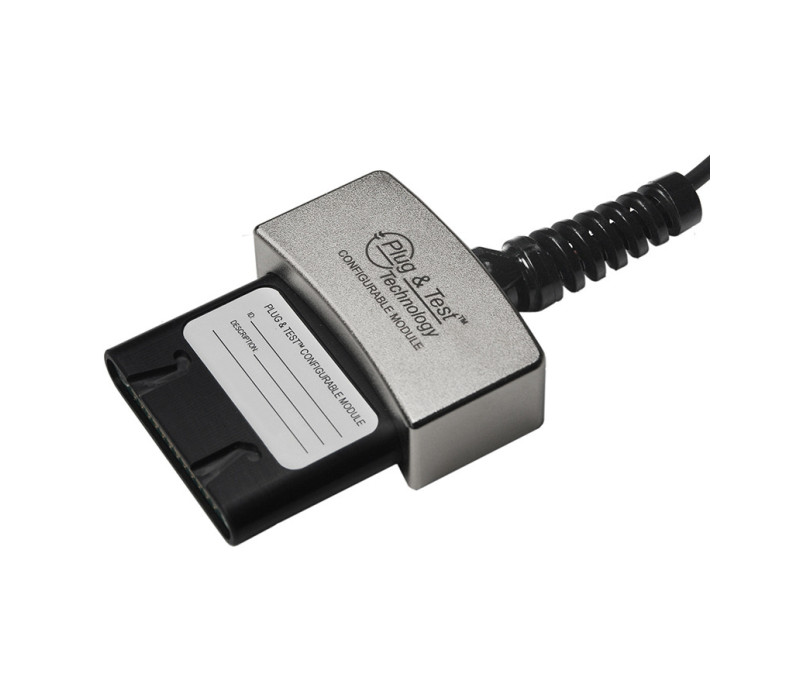

The PTA adapter interfaces with many strain gage-based sensors and Mark-10 indicators or Series F test frame

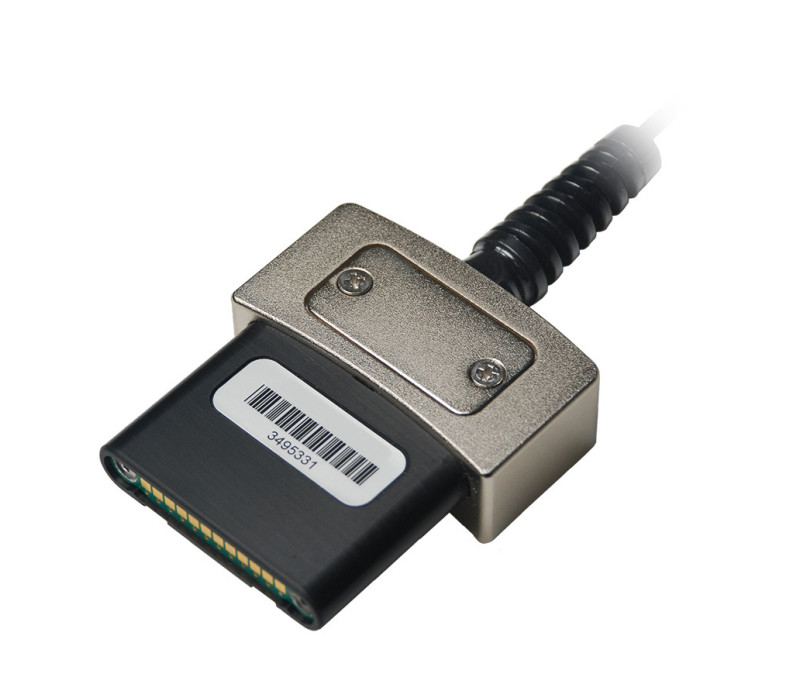

PTA Bottom can be opened for sensor connection

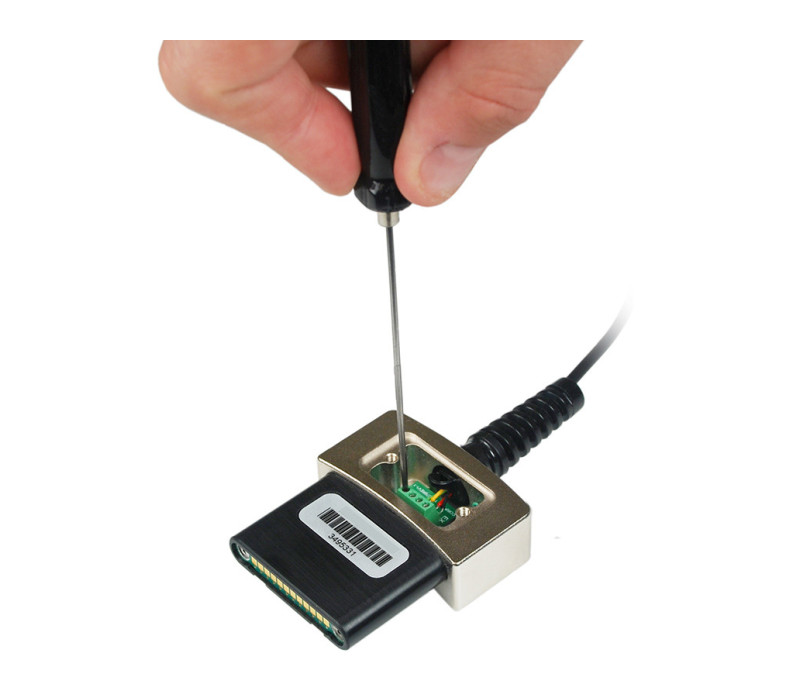

Sensor leads can be connected to a screw terminal block.

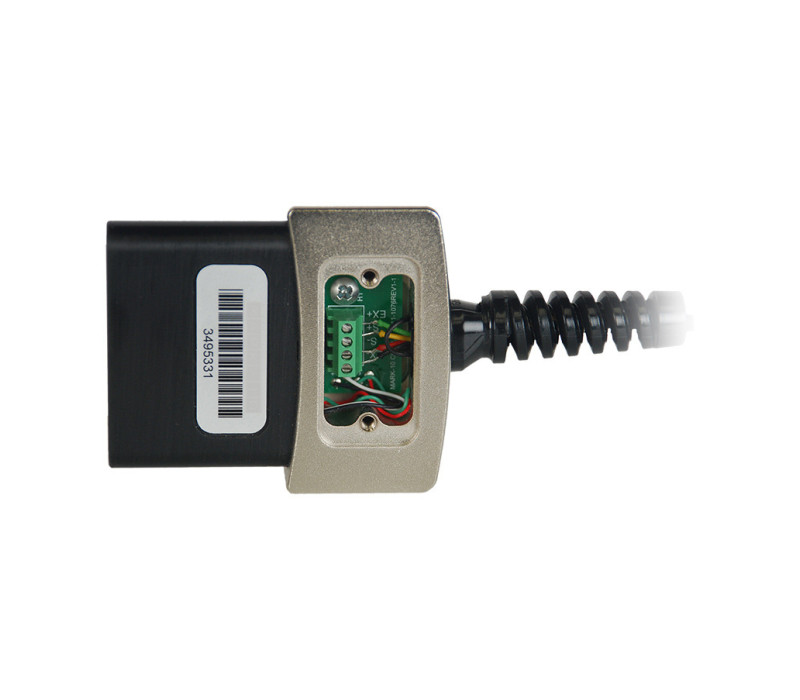

PCB and screw terminal block with clear label for each connection

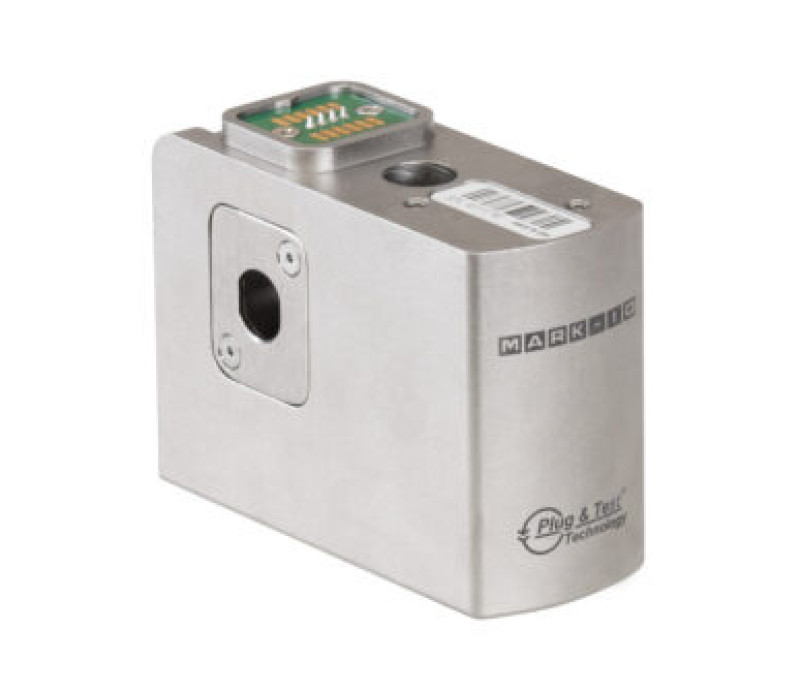

PTAF adapter for use on Model F105/F305/F505 test frames

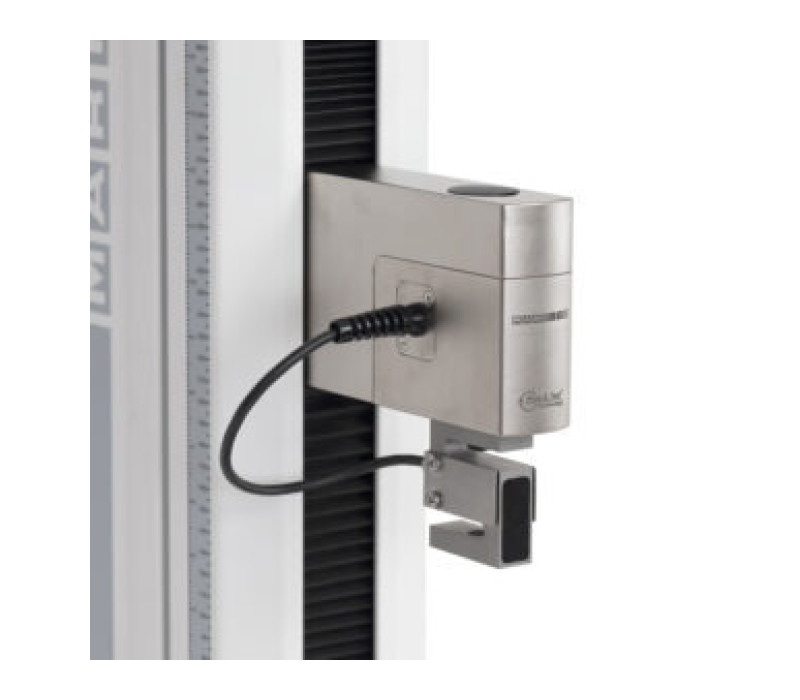

Model PTAF mounting a third-party S-beam load cell to a Model F305-IMT test frame.

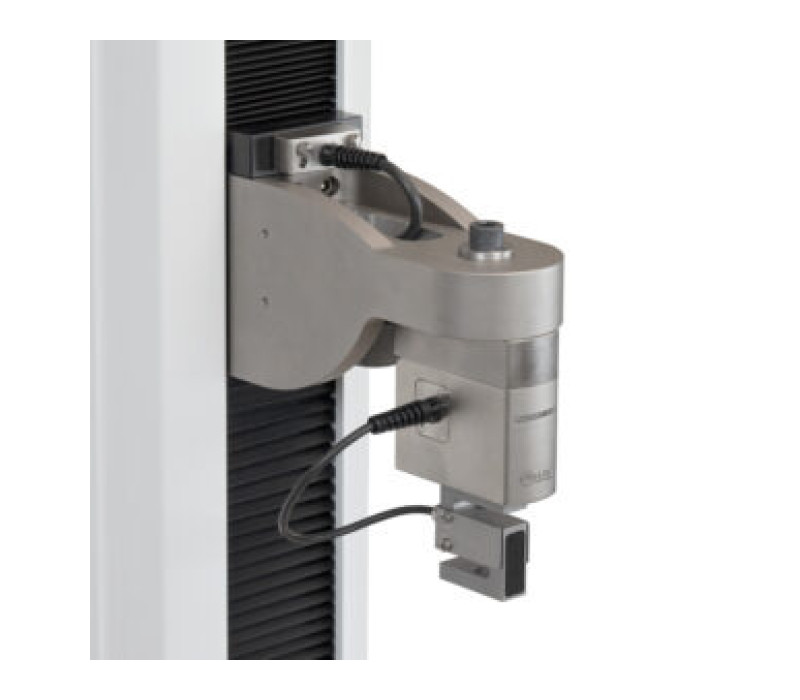

Model PTAF, in combination with an AC1083 adapter, mounting a third-party S-beam load cell to a Model F1505-IMT test frame

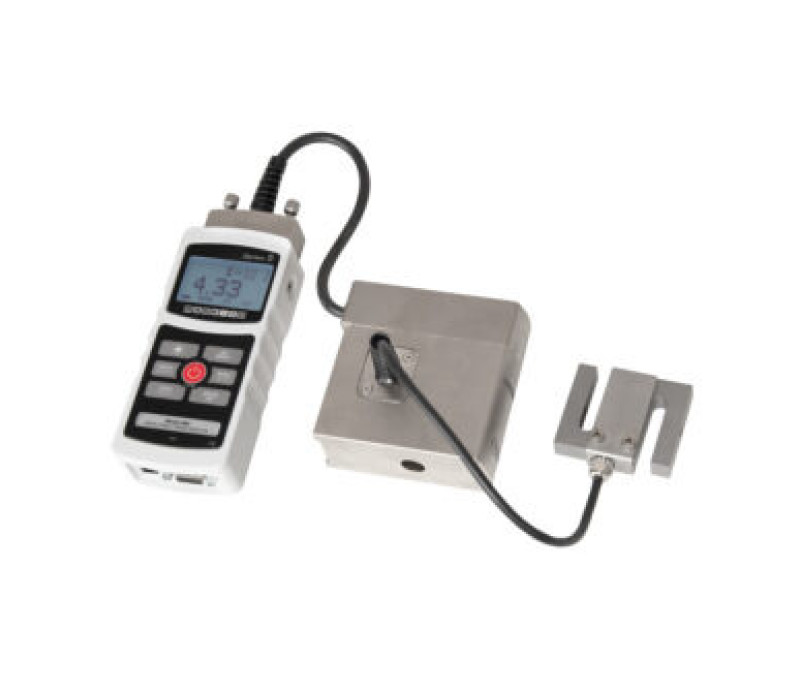

Model PTAF requires a Mark-10 indicator to configure a third-party sensor, as shown here. AC1083 adapter between the PTAF and indicator is required.

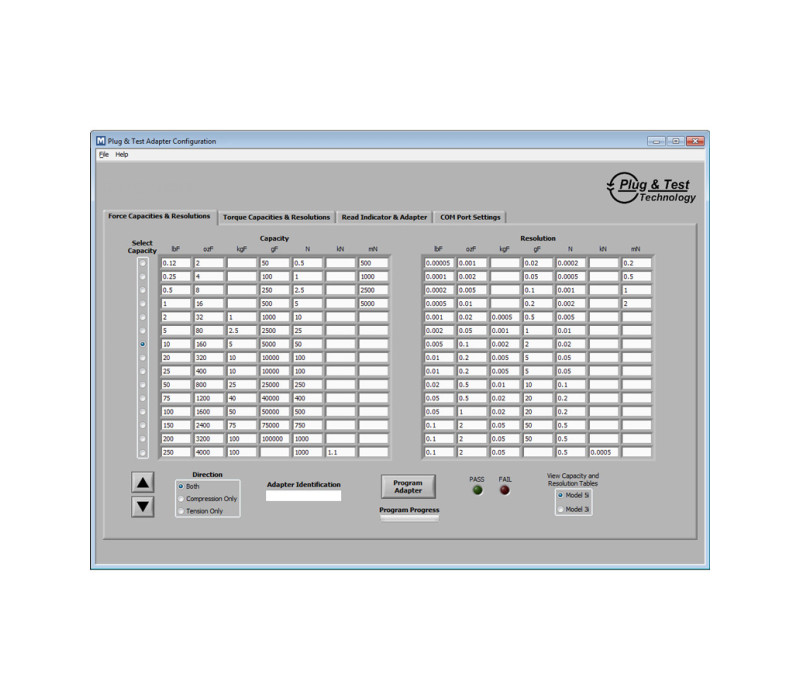

Plug & test software, select the desired force capacity, compression and/or tension and specify an identification number

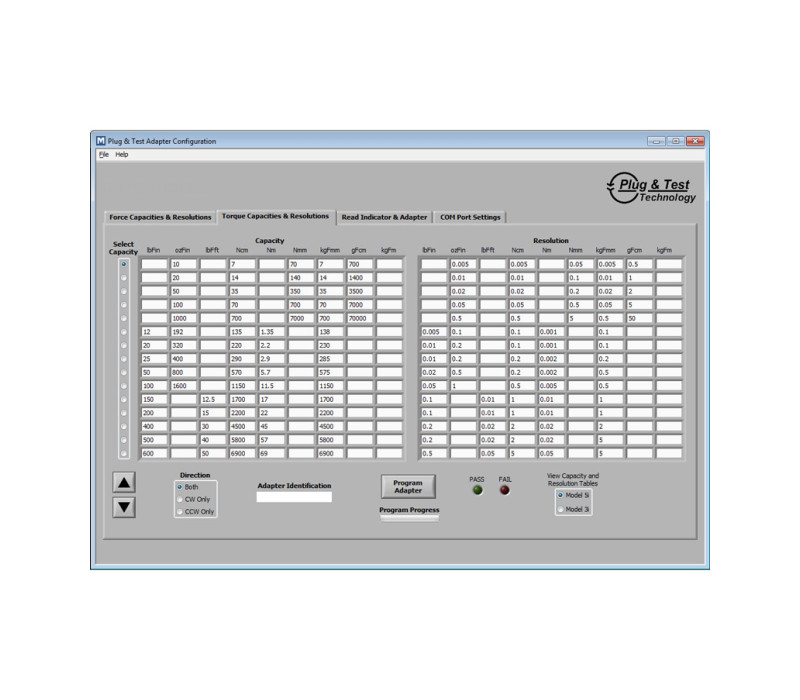

Plug & test software, select the desired torque capacity, direction and specify an identification number

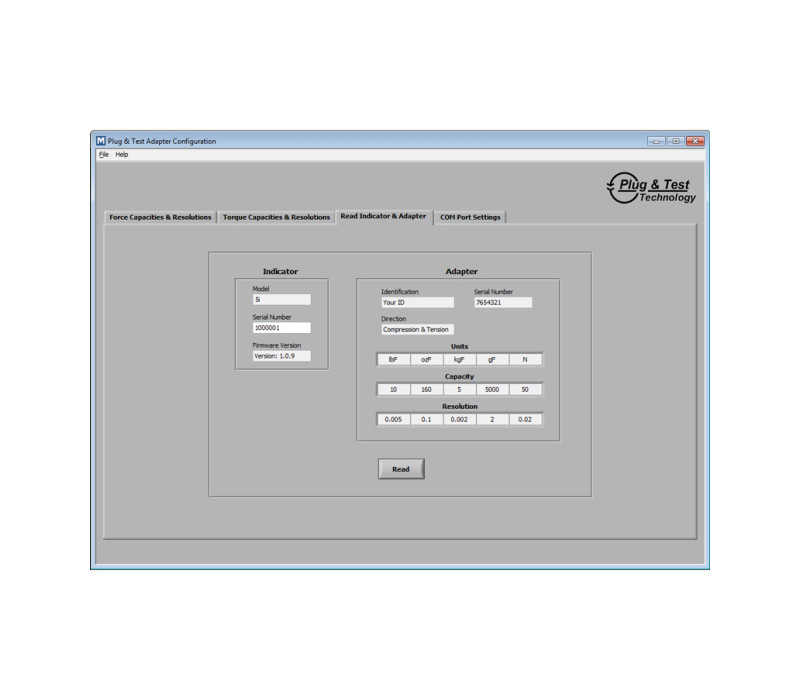

Screen to view load capacity and resolution, indicator identification, and adapter identification information.

PTA PTA/PTAF Plug & Test Load Cell Adapter

Name: PTA PTA/PTAF Plug & Test Load Cell Adapter
SKU: 127060

Plug & Test® technology is used with the Mark-10 Series-3I, 5I, 7I Indicators and Series-F Test frames.
To be able to connect user supplied strain gauge load and/or torque cells the PTA/PTAF adapter was developed..

Plug & Test® technology saves all configuration and calibration information within the adapters PCB. This flexibility allows for interchangeability between multiple sensors with any Mark-10 Series F test frame.

The PTA adapter is used with Series-#I Indicators and model F755 and F1505 test frames

The PTAF adapter is used connect to model F105, F305, F505 and F505H test frames and can be used on model F755 and F1505 test frames when an AC1083 adapter is used.

Sensor capacity and resolution may be configured via an included software utility, which includes a library of common force capacities from 0.5 N to 4,000 kN, and torque capacities from 7 Ncm to 57.000 Nm.
When an identification number is configured, it is displayed upon hardware power-up or the test stands display.

Price from € 253,00

Order now

Connects third party strain gauge load cell's to Mark-10 Series-F test frames and Indicators models
Compatible with strain gage-based load cells, force sensors, and torque sensors
Screw terminal block allows for easy connection of sensor wires
Software configuration utility is included, for easy programming of sensor capacity, resolution, and identification number
Supplied with a strain relief, user-writeable identification label, and Resource CD with software
Program the adapter via USB or RS-232 through the indicator

Video

▶

Sensor Requirements	Sensor type: Full bridge Sensor resistance: 300 - 1000 ohms Sensor sensitivity: 1 - 3 mV/V full scale
PTA	Mark-10 indicator with firmware version 1.0.9 or later The PTA adapter cannot be configured using older indicator versions.
PTAF	Mark-10 indicator with firmware version 2.2.8 or later The PTA adapter can be used with older indicator versions, however, the adapter cannot be calibrated for single-direction load cells, such as load button and thru hole type load cells.

Products

Item	Product	Price	Quantity	Action
133838	PTA - Plug & Test Load Cell Adapter	€ 253,00
140045	AC1083 - PTAF adapter, to Plug & Test® connector	€ 399,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
