IMF002 IMF002 Materials Testing Calculations Module for IntelliMESUR®

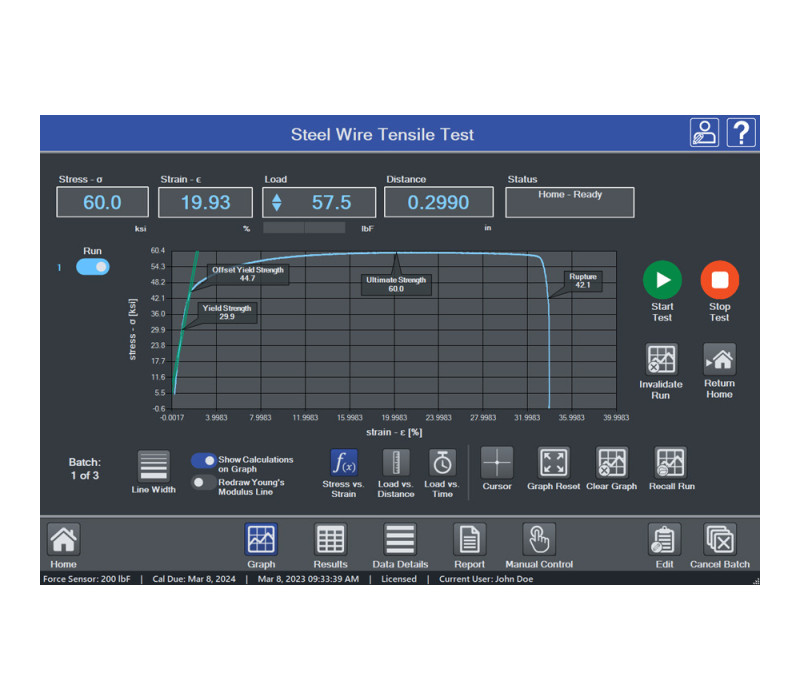

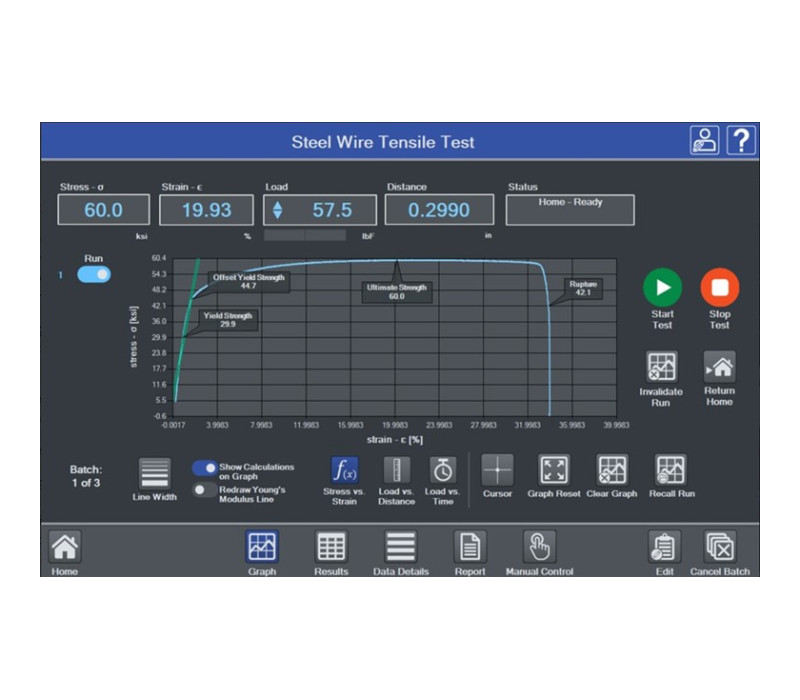

IntelliMESUR® plots stress vs. strain and displays a wide variety of materials testing calculations.

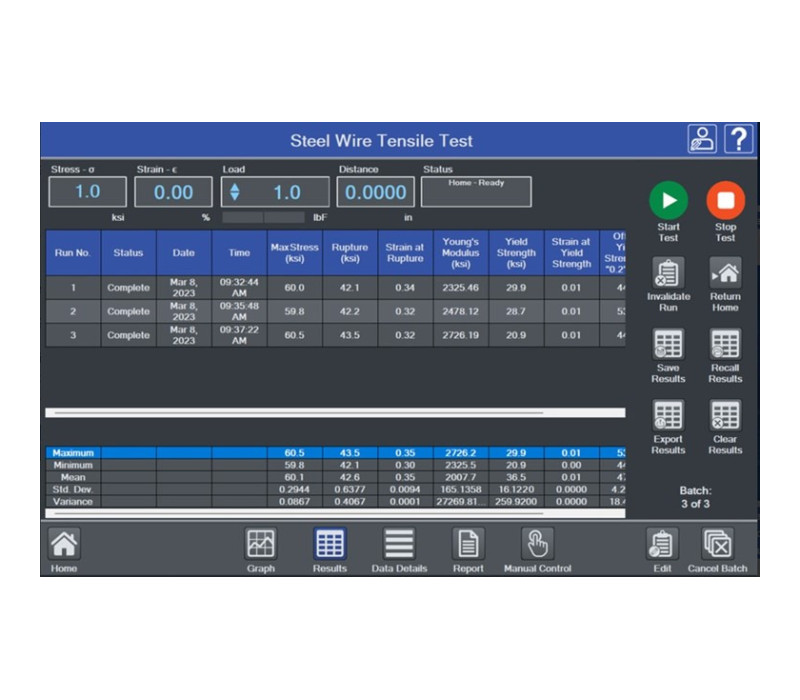

IntelliMESUR® tabulates test results, date/time stamps, system information, pass/fail status, and statistics for batches of runs. Export data or generate a report including the results, graph, system information, and notes.

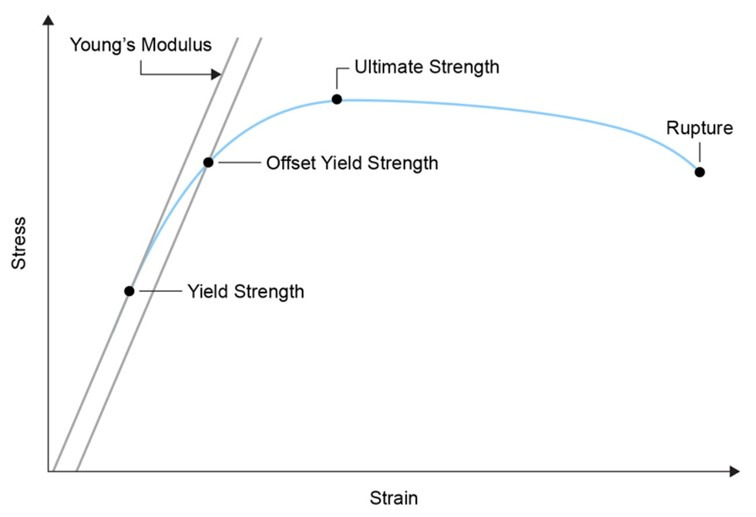

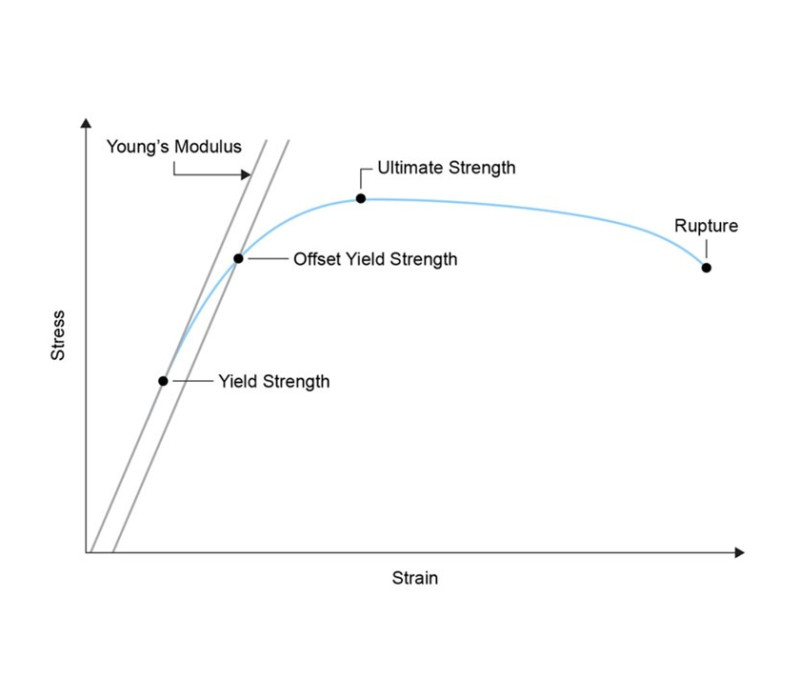

A typical stress-strain curve, with common materials testing calculations identified.

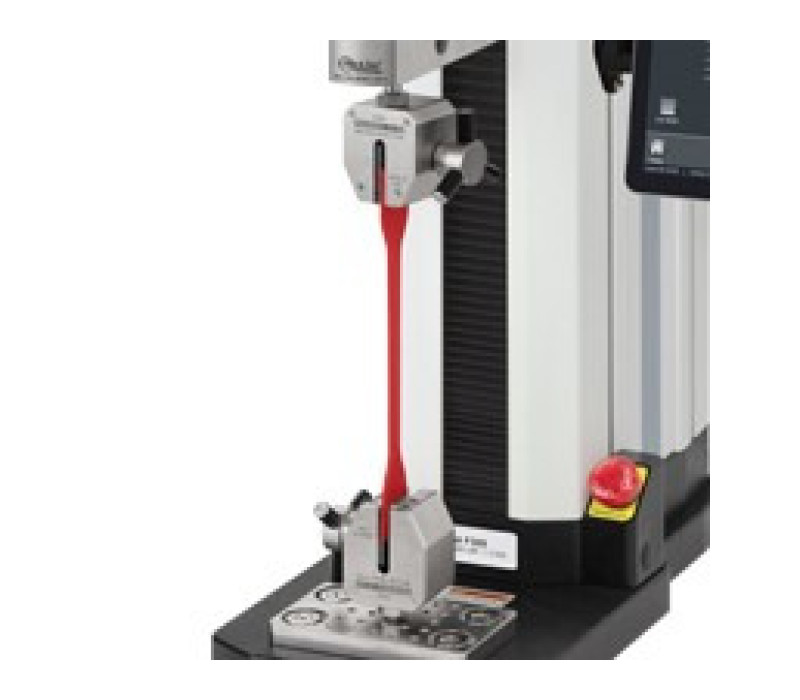

Tensile test with IntelliMESUR® system

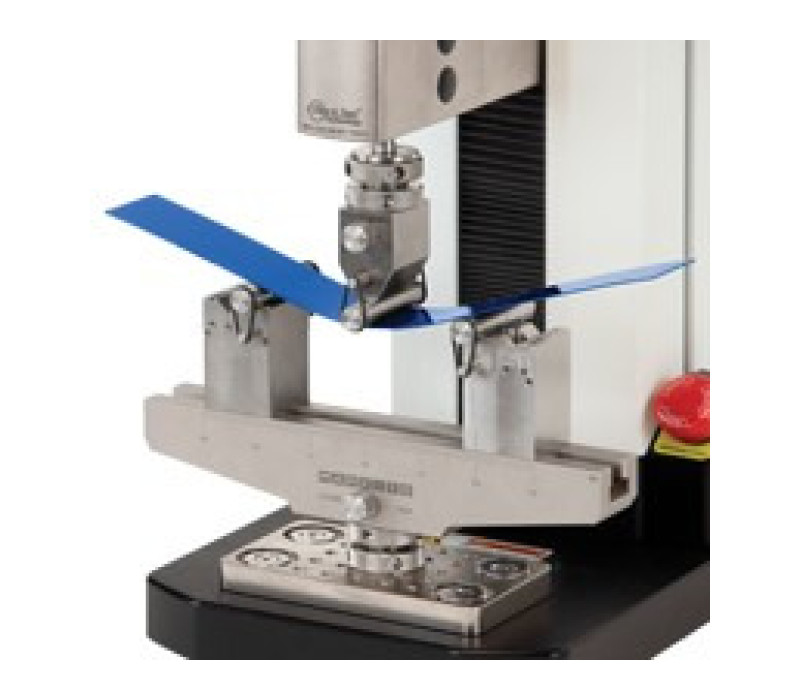

Bend test with IntelliMESUR® system

IMF002 Materials Testing Calculations Module for IntelliMESUR®

The IMF002 module enables the characterisation and analysis of the mechanical behaviour of materials through advanced calculations of stress, strain, and strength. It is an essential tool for engineers, quality control laboratories, and R&D departments requiring precise and comprehensive data on their samples.

Compatible with IntelliMESUR® testing systems, this add-on provides automated calculations from tensile and compressive data, generating statistical results and stress-strain curves for comparison across multiple tests.

Key Features:

Comprehensive Materials Analysis: Ideal for studying metals, polymers, biomaterials, wood, and more.
Included Calculations:
- Stress: Force applied divided by the cross-sectional area of the sample.
- Strain: Percentage elongation relative to the original length.
- Tensile and Shear Strength: Automatic calculation of peak recorded values.
- Young’s Modulus: Automatically or manually calculated from the stress-strain curve.
- Yield Point and Offset Yield: Transition from elastic to plastic behaviour, with optional offset line (e.g. 0.2%).
- Rupture: Stress value at which the sample breaks.
- Percent Elongation: Total deformation before rupture.
- Flexural Modulus and Force per Unit Width: Specific calculations for bend testing and flat samples.
Stress-Strain Curve: Graphical display with automatic annotations of key parameters.
Statistical Results: Results table and simultaneous comparison of up to 10 tests.

Main Benefits:

Confidence in Results: Reliable calculations to validate mechanical performance of each sample.
High Precision: Ideal for environments requiring traceability, documentation, and repeatability.
Time Efficiency: Automated calculations reduce the need for manual data processing.

Contact us for more information on how the IMF002 module can enhance your testing with comprehensive and accurate materials calculations.

€ 2.746,00

Order now

Direct Integration: Exclusively compatible with IntelliMESUR® systems for hassle-free setup.
Customisable Results: Ability to define custom criteria such as offset yield, rupture threshold, or measurement units.
Comparative Curves: Display multiple tests in parallel for advanced graphical analysis.
Limitation: Calculations are not available for multi-step tests.

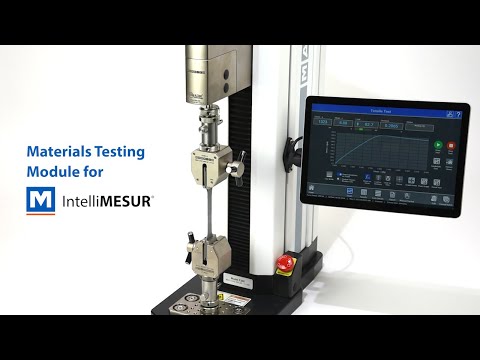

Video

Products

Item	Product	Price	Quantity	Action
139940	IMF002 Materials Testing Calculations Module for F-Series IntelliMesur®	€ 2.746,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

IMF002 Materials Testing Calculations Module for IntelliMESUR®

Features

Test stand with IntelliMESUR® F105 / F305 / F505 / F505H

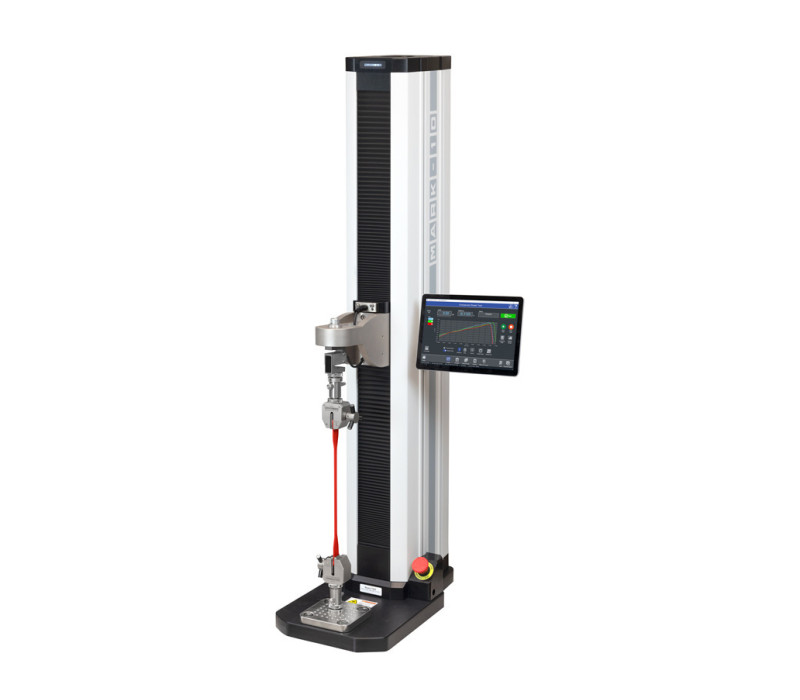

Test Stand with IntelliMESUR® F755 / F1505
