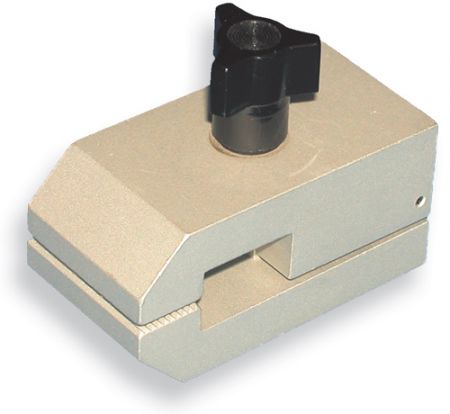

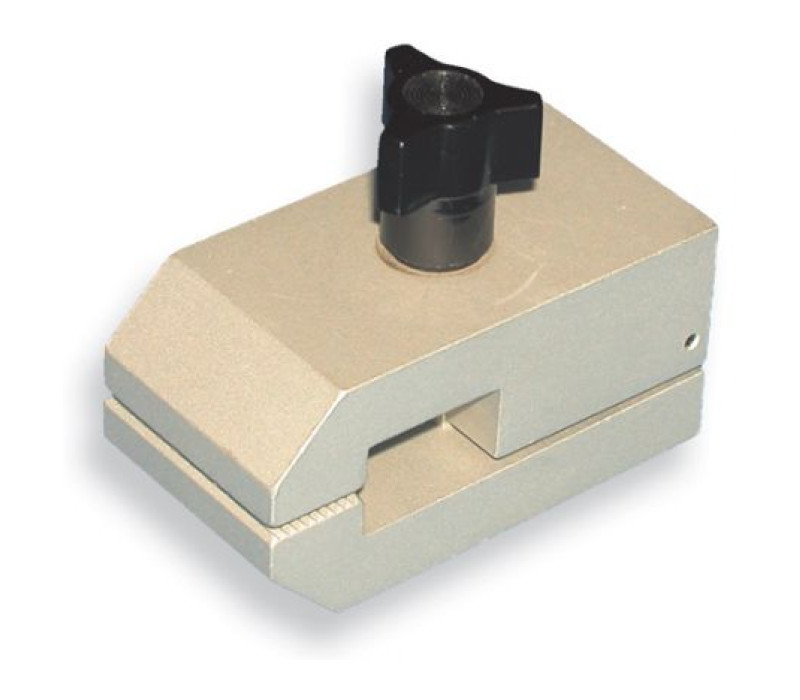

G1008 For 1 Inch Wide Samples

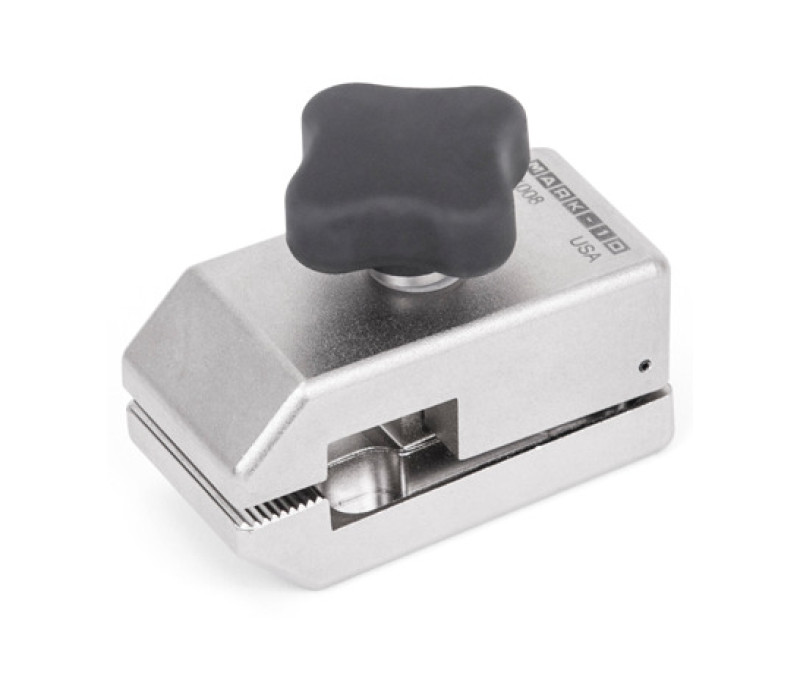

G1008 1.25" wide film & paper grip.

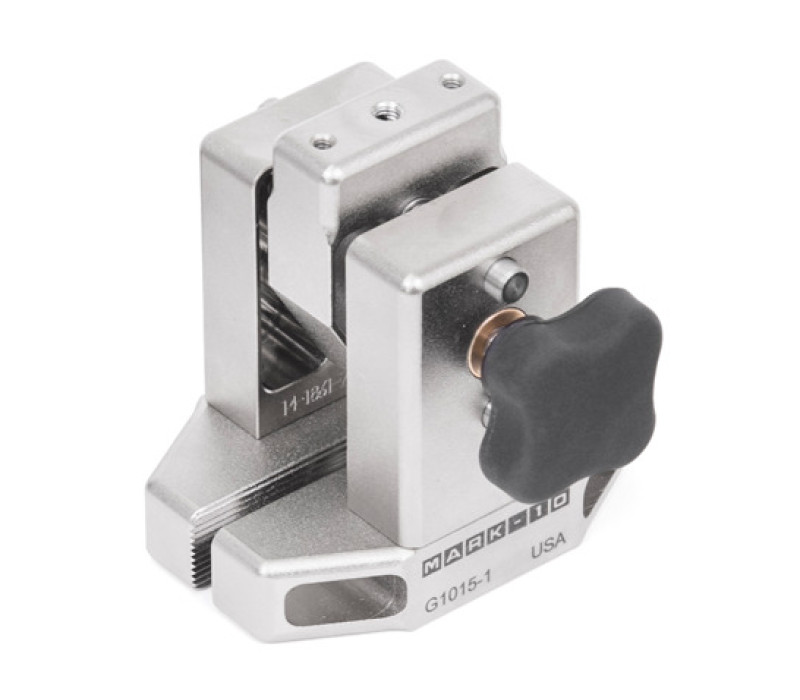

G1015-1 3" wide film & paper grip.

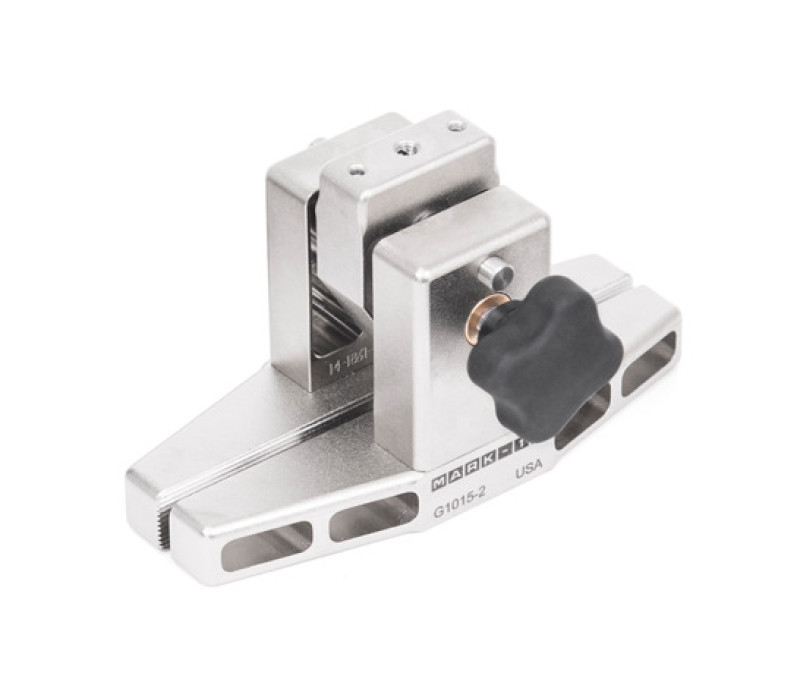

G1015-2 5" wide film & paper grip.

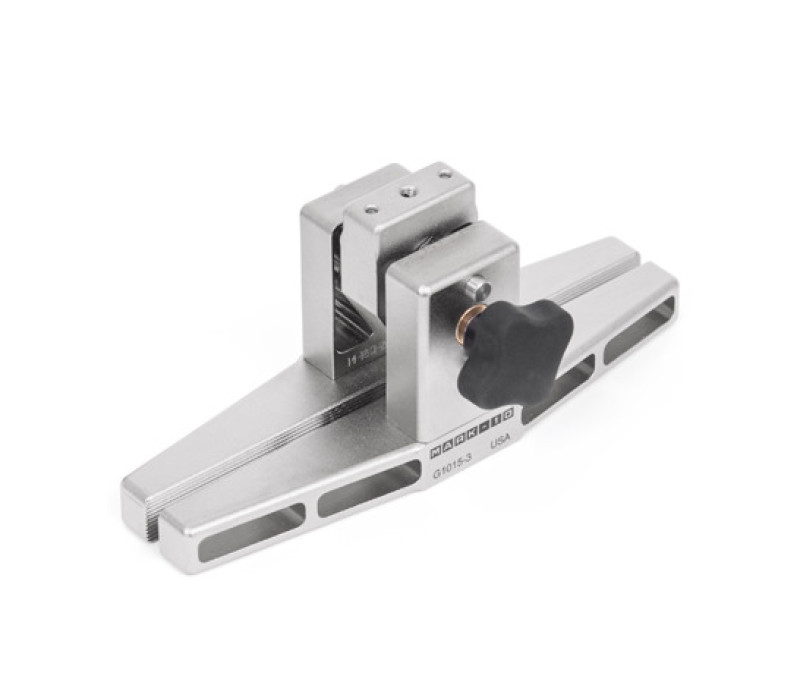

G1015-3 7" wide film & paper grip.

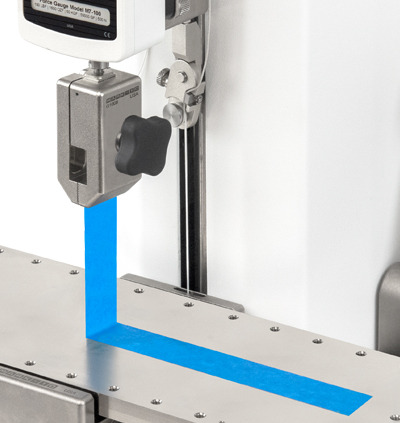

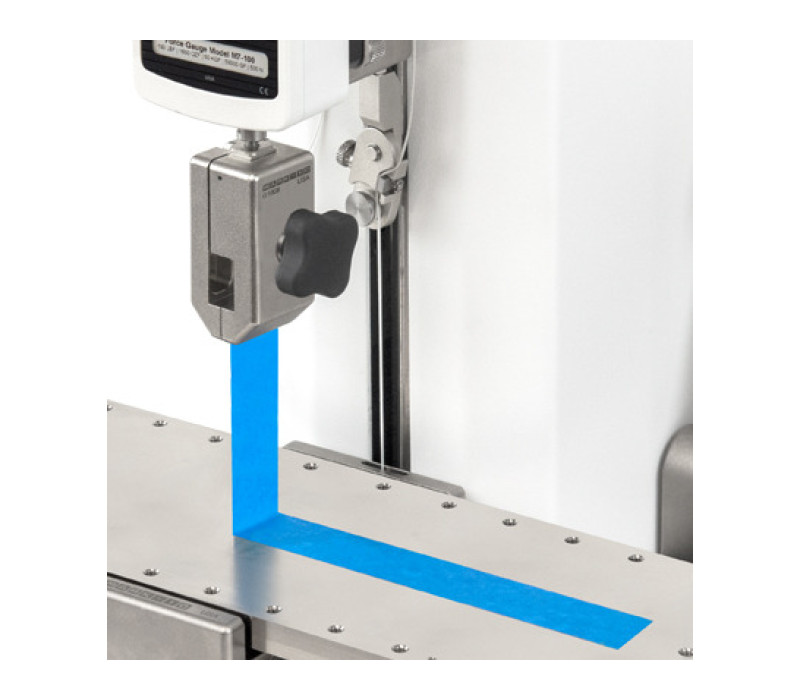

90° peel test of adhesive tape

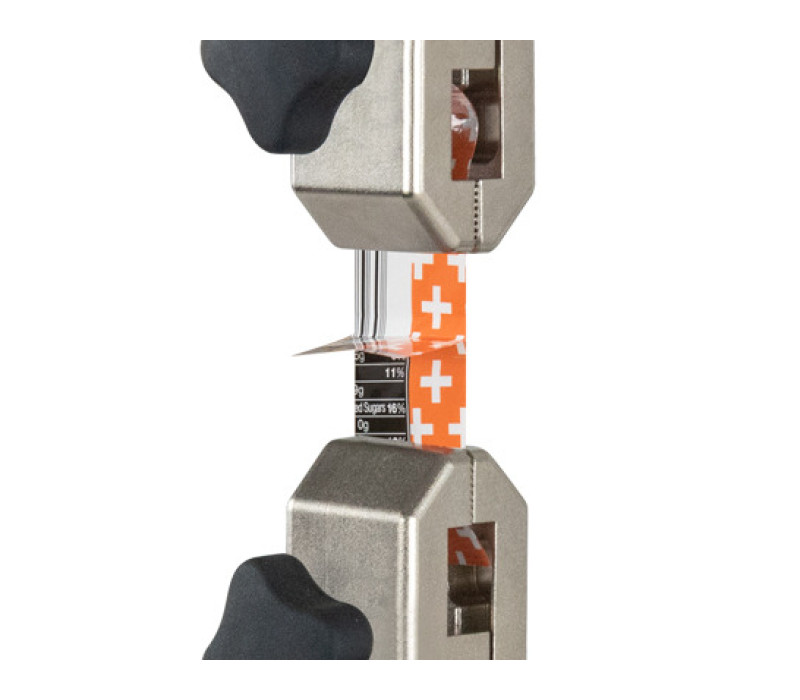

Pair of G1008 grips shown in a typical 180° peel test of a sealed package strip.

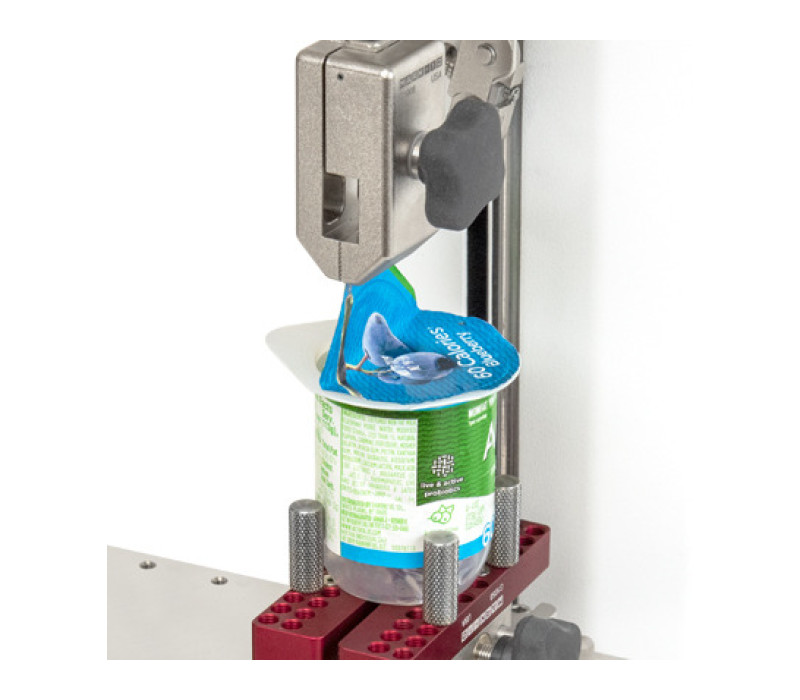

90° peel test of a foil seal

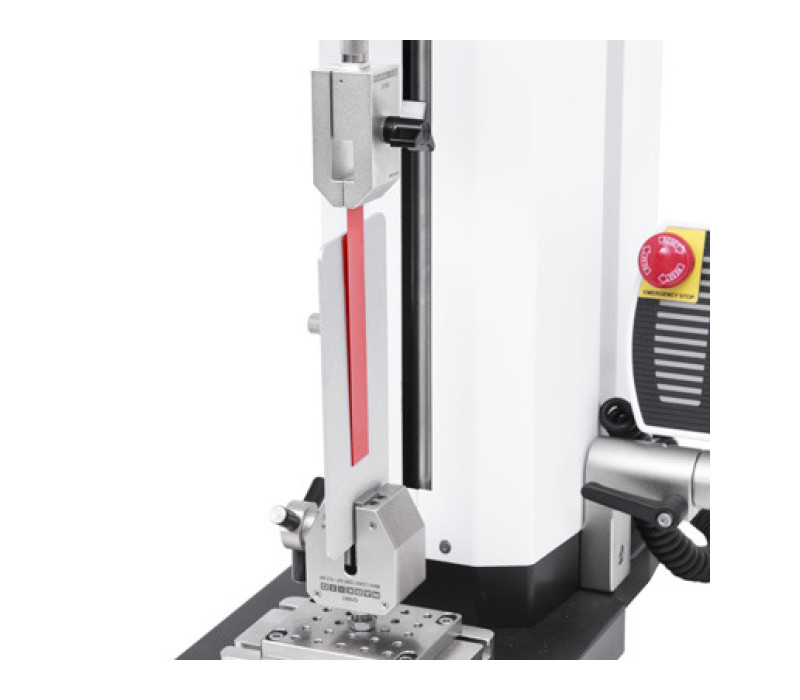

G1008 shown in a 180° peel test of adhesive tape. A metal strip is secured by the G1061 wedge grip.

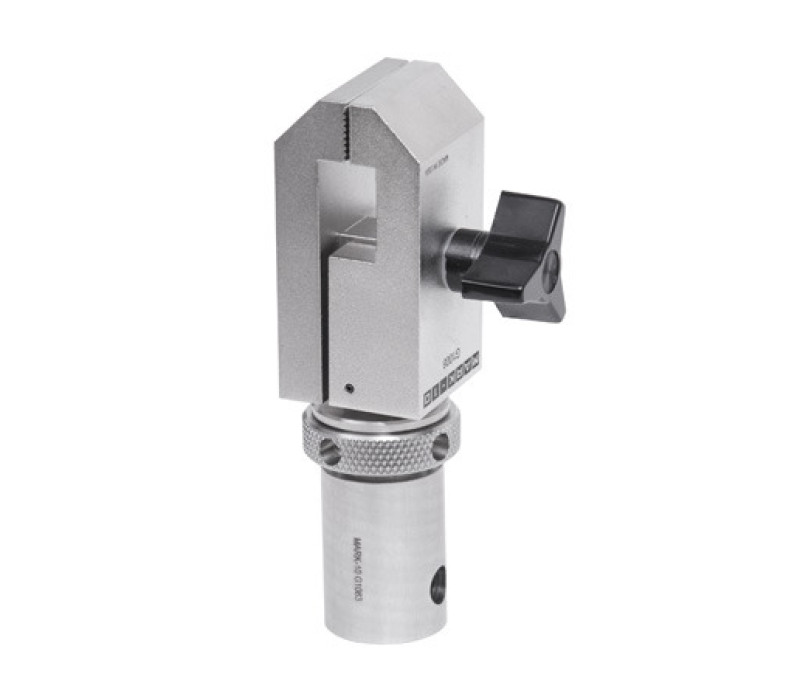

G1008 grip mounted to an Eye end adapter compatible with a variety of test stands, load cells, and force gauges

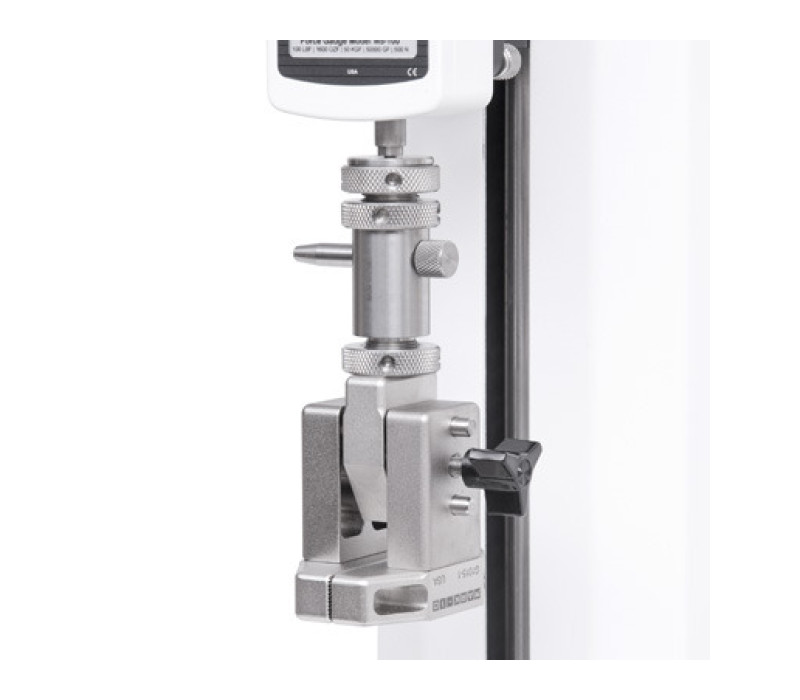

G1015-1 hanging from a quick-change eye end adapters for simple grip removal / installation, and also preventing rotation.

G1008 and G1015 Paper & Film Grips

Name: G1008 and G1015 Paper & Film Grips
SKU: 126092

The G1008 and G1015 grips are designed for tensile and peel testing of tape, film, paper and other thin materials as per ASTM F88/D1876 and related standards.

The G1008 grip comes in one width that is 31,8mm (1.25”). The G1015 grip comes in three width sizes 76,2mm (3”), 127mm(5”) and 177,8mm (7”).
All four grips are equipped with serrated interlocking jaws that easily adjust by an ergonomic knob that drives a durable acme screw for precise operation.

All four clamps can secure samples for a pull test up to 500 N of force.

The G1008 and G1015 film and paper peel test grips can, depending on the type of test, be connected to a test stand, load cell or force gauge by means of an (quick-change) eye end adapter and/or swivel adapter.
Eye end adapters enable easy grip removal / installation to adapt a test setup or run a number of tests with different samples and they prevent grip rotation during testing.

Price from € 276,00

Shop now

Available in four widths from 31,8 tot 177,8mm
Capacity 500 N
As per ASTM F88/D1876 and related standards.

G1008 and G1015 grips

D1 no header

Model	A	B	C	D	E
G1008	31,8 [1.25]	63,5 [2.5]	30,5 [1.2]	0 - 3,8 [0 - 0.15]	-
G1015-1	76,2 [3.0]	76,2 [3.0]	48,3 [1.9]	0 - 12,7 [0 - 0.5]	35,6 [1.4]
G1015-2	127,0 [5.0]	76,2 [3.0]	48,3 [1.9]	0 - 12,7 [0 - 0.5]	35,6 [1.4]
G1015-3	177,8 [7.0]	76,2 [3.0]	48,3 [1.9]	0 - 12,7 [0 - 0.5]	35,6 [1.4]
Metric sizes are noted in mm with imperial sizes in [inch] behind them.

Capacity:	500 N (100 lb)
Sample width	G1008: 31,8 mm G1015-1: 76,2 mm G1015-2: 127 mm G1015-3: 177,8 mm
Weight:	G1008: 100 gram G1015-1: 300 gram G1015-2: 400 gram G1015-3: 400 gram
Thread:	#10-32 UNF

Data Sheet for all Grips and Attachments

Solid Models - G1008

Solid Models - G1015-1

Solid Models - G1015-2

Solid Models - G1015-3

Products

Item	Product	Price
130491	G1008 Film and Paper Grip, 1.25" long, #10-32F	€ 276,00
130571	G1015-1 Film and paper grip, 3” wide, #10-32F	€ 363,00
130805	G1015-2 Film and paper grip, 5” wide, #10-32F	€ 436,00
130806	G1015-3 Film and paper grip, 7” wide, #10-32F	€ 455,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
