G1023 Universal Bottle Grip For TST

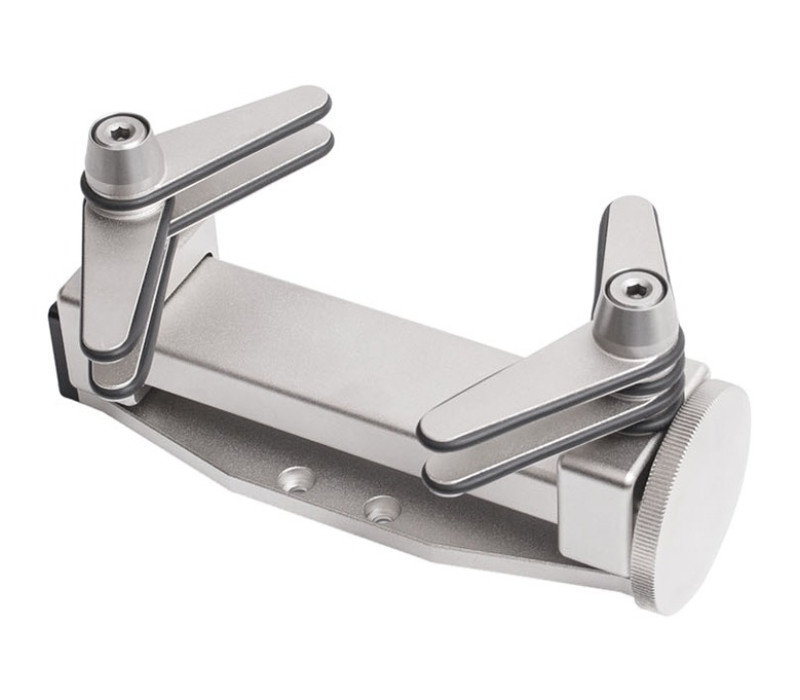

G1023 bottle grip is a flexible solution for many torque applications. Two sets of 4 rubber-edged gripping arms may be independently adjusted in 45° increments to accommodate a variety of bottle shapes and sizes.

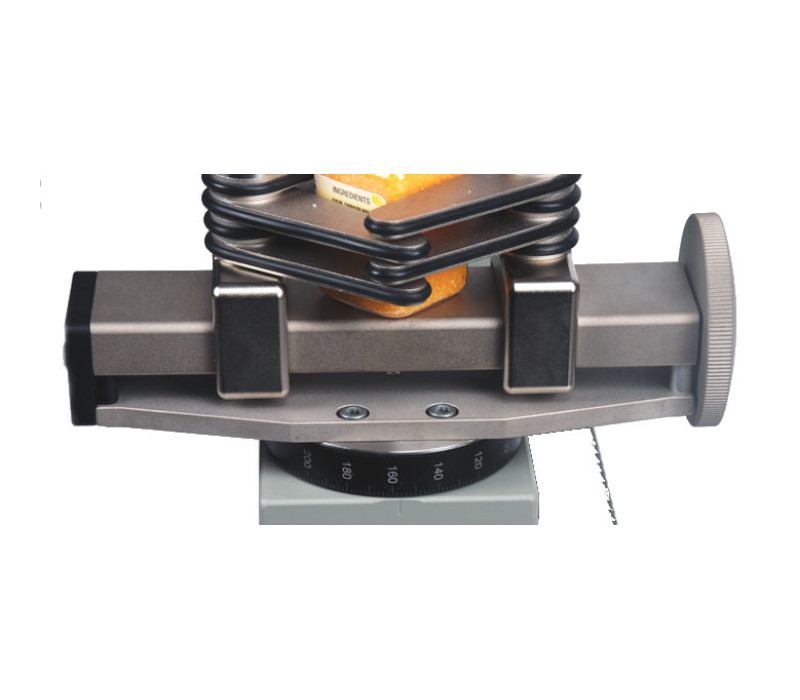

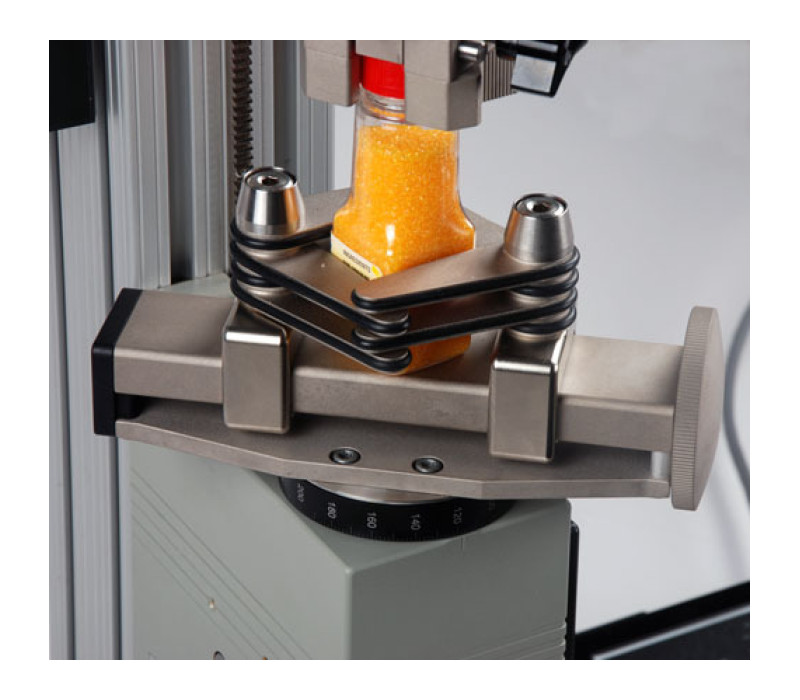

G1023 shown mounted to a torque test stand in a bottle cap torque testing application.

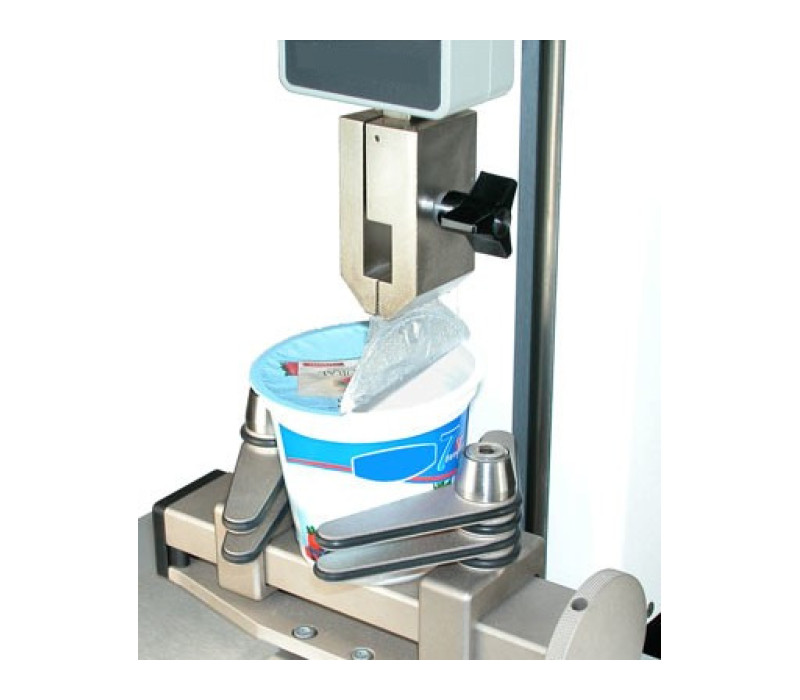

G1023 is shown in a foil seal peel application, mounted to a G1109 90° peel fixture, with AC1080 adapter.

G1023 Universal Bottle Grip For TST

Name: G1023 Universal Bottle Grip For TST
SKU: 126096
Price: 538.00 EUR
Availability: PreOrder

The G1023 Universal Bottle Grip is designed to hold round, square or odd shapes during torque or force tests.
It has a unique design with 8 steel fingers, with rubber edges for gripping purposes, that is flexible to hold a variety of shapes during torque and tensile tests. Items like bottles, jars, containers or other odd shaped objects can be clamped for a variation of tests.

In combination with the G1109 90° peel fixture, AC1080 required, peel tests can be performed, a wide range of shapes can be individually positioned at angles of up to 180°.

The G1023 has a maximum clamping circle of 122 mm, a torque capacity of 11,3 Nm and a force capacity of up to 250 N.
The angle of each finger is set first after which the two segments are clamped against the test sample.

The G1023 bottle grip comes with mounting hardware to connect it to a TSTM test stand

€ 538,00

Order now

Individually adjustable rubber-edged gripping arms
May be used in torque and force measurement applications
Adapts to a variety of shapes

G1023 Bottle Grip

D1 no header

Model	ØA
-	4.80 [122.0] MAX
Sizes are noted in inch with metric sizes in [mm] behind them.

Data Sheet for all Grips and Attachments

Capacity:	Toque-11.3 Nm (100 lbin) Force-250 N (50 lbF)
Size:	89.2 mm x 84.1mm x 35.1 mm (7.45" x 3.31" x 4.50") with arms extended at 180°
Weight:	0.18 kg (0.39 lb)
Sample size:	Up to 122 mm (4.8") dia
