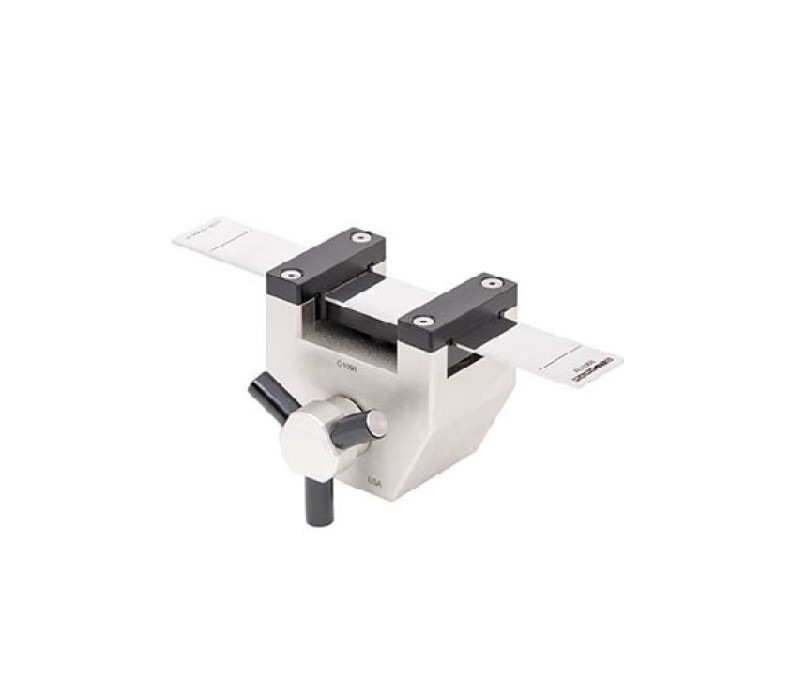

G1098 ASTM D6195 Loop Tack Fixture

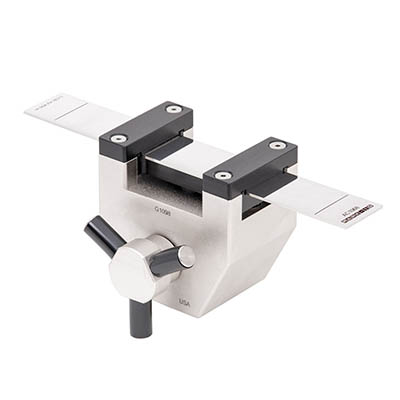

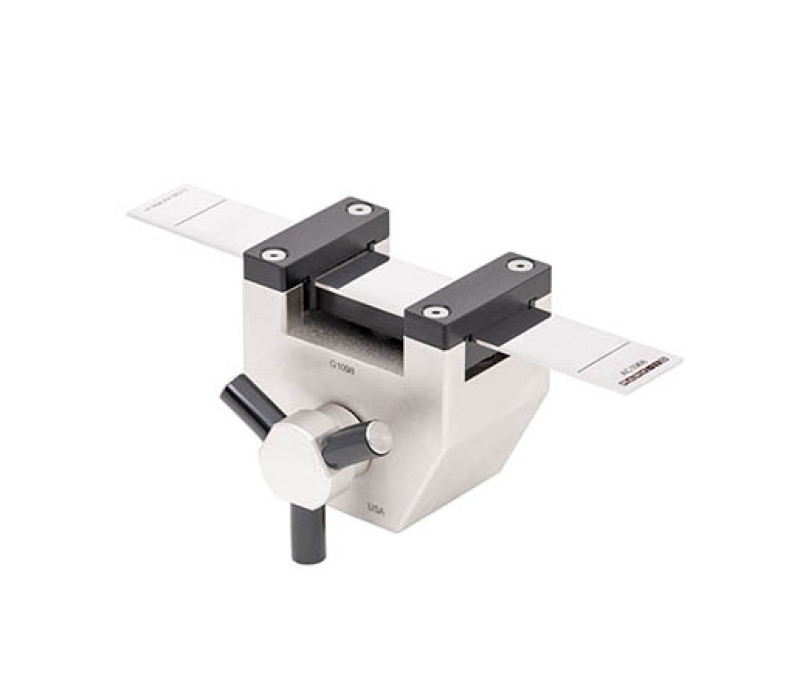

G1098 loop tack fixture includes an indexable test strip with three test locations. Features a lever-operated strip clamp

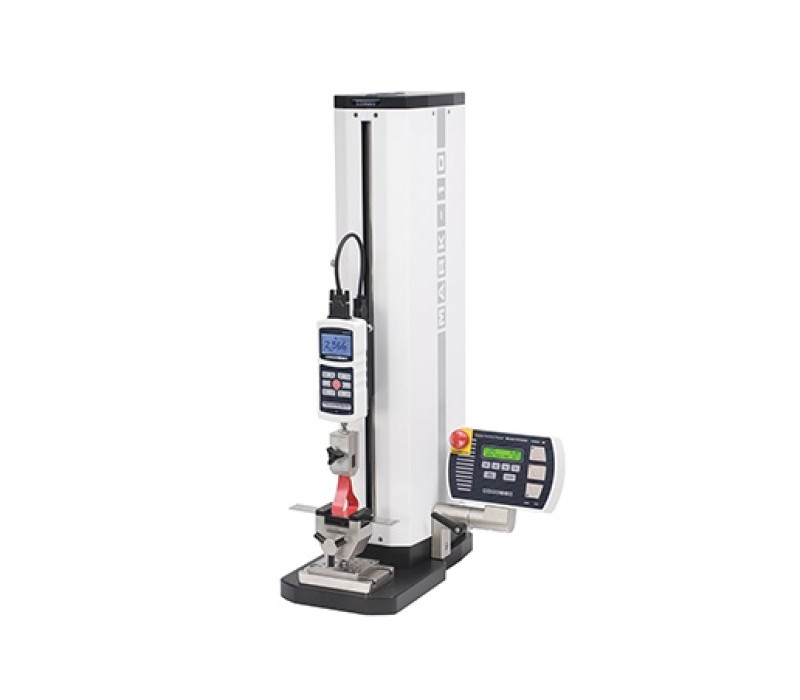

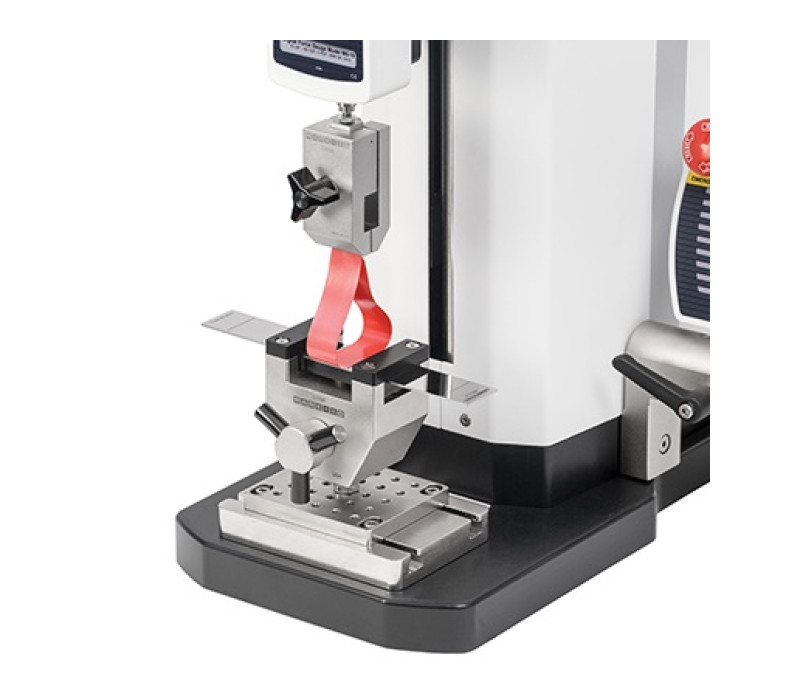

G1098 is shown in a typical system, with motorized test stand, force gauge, and G1008 upper grip.

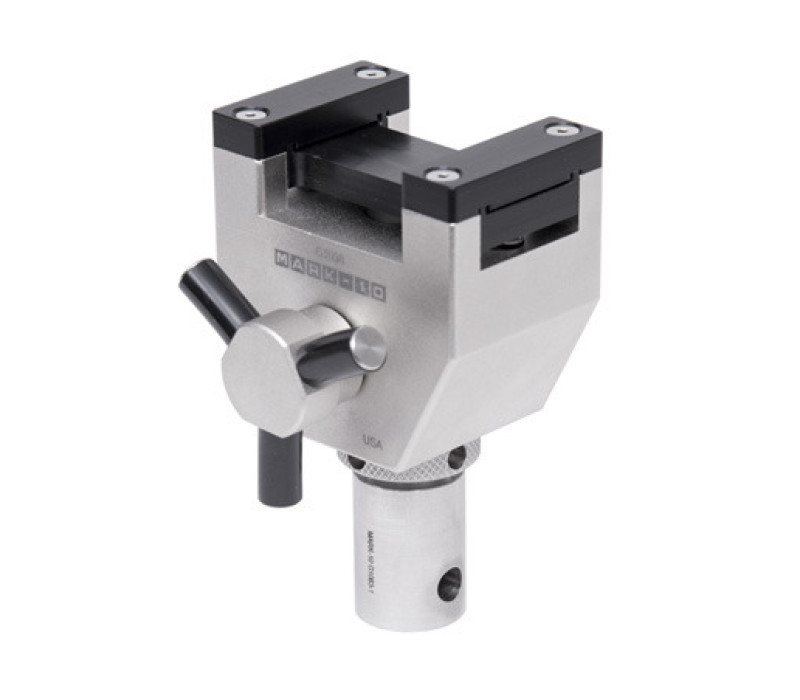

Eye end adapters are compatible with various test stands, load cells, and force gauges

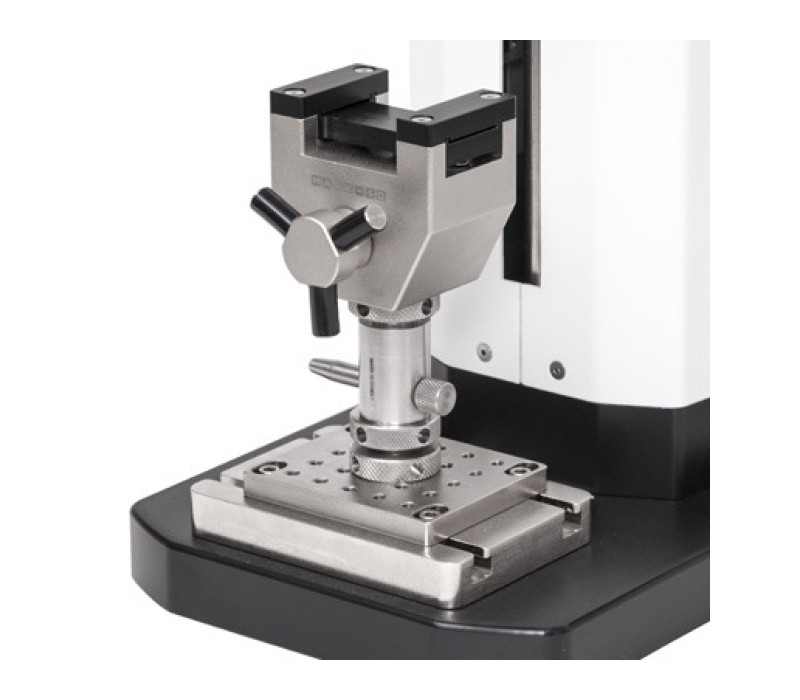

A quick-change eye end adapters allows for simple grip removal / installation, and prevent rotation.

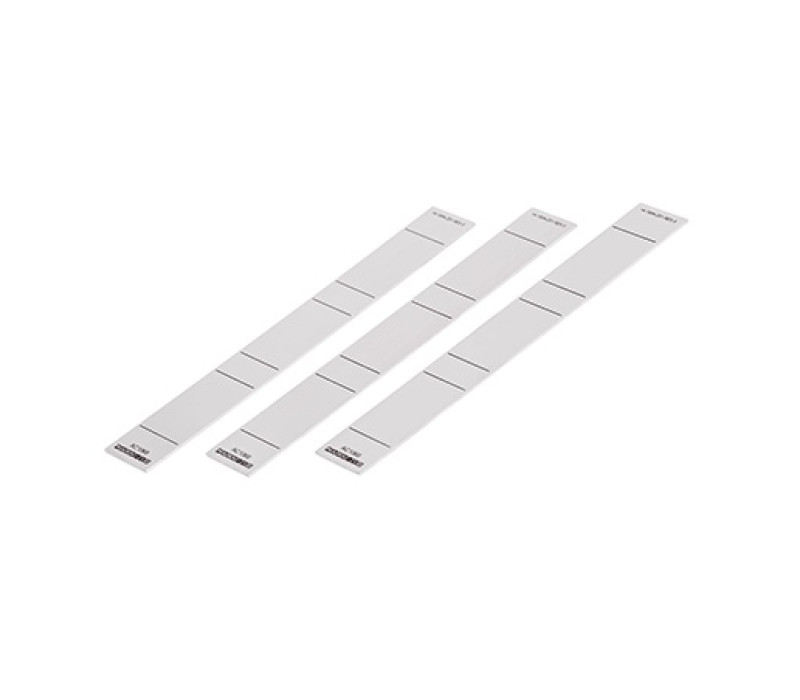

Available set of three test strips, AC1086

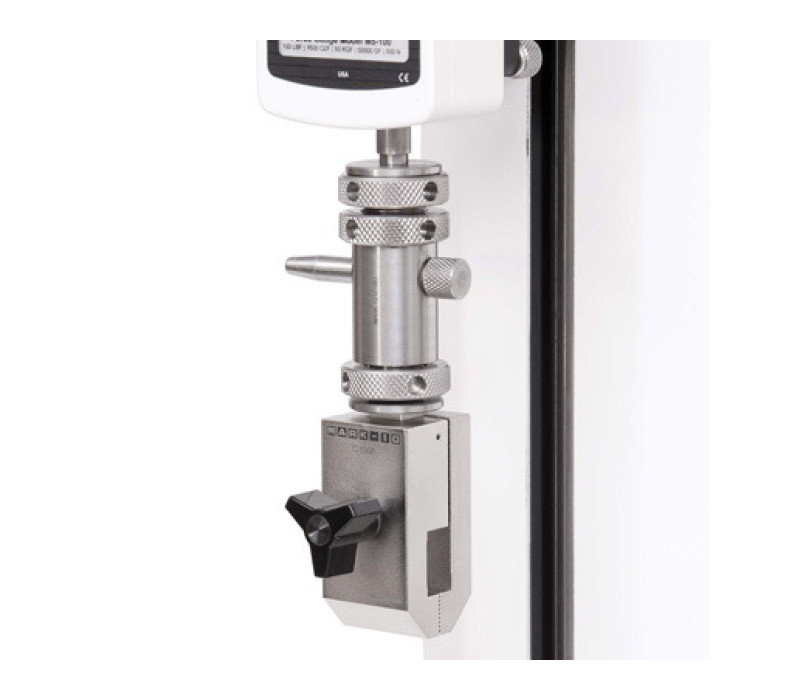

G1008 mounted to an eye-end-adapter is reconmended as an option for the upper grip

G1098 Loop Tack Fixture

Name: G1098 Loop Tack Fixture
SKU: 127226

The G1098 Loop Tack Fixture is expertly engineered for conducting tack force testing on pressure-sensitive adhesives, ensuring compliance with ASTM D6195 and relevant industry standards.

This test assesses the immediate adhesive strength of an adhesive without allowing it sufficient time or pressure to fully bond with the test strip. Such a test is frequently employed by label manufacturers to evaluate the adhesive quality of their labels.

This fixture simplifies the testing process by loading a looped adhesive sample onto the test strip, with the closed end of the loop being securely fastened using an upper grip (please note that the upper grip is not included, and we recommend our G1008 model for this purpose).

One notable feature of this fixture is its ability to index the test strip in three distinct positions, enabling you to conduct up to three tests before requiring cleaning. The strip is easily secured and released through a user-friendly, lever-operated clamp mechanism.

This fixture includes one test strip and a 5/16-18 M/M stud with jam nuts.
An additional set of three test strips, AC1086, is available, ensuring you have everything you need for your adhesive testing requirements.

Price from € 275,00

Shop now

Designed for loop tack force testing
Quick-change mechanism for test strips
Conforms to ASTM D6195
Each Test strip supports three 25 mm2 test areas
includes one test strip and a 5/16-18 M/M stud with jam nuts.

Video

▶

G1098 Loop Tack Fixture

All sizes are noted in inch with metric sizes in [mm] behind.

Capacity	500 N
Test strip material	T304 SS, per ASTM A666
Dimensions	71.1 mm x 67.7 mm x 68.6 mm (length x width x height), inner span 40.6 mm
Standard Accessories	1 Test strip and 5/16-18 M/M stud with jam nuts
Weight	500 g, including one test strip
Shipping Weight	900 g

Datasheet for all Grips

Solid Models G1098

Products

Item	Product	Price	Quantity	Action
135432	G1098 Loop tack fixture, 5/16-18F	€ 900,00
130491	G1008 Film and Paper Grip, 1.25" long, #10-32F	€ 275,00

Accessories

Item	Product	Price	Quantity	Action
135433	AC1068 Test strips for G1098, set of 3	€ 179,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request
