G1058 Universal Cap Grip

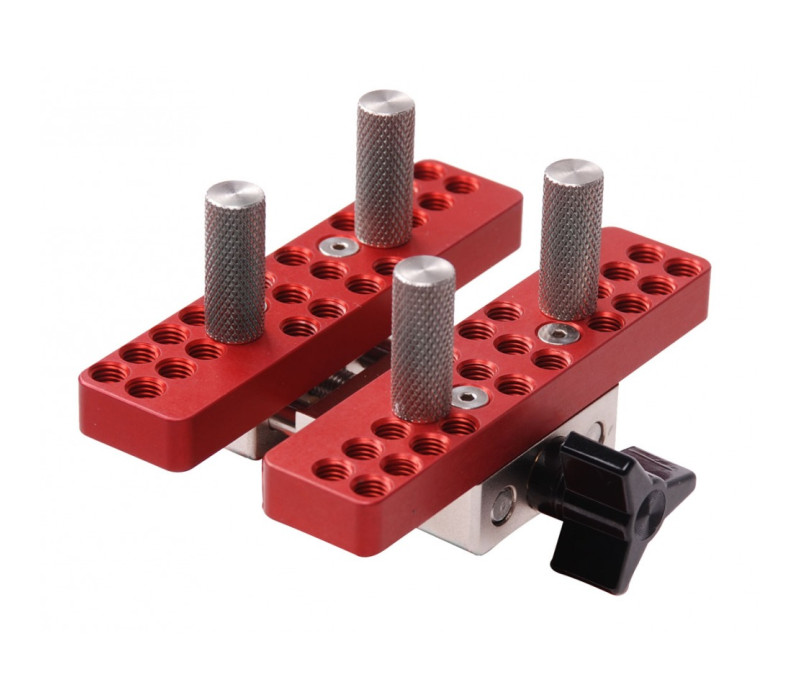

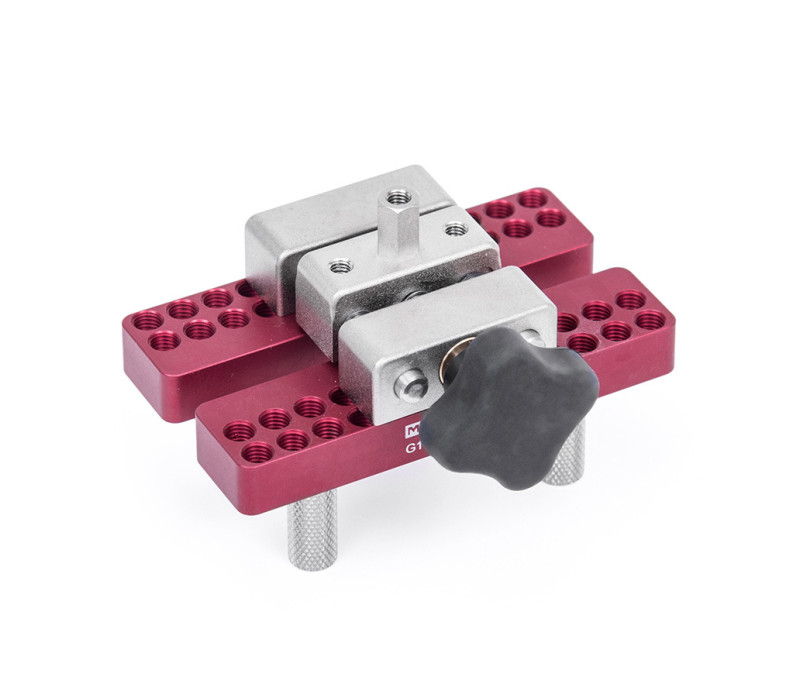

G1058 is a universal grip for pull testing and torque testing applications. Adjustable serrated metal posts accommodate a variety of sample shapes and sizes.

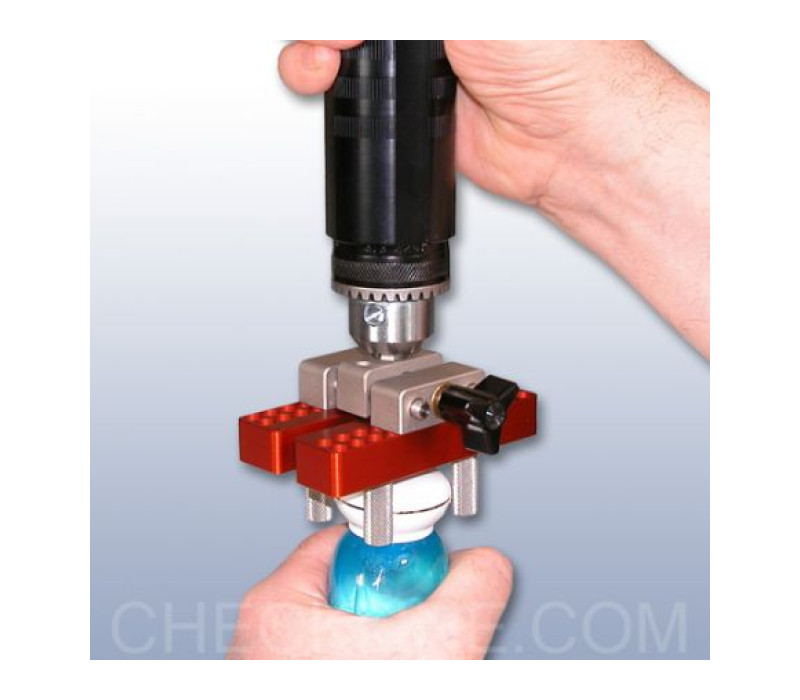

G1058 shown in a manual bottle cap torque test.

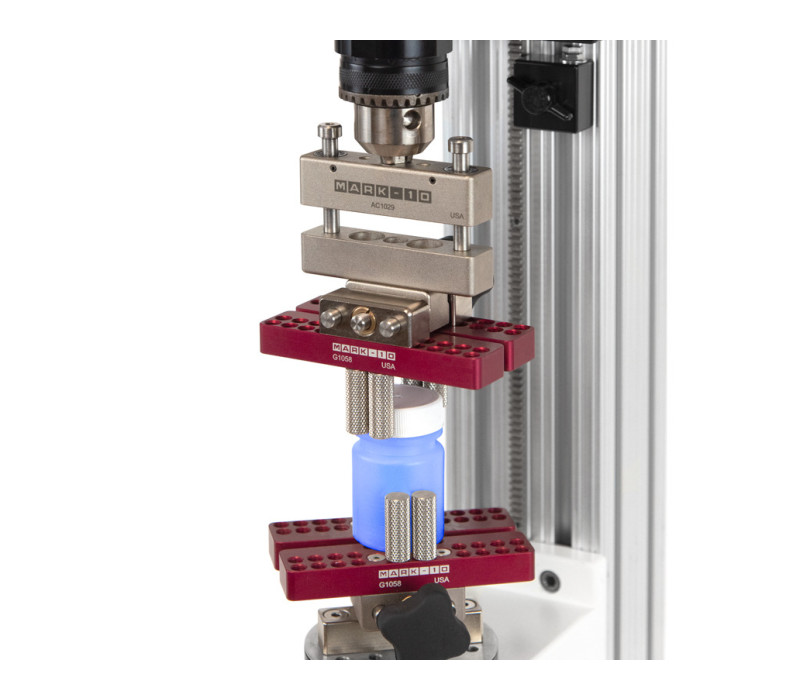

2x G1058 shown in a bottle cap torque testing application in a torque test stand

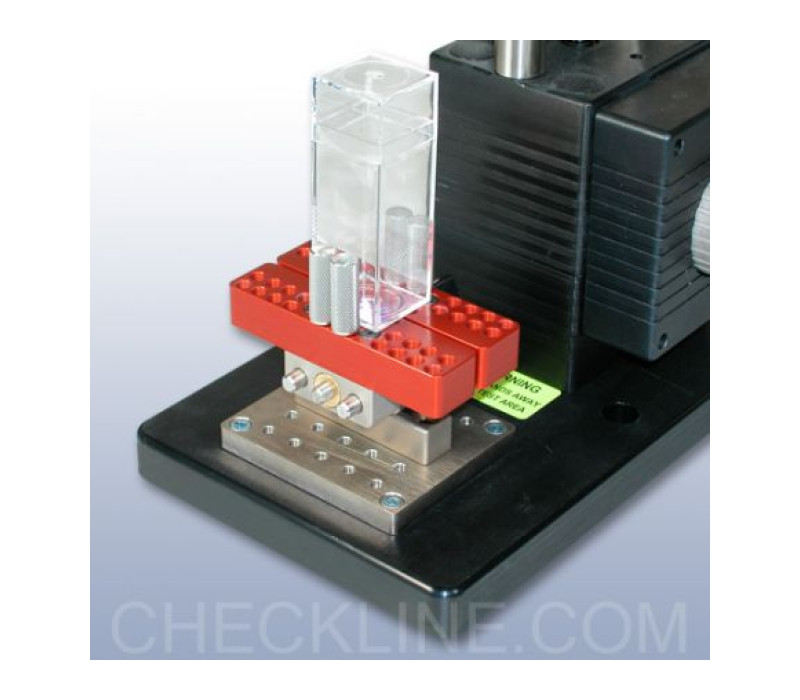

G1058 is shown securing a rectangular container, mounted to a Mark-10 test stand via the G1055 adapter.

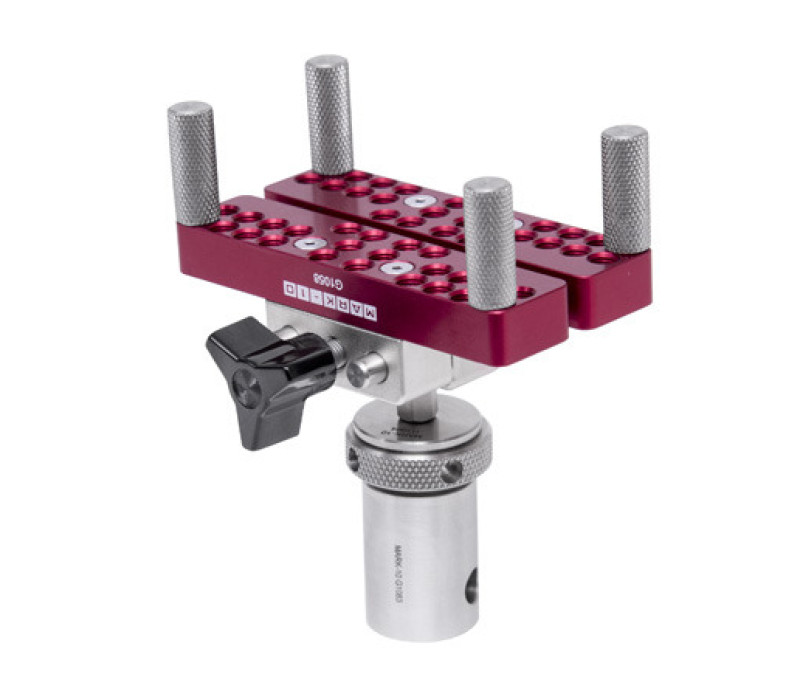

Eye end adapters are compatible with various test stands, load cells, and force gauges

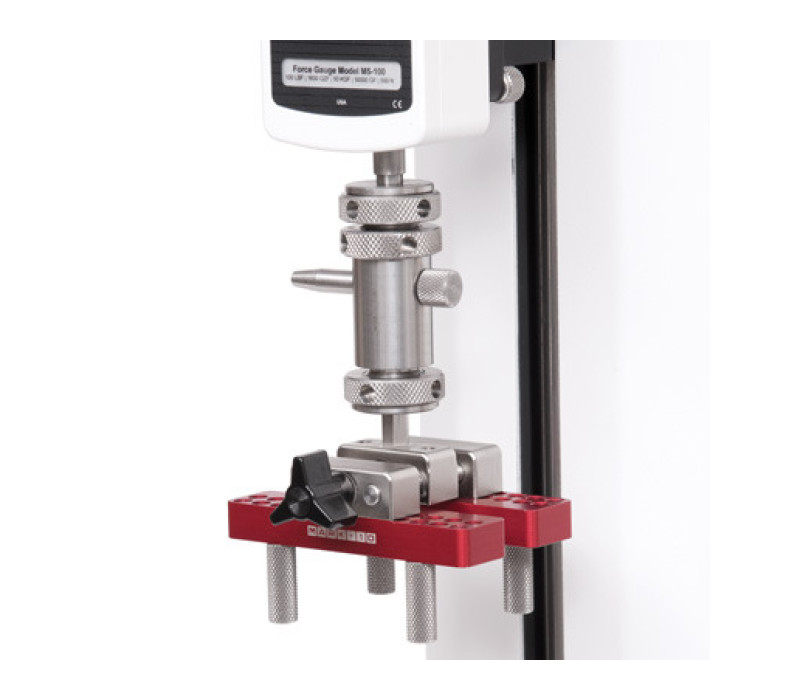

The quick-change eye end adapters allow for simple grip removal / installation, and also prevent rotation.

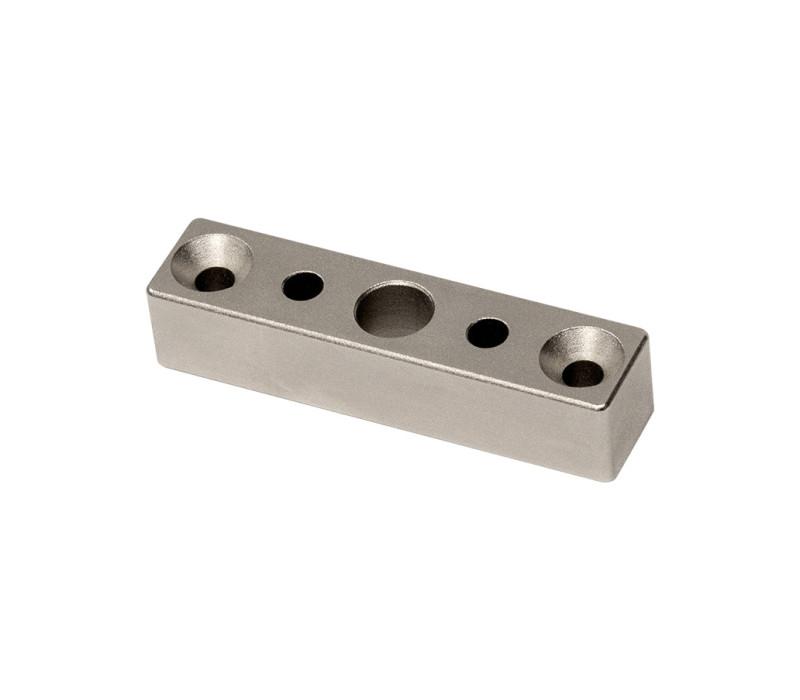

G1055 adapts the G1058 to many Mark-10 test stands

Universal Cap Grip

Name: Universal Cap Grip
SKU: 126624
Price: 436.00 EUR
Availability: PreOrder

The G1058 Universal Cap Grip is designed as a holding fixture for torque and pull tests.
Typical applications like bottle cap torque testing, if required with AC1029 Axial Compensator, or pull testing where test samples are clamped in a fixed position.
This clamp can be used as a stationary and as a moving clamp in a test application.

The fixture consists of a clamping section with a rubberized knob to tighten and loosen an ACME screw.
The business end consists of 2 bars with a matrix of threaded holes with serrated steel posts that can be placed in a position that is required for the test sample.
Closing the jaws will clamp the sample. The range for clamping samples is 5.1 - 89.0 mm, capacity for torque is 11,3 Nm, and 250 N for Force measurements.

As an option there are 3 different length sets of rubber edge posts available, CT004/005/006.

The grip can be used in combination with a torque sensor (R50), the TT03 torque gauge or in a test stand for torque or pull testing.

The grip features a hex tail with internal thread to permit use in a chuck or for mounting to a force gauge or force test stand.
Optional adapters available to mount the G1058 grip are, among others, G1055, for securing the G1058 to a test stand base and the G1082 swivel adapter.

A #10-32 M/M stud with jam nuts is included with this grip.

€ 436,00

Order now

Adjustable posts and vise-action mechanism accommodate a wide range of sample shapes and sizes
May be used in torque and force measurement applications
Works manualy and in combination with torque and force test stands
Alternative sets of (rubber edged) posts available

D1058 Universal Cap Grip

Capacity	Torque: 11,3 Nm Force: 250 N
Weight	290 g

Data sheet all grips

Solid Models G1058
