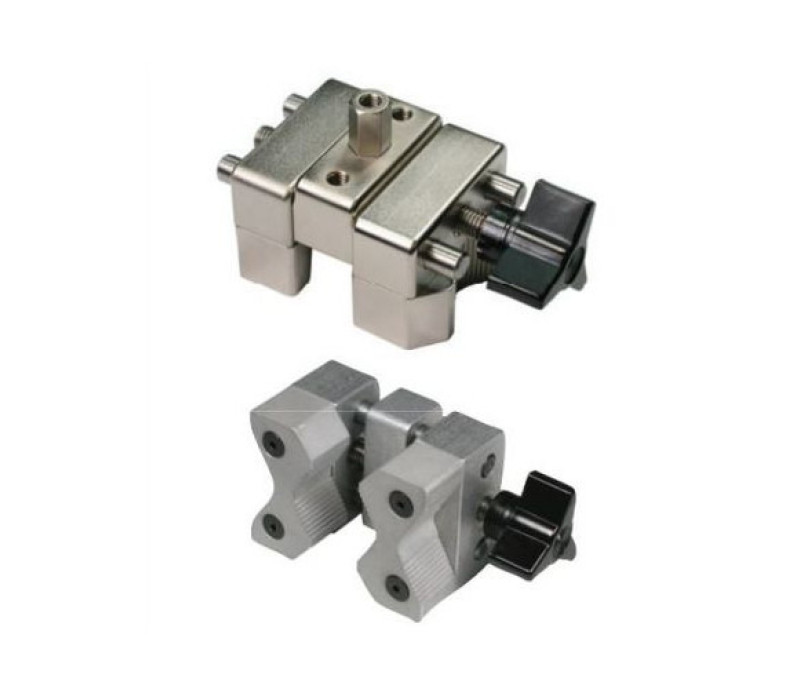

G1053 Universal V-Jaw Grip

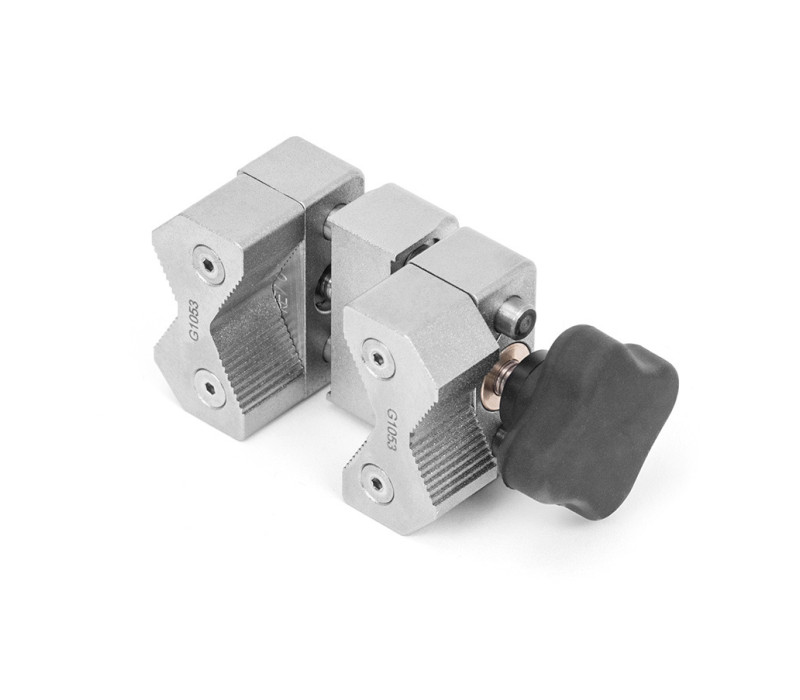

G1053 universal v-jaw grip side-bottom view

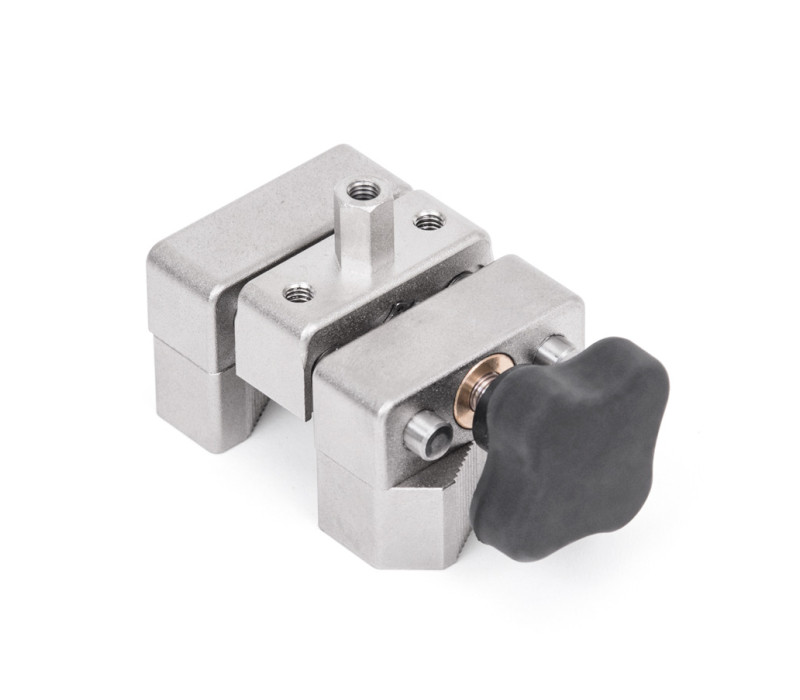

G1053 universal v-jaw grip top view

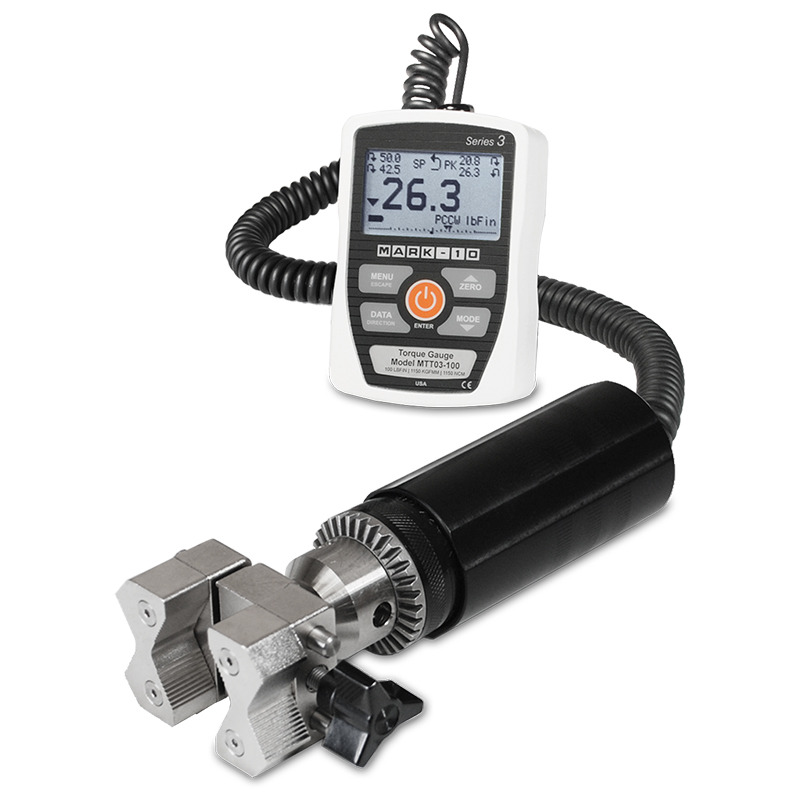

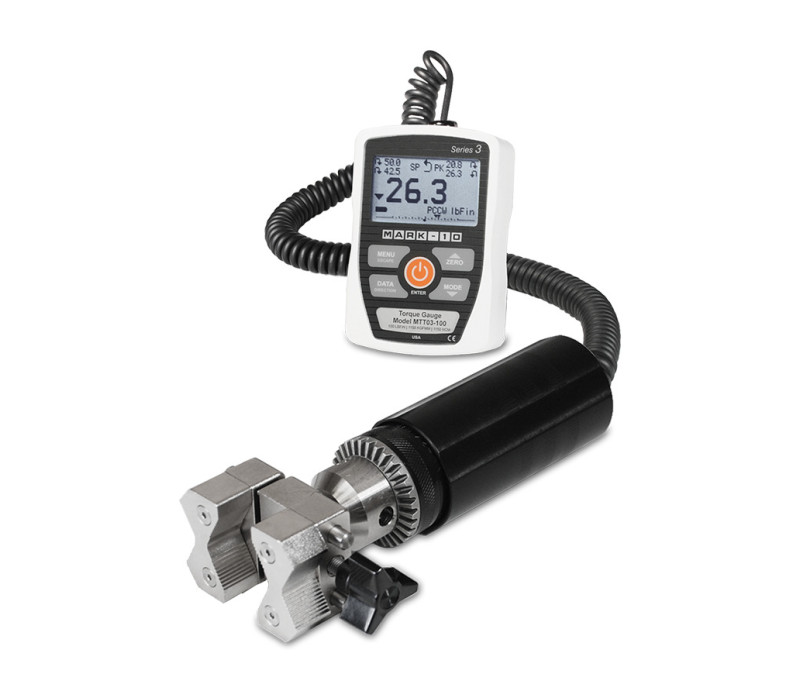

A G1053 in combination with a Series TT03 digital cap torque gauge a quick and economical solutions for basic handheld cap torque testing (TT03C)

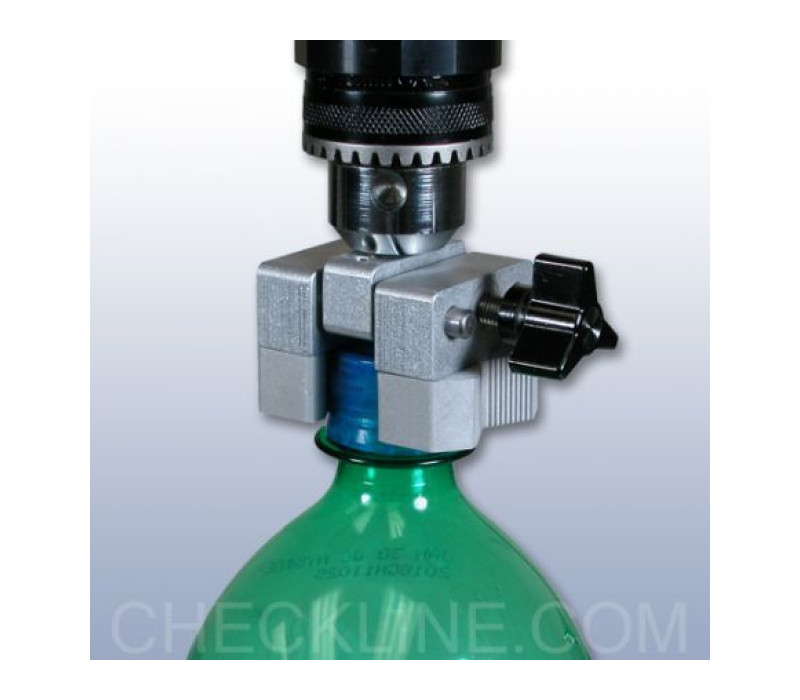

G1053 shown in a typical bottle cap torque testing application

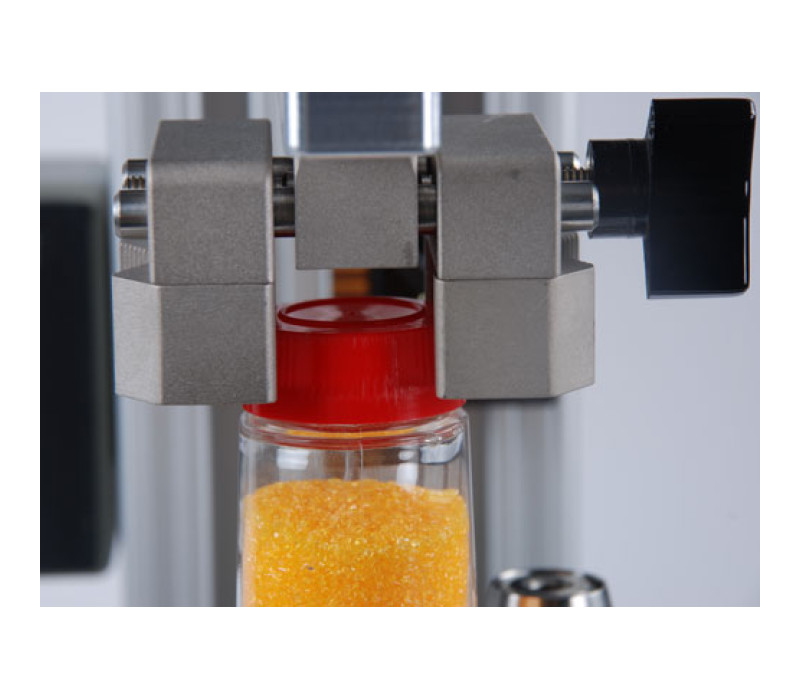

Serrated, reversible aluminum jaws effectively grip a wide range of sample shapes and sizes

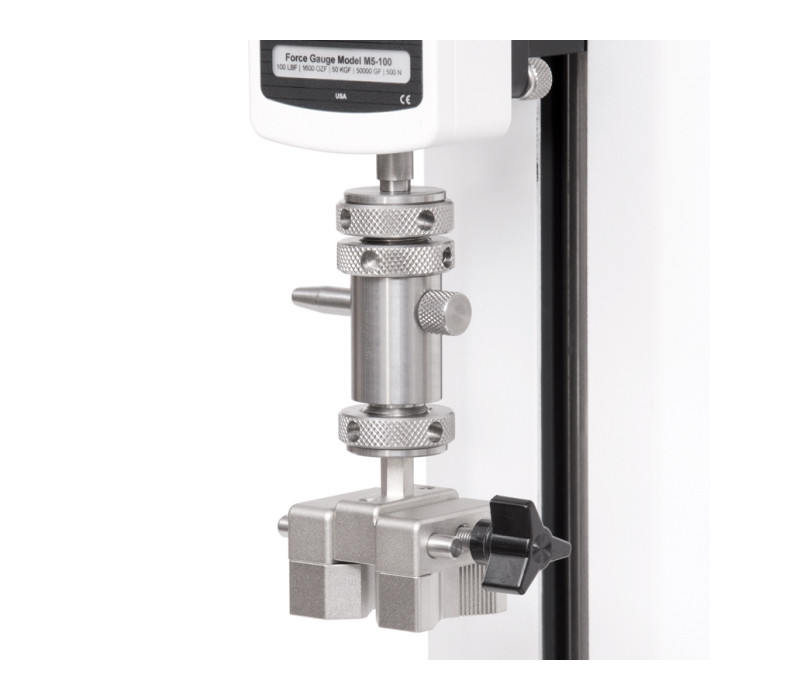

Compatible with quick-change eye end adapters that allow for simple grip removal / installation and prevent rotation

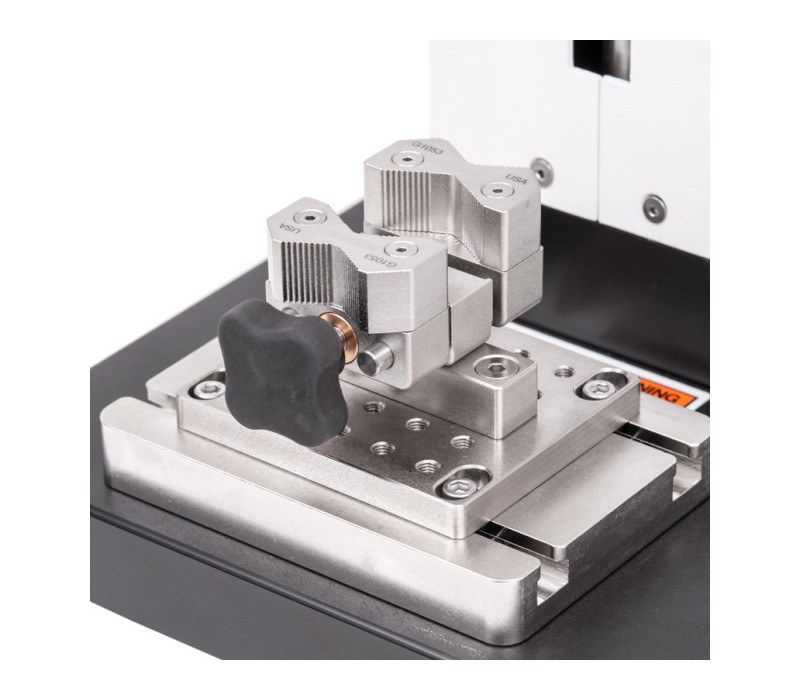

G1053 is shown mounted to the base plate of an ESM303 with a G1055 adapter

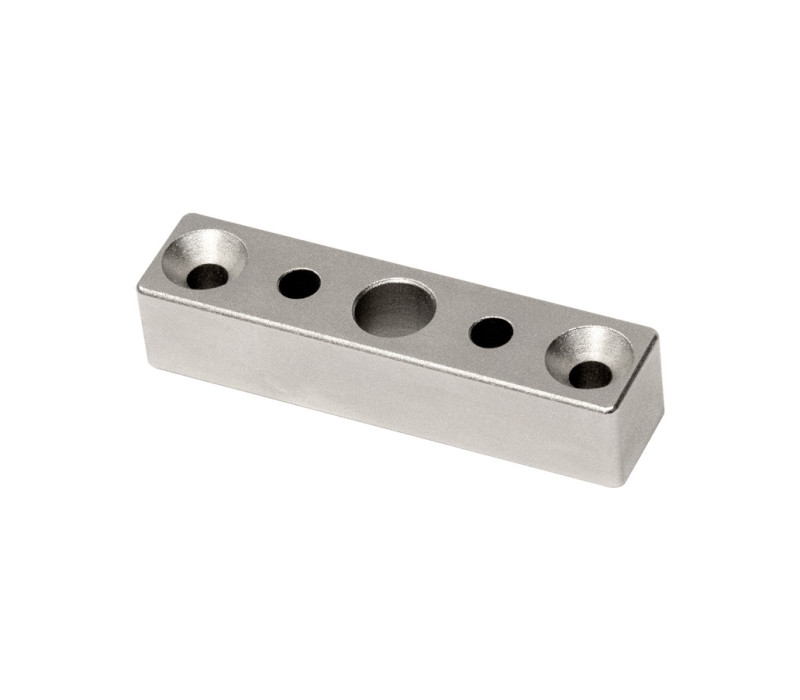

G1055 adapter

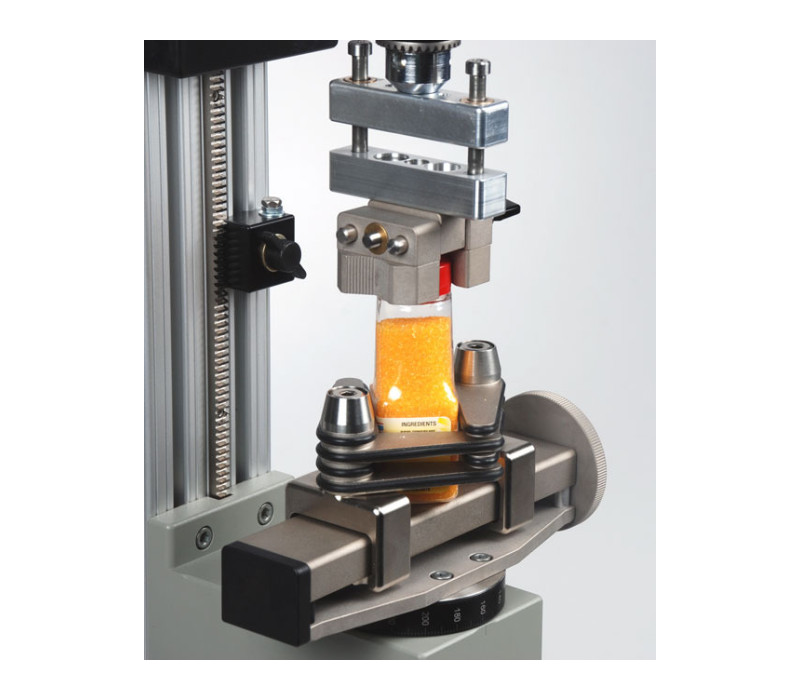

G1053 in combination with an AC1029 axial compensator used in a bottle cap torque test

Universal V-Jaw Grip

Name: Universal V-Jaw Grip
SKU: 126622
Price: 363.00 EUR
Availability: PreOrder

The G1053 Universal V-Jaw Grip is designed for (cap) torque testing but is also suitable for force testing.
This grip has a torque capacity of 11,3 Nm and a force capacity of 250 N.

The reversible jaws of the G1053 support a larger clamping range without sacrificing grip.
The small side of the jaws supports a range of 16,5 to 27,9 mm while the large jaw side can clamp a 27,9 to 39,4 mm sample.
The jaws are clamped by turning a rubberized knob that drives an acme screw for long lasting performance.

These grips are used for a variety of torque and force tests . Serrated aluminum jaws effectively grip a wide range of sample shapes and sizes.
The G1053 mounts to Jacobs chucks, force gauges, and test stands, directly or by adapters depending on type of test and equipment.

Combined with a TT03 digital cap torque gauge the G1053 forms a quick and economical solution for basic handheld cap torque testing.
Using a G1055 adapter the G1053 can be securely mounted to the mounting plate of a torque or force test stand.
An AC1019 axial compensator can take up the axial movement when performing a cap screw torque test in a test stand.
In case of alignment issues a G1018-1 swivel adapter can be added to the test setup.

This grip comes with a #10-32 M/M stud with jam nuts.

€ 363,00

Order now

Reversible serrated jaws secure bottle caps and other round objects
Precision Acme screws provides durability and longevity
May be used for force and torque measurements

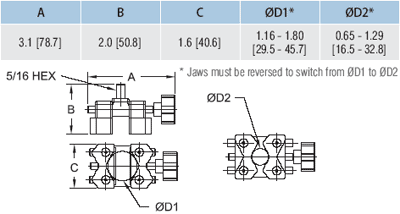

G1053 Universal V-Jaw Grip

mm(in)

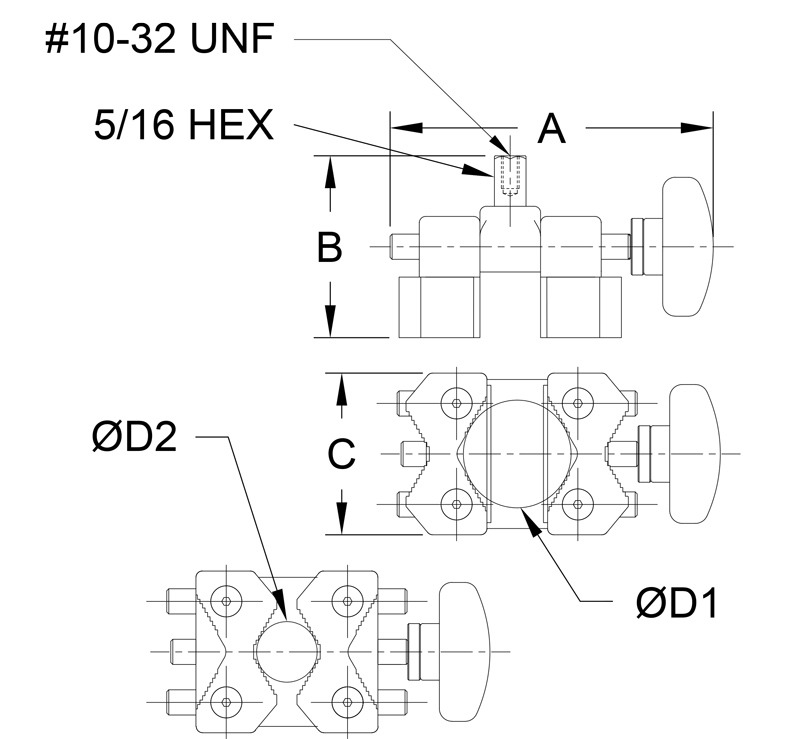

A	B	C	ØD1*	ØD2*
78.7 (3.1)	45.0 (1.77)	40.6(1.6)	27.9 - 39.4 (1.10 - 1.55)	16.5 - 27.9 (0.65 - 1.10)

D1 no header

A (mm)	B (mm)	C (mm)	ØD1	ØD2
78,7	45,0	40,6	27,9 - 39,4	16,5 - 27,9

Capacity - Torque:	11,3 Nm [100 lbFin]
Capacity - Force:	250 N [50 lbF]
Weight:	0,7 kg [1.50 lb]

Data Sheet for all Grips and Attachments

Solid Models - G1053

Products

Item	Product	Price	Quantity	Action
131927	G1053 Universal V-jaw grip, hex / #10-32F	€ 363,00

Accessories

Item	Product	Price
130817	G1055 Adapter, G1053 to force test stand	€ 55,00
132517	AC1029 Axial Compensator	€ 271,00
130807	G1018-1 Swivel adapter, #10-32M to #10-32F	€ 101,00

All mentioned prices are excluding VAT & excluding shipment costs.
Availability:
Available: 1 - 3 days ,
Delivery time: 1 - 3 weeks ,
special order request

View Cart Check out

Universal V-Jaw Grip

Features

Dimensions

Specifications

AC1029 Axial displacement compensator

G1023 Universal Bottle Grip For TST

Universal Cap Grip

Advanced Motorized Torque test stand

Manual Torque Test Stands

TSTH Manual Horizontal Torque Test Stand

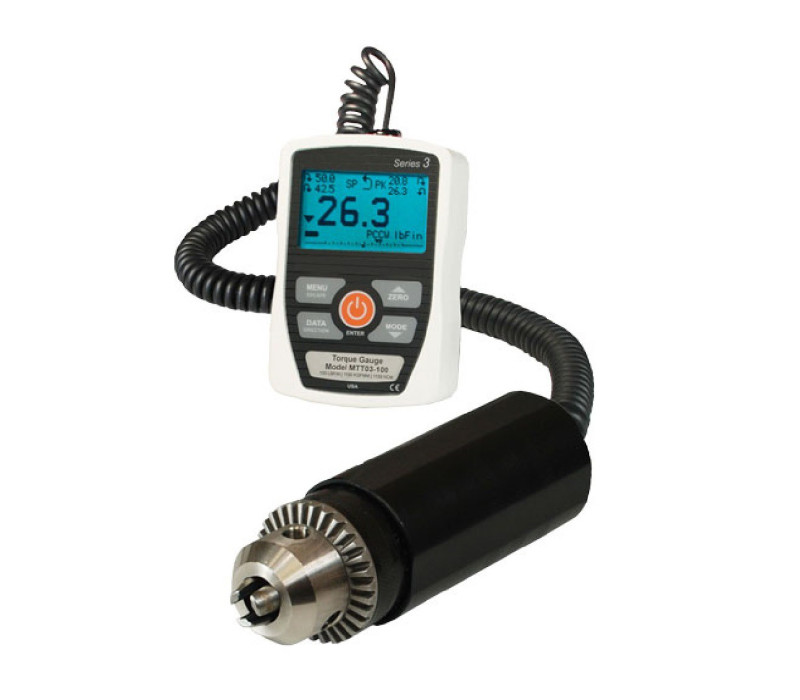

Digital Torque Meter for torque testing applications
