Ultrasonic Thickness Gauges – How to Choose the Right Model

Our ultrasonic wall thickness gauges offer non-destructive measurement from a single side and are used in applications ranging from corrosion inspection to thin-wall precision control. Choosing the right model depends on the material, coating, surface condition, and required functionality.

Measuring Range

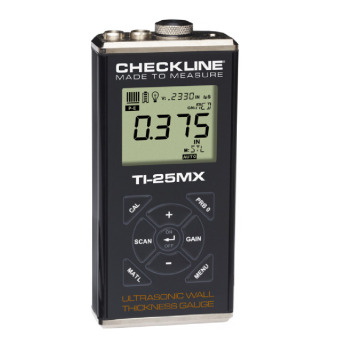

For homogeneous materials starting at 0.15 mm, choose a precision model like the TI-007X, which uses a delay-line probe for high-resolution readings. If you're working with thicker materials up to 254 mm, models such as the TI-25MX or TI-CMX are more suitable, offering broad compatibility with different probes.

Resolution

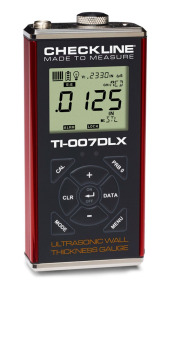

For applications requiring ultra-precise measurements, such as thin materials, the TI-007X Series provides resolutions of 0.001 mm. Most standard models offer 0.01 mm resolution, which is sufficient for general-purpose inspections.

Measurement of Coated Materials

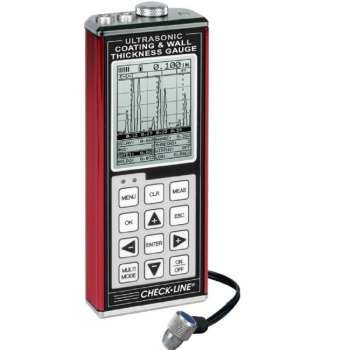

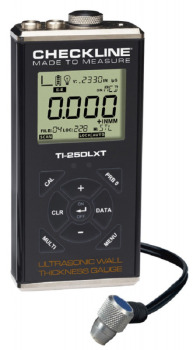

If you need to measure painted or coated surfaces without removing the coating, select a gauge that supports Echo-Echo mode, such as the TI-25DLXT, TI-MMX, or TI-CMX Series. These models allow accurate wall thickness readings through paint or coatings.

Data Storage

When you need to record readings for later analysis, models with built-in memory such as the TI-007DLX, TI-25DLXT, or TI-MMX-DL are ideal. These can store thousands of measurements and are compatible with USB transfer for easy data export.

Advanced Features

For demanding applications, consider models with:

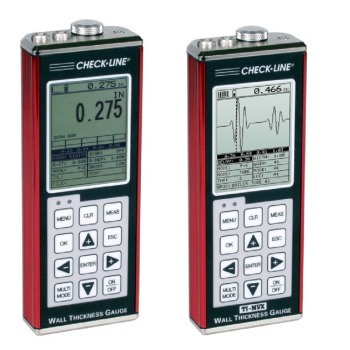

A-Scan / B-Scan: For visual waveform or cross-sectional analysis (e.g., TI-MVX, TI-CMXDLP)

Adjustable Gain & Sound Velocity: For difficult materials or better control (e.g., TI-007X, TI-MMX)

Colour display: For improved readability and analysis (e.g., TI-CMXDLP-C)

Speciality Models

Some gauges are designed for specific use cases beyond standard wall thickness applications:

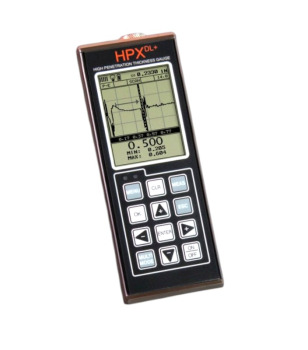

• HPX-DLP: Designed for high penetration on challenging materials like castings, rubber, fiberglass, composites (FRP), and lead. Offers frequencies from 0.5 to 10 MHz and enhanced signal processing.
• PR-9: Compact sonic tester ideal for race shops and automotive use, with fast readings on steel, aluminum, and other metals. Especially suited for mapping chassis tubes and panels.
• PR-8V: Adds Echo-Echo and B-Scan modes to the PR-9 functionality, enabling precise inspection through coatings and better structural analysis.

Need advice? Our technical team will be happy to help you choose the most suitable ultrasonic thickness gauge based on your measurement needs and application type.
