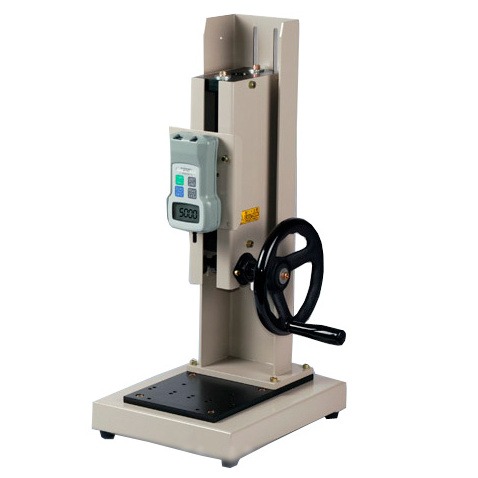

FTS-X Force Test System


The FTS-X is a complete Force Test System designed for precision measurement of push / pull force on a wide variety of applications. FTS-X offers USB data output and along with a complete software package to record and analyze your test data.

The FTS-X consists of the FGV-XY Digital Force Gauge and FGS-100H Manual Hand-Wheel Test Stand. Refer to additional details below. For complete technical details on each component, click the photos in the "Related Products" section below.


Features
  • 1000 Hz Sample Rate
    captures true peak values even those occurring over very short time intervals
  • Accuracy of ±0.2%
    providing superb repeatability
  • USB, RS-232 & Analog Outputs-- all included!
    3 different outputs for data transfer provides maximum flexibility
  • 200% Overload Capacity
    minimizes the likelihood of costly repairs
  • Rugged Die Cast Aluminum Housing & Rugged Construction
    provides exceptional durability even in the toughest field applications
  • Reversible Display
    optimized for use as both a handheld gauge or mount upside down on a test stand
  • Versatile bottom mounting plate accepts standard and custom-made attachments
  • Selectable Auto-Shut Off
    prolongs battery life, while allowing constant use when powered via supplied AC-adapter
  • Small Size
    Ergonomic design provides comfort for hand held testing
  • Automatic Calculation & Display of Statistics
    provides immediate results and analysis of your force testing
  • 3 Memory Modes
    optimize data storage for any application transferring data to PC/Laptop when convenient
  • Built In User-Set Hi-Lo Alarm Limits
    perform quick and easy ‘Go-No Go’ testing with visual LCD indicator when "out of tolerance"
  • Includes calibration certificate
  • Constant Linear Motion
  • Consists of the FGV-XY Digital Force Gauge and FGS-100H Manual Hand-Wheel Test Stand
  • Sturdy, all steel construction

Tension Ranges
Model Capacity Resolution
FTS-5X 5 lb
20 N
2 kg
0.001 lb
0.01 N
0.001 kg

FTS-10X 10 lb
50 N
5 kg
0.01 lb
0.01 N
0.001 kg

FTS-20X 20 lb
100 N
10 kg
0.01 lb
0.1 N
0.01 kg

FTS-50X 50 lb
200 N
20 kg
0.01 lb
0.1 N
0.01 kg

FTS-100X 100 lb
500 N
50 kg
0.1 lb
0.1 N
0.01 kg


Standard Attachments


Special Attachments



Related Products

FGV-XY Digital Force Gauge with USB Output


  • Accuracy of ±0.2%
    providing superb repeatability
  • USB, RS-232 & Analog Outputs-- all included!
    3 different outputs for data transfer provides maximum flexibility

More details

FGV-XY Digital Force Gauge with USB Output

FGS-100H Manual Hand Wheel Operated Test Stand


  • Sturdy, all steel construction

More details

FGS-100H Manual Hand Wheel Operated Test Stand

Dimensions
Dimensions Mechanical Force Test Stands FTS-X


Specifications
Capacity
110 lbs (50 kg)
Stroke
5.9" (150 mm)
Travel Rate
3 mm/wheel turn (approximately)
Dimensions
Refer to dimensions above
Measuring Modes
Realtime, Compression Peak, Tension Peak
Display Update Rate
User Selectable: 1, 2, 3, 5, 10, 20 times per second
Sampling Rate
1000 times per second (1000Hz/1KHz)
Accuracy
± 0.2% F.S.
Temperature Drift
Gain : ± 0.01% LOAD / Zero : ±0.01% / R.C. / Drift of zero point can be cancelled with tracking function.
Display
Main display: 4-digits 12mm high, Reversible
Units display: 3-digits 7mm high
Other display: "LO BAT"(Low Battery Voltage), "BAT"(Battery Charging), "OVR"(Overload), "Peak"(Peak Hold)
Overload
200% of Full Scale
Tracking
User Selectable (ON/OFF)
USB Output
Allows communication between FGV-XY and Windows PC Software with ToriemonUSB via USB cable(included).
RS-232C Output
Allows communication between the FGV-XY and RS-232C devices. RS-232C cable is an optional accessory.
Analog Output
± 1V, Accuracy is ± 50mV through a 12 bit D/A. ZERO affects this output, and is updated at 1000 times/second. Load is >10k Ohms
Overload/Comparator Output
Open-collector output (Max DC30V/5mA).
Power
Rechargeable Nickel hydride battery or AC adapter/charger. Usable while charging.
Operating Time
Approximately 8 hours after a full charge. Charging Time: 16 Hours Max.
Auto Power Off
Default is 10 minutes. Can be disbaled. Automatically disabled when connected to AC adapter.
Memory function
Continuous memory: 1000 data points, Single memory: 100 data points, Standard memory: 50 data points Statistics functions (max, minimum, peak, average, standard deviation)
Comparator function
User Selectable: HI and LO
Temperature range
0 ~ 40° C (-32 ~ 104° F)
Humidity range
35 ~ 85% RH
Dimensions
147mm (L)x 75mm (W) x 38mm(H)
Weight
Approx. 34 lbs
Accessories(Included)
AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable
Application Software
Application software (USB version): Available at www.shimpoinst.com/software for free.
Warranty
1 year

Buy Now
Products

Product name
Price
Quantity
FTS-5X - Test System 5 lbs Capacity (FGV-5XY + FGS-100H)
€ 1.400,00
FTS-10X - Test System 10 lbs Capacity (FGV-5XY + FGS-100H)
€ 1.400,00
FTS-20X - Test System 20 lbs Capacity (FGV-5XY + FGS-100H)
€ 1.400,00
FTS-50X - Test System 50 lbs Capacity (FGV-5XY + FGS-100H)
€ 1.400,00
FTS-100X - Test System 100 lbs Capacity (FGV-5XY + FGS-100H)
€ 1.400,00
All mentioned prices are excluding VAT & excluding shipment costs.
Availability: Available , preorder 1-2 weeks , special order, request
